This is the next article in the series of articles about database applications in JSP. In this article, I am going to develop a database application with JSP. In this application, I am showing how to fetch data from a table. To do that, first we design a database of student data and then fetch it from JSP code on server.

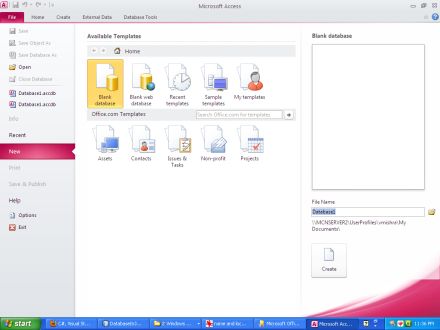

Step 1: Create a new database

In the first step we click on the blank database option and click on the create.

make a new database.jpg

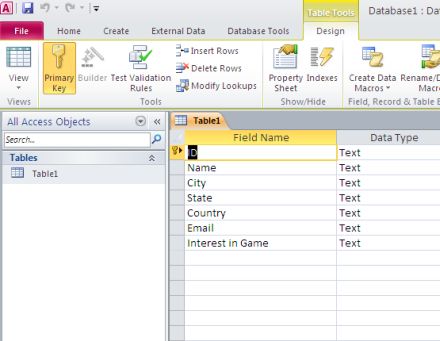

Step 2: Design the database

In this step we select field name and data type for the those fields. In this application we select five fields (id, name, city, state, country, email and interest).

design view.jpg

Step 3: Make DSN

In this step we make DSN by follow the following process.

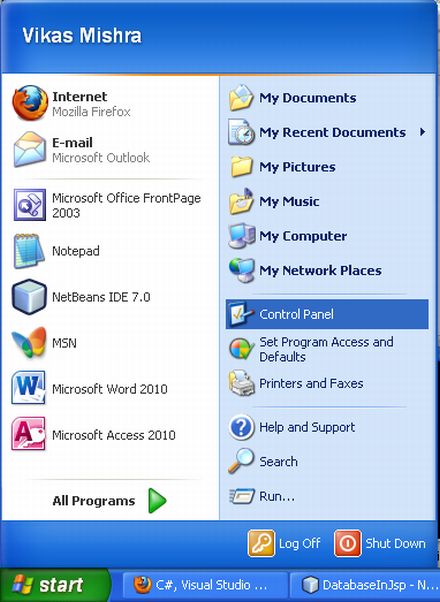

First we select the control panel option from start.

select the control panel.jpg

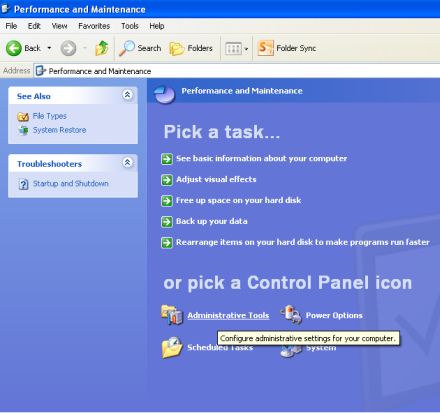

Then click on the administrative tools.

click on administration tools.jpg

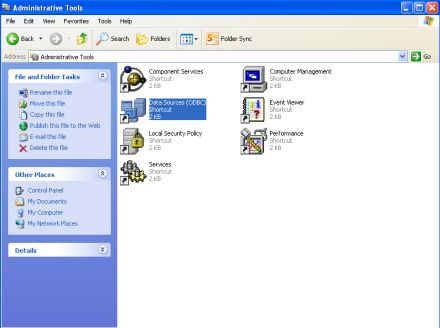

Select Data Sources option.

select data source option.jpg

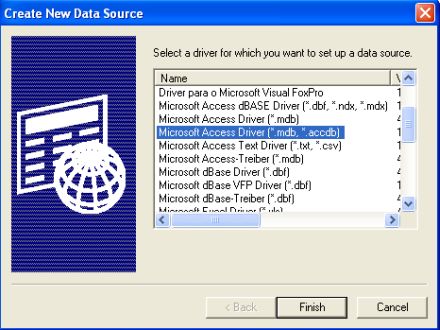

Then select Microsoft Access Driver (*.mdb,*.accdb), and click on the finish button.

create new data source.jpg

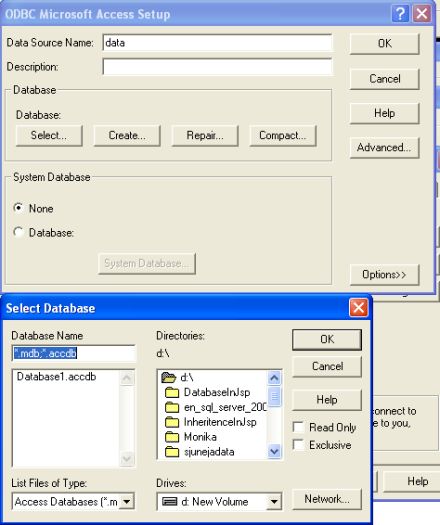

Then select database from the computer and give it a specific name. Now the DSN is created.

select data base.jpg

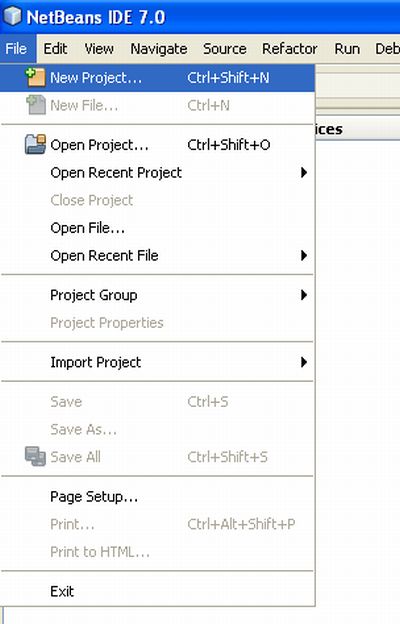

Step 4: Create a New Project

In this step we select New Project option from file menu.

create new project.jpg

Step 5: Choose Project

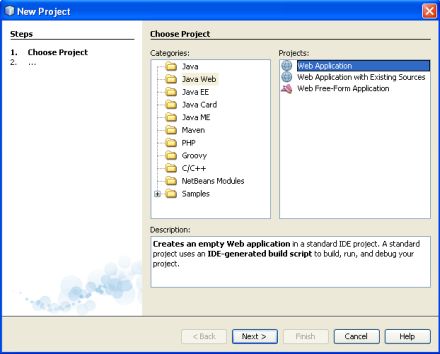

In this step we select web application from Java web option and then click on the next button.

select new web application.jpg

Step 6: Name and Location

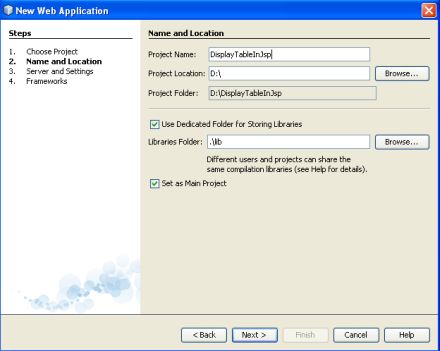

In this step we give it a specific name and set a specific location and click on the next button.

name and location.jpg

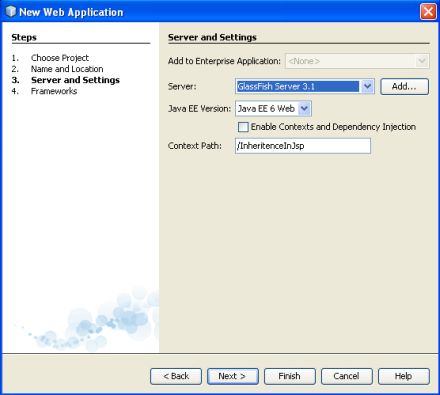

Step 7: Server and Setting

We select a specific server for this application and click on the next button.

server and setting.jpg

Step 8:Select Framework

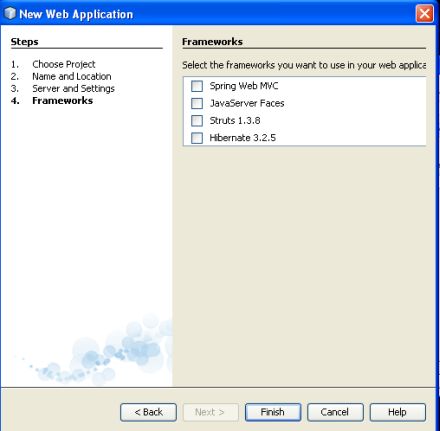

There is no need to select any framework for this application; just click on the finish button.


Step 9: Create jsp file

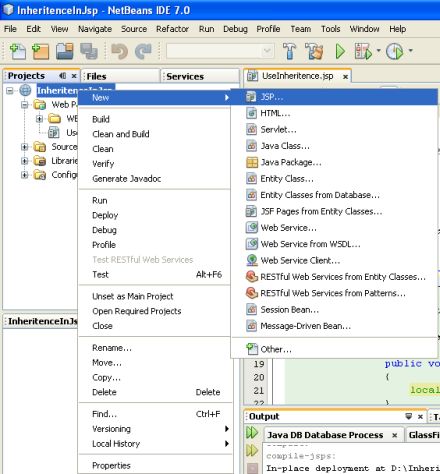

We create one jsp file for this application.

create new jsp file.jpg

Index.jsp

<%@ page import="java.sql.*" %>
<% Class.forName("sun.jdbc.odbc.JdbcOdbcDriver"); %>
<HTML>
       <HEAD>
       <TITLE>
The View Of Database Table </TITLE>
       </HEAD>
       <BODY
BGCOLOR="cyan">
       <H1>The View Of Database Table </H1>
       <%
           Connection connection = DriverManager.getConnection(
            "jdbc:odbc:data");
           Statement statement = connection.createStatement() ;
          ResultSet resultset = statement.executeQuery("select * from table1") ;
       %>
      <TABLE BORDER="1">
      <TR>
      <TH>ID</TH>
      <TH>Name</TH>
      <TH>City</TH>
      <TH>State</TH>
      <TH>Country</TH>
      <TH>Email</TH>
      <TH>Interest in Game</TH>
      </TR>
      <% while(resultset.next()){ %>
      <TR>
       <TD> <%= resultset.getString(1) %></td>
       <TD> <%= resultset.getString(2) %></TD>
       <TD> <%= resultset.getString(3) %></TD>
       <TD> <%= resultset.getString(4) %></TD>
       <TD> <%= resultset.getString(5) %></TD>
       <TD> <%= resultset.getString(6) %></TD>
       <TD> <%= resultset.getString(7) %></TD>
      </TR>
      <% } %>
     </TABLE>
     </BODY>
</HTML>

Step 10: Compile and Run the application

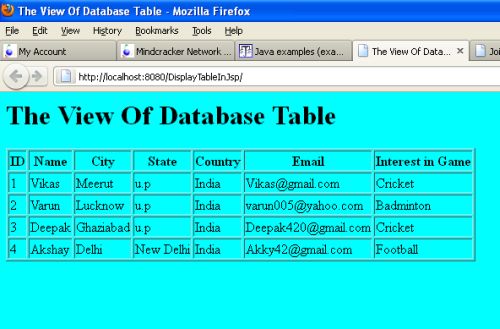

Now we compile the application and then run it on the server and find the following output.

Output

Index.jsp
