In my previous article, we talked about Azure CLI and how to provision Azure VM with Azure CLI.

In this article, we will see how to provision Azure VM with PowerShell and how to implement PowerShell Desired State Configuration to have our VM running always in the desired state.

If you have not installed Azure PowerShell, you can download and configure it from here. Once we have downloaded and installed Azure PowerShell, let us begin step-by-step.

Step 1 - Open PowerShell ISE and sign-in to Azure Portal

command: Login-AzureRmAccount

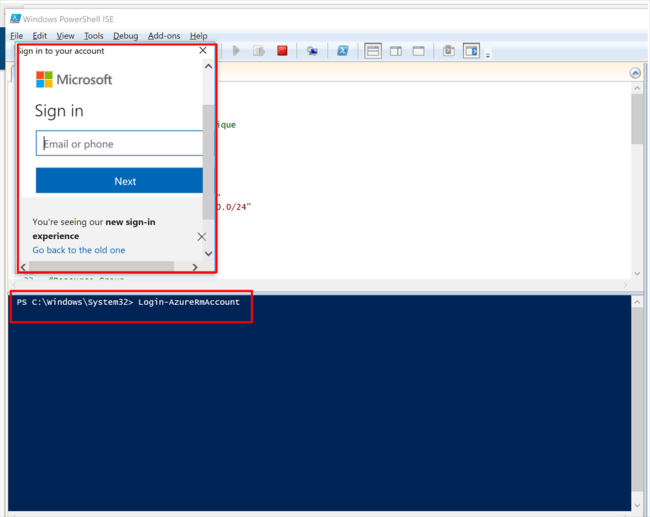

Description: It will open the sign-in page of your Azure Portal.

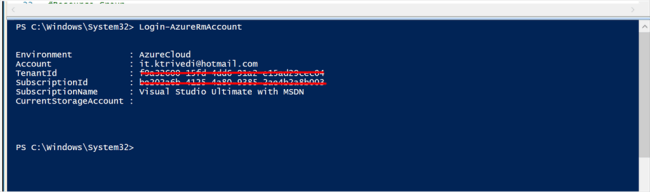

Once you are signed-in successfully, PowerShell will display your Environment, Associated Account, TenantId, SubscriptioNId and SubscriptionName etc.. as shown below.

Step 2 - Create some global variables.

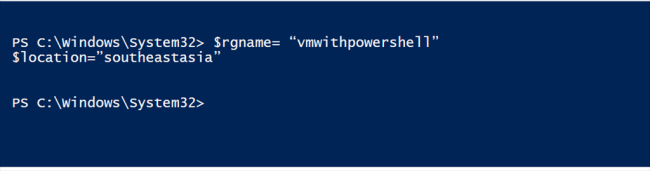

These variables will pass the values when we create our VM. The first variable $rgname holds the Resource Group name and the second variable holds the location.

$rgname= “vmwithpowershell”

$location=”southeastasia”

Step 3 - Create variables to hold storage-related information

Here, storageName will hold the storage account name which must be unique while storageType defines the storage type which is Locally Redundant Storage and storage type is Standard.

$storageName = "powershellstorageforvm" m

$storageType = "Standard_LRS"

Step 4

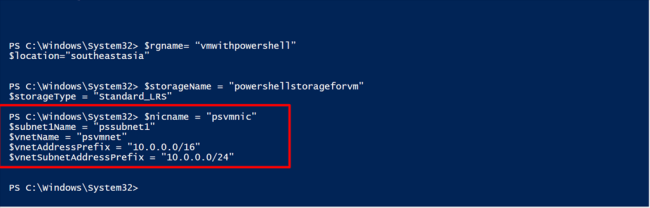

Define network variables such as Network Interface Card name, Subnet and VNet as well as VNetaddress and Subnetaddress.

nicname = "psvmnic"
$subnet1Name = "pssubnet1"
$vnetName = "psvmnet"
$vnetAddressPrefix = "10.0.0.0/16"
$vnetSubnetAddressPrefix = "10.0.0.0/24"

Step 5

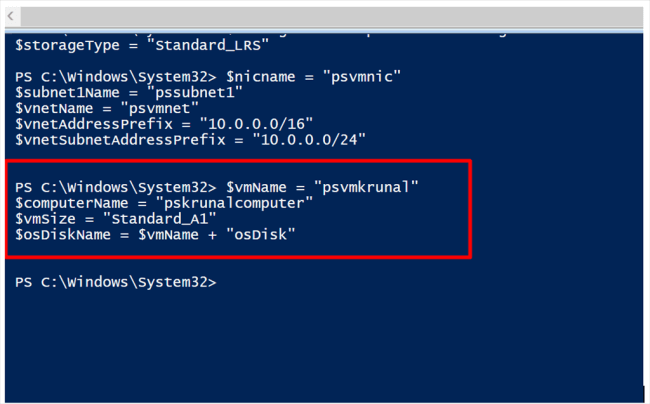

Define compute configuration such as VM Name, Computer Name, Size and OS Disk.

$vmName = "psvmkrunal"
$computerName = "pskrunalcomputer"
$vmSize = "Standard_A1"
$osDiskName = $vmName + "osDisk"

Step 6 - Create Azure Resource Group

Command : New-AzureRmResourceGroup.

Description: It will create new Resource Group at the supplied location with supplied resource group name.

Syntax : New-AzureRmResourceGroup -Name $rgname -Location $location

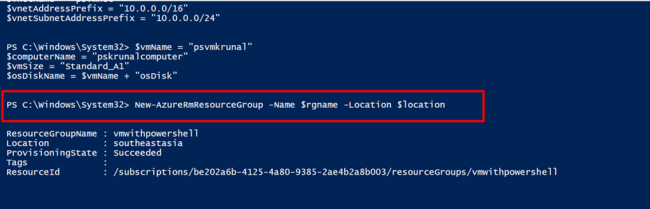

You can see as a result Resource Group named vmwithpowershell has been created at southeast-Asia location.

Step 7: Configure Storage Account

Command : New-AzureRmStorageAccount

Description: This command will take minimum Resource Group Name, Storage Account Name, Storage Account Type, and Location.

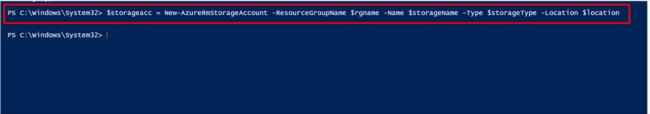

Syntax : $storageacc = New-AzureRmStorageAccount -ResourceGroupName $rgname -Name $storageName -Type $storageType -Location $location

Step 8 Configure Network

Network configuration is composed of 4 subsections.

Configuring Public IP
Defining Subnet Configuration,
Define Virtual Network
Define Network Interface

So let us begin with Configuring Public IP address of our network

Command: New-AzureRmPublicIpAddress

Description: Create dynamic IP address.

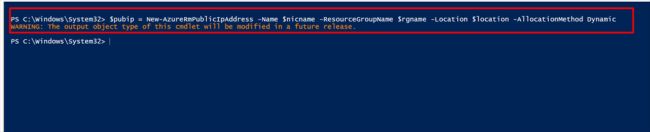

Syntax : $pubip = New-AzureRmPublicIpAddress -Name $nicname -ResourceGroupName $rgname -Location $location -AllocationMethod Dynamic

Now, we will define the Subnet Configuration.

Command : New-AzureRmVirtualNetworkSubnetConfig

Description: Command will define Subnet Configuration. You need to pass Subnet Name and Address Prefix.

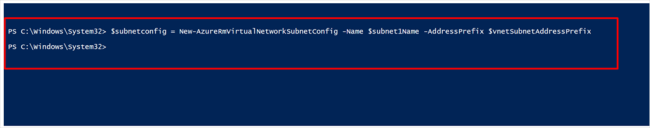

Syntax : subnetconfig: New-AzureRmVirtualNetworkSubnetConfig -Name $subnet1Name -AddressPrefix $vnetSubnetAddressPrefix

Now, we have to define a Virtual Network.

Command : New-AzureRmVirtualNetwork

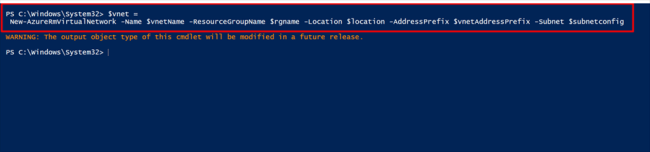

Syntax: $vnet = New-AzureRmVirtualNetwork -Name $vnetName -ResourceGroupName $rgname -Location $location -AddressPrefix $vnetAddressPrefix -Subnet $subnetconfig

Description: The command will provision Virtual Network. It takes other values such as Resource Group Name, Location, Address Prefix and Subnet Config.

In this final step now, we will define the Network Interface.

Command : New-AzureRmNetworkInterface

Syntax : $nic = New-AzureRmNetworkInterface -Name $nicname -ResourceGroupName $rgname -Location $location -SubnetId $vnet.Subnets[0].Id -PublicIpAddressId $pubip.Id

Step 9 Configuring Virtual Machine.

Command: Get-Credential

Description: Open credential dialogs and retrieve the credentials from the user.

$cred = Get-Credential -Message "Enter the username and password for VM admin"

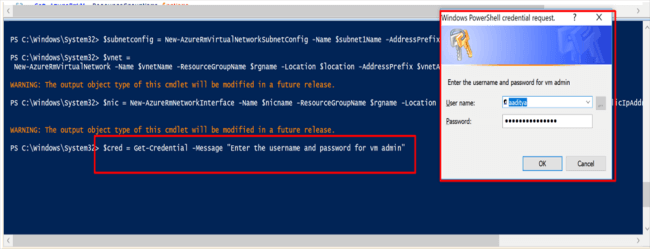

As shown in the diagram this command will ask for Username and Password for the VM and store in the $cred variables.

Now, we will provision VM Name and VM Size.

Command : New-AzureRmVMConfig

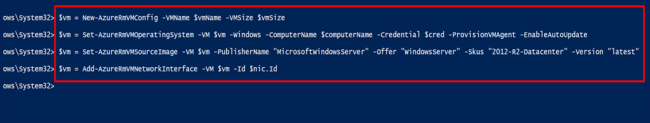

Syntax: $vm = New-AzureRmVMConfig -VMName $vmName -VMSize $vmSize

Now, we will configure windows OS along with credentials and upgradation options.

Command: Set-AzureRmVMOperatingSystem

Syntax : $vm = Set-AzureRmVMOperatingSystem -VM $vm -Windows -ComputerName $computerName -Credential $cred -ProvisionVMAgent -EnableAutoUpdate

Now, we have to define VM OS Image settings such as publisher, OS Version and SKUs.

Command : Set-AzureRmVMSourceImage

Syntax : $vm = Set-AzureRmVMSourceImage -VM $vm -PublisherName "MicrosoftWindowsServer" -Offer "WindowsServer" -Skus "2012-R2-Datacenter" -Version

And finally we will provide Network Interface Card info such as nic id to the vm variable.

Command : Add-AzureRmVMNetworkInterface

Syntax : $vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $nic.Id

Step 10

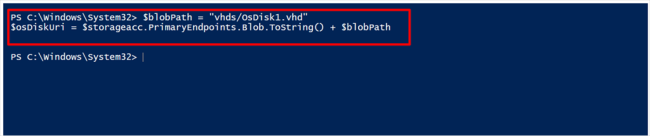

Now we will define blob path to store our VM and then we will append that blob path with our storage account’s endpoint.

Syntax : $blobPath = "vhds/OsDisk1.vhd"

$osDiskUri = $storageacc.PrimaryEndpoints.Blob.ToString() + $blobPath

Step 11 - Create OS disk name for our Azure VM.

Command : Set-AzureRmVMOSDisk

Syntax : $vm = Set-AzureRmVMOSDisk -VM $vm -Name "myOsDisk" -VhdUri $osDiskUri -CreateOption fromImage

Step 12 - Now, in this final step we will provide our Azure Virtual Machine

Command: New-AzureRmVM

Syntax: New-AzureRmVM -ResourceGroupName $rgname -Location $location -VM $vm

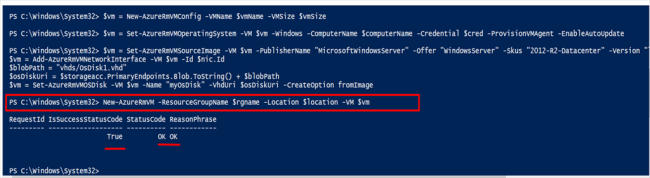

Once the VM is created successfully you will get isSuccessStatusCode as shown in the above diagram.

Step 13 - Retrieve the details of Azure VM.

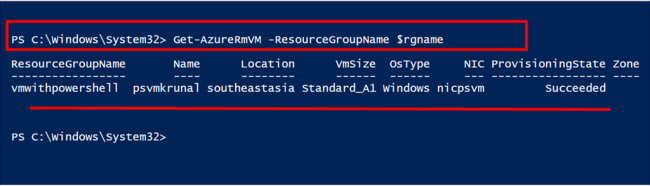

Command : Get-AzureRmVM

Syntax : Get-AzureRmVM -ResourceGroupName $rgname

Step 14

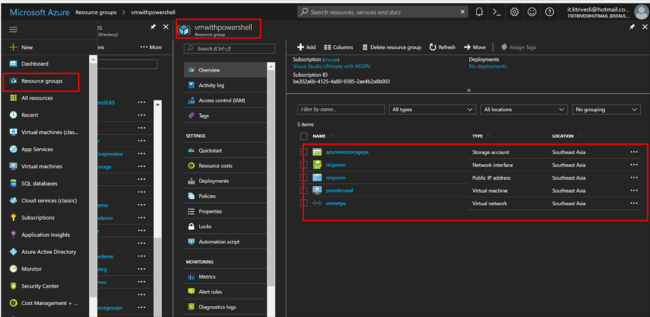

Go to Portal - Resource Groups - vmwithpowershell (your newly created resource group), you can see all resources are provisioned.

So you can see we have successfully created Azure VM with PowerShell and now we will work with Desired State Configuration with PowerShell. To have a better understanding of PowerShell DSC, you can read my article here.

Azure PowerShell DSC

Now, connect to the VM using RDP.

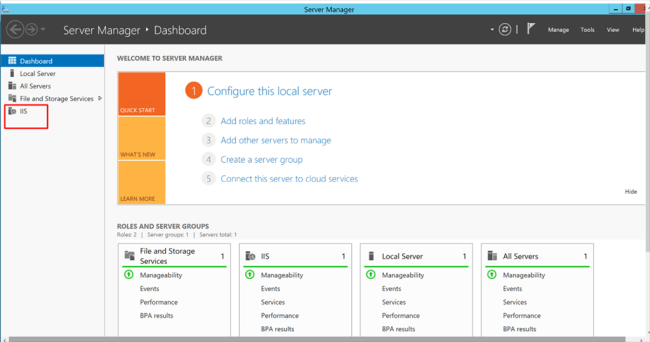

You can see the VM doesn’t have IIS Role Installed as well as VM doesn’t include ASP.NET 4.5 Role installed.
What I need is every time if some planned or unplanned changes happen and if my VM reboot it must have these two roles available. So instead of configuring it manually, I am going to work with Desired State Configuration.
We will add some PS Scripts based on Azure DSC which will make sure your VM must have these two roles configured every time it restarts.

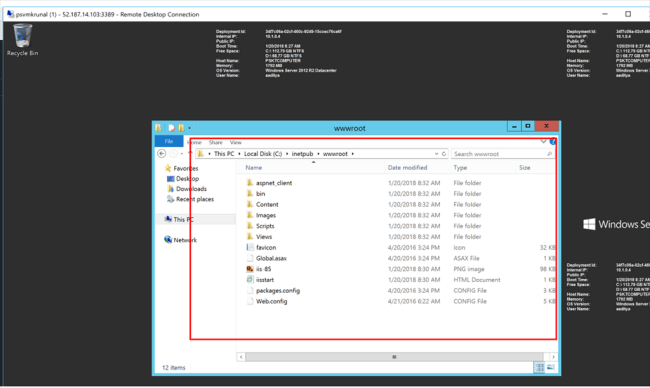

I also want to upload a web application to the wwwroot folder of my application.

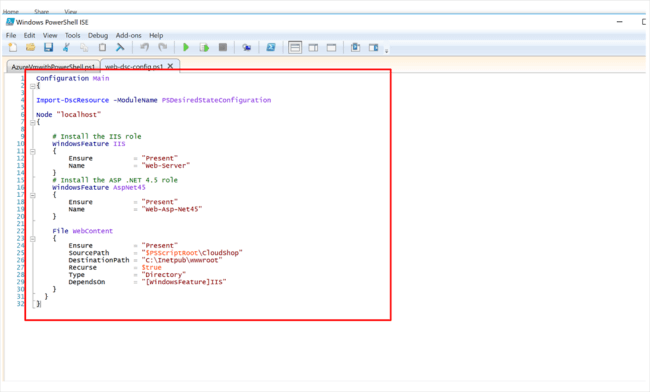

Here You can see our PowerShell DSC script.

So let us begin.

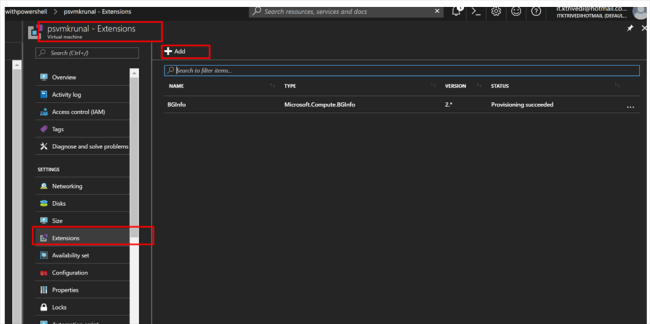

Step 15 - Go to your VM and click on Extensions and Click Add

Step 16

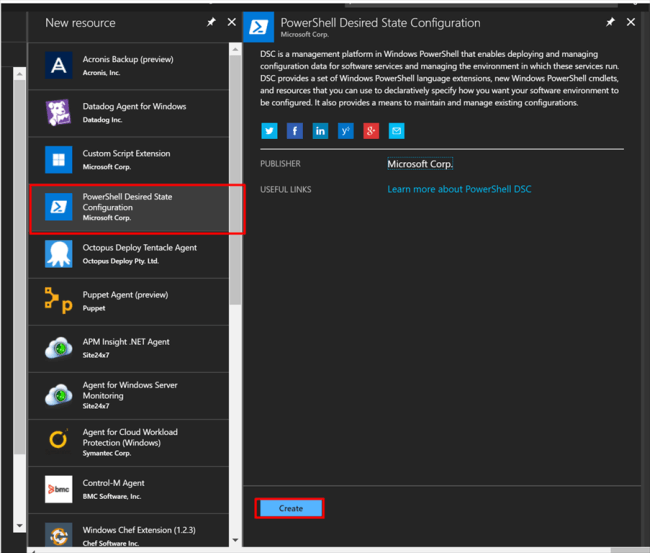

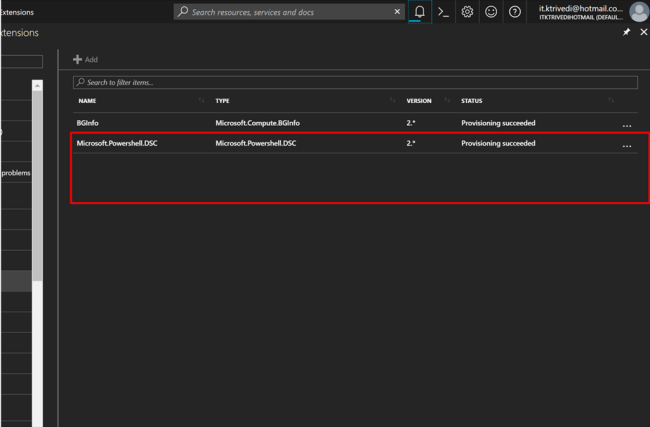

Select PowerShell DSC and click on Create.

Step 17 - Provisioning PowerShell DSC Script

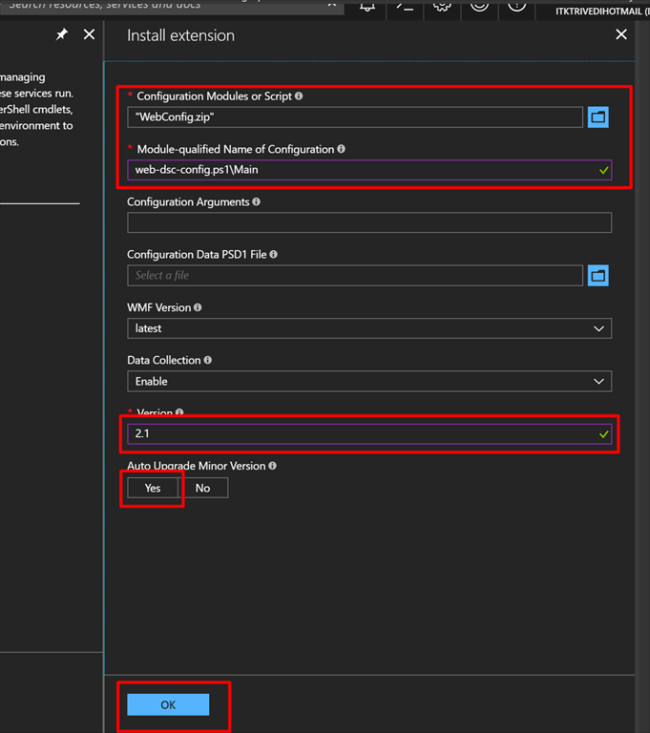

Now here in the Configuration section, we are going to upload our zip file.That zip file contains our PowerShell DSC script as well as one ASP.NET MVC based web application called CloudShop.
In the next step, in the Module-Qualified Name of Configuration, we will provide our PS DSC script file name followed by module name Main.
As of now we don’t have any Configuration arguments as well as any configuration data file. Windows Management Framework (WMF) would be latest and upgrade to minor version is set to Yes. So if I modify my PS DSC file it would be automatically updated to next version.
