How To Bind Data To A Drop-Down List And An HTML Table With *ngfor In Angular

I am taking one real time example which displays a list of available products based on the product selection. In this example, you will learn -
  1. How to create a Products array object using TypeScript in a class;
  2. Bind Products to dropdown list with *ngFor;
  3. Call a method to search a list of products using "ngModelChange" ;
  4. Bind Product details object to an HTML table.
Now, let's start entering the code step by step.

Build an array object and store some data in it using TypeScript in a component class.
  1. export class ProductComponent {
  2.
  3. /// this data used to display in products dropdown
  4.
  5. public ProductHeader = [{ name: 'Hp' }, { name: 'Dell'}, { name: 'Lenovo' }];
  6.
  7.
  8. /// this data used to display in products details in a html table
  9.
  10. public Products = [
  11. {Name:'Hp', title: 'HP ENVY Laptop - 15t touch', price: '1099', store: 'Best Buy', model: '15-BS013DX' },
  12. { Name: 'Dell', title: 'Dell Laptop', price: '700', store: 'Amazon', model: 'I7378-3000SLV-PUS' },
  13. { Name: 'Lenovo', title: 'Lenovo Touch-Screen Laptop', price: '670', store: 'Target', model: '81A40025US' },
  14. { Name: 'Hp', title: 'HP OfficeJet Pro 6978 All-in-One Printer', price: '100', store: 'Target', model: 'T0F29A#B1H' },
  15. { Name: 'Hp', title: 'HP Laptop - 17t touch ', price: '420', store: 'Target', model: '1EZ78AV_1' },
  16. { Name: 'Dell', title: 'Dell - XPS 27" Touch-Screen All-In-One', price: '670', store: 'Target', model: 'BBY-311C3FX' },
  17. { Name: 'Dell', title: 'Dell - Inspiron 21.5" Touch-Screen All-In-One', price: '469.90', store: 'Target', model: 'I3265-A067BLK-PUS' },
  18. { Name: 'Lenovo', title: 'Lenovo - 520-24AST 23.8" Touch-Screen All-In-One', price: '679.99', store: 'Target', model: 'F0D3000EUS' },
  19. { Name: 'Dell', title: 'Dell - XPS 2-in-1 13.3" Touch-Screen Laptop', price: '1199.99', store: 'Target', model: 'XPS9365-7086SLV-PUS' }
  20. ];
  21.
  22. constructor() {
  23.
  24.              }
  25.
  26.
  27. }

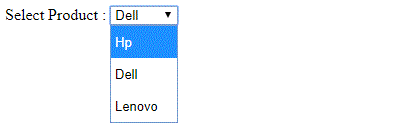

Bind a ProductHeader array object to a drop-down list with *ngFor

I have used *ngFor to iterate the items in an array object. For displaying a value, use {{object.key}} (this is nothing but {{ prod.name}})


  1. import { Component, } from '@angular/core';
  2.
  3. @Component({
  4.
  5. selector: 'my-product-view',
  6. styleUrls: ['styles.css'],
  7. template: `
  8. <div>
  9. Select Product :
  10. <select>
  11.         <option *ngFor="let prod of ProductHeader">{{prod.name}} </option>
  12. </select>
  13. ',
  14.
  15. })
  1. export class ProductComponent {
  2.
  3.  public ProductHeader = [{ name: 'Hp' }, { name: 'Dell'}, { name: 'Lenovo' }];
  4.
  5.      constructor() {
  6.    /// this constructor will call once the ProductComponent class object is ready.
  7.                    this.getProducts();
  8.               }
  9.
  10. getProducts() {
  11.
  12.        return this.ProductHeader;
  13.     }
  14.
  15. }
Call a method on selected dropdown list item

Whenever a user changes a value in a dropdown list, the ngModelChange changes will call a method.
  1. <select [(ngModel)]="ProductHeader.name" (ngModelChange)="SearchProduct(ProductHeader.name)">
  2.      <option *ngFor="let prod of ProductHeader">{{prod.name}} </option>
  3.  </select>
Create a serach ProductDetails method in a Component class as below.
  1. export class ProductComponent {
  2.
  3. //Create a object for storing filter data and bind to html table.
  4. public ProductDetails: object = [];
  5.
  6. //filter product details on name and return productDetails object.
  7. SearchProduct(name: string) {
  8. let obj = this.Products.filter(m => m.Name == name);
  9. this.ProductDetails = obj;
  10. return this.ProductDetails;
  11. }
  12.

  13. }
Bind Product details object to an HTML table

Create an HTML table with <tr> and <td> to display the product title, store, price, and model.
  1. <table class="TFtable">
  2. <tr >
  3. <th>Name</th> <th>Store</th> <th>Price</th> <th>Model</th>
  4. </tr>
  5. <tr *ngFor="let Prod of ProductDetails">
  6. <td>{{Prod.title}}</td>
  7. <td>{{Prod.store}}</td>
  8. <td>{{Prod.price}}</td>
  9. <td>{{Prod.model}}</td>
  10. </tr>
  11.
  12. </table>
 Here is the complete code.
  1. import { Component, } from '@angular/core';
  2.
  3. @Component({
  4.
  5.     selector: 'my-product-view',
  6.     styleUrls: ['styles.css'],
  7.     template: `
  8.                 <div>
  9.                         Select Product :
  10.                         <select  [(ngModel)]="ProductHeader.name" (ngModelChange)="SearchProduct(ProductHeader.name)">
  11.                              <option *ngFor="let prod of ProductHeader">{{prod.name}} </option>
  12.                          </select>
  13.
  14.
  15.
  16. <div *ngIf="ProductHeader.name">
  17.     <h5>You have selected: {{ProductHeader.name}} Product </h5>
  18. </div>
  19.                 </div>
  20. <div>
  21. <h4>Product Details:</h4>
  22. <table class="TFtable">
  23. <tr >
  24.     <th>Name</th> <th>Store</th>  <th>Price</th> <th>Model</th>
  25. </tr>
  26.  <tr  *ngFor="let Prod of ProductDetails">
  27.     <td>{{Prod.title}}</td>
  28.     <td>{{Prod.store}}</td>
  29.     <td>{{Prod.price}}</td>
  30.     <td>{{Prod.model}}</td>
  31. </tr>
  32.
  33. </table>
  34. </div>
  35.                `,
  36. })
  37.
  38. export class ProductComponent {
  39. gi
  40.   //Create a object for storing filter data and bind to html table.
  41.     public ProductDetails: object = [];

  42.   //filter product details on name and return productDetails object.
  43.     public ProductHeader = [{ name: 'Hp' }, { name: 'Dell'}, { name: 'Lenovo' }];
  44.
  45.     public Products = [
  46.         {Name:'Hp', title: 'HP ENVY Laptop - 15t touch', price: '1099', store: 'Best Buy', model: '15-BS013DX' },
  47.         { Name: 'Dell', title: 'Dell Laptop', price: '700', store: 'Amazon', model: 'I7378-3000SLV-PUS' },
  48.         { Name: 'Lenovo', title: 'Lenovo Touch-Screen Laptop', price: '670', store: 'Target', model: '81A40025US' },
  49.         { Name: 'Hp', title: 'HP OfficeJet Pro 6978 All-in-One Printer', price: '100', store: 'Target', model: 'T0F29A#B1H' },
  50.         { Name: 'Hp', title: 'HP Laptop - 17t touch ', price: '420', store: 'Target', model: '1EZ78AV_1' },
  51.         { Name: 'Dell', title: 'Dell - XPS 27" Touch-Screen All-In-One', price: '670', store: 'Target', model: 'BBY-311C3FX' },
  52.         { Name: 'Dell', title: 'Dell - Inspiron 21.5" Touch-Screen All-In-One', price: '469.90', store: 'Target', model: 'I3265-A067BLK-PUS' },
  53.         { Name: 'Lenovo', title: 'Lenovo - 520-24AST 23.8" Touch-Screen All-In-One', price: '679.99', store: 'Target', model: 'F0D3000EUS' },
  54.         { Name: 'Dell', title: 'Dell - XPS 2-in-1 13.3" Touch-Screen Laptop', price: '1199.99', store: 'Target', model: 'XPS9365-7086SLV-PUS' }
  55.        ];
  56.
  57.     constructor() {
  58.
  59.         this.getProducts();
  60.     }
  61.     getProducts() {
  62.         console.log("getProducts");
  63.         return this.ProductHeader;
  64.     }
  65.
  66.
  67.     SearchProduct(name: string) {
  68.
  69.         let obj = this.Products.filter(m => m.Name == name);
  70.         this.ProductDetails = obj;
  71.         return this.ProductDetails;
  72.     }
  73.
  74.
  75. }

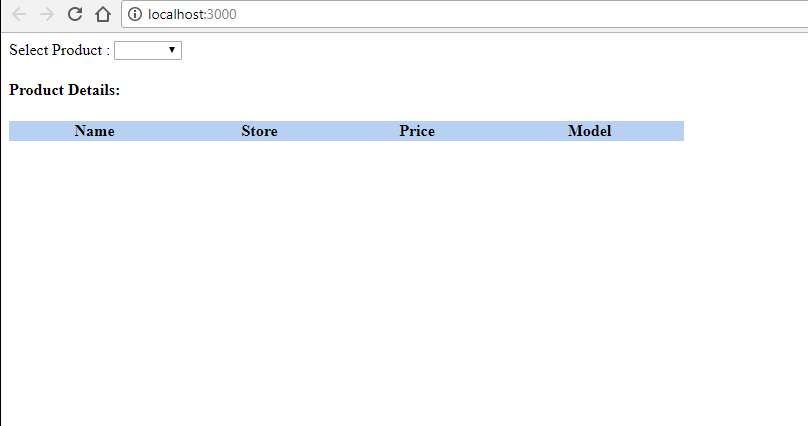

Output
