Add Row Total To GridView Footer in ASP.Net

We will learn here how to bind controls with data without a database and how to handle total sum of a column on controls.

Also read:

Initial Chamber

Step 1

Open your Visual Studio and create an empty website then provide a suitable name such as GridViewColumnAdd.

Step 2

In Solution Explorer you will get your empty website, then add some web forms.

GridViewColumnAdd (your empty website). Right-click and select Add New Item Web Form. Name it GridViewColumnAdd.aspx.

Design Chamber

Step 3

Open the GridViewColumnAdd.aspx file and write some code for the design of the application.

Choose the control from the toolbox and provide your design page like:
  1. <form id="form1" runat="server">
  2.    <div>
  3.       <asp:GridView ID="GridView1" runat="server" AlternatingRowStyle-BackColor="Wheat" ShowFooter="true">
  4.       </asp:GridView>
  5.    </div>
  6. </form>
Here I've enabled the "ShowFooter" property of GridView to show the total sum of a column in the footer.

Here I've designed the GridView Control and used some property as in the following.

Design Page
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="GridViewColumnAdd.aspx.cs" Inherits="GridViewColumnAdd" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             <asp:GridView ID="GridView1" runat="server" AlternatingRowStyle-BackColor="Wheat" ShowFooter="true">
  13.             </asp:GridView>
  14.         </div>
  15.     </form>
  16. </body>
  17. </html>

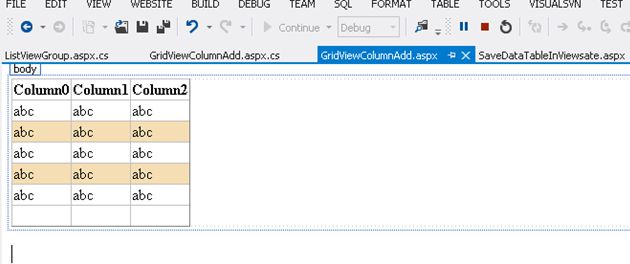

Your design looks as in the following:

design
Figure 1

Code Chamber

Step 4

In the code chamber we will write some code so that our application works.

Add the following namespaces to the namespace section of your code behind page:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
Now your page looks as in the following.

Code behind Page
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9.
  10. public partial class GridViewColumnAdd : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!IsPostBack) {
  15.             BindGridviewFooter();
  16.         }
  17.     }
  18.     protected void BindGridviewFooter()
  19.     {
  20.
  21.         //Creating a dataset
  22.         DataSet ds = new DataSet();
  23.         DataTable dt;
  24.         DataRow dr;
  25.         DataColumn pName;
  26.         DataColumn pQty;
  27.         DataColumn pPrice;
  28.         DataColumn pCategory;
  29.         //create an object of datatable
  30.         dt = new DataTable();
  31.         //creating column of datatable with datatype
  32.         pName = new DataColumn("Product_Name", Type.GetType("System.String"));
  33.         pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
  34.         pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
  35.         pCategory = new DataColumn("Category", Type.GetType("System.String"));
  36.         //bind data table columns in datatable
  37.         dt.Columns.Add(pName);
  38.         dt.Columns.Add(pQty);
  39.         dt.Columns.Add(pPrice);
  40.         dt.Columns.Add(pCategory);
  41.         //creating data row and assiging the value to columns of datatable
  42.         dr = dt.NewRow();
  43.         dr["Product_Name"] = "Product 1";
  44.         dr["Quantity"] = 2;
  45.         dr["Price"] = 200;
  46.         dr["Category"] = "Cat1";
  47.         dt.Rows.Add(dr);
  48.
  49.         dr = dt.NewRow();
  50.         dr["Product_Name"] = "Product 2";
  51.         dr["Quantity"] = 5;
  52.         dr["Price"] = 480;
  53.         dr["Category"] = "Cat2";
  54.         dt.Rows.Add(dr);
  55.
  56.         dr = dt.NewRow();
  57.         dr["Product_Name"] = "Product 3";
  58.         dr["Quantity"] = 8;
  59.         dr["Price"] = 100;
  60.         dr["Category"] = "Cat1";
  61.         dt.Rows.Add(dr);
  62.
  63.         dr = dt.NewRow();
  64.         dr["Product_Name"] = "Product 4";
  65.         dr["Quantity"] = 2;
  66.         dr["Price"] = 500;
  67.         dr["Category"] = "Cat2";
  68.         dt.Rows.Add(dr);
  69.
  70.         dr = dt.NewRow();
  71.         dr["Product_Name"] = "Product 5";
  72.         dr["Quantity"] = 8;
  73.         dr["Price"] = 100;
  74.         dr["Category"] = "Cat1";
  75.         dt.Rows.Add(dr);
  76.
  77.         dr = dt.NewRow();
  78.         dr["Product_Name"] = "Product 6";
  79.         dr["Quantity"] = 3;
  80.         dr["Price"] = 90;
  81.         dr["Category"] = "Cat1";
  82.         dt.Rows.Add(dr);
  83.
  84.         dr = dt.NewRow();
  85.         dr["Product_Name"] = "Product 7";
  86.         dr["Quantity"] = 18;
  87.         dr["Price"] = 1100;
  88.         dr["Category"] = "Cat2";
  89.         dt.Rows.Add(dr);
  90.
  91.         ds.Tables.Add(dt);
  92.         GridView1.DataSource = ds.Tables[0];
  93.         GridView1.DataBind();
  94.         //here add code for column total sum and show in footer
  95.         int total = 0; ;
  96.         GridView1.FooterRow.Cells[0].Text = "Total";
  97.         GridView1.FooterRow.Cells[1].Font.Bold = true;
  98.         GridView1.FooterRow.Cells[1].HorizontalAlign = HorizontalAlign.Left;
  99.         for (int k = 1; k < dt.Columns.Count-1; k++)
  100.         {
  101.             total = dt.AsEnumerable().Sum(row => row.Field<Int32>(dt.Columns[k].ToString()));
  102.             GridView1.FooterRow.Cells[k].Text = total.ToString();
  103.             GridView1.FooterRow.Cells[k].Font.Bold = true;
  104.             GridView1.FooterRow.BackColor = System.Drawing.Color.Beige;
  105.         }
  106.     }
  107.
  108. }

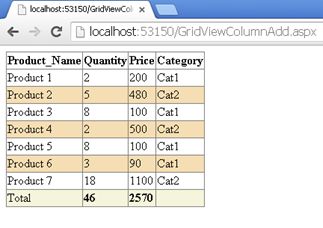

Output

output
Figure 2

I hope you liked this. Have a good day. Thank you for reading.
