How To Add Average Age Gadget in JIRA Tool in Testing


The "Average Age" gadget shows a bar chart that displays the average age of unresolved issues at given points in time for a particular issue or a project, and specified units of time. Time can be in hours, days, weeks, months, quarters or years.

How to add the Pie Chart gadget to the user's Dashboard

Add the Pie Chart gadget to the user's Dashboard using the following procedure:

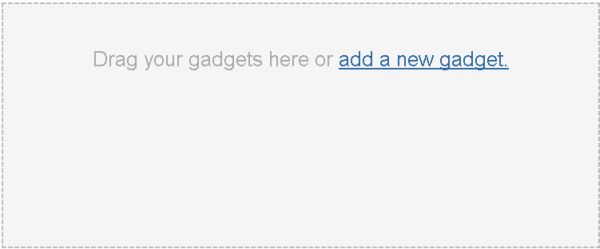

  1. Click on "Add Gadget" on the JIRA dashboard.
  2. add-new-gadget.jpg

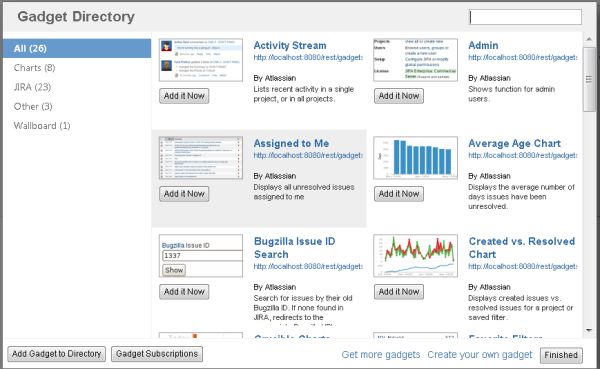

     The "Gadget Directory" window will appear.

     Adding AverageAgeGadget in -JIRA Tool.jpg


  3. Find the "Average Age" gadget and click on the "Add it Now" button just below the icon. Then click on the "Finished" button at the bottom of the Gadget Directory window. The Average Age gadget will appear on the user's dashboard.

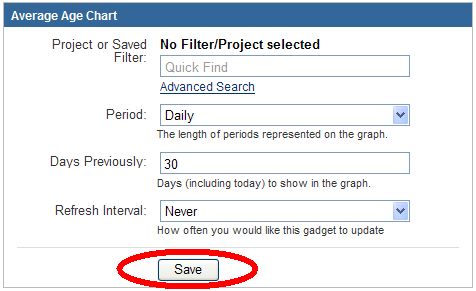

  4. The Pie Chart gadget will appear on your dashboard as follows; configure the gadget by filling in the following details fields and click on Save Button.

          Adding AverageAgeGadget in JIRA Tool.jpg

 Project or Saved Filter

Start typing the name of the project (for example saved) filter, or click the "Advanced Search" link to search for a project or filter.


Select the length of the period from the drop down on which the chart will be based. The time can be in hours, days, weeks, months, quarters or years.

Days Previously

Enter the number of days to show in the graph. Count backwards from today while entering the number of days.

Refresh Interval

Select how often you would like this gadget to update the chart. You can choose never/every 15 minutes/every 30 minutes/every hour/every two hours.

Internet Explorer cache settings can be configured as follows:

If you use the Internet Explorer web browser, configure the IE cache settings to print pages with charts correctly:

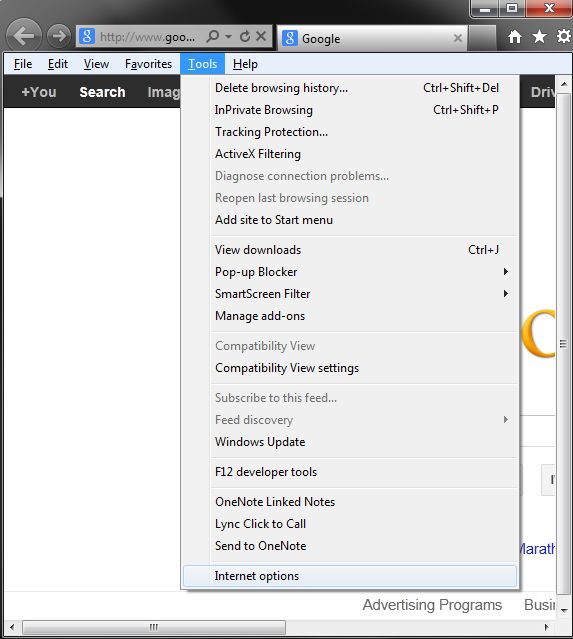

  1. Click on Tools and select Internet Options from the Tools menu.

    Adding AverageAgeGadget in JIRA Tool1.jpg

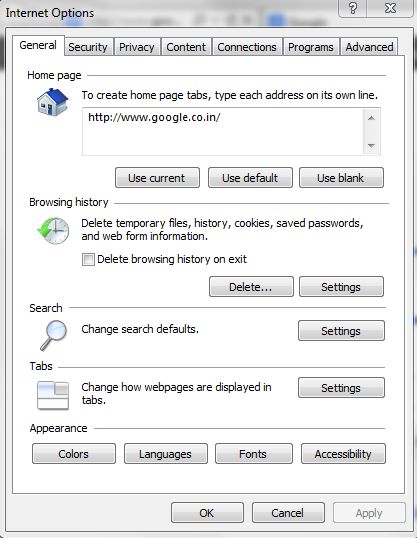

  2. Click the "Settings" button in the Browsing History (in other words cache) section from Internet Options window.

    Adding AverageAgeGadget in JIRA Tool3.jpg

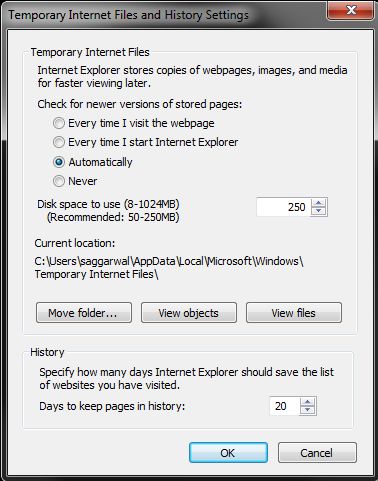

  3. The "Temporary Internet Files and History Settings" window will display. Ensure that the "Every visit to the page" (in other words no caching) option is not selected. If it is then select the "Automatically" option instead.

         Adding AverageAgeGadget in JIRA Tool2.jpg
