This article discusses how to load .gif extension images in Windows Phone 7.1. As we all know Windows Phone 7 supports .jpg and .png images, so this article will be very helpful if you want to show .gif images.
Getting Started
Create a Windows Phone Application using the following:
- Open Visual Studio 2010.
- "File" -> "New" -> "Project..."
- Select "Silverlight for Windows Phone" from the Installed templates and choose "Windows Phone Application"
- Enter the name and choose the location.
- Click "OK".

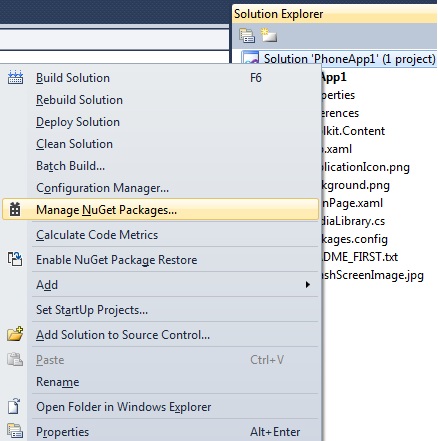

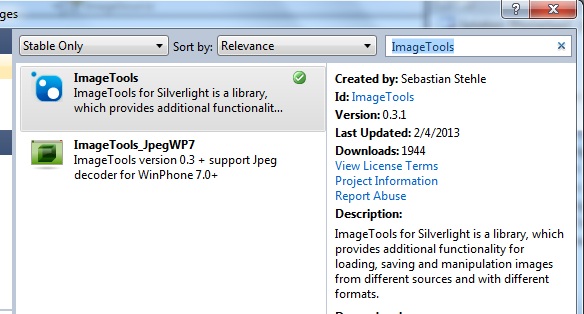

First of all right-click on Solutions Explorer and click "Manage NuGet Packages..." and search by name for ImageTools and click "Install".
![img1.jpg]()
Image 1.
![img2.jpg]()
Image 2.

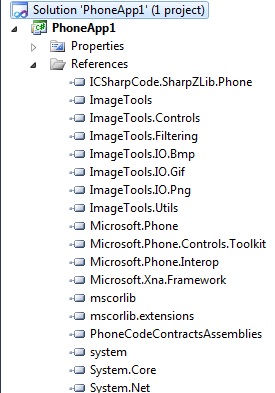

As you can see, after installing it has added a few assemblies in your reference folder.
![image3.jpg]()
Image 3.
Let's work on the UI part now.
First of all the following add namespace of image tools in the .xaml file:
xmlns:imagetools="clr-namespace:ImageTools.Controls;assembly=ImageTools.Controls"
Now add the following image convertor resource:
<phone:PhoneApplicationPage.Resources>
<imagetools:ImageConverter x:Key="ImageConverter" />
</phone:PhoneApplicationPage.Resources>
Now add this:
<!--ContentPanel - place additional content here-->
<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<imagetools:AnimatedImage Source="{Binding Path=ImageSource, Converter={StaticResource ImageConverter}}" />
</Grid>
Now let's work on the code part.
using Microsoft.Phone.Controls;
using ImageTools.IO.Gif;
using System.Windows.Media.Imaging;
using Microsoft.Xna.Framework.Media;
using System.IO;
using System.Text;
using ImageTools;
using System.Threading;
using System.Windows.Data;
// Constructor
public MainPage()
{
InitializeComponent();
ImageTools.IO.Decoders.AddDecoder<GifDecoder>();
ImageSource = new Uri("http://i1118.photobucket.com/albums/k607/Ashe-kun/9285a6048c8a769fba5d.gif", UriKind.Absolute);
this.DataContext = this;
}
public Uri ImageSource { get; set; }

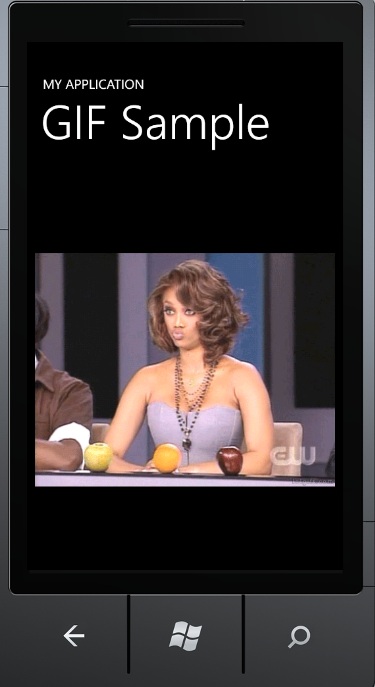

Finally run the application to see the result.
![img4.jpg]()
Image 4.
For more information, download the attached sample application.
