DropDownList With Country, State And City In ASP. NET

Rohatash Kumar
Jun 16, 2017
447.2k
0
3
Article

This article shows how to create three DropDownList to display countries, states and cities. When you select a country then its automatically shows the states name of that country in next DropDownList. Then when you select a state, the cities DropDownList will fetch the related cities for that state.

Creating table for country, state and city.

Country Table

Create Table Country
(
CountryId Int Primary Key,
County Varchar(30)
)

Countrystate Table

Create Table countryState
(
StateId Int Primary Key,
CountryId Int Foreign Key References Country(CountryId),
State Varchar(30)
)

StateCity Table

Create Table stateCity
(
CityId Int,
StateId Int Foreign Key References countryState(StateId),
City Varchar(30)
)

Now insert values in the table.

Insert Into Country Values(101,'India')
Insert Into Country Values(102,'USA')
Insert Into Country Values(103,'Pakistan')
Insert Into countryState Values(1001,101,'U.P')
Insert Into countryState Values(1002,101,'Kerala')
Insert Into countryState Values(1003,101,'Kasmir')
Insert Into countryState Values(2001,102,'Colorado')
Insert Into countryState Values(2002,102,'Delaware')
Insert Into countryState Values(2003,102,'Georgia')
Insert Into countryState Values(3001,103,'Punjap')
Insert Into countryState Values(3002,103,'Baluchistan')
Insert Into countryState Values(3003,103,'Sind')
Insert Into stateCity Values(11,1001,'Kanpur')
Insert Into stateCity Values(12,1001,'Dg')
Insert Into stateCity Values(21,1002,'Pal')
Insert Into stateCity Values(22,1002,'Tri')
Insert Into stateCity Values(31,1003,'Jammu')
Insert Into stateCity Values(32,1003,'Manali')
Insert Into stateCity Values(41,2001,'Alabama')
Insert Into stateCity Values(42,2001,'Arizona')
Insert Into stateCity Values(51,2002,'Bellefonte')
Insert Into stateCity Values(52,2002,'Felton')
Insert Into stateCity Values(61,2003,'Rustavi')
Insert Into stateCity Values(62,2003,'Kobulati')
Insert Into stateCity Values(71,3001,'Lahore')
Insert Into stateCity Values(72,3001,'Faisalabad')
Insert Into stateCity Values(81,3002,'Quetta')
Insert Into stateCity Values(82,3002,'Nasirabad')
Insert Into stateCity Values(91,3003,'Krachi')
Insert Into stateCity Values(92,3003,'Mirpur khas')

Now select it.

select * from Country;

Countrytable

select * from countryState;

Statetable

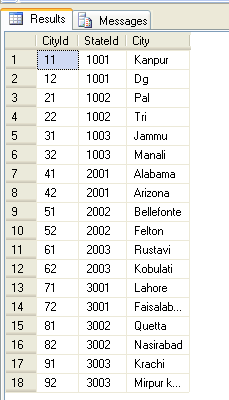

select * from stateCity;

Citytable

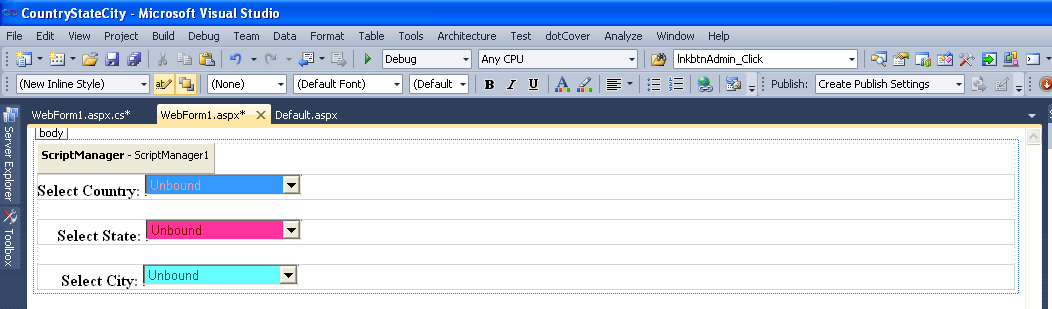

Now drag and drop three DropDownList to display countries, states and cities and three update panel control on the page.

Figure1

.aspx code

<headrunat="server">
<title></title>
</head>
<body>
<formid="form1"runat="server">
<asp:ScriptManagerID="ScriptManager1"runat="server">
</asp:ScriptManager>
<div>
<asp:UpdatePanelID="countrypanel"runat="server">
<ContentTemplate>
<spanclass="style1"><strong>Select Country:</strong></span>
<asp:DropDownListID="ddlcountry"AutoPostBack ="true" AppendDataBoundItems
="true" runat="server"Height="20px"Width="156px"
onselectedindexchanged="ddlcountry_SelectedIndexChanged"BackColor="#3399FF"
ForeColor="#FF9999">
</asp:DropDownList>
</ContentTemplate>
<Triggers>
<asp:AsyncPostBackTriggerControlID ="ddlcountry" />
</Triggers>
</asp:UpdatePanel>
<br/>
<asp:UpdatePanelID="statepanel"runat="server">
<ContentTemplate>
<spanclass="style1"><strong> Select State:</strong></span>
<asp:DropDownListID="ddlstate"AutoPostBack ="true"
AppendDataBoundItems="true" runat="server"Height="20px"
Width="155px" onselectedindexchanged="ddlstate_SelectedIndexChanged"
BackColor="#FF3399"ForeColor="Maroon">
</asp:DropDownList>
</ContentTemplate>
<Triggers>
<asp:AsyncPostBackTriggerControlID ="ddlstate"/>
</Triggers>
</asp:UpdatePanel>
<br/>
<asp:UpdatePanelID="citypanel"runat="server">
<ContentTemplate>
<spanclass="style1"><strong> Select City:</strong></span>
<asp:DropDownListID="ddlcity" AutoPostBack ="true"
AppendDataBoundItems="true" runat="server"Height="20px"Width="155px"
BackColor="#66FFFF"ForeColor="#006666">
</asp:DropDownList>
</ContentTemplate>
<Triggers>
<asp:AsyncPostBackTrigger ControlID ="ddlcity"/> </Triggers>
</asp:UpdatePanel>
</div>
</form>
</body>
</html>

.VB code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data.SqlClient;
namespace CountryStateCity
{
public partialclass WebForm1 : System.Web.UI.Page
{
private SqlConnection conn = new SqlConnection("Data source=.; uid=sa; pwd=Password$2; database=CountryStateCity");
public void Bind_ddlCountry()
{
conn.Open();
SqlCommand cmd =new SqlCommand("select County,CountryId from Country", conn);
SqlDataReader dr = cmd.ExecuteReader();
ddlcountry.DataSource = dr;
ddlcountry.Items.Clear();
ddlcountry.Items.Add("--Please Select country--");
ddlcountry.DataTextField = "County";
ddlcountry.DataValueField = "CountryId";
ddlcountry.DataBind();
conn.Close();
}
public void Bind_ddlState()
{
conn.Open();
SqlCommand cmd =new SqlCommand("select State,StateID from countryState where CountryId='" + ddlcountry.SelectedValue +"'", conn);
SqlDataReader dr = cmd.ExecuteReader();
ddlstate.DataSource = dr;
ddlstate.Items.Clear();
ddlstate.Items.Add("--Please Select state--");
ddlstate.DataTextField = "State";
ddlstate.DataValueField = "StateID";
ddlstate.DataBind();
conn.Close();
}
public void Bind_ddlCity()
{
conn.Open();
SqlCommand cmd =new SqlCommand("select * from stateCity where StateId ='" + ddlstate.SelectedValue +"'", conn);
SqlDataReader dr = cmd.ExecuteReader();
ddlcity.DataSource = dr;
ddlcity.Items.Clear();
ddlcity.Items.Add("--Please Select city--");
ddlcity.DataTextField = "City";
ddlcity.DataValueField = "CityID";
ddlcity.DataBind();
conn.Close();
}
protectedvoid Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
Bind_ddlCountry();
}
}
protectedvoid ddlcountry_SelectedIndexChanged(object sender, EventArgs e)
{
Bind_ddlState();
}
protectedvoid ddlstate_SelectedIndexChanged(object sender, EventArgs e)
{
Bind_ddlCity();
}
}
}
