Introduction

We demonstrate in the Part I how to add connection strings using the IDE tools, add connection string using the configuration file it self and add a connection string programmatically using the Configuration and the ConfigurationManager classes. Finally, we have seen how to retrieve the connection parameters from the configuration file.

In this article, we will see how to add application settings using the IDE tools, add application settings using the configuration file it self and add application settings programmatically using the Configuration and the ConfigurationManager classes. Finally, we will see how to retrieve the application settings from the configuration file.

The application settings are used to restore application settings, such as file paths, XML Web service URL, application properties values and others. This object is composed by the following elements:

Element	Description
"add"	Adds an application settings to the collection
"clear"	Removes all references to inherited application settings, allowing only the application settings that are added by the current add element.
"remove"	Removes a reference to inherited application settings from the elements collection.

Add application settings

Add application settings using the IDE

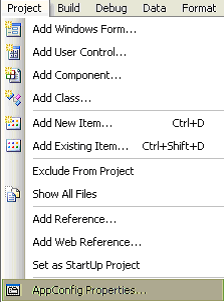

Open the project menu and click on the project properties:

Figure 1

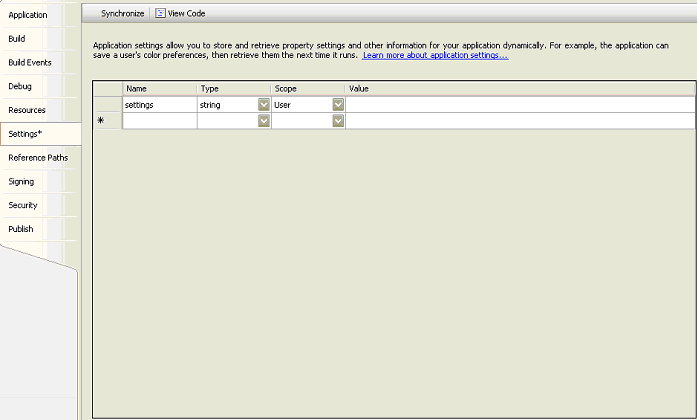

The followed window will be opened:

Figure 2

Add an application settings name, and set the type by choosing it from the combo box, set the scope witch can be either user or application scope.

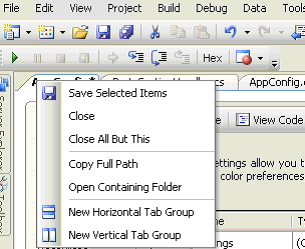

Save the application settings by right clicking the first tab and choosing save file

Figure 3

Add application settings directly in the configuration file:

The configuration file is located at the same directory as the application one with ".exe.config" as extension and as icon.

1. Open it and add directly application settings, the "intellisense" will help you to do that.

After adding a couple of application settings the configuration file looks like bellow:

<?xml version="1.0" encoding="utf-8" ?><?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

</configSections>

</appSettings>

</configuration>

Add the application settings programmatically

Add this method to your code:

private static void AddNewSetting()

{

    /* This code provides access to configuration files using OpenMappedExeConfiguration

    , method. You can use the OpenExeConfiguration method instead. For further informatons

    , consult the MSDN, it gives you more inforamtions about config files access methods*/

    ExeConfigurationFileMap oConfigFile = new ExeConfigurationFileMap();

    oConfigFile.ExeConfigFilename = Application.StartupPath + \\AppConfig.exe.config;

    Configuration oConfiguration = ConfigurationManager.OpenMappedExeConfiguration(oConfigFile, ConfigurationUserLevel.None);

    //Add the setting key and value

    oConfiguration.AppSettings.Settings.Add("setting1", "value1");

    //Save the configuration settings

    oConfiguration.Save(ConfigurationSaveMode.Full);

    MessageBox.Show("The setting is saved");

    //Restart the application

    Application.Restart();
}
Call the method at the run time, open the configuration file and observe the changes.

<?xml version="1.0" encoding="utf-8" ?>

<configuration>

<configSections>

</configSections>

<appSettings file="">

    <clear />

    <add key="setting1" value="value1" />

</appSettings>
   </configuration>

Retrieve application settings values for use purposes:

Add this method to your code

private static void RetriveAppSettingInfo()

{

    /* This code provides access to configuration files using OpenMappedExeConfiguration

    , method. You can use the OpenExeConfiguration method instead. For further informatons

    , consult the MSDN, it gives you more inforamtions about config files access methods*/

    ExeConfigurationFileMap oConfigFile = new ExeConfigurationFileMap();

    oConfigFile.ExeConfigFilename = Application.StartupPath + \\AppConfig.exe.config;

   Configuration oConfiguration = ConfigurationManager.OpenMappedExeConfiguration(oConfigFile, ConfigurationUserLevel.None);

    //Retrieving the setting1 value from the config file

    try

    {

        string settingValue = oConfiguration.AppSettings.Settings["setting1"].Value;

        MessageBox.Show(settingValue);

    }

    catch (NullReferenceException caught) { MessageBox.Show(caught.Message); }

}
