How To Use Filter, Search, And LookUp Functions In Microsoft PowerApps

Before reading this article, please go through the article links given below.

In PowerApps, we can use the Filter, Search, and LookUp function.

Filter Function

The Filter function finds the records in a table. It must satisfy a formula. We can use Filter to find a set of records with the conditions. If the condition becomes true, it displays the records; else, it discards.

Syntax

Filter (Table, Formula1 [, Formula2, ... ] )

Explanation

  • Filter-Keyword
  • Table-Table Name
  • Formula- We apply formula (If you search more than one column)

Follow the below steps to work with Sort in PowerApps.

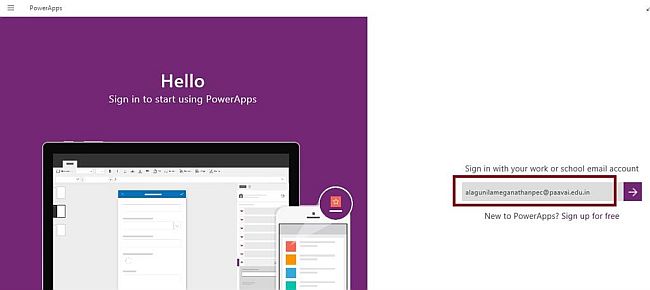

Step 1 - Log into the PowerApps

After downloading the PowerApps from the Windows Store, we need Microsoft related organization’s Office 365 ID or (MSDN, Microsoft, Skype, Office 365 etc.) to login with it.

PowerApps

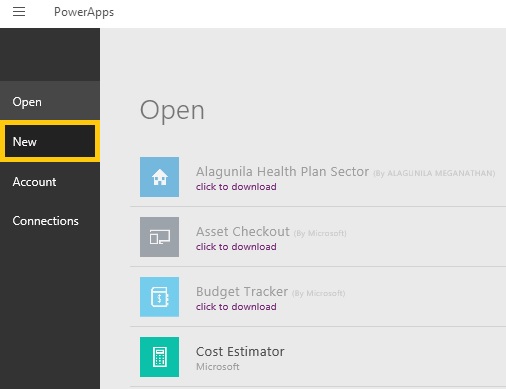

Step 2 - Create a New App in PowerApp

After login, we can see the Dashboard. There, click on the New button.

PowerApps

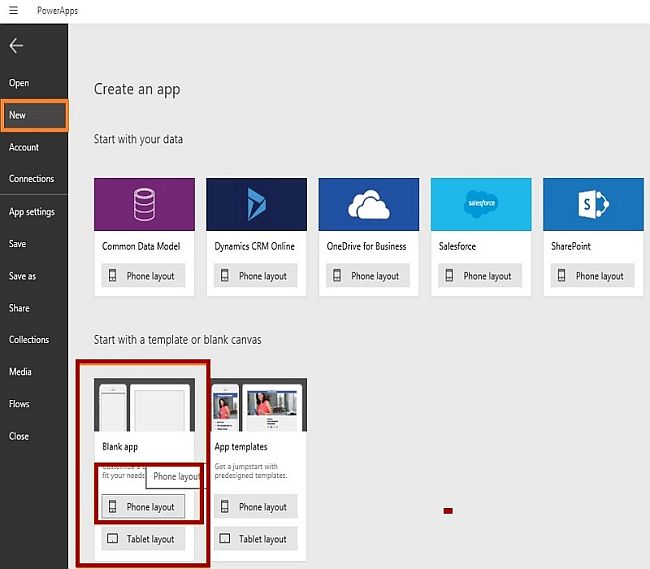

Step 3 - Choose the Blank app

PowerApps

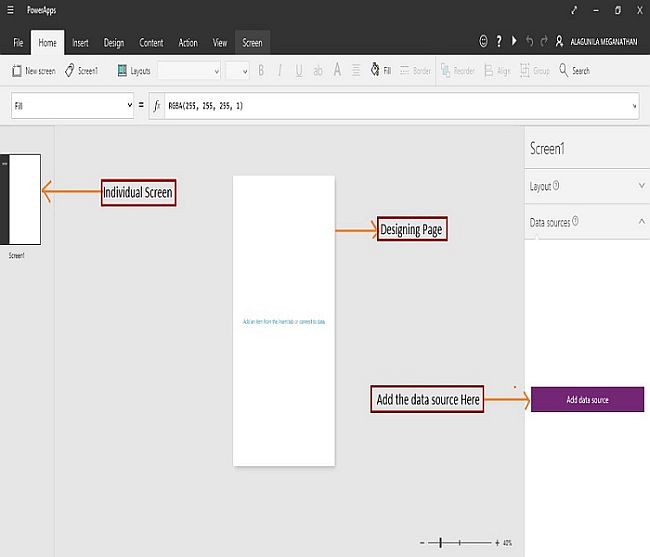

Step 4 - Designing the App

Now, let's start designing the app. On the left side, we can see the individual screens for adding our data. On the right side, we see the list of Layouts. On the top, there is formula bar. There, we have the Properties of the screen that we select.

PowerApps

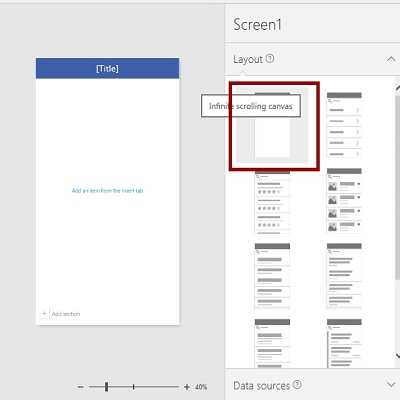

Step 5 - Choose the Blank Layout.

PowerApps

Step 6 - Insert a Button from Insert menu.

PowerApps

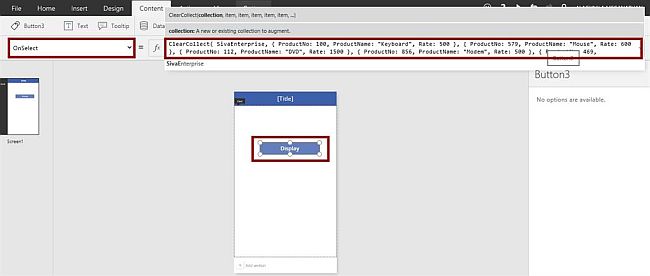

Step 7 - Add the code

Click on the Button and add the following code to the OnSelect Event.

PowerApps

Coding

  1. ClearCollect(SivaEnterprise, {
  2.     ProductNo: 100,
  3.     ProductName: "Keyboard",
  4.     Rate: 500
  5. }, {
  6.     ProductNo: 579,
  7.     ProductName: "Mouse",
  8.     Rate: 600
  9. }, {
  10.     ProductNo: 112,
  11.     ProductName: "DVD",
  12.     Rate: 1500
  13. }, {
  14.     ProductNo: 856,
  15.     ProductName: "Modem",
  16.     Rate: 500
  17. }, {
  18.     ProductNo: 469,
  19.     ProductName: "Processor",
  20.     Rate: 5000
  21. })

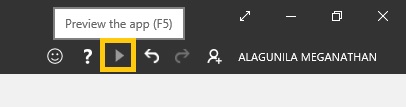

Step 8 - Run the app.

PowerApps

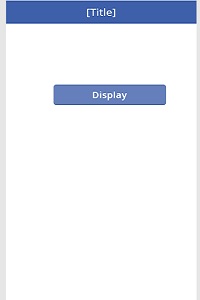

Step 9 - Click on the "Display" button and close the Preview window.

PowerApps

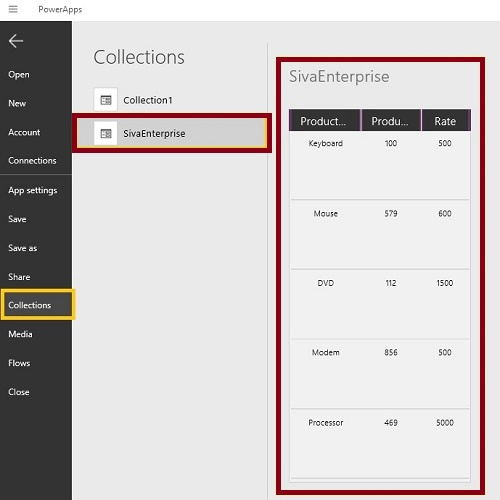

Step 10 - To Display the data

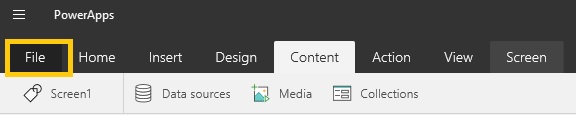

Now, go to the File menu and choose the Collections.



It will display the content in the table format.

PowerApps

Examples for Filter Function

Example 1

ClearCollect(SivaEnterprise, Filter( SivaEnterprise, Rate > 500 )))

Explanation

It will sort the table where the values in Rate column are greater than 500.
  • ClearCollect- It deletes all the records from a collection and then adds a different set of records to the same collection.
  • SivaEnterprise-It’s the table name.
  • Filter-Keyword
  • SivaEnterprise- Collection name.
  • Rate-Column name to sort with condition (greater than 500).

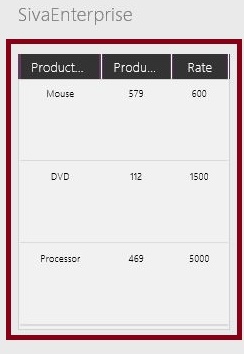

Output

PowerApps

Example 2

ClearCollect(SivaEnterprise, Filter( SivaEnterprise, "Mo" in Lower( ProductName ) ))

Explanation

It will sort the ProductName by the record which starts from “Mo”

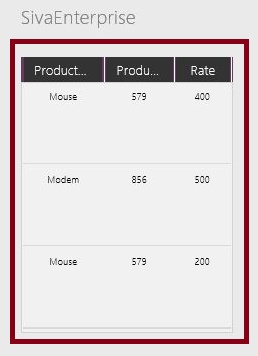

Output

PowerApps

Search Function

The Search function finds records in a table. The string may occur anywhere within the column. Searching is case-insensitive and unlike Filter and LookUp, the Search function uses a single string to match instead of using a formula.

Syntax

Search( Table, SearchString, Column1 [, Column2, ... ] )

Explanation

  • Search - Keyword
  • Table - Table Name
  • SearchString - The string to search for.
  • Column(s) - The names of columns within Table to search

Examples for Search Function

Example 1

ClearCollect(SivaEnterprise,Search (SivaEnterprise, "DVD", "ProductName"))

Explanation

It will display the DVD.

  • ClearCollect- It deletes all the records from a collection and then adds a different set of records to the same collection.
  • SivaEnterprise-It’s the table name
  • Search-Keyword
  • SivaEnterprise- Collection name
  • DVD, ProductName-Field name and Column name to Search

Output

PowerApps

LookUp Function

The LookUp function finds the first record in a table that satisfies a formula. Use LookUp to find a single record that matches one or more criteria.

Syntax

LookUp( Table, Formula [, ReductionFormula ] )

Explanation

  • LookUp - Keyword
  • Table - Table Name
  • Formula- We apply formula (If you search more than one column)
  • ReductionFormula - Optional. This formula is evaluated over the record that was found, reducing the record to a single value.

Examples for LookUp Function

Example 1

ClearCollect(SivaEnterprise,LookUp( SivaEnterprise, ProductName = "Modem", Rate ))

Explanation

It will display the Rate of the Modem.

  • ClearCollect- It deletes all the records from a collection and then adds a different set of records to the same collection.
  • SivaEnterprise-It’s the table name
  • LookUp-Keyword
  • SivaEnterprise- Collection name
  • Modem, Rate-Rate of the Modem in the Rate Column

Output

PowerApps

Example 2

ClearCollect(SivaEnterprise,LookUp( SivaEnterprise, ProductName = "Keyboard" )

Explanation

It will display the Keyboard records only.

Output

PowerApps

Conclusion

I hope, you understood how to use the Filter, Search, and Lookup Functions in Microsoft PowerApps and how to run it.
