How to create Tab Control in InfoPath 2007

InfoPath Dose Not support Tab control in designing this can be achieved by the following actions
  Design a new, blank InfoPath form template.
  Insert a table with at 2 columns and 1 row.
  Merge the first 5 columns

  The design look like this below image

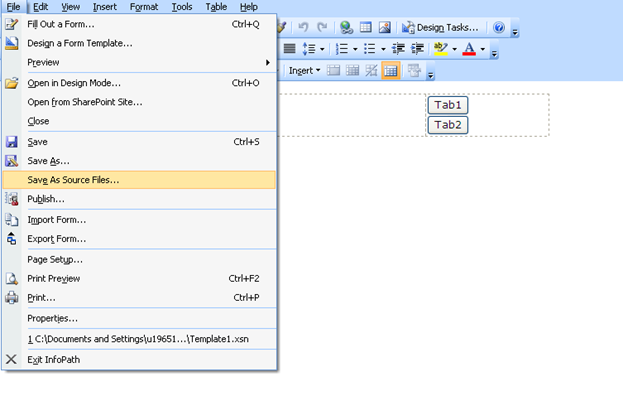

Save the template with source

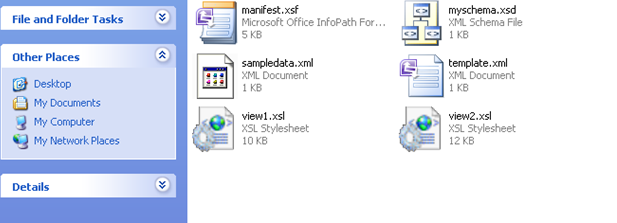

The source will be like the below


Modify the View2.XML with help of notepad

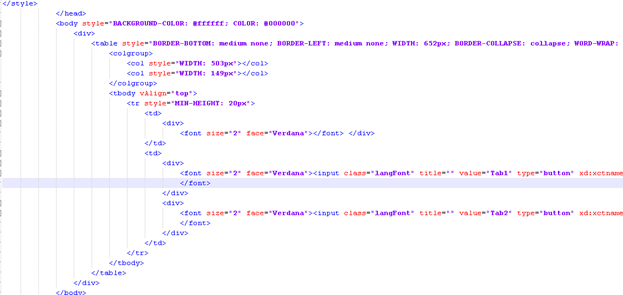

In view1.xsl, search for "<body style" (Shown in below Image) and copy the region to view2.xsl so both of the views look similar


  Note that for each view, we will have a different style for the button corresponding to that view, i.e. the "active" view. For example, the first view (View 1) will have the first button (Tab 1) as the active view button, while the rest will have non-active view buttons.

        For your active view, insert the following for the active button:

style="BORDER-RIGHT: #000000 1pt solid; PADDING-RIGHT: 10px; BORDER-TOP: #000000 1pt solid; FONT-WEIGHT: bold; PADDING-BOTTOM: 7px; MARGIN: 4px 0px 0px; BORDER-LEFT: #1e3c7b 2.25pt solid; WIDTH: 100%; COLOR: #ffffff; PADDING-TOP: 7px; BORDER-BOTTOM: #000000 1pt solid; BACKGROUND-COLOR: #517dbf; TEXT-ALIGN: right"

And for the non-active ones, insert the following

You will then have the following for view1.xsl:


View 2 tab selected
