Basic of C#: Call Stack, Call Site and Stack unwinding


Objective

In this article, I will explain three basic terms of C#
  1. Call Stack
  2. Call Site
  3. Stack Unwinding
Let us say, you got the below code

Program.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace ConsoleApplication7
{
    class Program
    {
        static void Main(string[] args)
        {
             Method1();
             Console.Read();
        }
        static void Method1()
        {
            Method2();
            Console.WriteLine("Method1");
        }
        static void Method2()
        {
            Method3();
            Console.WriteLine("Method2");
        }
        static void Method3()
        {
            Method4();
            Console.WriteLine("Method3");
        }
        static void Method4()
        {
            Method5();
            Console.WriteLine("Method4");
        }
        static void Method5()
        {
            Console.WriteLine("Method5");
        }
    }
}

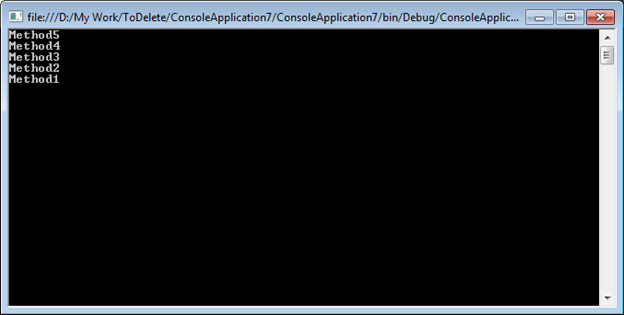

I have just created five dummy methods and calling them in nested manner.  The methods, I have created are Method1 to Method5. If you run the above program, you will get output as below


If you examine the output, Methods are being called in reverse order.

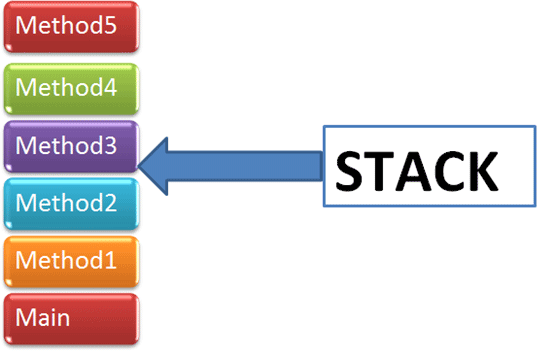

Program is putting the methods in stack as below,

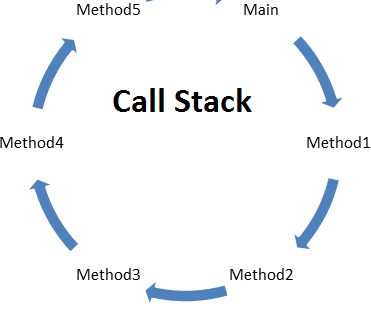

What is Call Stack?

Here, we are calling a method inside a method and so on and this is called CALL STACK.


Call Stack is the process of calling method inside a method.

Mathematically, we can say


What is Stack Unwinding?

Once the method call is completed that method is removed from the stack and this process is known as Stack Unwinding.


What is Call Site?

In above program, we are calling Method3 from Method2, so we can say Method2 is call site of Method3
