In this article we will learn how to display a username along with his/her photo stored in the database after successful login. Before doing this we will add details of the employee with an image and display it in a GridView. Here the image will be stored in the application folder. We can also edit, update, delete and cancel the details of the employee in the GridView.

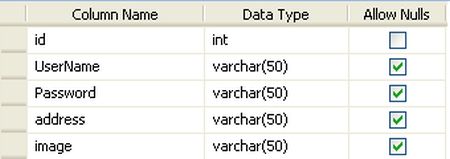

Table Creation
![Image 1.jpg]()
Stored Procedure
CREATE PROCEDURE insert_employee
(
@UserName varchar(50),
@Password varchar(50),
@address varchar(50),
@image varchar(50)
)
AS
Insert into employee values(@UserName,@Password,@address,@image)
CREATE PROCEDURE update_employee
(
@id int,
@UserName varchar(50),
@address varchar(50)
)
AS
update employee set UserName=@UserName,address=@address where id=@id
CREATE PROCEDURE delete_employee
(@id int)
AS
Delete from employee where id=@id

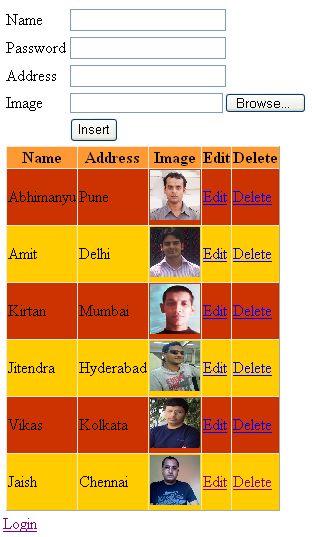

Default.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="Display_image_username_after_login._Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server">
<title>Untitled Page</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<table>
<tr>
<td>
Name</td>
<td>
<asp:TextBox ID="txt_name" runat="server" Width="150px"></asp:TextBox>
<asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server"
ControlToValidate="txt_name" ErrorMessage="Please enter the name"></asp:RequiredFieldValidator>
</td>
</tr>
<tr>
<td>
Password</td>
<td>
<asp:TextBox ID="txt_password" runat="server" TextMode="Password" Width="150px"></asp:TextBox>
<asp:RequiredFieldValidator ID="RequiredFieldValidator4" runat="server"
ControlToValidate="txt_password" ErrorMessage="Please enter the password"></asp:RequiredFieldValidator>
</td>
</tr>
<tr>
<td>
Address</td>
<td>
<asp:TextBox ID="txt_address" runat="server" Width="150px"></asp:TextBox>
<asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server"
ControlToValidate="txt_address" ErrorMessage="Please enter the address"></asp:RequiredFieldValidator>
</td>
</tr>
<tr>
<td>
Image</td>
<td>
<asp:FileUpload ID="FileUpload1" runat="server" />
<asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server"
ControlToValidate="FileUpload1" ErrorMessage="Please browse the image"></asp:RequiredFieldValidator>
</td>
</tr>
<tr>
<td>
</td>
<td>
<asp:Button ID="btn_insert" runat="server" onclick="btn_insert_Click"
Text="Insert" />
</td>
</tr>
<tr>
<td colspan="2">
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
onrowcancelingedit="GridView1_RowCancelingEdit"
onrowdeleting="GridView1_RowDeleting" onrowediting="GridView1_RowEditing"
onrowupdating="GridView1_RowUpdating"
onselectedindexchanging="GridView1_SelectedIndexChanging"
BackColor="#CC3300" ForeColor="Black">
<Columns>
<asp:TemplateField HeaderText="Name">
<EditItemTemplate>
<asp:TextBox ID="txt_name" runat="server"
Text='<%# Eval("UserName") %>'></asp:TextBox>
<asp:Label ID="Label4" runat="server" Text='<%# Eval("id") %>' Visible="False"></asp:Label>
</EditItemTemplate>
<ItemTemplate>
<asp:Label ID="Label1" runat="server" Text='<%# Eval("UserName") %>'></asp:Label>
<asp:Label ID="Label2" runat="server" Text='<%# Eval("id") %>' Visible="False"></asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Address">
<EditItemTemplate>
<asp:TextBox ID="txt_address" runat="server" Text='<%# Eval("address") %>'></asp:TextBox>
</EditItemTemplate>
<ItemTemplate>
<asp:Label ID="Label3" runat="server" Text='<%# Eval("address") %>'></asp:Label>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Image">
<ItemTemplate>
<img alt ="" src ='images/<%#Eval("image") %>' height="50px" width="50px"/>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Edit">
<EditItemTemplate>
<asp:LinkButton ID="LinkButton3" runat="server" CausesValidation="False"
CommandName="Update">Update</asp:LinkButton>
<asp:LinkButton ID="LinkButton4" runat="server" CausesValidation="False"
CommandName="Cancel">Cancel</asp:LinkButton>
</EditItemTemplate>
<ItemTemplate>
<asp:LinkButton ID="LinkButton2" runat="server" CausesValidation="False"
CommandName="Edit">Edit</asp:LinkButton>
</ItemTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Delete">
<ItemTemplate>
<asp:LinkButton ID="LinkButton1" runat="server" CausesValidation="False"
CommandName="Delete"
onclientclick="return confirm('Are you sure you want to delete this record')">Delete</asp:LinkButton>
</ItemTemplate>
</asp:TemplateField>
</Columns>
<HeaderStyle BackColor="#FF9933" />
<AlternatingRowStyle BackColor="#FFCC00" />
</asp:GridView>
</td>
</tr>
</table>
</div>
<asp:HyperLink ID="HyperLink1" runat="server" NavigateUrl="~/Login.aspx">Login</asp:HyperLink>
</form>
</body>
</html>
Default.aspx.cs
using System;
using System.Collections;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.HtmlControls;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Xml.Linq;
using System.Data.SqlClient;
using System.IO;
namespace Display_image_username_after_login
{
public partial class _Default : System.Web.UI.Page
{
string strConnString = ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
string s1;
string path;
SqlConnection cnn = new SqlConnection();
SqlCommand com = new SqlCommand();
SqlDataAdapter sqlda;
DataTable dt;
int id;
string name;
string address;
string image;
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
bindgrid();
}
}
protected void btn_insert_Click(object sender, EventArgs e)
{
if (FileUpload1.PostedFile.ContentLength > 0)
{
s1 = Path.GetFileName(FileUpload1.FileName);
path = Server.MapPath("images") + "/" + s1;
FileUpload1.SaveAs(path);
}
SqlConnection con = new SqlConnection(strConnString);
con.Open();
SqlCommand com = new SqlCommand("insert_employee", con);
com.CommandType = CommandType.StoredProcedure;
com.Connection = con;
com.Parameters.AddWithValue("@UserName", txt_name.Text);
com.Parameters.AddWithValue("@Password", txt_password.Text);
com.Parameters.AddWithValue("@address", txt_address.Text);
com.Parameters.AddWithValue("@image", s1);
com.ExecuteNonQuery();
com.Dispose();
bindgrid();
con.Close();
clear();
}
private void clear()
{
txt_name.Text = "";
txt_password.Text = "";
txt_address.Text = "";
}
private void bindgrid()
{
SqlConnection con = new SqlConnection(strConnString);
con.Open();
sqlda = new SqlDataAdapter("SELECT * FROM employee ", con);
dt = new DataTable();
sqlda.Fill(dt);
sqlda.Dispose();
GridView1.DataSource = dt;
GridView1.DataBind();
con.Close();
}
protected void GridView1_RowDeleting(object sender, GridViewDeleteEventArgs e)
{
SqlConnection con = new SqlConnection(strConnString);
con.Open();
try
{
id = Convert.ToInt32(((Label)(GridView1.Rows[e.RowIndex].FindControl("label2"))).Text);
SqlCommand com = new SqlCommand("delete_employee", con);
com.CommandType = CommandType.StoredProcedure;
com.Connection = con;
com.Parameters.Add("@id", SqlDbType.Int).Value = id;
SqlDataAdapter sqlda = new SqlDataAdapter("select * from employee where id=@id", con);
sqlda.SelectCommand.Parameters.Add("@id", SqlDbType.Int).Value = id;
DataSet ds = new DataSet();
sqlda.Fill(ds);
try
{
image = Convert.ToString(ds.Tables[0].Rows[0]["image"]);
File.Delete(Server.MapPath("images") + "\\" + image);
}
catch (Exception)
{
}
com.ExecuteNonQuery();
com.Dispose();
bindgrid();
}
catch (Exception)
{
}
}
protected void GridView1_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e)
{
GridView1.EditIndex = -1;
bindgrid();
}
protected void GridView1_RowEditing(object sender, GridViewEditEventArgs e)
{
GridView1.EditIndex = e.NewEditIndex;
bindgrid();
}
protected void GridView1_RowUpdating(object sender, GridViewUpdateEventArgs e)
{
SqlConnection con = new SqlConnection(strConnString);
con.Open();
id = Convert.ToInt32(((Label)(GridView1.Rows[e.RowIndex].FindControl("label4"))).Text);
name = (((TextBox)(GridView1.Rows[e.RowIndex].FindControl("txt_name"))).Text);
address = (((TextBox)(GridView1.Rows[e.RowIndex].FindControl("txt_address"))).Text);
SqlCommand com = new SqlCommand("update_employee", con);
com.CommandType = CommandType.StoredProcedure;
com.Connection = con;
com.Parameters.Add("@id", SqlDbType.Int).Value = id;
com.Parameters.Add("@UserName", SqlDbType.VarChar, 50).Value = name;
com.Parameters.Add("@address", SqlDbType.VarChar, 50).Value = address;
com.ExecuteNonQuery();
com.Dispose();
con.Close();
GridView1.EditIndex = -1;
bindgrid();
}
protected void GridView1_SelectedIndexChanging(object sender, GridViewSelectEventArgs e)
{
GridView1.PageIndex = e.NewSelectedIndex;
bindgrid();
}
}
}

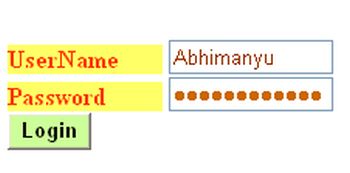

Login.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Login.aspx.cs" Inherits="Display_image_username_after_login.Login" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server">
<title>Untitled Page</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:Label ID="lb1" runat="server" Font-Bold="True" ForeColor="#FF3300"></asp:Label><br />
<asp:Label ID="Label1" runat="server" Text="UserName" Font-Bold="True"
Width="100px" BackColor="#FFFF66" ForeColor="#FF3300"></asp:Label>
<asp:TextBox ID="TextBox_user_name" runat="server" ForeColor="#993300" Width="100px"></asp:TextBox>
<asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server"
ControlToValidate="TextBox_user_name" ErrorMessage="Please enter the UserName"></asp:RequiredFieldValidator>
<br />
<asp:Label ID="Label2" runat="server" Text="Password" Font-Bold="True"
Width="100px" BackColor="#FFFF66" ForeColor="#FF3300"></asp:Label>
<asp:TextBox ID="TextBox_password" runat="server" ForeColor="#CC6600"
TextMode="Password" Width="100px"></asp:TextBox>
<asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server"
ControlToValidate="TextBox_password" ErrorMessage="Please enter the Password"></asp:RequiredFieldValidator>
<br />
<asp:Button ID="btn_login" runat="server" Text="Login" Font-Bold="True"
BackColor="#CCFF99" onclick="btn_login_Click" /><br />
</div>
</form>
</body>
</html>
Login.aspx.cs
using System;
using System.Collections;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.HtmlControls;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Xml.Linq;
using System.Data.SqlClient;
namespace Display_image_username_after_login
{
public partial class Login : System.Web.UI.Page
{
string strConnString = ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
string str;
SqlCommand com;
protected void btn_login_Click(object sender, EventArgs e)
{
object obj = null;
SqlConnection con = new SqlConnection(strConnString);
con.Open();
str = "select count(*) from employee where UserName=@UserName and Password =@Password";
com = new SqlCommand(str, con);
com.CommandType = CommandType.Text;
Session["UserName"] = TextBox_user_name.Text;
com.Parameters.AddWithValue("@UserName", Session["UserName"]);
com.Parameters.AddWithValue("@Password", TextBox_password.Text);
obj = com.ExecuteScalar();
if ((int)(obj) != 0)
{
Response.Redirect("Welcome.aspx");
}
else
{
lb1.Text = "Invalid User name and Password";
clear();
}
con.Close();
}
private void clear()
{
TextBox_user_name.Text = "";
TextBox_password.Text = "";
}
}
}
Welcome.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Welcome.aspx.cs" Inherits="Display_image_username_after_login.Welcome" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server">
<title>Untitled Page</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:Label ID="lb1" runat="server" Text="Label"></asp:Label>
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
BackColor="#CC3300" ForeColor="Black" ShowHeader="False" >
<Columns>
<asp:TemplateField>
<ItemTemplate>
<img alt ="" src ='images/<%#Eval("image") %>' height="50px" width="50px"/>
</ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
</div>
</form>
</body>
</html>
Welcome.aspx.cs
using System;
using System.Collections;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.HtmlControls;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Xml.Linq;
using System.Data.SqlClient;
namespace Display_image_username_after_login
{
public partial class Welcome : System.Web.UI.Page
{
string strConnString = ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
string str;
SqlDataAdapter sqlda;
DataTable dt;
protected void Page_Load(object sender, EventArgs e)
{
lb1.Text = "<b><font color=Brown>" + "WELLCOME :: " + "</font>" + "<b><font color=red>" + Session["UserName"] + "</font>";
if (!IsPostBack)
{
bindgrid();
}
}
private void bindgrid()
{
string UserName = (string)Session["UserName"];
SqlConnection con = new SqlConnection(strConnString);
con.Open();
str = "select image from employee where UserName='" + UserName + "'";
sqlda = new SqlDataAdapter(str, con);
dt = new DataTable();
sqlda.Fill(dt);
sqlda.Dispose();
GridView1.DataSource = dt;
GridView1.DataBind();
con.Close();
}
}
}
Output
![Image 2.jpg]()
Click login link and provide a correct username and password:
![Image 3.jpg]()
After successful login:
![Image 4.jpg]()
