Pass GridView Values to DetailsView In ASP.NET

Nilesh Jadav
Oct 24, 2015
10.1k
0
1
Article

We use SQL datasource to bind GridView and DetailView.

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty website. Give a suitable name gridview_demo.

Step 2: In Solution Explorer you will get your empty website, then add a Web Form and SQL Server Database. Here are the steps:

For Web Form

gridview_demo (Your Empty Website) - Right Click , Add New Item, then Web Form. Name it gridviewid_demo.aspx.

For SQL Server Database:

gridview_demo (Your Empty Website) - Right Click, Add New Item, then SQL Server Database. Add Database inside the App_Data_folder.

Database chamber

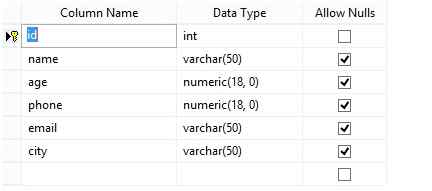

Step 3: In Server Explorer, click on your database Database.mdf - Tables, Add New Table and form a table like this:

Table - tbl_data and don’t forget to make ID as IS Identity - True

design

Design chamber

Step 4: Now make some design for your application by going to gridviewid_demo.aspx and try the code like this:

Gridviewid_demo.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<style type="text/css">
.style1 {
width: 229px;
}
.style2 {
width: 24px;
}
.style3 {
text-decoration: underline;
}
</style>
</head>
<body>
<form id="form1" runat="server">
<div class="style3"> <strong>GridView to DetailsView<br />
</strong> </div>
<table style="width:100%;">
<tr>
<td class="style1">
<asp:SqlDataSource ID="SqlDataSource2" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>" SelectCommand="SELECT [id], [name] FROM [tbl_data]"></asp:SqlDataSource>
</td>
<td class="style2"> </td>
<td> </td>
</tr>
<tr>
<td class="style1">
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False" DataKeyNames="id" DataSourceID="SqlDataSource2" CellPadding="4" ForeColor="#333333" GridLines="None">
<AlternatingRowStyle BackColor="White" />
<Columns>
<asp:BoundField DataField="id" HeaderText="ID" InsertVisible="False" ReadOnly="True" SortExpression="id" />
<asp:BoundField DataField="name" HeaderText="Name" SortExpression="name" />
<asp:CommandField ShowSelectButton="True" /> </Columns>
<FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
<RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
<SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
<SortedAscendingCellStyle BackColor="#FDF5AC" />
<SortedAscendingHeaderStyle BackColor="#4D0000" />
<SortedDescendingCellStyle BackColor="#FCF6C0" />
<SortedDescendingHeaderStyle BackColor="#820000" /> </asp:GridView>
</td>
<td class="style2"> </td>
<td> </td>
</tr>
<tr>
<td class="style1">
<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>" DeleteCommand="DELETE FROM [tbl_data] WHERE [id] = @id" InsertCommand="INSERT INTO [tbl_data] ([name], [age], [phone], [email], [city]) VALUES (@name, @age, @phone, @email, @city)" SelectCommand="SELECT [id], [name], [age], [phone], [email], [city] FROM [tbl_data] WHERE ([id] = @id)" UpdateCommand="UPDATE [tbl_data] SET [name] = @name, [age] = @age, [phone] = @phone, [email] = @email, [city] = @city WHERE [id] = @id">
<DeleteParameters>
<asp:Parameter Name="id" Type="Int32" /> </DeleteParameters>
<InsertParameters>
<asp:Parameter Name="name" Type="String" />
<asp:Parameter Name="age" Type="Decimal" />
<asp:Parameter Name="phone" Type="Decimal" />
<asp:Parameter Name="email" Type="String" />
<asp:Parameter Name="city" Type="String" /> </InsertParameters>
<SelectParameters>
<asp:ControlParameter ControlID="GridView1" Name="id" PropertyName="SelectedValue" Type="Int32" /> </SelectParameters>
<UpdateParameters>
<asp:Parameter Name="name" Type="String" />
<asp:Parameter Name="age" Type="Decimal" />
<asp:Parameter Name="phone" Type="Decimal" />
<asp:Parameter Name="email" Type="String" />
<asp:Parameter Name="city" Type="String" />
<asp:Parameter Name="id" Type="Int32" /> </UpdateParameters>
</asp:SqlDataSource>
</td>
<td class="style2"> </td>
<td> </td>
</tr>
<tr>
<td class="style1">
<asp:DetailsView ID="DetailsView1" runat="server" AutoGenerateRows="False" DataKeyNames="id" DataSourceID="SqlDataSource1" Height="50px" Width="125px" CellPadding="4" ForeColor="#333333" GridLines="None">
<AlternatingRowStyle BackColor="White" />
<CommandRowStyle BackColor="#FFFFC0" Font-Bold="True" />
<FieldHeaderStyle BackColor="#FFFF99" Font-Bold="True" />
<Fields>
<asp:BoundField DataField="id" HeaderText="ID" InsertVisible="False" ReadOnly="True" SortExpression="id" />
<asp:BoundField DataField="name" HeaderText="Name" SortExpression="name" />
<asp:BoundField DataField="age" HeaderText="Age" SortExpression="age" />
<asp:BoundField DataField="phone" HeaderText="Phone" SortExpression="phone" />
<asp:BoundField DataField="email" HeaderText="Email" SortExpression="email" />
<asp:BoundField DataField="city" HeaderText="City" SortExpression="city" /> </Fields>
<FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
<RowStyle BackColor="#FFFBD6" ForeColor="#333333" /> </asp:DetailsView>
</td>
<td class="style2"> </td>
<td> </td>
</tr>
</table>
</form>
</body>
</html>
