Export GridView to Access Using ASP.Net C#

Background

There is often a need in a project's reporting module to export a GridView to Access. So by considering that requirement I decided to write this article especially focusing on beginners and those who want to learn how to export a GridView to Access Using ASP.NET C# and using the itextsharp DLL.

 Prerequisites
  • To export the Grid view, we need to use a reference of itextsharp.dll.
  • Download the itextsharp.dll from the internet.

The itextsharp.dll is the free DLL available for download that provides some methods to export a Grid view into an Access file. After adding the reference, use the following reference of itextsharp.dll:

using iTextSharp.text;
using iTextSharp.text.pdf;
using iTextSharp.text.html.simpleparser;
Now before creating the application, let us create a table named employee in a database from where we show the records in a Grid view, the table has the following fields (shown in the following image):


I hope you have created the same type of table.
Now create the project as:
  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".
  2. "File" - "New Project" - "C#" - "Empty Project" (to avoid adding a master page).
  3. Provide the Project name such as ExportGridToAccess or another as you wish and specify the location.
  4. Then right-click on Solution Explorer - "Add New Item" - Default.aspx page.
  5. one Buttons, one label and a grid view.

Now let us create a function to bind the records to the Grid view from the database. If you are a beginner and don't know in detail how to bind a Grid view from a database then refer to my following article.

Now, for this article create the following function in the default.aspx.cs page to bind the Grid view:
  1. private void Bindgrid()
  2.    {
  3.        connection();
  4.        query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  5.        com = new SqlCommand(query, con);
  6.        SqlDataReader dr = com.ExecuteReader();
  7.        GridView1.DataSource = dr;
  8.        GridView1.DataBind();
  9.        con.Close();
  10.
  11.    }
Now, call the above function on page load as:
  1. protected void Page_Load(object sender, EventArgs e)
  2.    {
  3.        if (!IsPostBack)
  4.        {
  5.            Bindgrid();
  6.
  7.        }
  8.    }

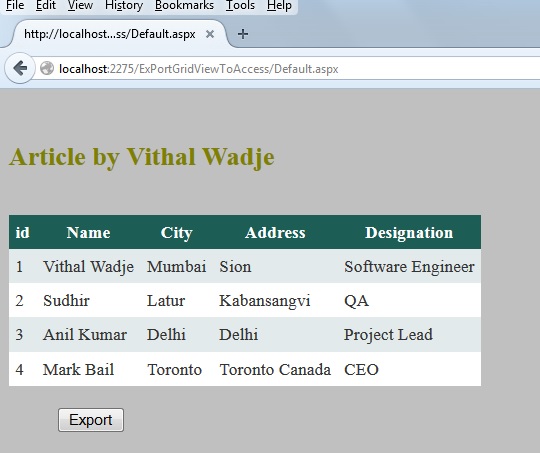

Now run the application and then we can see the following records in the Grid view:



We now have records to export into Access. Let us start coding for our actual requirements. Add the VerifyRenderingInServerForm event after the page load that is required when exporting a Grid view to Excel, Word and PDF to avoid the run time error "GridView' must be placed inside a form tag with runat=server."
  1. public override void VerifyRenderingInServerForm(Control control)
  2.    {
  3.        //required to avoid the runtime error "
  4.        //Control 'GridView1' of type 'GridView' must be placed inside a form tag with runat=server."
  5.    }
Now before creating the function to Export the grid view to Access add the reference of itextsharp.dll by right-clicking the Solution Explorer. After adding the reference the Solution Explorer will look as in the following:


Now create the following function to export the Grid view to Access:

  1. private void ExportGridToAccess()
  2.     {
  3.
  4.         Response.ContentType = "application/ms-access";
  5.         Response.AddHeader("content-disposition""attachment; filename=Vithal_Wadje.mdb");
  6.         Response.Cache.SetCacheability(HttpCacheability.NoCache);
  7.         StringWriter sw = new StringWriter();
  8.         HtmlTextWriter hw = new HtmlTextWriter(sw);
  9.         GridView1.RenderControl(hw);
  10.         StringReader sr = new StringReader(sw.ToString());
  11.         Document AccessDoc = new Document(PageSize.A4, 10f, 10f, 10f, 0f);
  12.         HTMLWorker htmlparser = new HTMLWorker(AccessDoc);
  13.         PdfWriter.GetInstance(AccessDoc, Response.OutputStream);
  14.         AccessDoc.Open();
  15.         htmlparser.Parse(sr);
  16.         AccessDoc.Close();
  17.         Response.Write(AccessDoc);
  18.         Response.End();
  19.         GridView1.AllowPaging = true;
  20.         GridView1.DataBind();
  21.     }
 Now double-click on the Export button and call the preceding function on "onclick" as in the following:
  1. protected void Button1_Click(object sender, EventArgs e)
  2.    {
  3.        ExportGridToAccess();
  4.    }
 Now the entire code of the Default.aspx.cs page will be as follows:
  1. using System;
  2. using System.Web.UI;
  3. using System.Configuration;
  4. using System.Data.SqlClient;
  5. using System.IO;
  6. using System.Web;
  7. using iTextSharp.text;
  8. using iTextSharp.text.pdf;
  9. using iTextSharp.text.html.simpleparser;
  10.
  11. public partial class _Default : System.Web.UI.Page
  12. {
  13.     private SqlConnection con;
  14.     private SqlCommand com;
  15.     private string constr, query;
  16.     private void connection()
  17.     {
  18.         constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
  19.         con = new SqlConnection(constr);
  20.         con.Open();
  21.
  22.     }
  23.     protected void Page_Load(object sender, EventArgs e)
  24.     {
  25.         if (!IsPostBack)
  26.         {
  27.             Bindgrid();
  28.
  29.         }
  30.     }
  31.
  32.     public override void VerifyRenderingInServerForm(Control control)
  33.     {
  34.         //required to avoid the runtime error "
  35.         //Control 'GridView1' of type 'GridView' must be placed inside a form tag with runat=server."
  36.     }
  37.
  38.     private void Bindgrid()
  39.     {
  40.         connection();
  41.         query = "select *from Employee";//not recommended this i have written just for example,write stored procedure for security
  42.         com = new SqlCommand(query, con);
  43.         SqlDataReader dr = com.ExecuteReader();
  44.         GridView1.DataSource = dr;
  45.         GridView1.DataBind();
  46.         con.Close();
  47.
  48.     }
  49.     protected void Button1_Click(object sender, EventArgs e)
  50.     {
  51.         ExportGridToAccess();
  52.     }
  53.     private void ExportGridToAccess()
  54.     {
  55.
  56.         Response.ContentType = "application/ms-access";
  57.         Response.AddHeader("content-disposition""attachment; filename=Vithal_Wadje.mdb");
  58.         Response.Cache.SetCacheability(HttpCacheability.NoCache);
  59.         StringWriter sw = new StringWriter();
  60.         HtmlTextWriter hw = new HtmlTextWriter(sw);
  61.         GridView1.RenderControl(hw);
  62.         StringReader sr = new StringReader(sw.ToString());
  63.         Document AccessDoc = new Document(PageSize.A4, 10f, 10f, 10f, 0f);
  64.         HTMLWorker htmlparser = new HTMLWorker(AccessDoc);
  65.         PdfWriter.GetInstance(AccessDoc, Response.OutputStream);
  66.         AccessDoc.Open();
  67.         htmlparser.Parse(sr);
  68.         AccessDoc.Close();
  69.         Response.Write(AccessDoc);
  70.         Response.End();
  71.         GridView1.AllowPaging = true;
  72.         GridView1.DataBind();
  73.     }

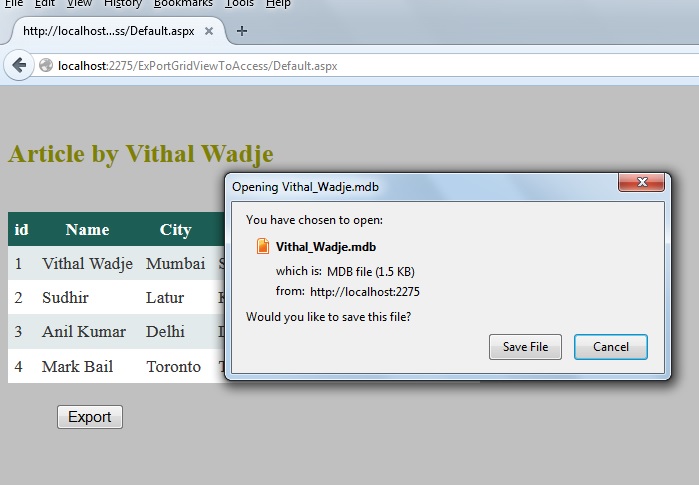

 Now run the application and click on the Export Button. The following popup is shown:


 Now click and save the preceding file and open it with Excel by establishing the connection or you can open this file with the tool mdb file viewer.

 Notes
  • Download the Zip file from the attachment for the full source code of the application.
  • Change the connection string in the web.config file to specify your server location.

Summary

I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
