AutoRefresh a Screen in LightSwitch 2012

Here we will see how to autorefresh a screen in a LightSwitch Application (Visual C#) in Visual Studio 2012.

The following is the procedure for autorefreshing a screen.

Step 1

Open the Solution Explorer.



Step 2

In the Solution Explorer, right-click on the Server and choose "Add Table".



Step 3

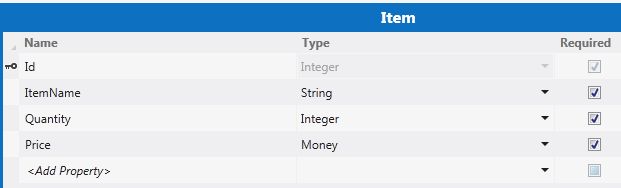

The table appears.



Step 4

In the Solution Explorer, right-click on the Screens and choose "Add Screen".



Step 5

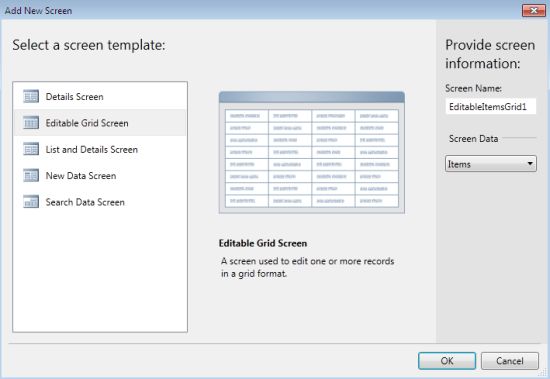

The Add New Screen dialog box appears. Select the "Editable Grid Screen" from the Screen Template, under screen information, choose "Item" under screen data and provide a name to the Screen and click the "OK" button.



Step 6

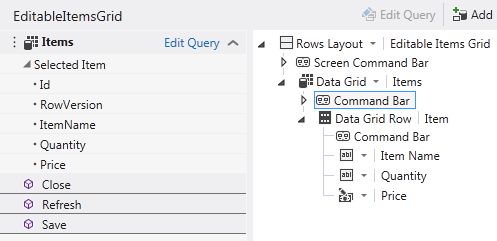

The Screen Designer appears.



Step 7

Press F5 to run the application and insert some records (items).



Step 8

In the menu bar, click the Write Code drop down list, and select the "_InitializeWorkSpace method.



The code designer appears.

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;

using System.Windows.Threading;

using Microsoft.LightSwitch.Threading;

namespace LightSwitchApplication

{

    public partial class EditableItemsGrid

    {



        partial void EditableItemsGrid_InitializeDataWorkspace(List<IDataService> saveChangesTo)

        {

            Dispatchers.Main.BeginInvoke(() =>

                {

                    T.Tick += new EventHandler(Each_Tick);

                });



        }



        private static readonly DispatcherTimer T= new DispatcherTimer()

        {

            Interval = TimeSpan.FromMinutes(10)

        };



        private void Each_Tick(object sender, EventArgs e)

        {



            Dispatchers.Main.BeginInvoke(() =>

                {

                    Items.Refresh();

                });

        }

    }

}

Step 9

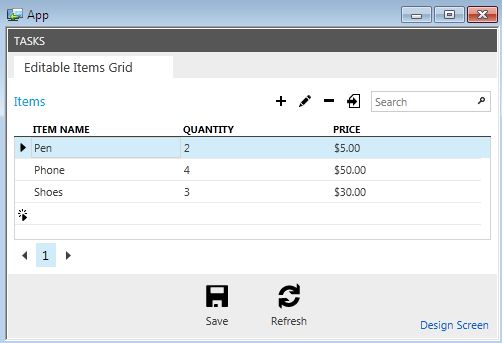

Press F5 to run the application. When you run the application the screen will be refreshed every 10 seconds.
