Add Layout in Fragments In Android

Introduction

This article explains how to add a Layout to a Fragment.

Fragments

Fragments are more used for the user interface benefit. Fragments are used when the user wants to see two different views of two different classes on the same screen. Fragments were added to Android when Honeycomb was launched. So if you are developing an application only for Android 3.0 (HoneyComb) or higher then Android provides you access to the Fragments class. You can also access the FragmentManager by calling the getFragmnetManager() method in your Activites.
However most applications are being developed for Android 2.1 Eclairs because Android Eclairs covers most of the market. So if you are developing applications for Android 2.1 Eclairs then you need to install the Android compatibitlity library to use Fragments. When you use the Android Compatibility library you need to extend FragmentActivity to your class to use Fragments. You can get the FragmentManager by calling the getSupportFragmentManager() method. Otherwise all the details will be the same as for Honeycomb.

For creating Fragments your class must extend the Fragment class. The Fragment class has methods, just the same as that of an Activity, like onStart(), onPause, onResume() and onCreate(). Usually you should use the onCreateVIew(), onCreate() and onStop() methods in your class.

oncreate(): The system calls this method when the Fragment is created.

onCreateView(): The system calls this method when Android needs the Layout for the Fragment.

onPause(): The system calls this method when the user leaves the Fragment. But it does not mean that the Fragment will be destroyed.

Most applications apply this method to use Fragments in its application. But you can use various methods depending on your needs.

Step 1

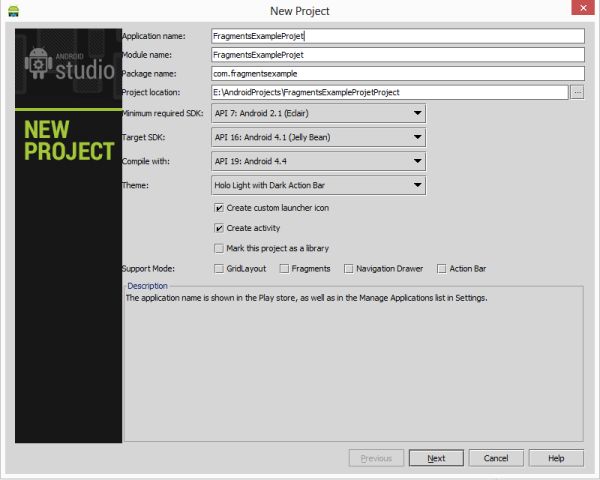

Create a project like this:



Step 2

Create an XML file with the following.

In this you will use a Fragment to hold the Layout in an Activity. In the android:name="com.fragmentactivityproject.Second" property you will that class with a package name that you want to show on the actiivty at run time.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    tools:context=".MainActivity"

    android:background="#ffab52">



    <fragment

        android:layout_width="150dp"

        android:layout_height="wrap_content"

        android:name="com.fragmentactivityproject.Second"

        android:id="@+id/fragment"

        android:layout_centerInParent="true"

        tools:layout="@layout/activity_main" />



</RelativeLayout>

Step 3

Create another XML file with the following.

In this Activity I have used three buttons, you can craete your Layout depending on your needs.


<?xml version="1.0" encoding="utf-8"?>



<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:orientation="vertical"

    android:layout_width="fill_parent"

    android:background="#000000"

    android:layout_height="fill_parent">



    <Button

        android:text="Button1"

        android:textStyle="bold"

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:textSize="30dp"

        android:ems="8"

        android:id="@+id/button1"

        android:textColor="#ffab52"

        android:layout_gravity="center_horizontal"/>



    <Button



        android:id="@+id/Button2"

        android:text="Button2"

        android:textStyle="bold"

        android:ems="8"

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:textSize="30dp"

        android:textColor="#ffab52"

        android:layout_gravity="center_horizontal"/>

    <Button



        android:id="@+id/Button3"

        android:text="Button3"

        android:textStyle="bold"

        android:ems="8"

        android:layout_height="wrap_content"

        android:layout_width="wrap_content"

        android:textSize="30dp"

        android:textColor="#ffab52"

        android:layout_gravity="center_horizontal"/>

</LinearLayout>

Step 4

Create a Java class file with the following.

This is you rmainActivity class that will hold your Layout at runtime.


package com.fragmentactivityproject;



import android.annotation.TargetApi;

import android.app.FragmentManager;

import android.app.FragmentTransaction;

import android.os.Build;

import android.os.Bundle;

import android.app.Activity;

import android.support.v4.app.FragmentActivity;

import android.view.Menu;



public class MainActivity extends FragmentActivity {



    @Override

    protected void onCreate(Bundle savedInstanceState) {



        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);

    }



    @Override

    public boolean onCreateOptionsMenu(Menu menu) {

        // Inflate the menu; this adds items to the action bar if it is present.

        getMenuInflater().inflate(R.menu.main, menu);

        return true;

    }

}

Step 5

Create another Java class file with the following.


package com.fragmentactivityproject;



import android.annotation.TargetApi;

import android.app.FragmentTransaction;

import android.support.v4.app.Fragment;

import android.os.Build;

import android.os.Bundle;

import android.support.v4.app.FragmentManager;

import android.util.Log;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.Button;



import static com.fragmentactivityproject.R.layout.second;



/**

 * Created by vivek on 11/14/13.

 */

@TargetApi(Build.VERSION_CODES.HONEYCOMB)

public class Second extends Fragment {



    Button button1;

    public View onCreateView(LayoutInflater inflater,ViewGroup container,Bundle savedInstanceState)

    {

        View view;

        view = inflater.inflate(R.layout.second,null);

        return view;

    }

}

Step 6

Android Manifest.xml file


<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.fragmentactivityproject"

    android:versionCode="1"

    android:versionName="1.0" >



    <uses-sdk

        android:minSdkVersion="7"

        android:targetSdkVersion="16" />



    <application

        android:allowBackup="true"

        android:icon="@drawable/ic_launcher"

        android:label="@string/app_name"

        android:theme="@style/AppTheme" >

        <activity

            android:name="com.fragmentactivityproject.MainActivity"

            android:label="@string/app_name" >

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />



                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

    </application>

</manifest>


Step 7

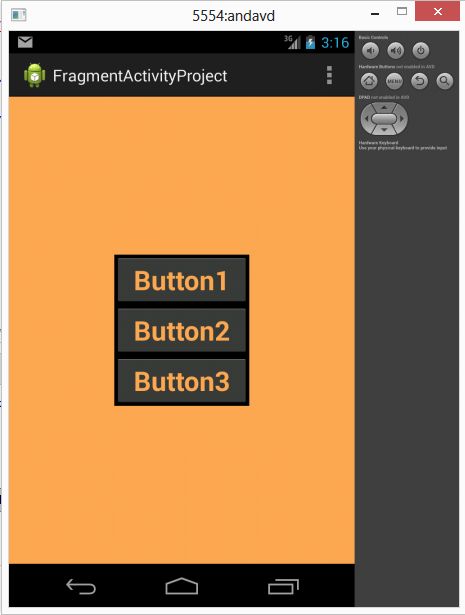

Image that contains your Layout:
