Entity Framework Code First Approach With MVC

This scenario targets a database that doesn’t exist and code first will create, or an empty database that code first will add new tables .

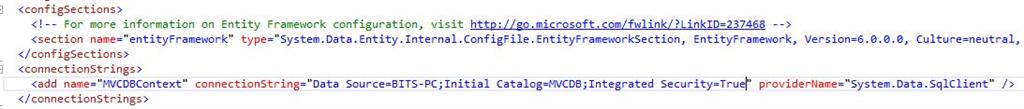

Note: Make sure that the Entity Framework already installed with Visual Studio, otherwise install using NuGet Packages.

Step 1. Creating an MVC Application

  • Open Visual Studio
  • File, New, then click Project
  • Select ASP.NET MVC3/4 Web Application.
  • Enter the name of application as "CodeFirstDemo".
  • Click OK

Step 2. Creating the Model

Right click on the Models folder and create a model with the name of "User" as in the following image and create a property as in the below code,

solution

  1. public class User
  2. {
  3.     public int UserId
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string FirstName
  9.     {
  10.         get;
  11.         set;
  12.     }
  13.     public string LastName
  14.     {
  15.         get;
  16.         set;
  17.     }
  18.     public string EMail
  19.     {
  20.         get;
  21.         set;
  22.     }
  23.     public string Address
  24.     {
  25.         get;
  26.         set;
  27.     }
  28.     public string PhoneNo
  29.     {
  30.         get;
  31.         set;
  32.     }
  33.     public string Company
  34.     {
  35.         get;
  36.         set;
  37.     }
  38.     public string Designation
  39.     {
  40.         get;
  41.         set;
  42.     }
  43. }
Step 3. Create a DBContext

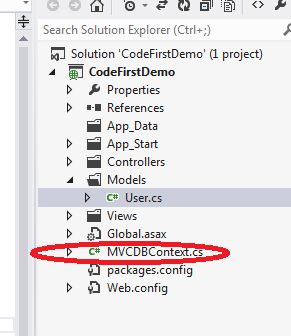

Create a class with the Name MVCDBContext as in the following screenshot and write the code as follows in MVCDBContext class.

solution

  1. using System.Data.Entity;
  2. using System.Linq;
  3. using CodeFirstDemo.Models;
  4. namespace CodeFirstDemo
  5. {
  6.     public class MVCDBContext: DbContext
  7.     {
  8.         public DbSet < User > Users
  9.         {
  10.             get;
  11.             set;
  12.         }
  13.     }
  14. }
[ Note : Make sure that you are using " System.Data.Entity " Namespace. ]

Step 4 : Create a Controller.

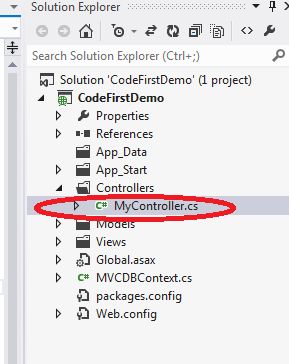

Right click on the Controller folder and create a controller with the name "MyController" as in the following image. Write the following code in Mycontroller.cs within Index Action.

solution

  1. public ActionResult Index()
  2. {
  3.     var dbContext = new MVCDBContext();
  4.     var userList = from user in dbContext.Users select user;
  5.     var users = new List < CodeFirstDemo.Models.User > ();
  6.     if (userList.Any())
  7.     {
  8.         foreach(var user in userList)
  9.         {
  10.             users.Add(new CodeFirstDemo.Models.User()
  11.             {
  12.                 UserId = user.UserId, Address = user.Address,
  13.                     Company = user.Company, FirstName = user.FirstName,
  14.                     LastName = user.LastName, Designation = user.Designation,
  15.                     EMail = user.EMail, PhoneNo = user.PhoneNo
  16.             });
  17.         }
  18.     }
  19.     ViewBag.FirstName = "My First Name";
  20.     ViewData["FirstName"] = "My First Name";
  21.     if (TempData.Any())
  22.     {
  23.         var tempData = TempData["TempData Name"];
  24.     }
  25.     return View(users);
  26. }
Now ,

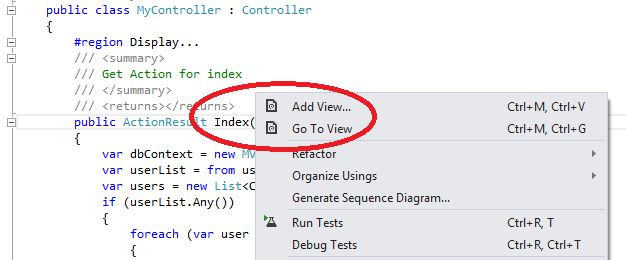

  • Right click on Index and select Add View… as in the following screenshot.
  • Click on Add button that appear in the dialog box.

    View

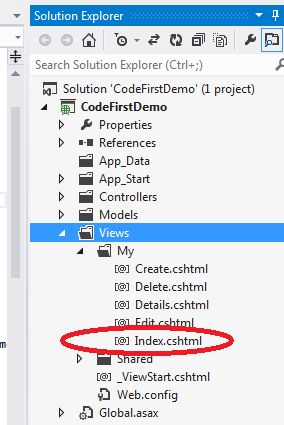

  • Go to Views folder and choose Index.cshtml in My folder.

    solution

  • Type the following code in Index.cshtml file.
    1. @model List < CodeFirstDemo.Models.User > @
    2. {
    3.     ViewBag.Title = "Index";
    4.     Layout = "~/Views/Shared/_Layout.cshtml";
    5. }
    6.   < h2 > Index
    7.   < /h2>
    8.   < p >
    9.     @Html.ActionLink("Create New""Create")
    10.   < /p>
    11.   < div > < table > < tr > < th >
    12.   FirstName
    13.   < /th> < th >
    14. LastName
    15.   < /th> < th > EMail
    16.   < /th> < th > Address
    17.   < /th> < th > PhoneNo
    18.   < /th> < th > Company
    19.   < /th> < th > Designation
    20.   < /th> < th > < /th> < /tr>
    21. @foreach(var item in Model)
    22. {
    23.   < tr > < td >
    24.     @Html.DisplayFor(modelItem => item.FirstName)
    25.     < /td> < td > @Html.DisplayFor(modelItem => item.LastName)
    26.       < /td> < td > @Html.DisplayFor(modelItem => item.EMail)
    27.       < /td> < td > @Html.DisplayFor(modelItem => item.Address)
    28.       < /td> < td > @Html.DisplayFor(modelItem => item.PhoneNo)
    29.       < /td> < td > @Html.DisplayFor(modelItem => item.Company)
    30.       < /td> < td > @Html.DisplayFor(modelItem => item.Designation)
    31.       < /td> < td > @Html.ActionLink("Edit""Edit"new
    32.     {
    33.         id = item.UserId
    34.     }) | @Html.ActionLink("Details""Details"new
    35.     {
    36.         id = item.UserId
    37.     }) | @Html.ActionLink("Delete""Delete"new
    38.     {
    39.         id = item.UserId
    40.     }) < /td> < /tr>
    41. } < /table> < /div>

    Now, again go to MyController and create a new action with the name of Details as follows.
    1. public ActionResult Details(int ? id)
    2. {
    3.     var dbContext = new MVCDBContext();
    4.     var userDetails = dbContext.Users.FirstOrDefault(userId => userId.UserId == id);
    5.     var user = new CodeFirstDemo.Models.User();
    6.     if (userDetails != null)
    7.     {
    8.         user.UserId = userDetails.UserId;
    9.         user.FirstName = userDetails.FirstName;
    10.         user.LastName = userDetails.LastName;
    11.         user.Address = userDetails.Address;
    12.         user.PhoneNo = userDetails.PhoneNo;
    13.         user.EMail = userDetails.EMail;
    14.         user.Company = userDetails.Company;
    15.         user.Designation = userDetails.Designation;
    16.     }
    17.     return View(user);
    18. }

    Again, Right click on the Details ActionResult and add view as same as index. Write the code as follows in your Details view which you just created.
    1. @model CodeFirstDemo.Models.User
    2. @
    3. {
    4.     ViewBag.Title = "Details";
    5. }
    6. < h2 >
    7.   Details
    8. < /h2>
    9.   < fieldset > < legend > User
    10.   < /legend>
    11.   < div class = "display-label" > FirstName
    12.     < /div> < div class = "display-field" >
    13.   @Html.DisplayFor(model => model.FirstName)
    14.     < /div> < div class = "display-label" > LastName
    15.     < /div> < div class = "display-field" >
    16.   @Html.DisplayFor(model => model.LastName)
    17.     < /div> < div class = "display-label" > EMail
    18.     < /div> < div class = "display-field" >
    19.   @Html.DisplayFor(model => model.EMail)
    20.     < /div> < div class = "display-label" > Address
    21.     < /div> < div class = "display-field" >
    22.   @Html.DisplayFor(model => model.Address)
    23.     < /div> < div class = "display-label" > PhoneNo
    24.     < /div> < div class = "display-field" >
    25.   @Html.DisplayFor(model => model.PhoneNo)
    26.     < /div> < div class = "display-label" > Company
    27.     < /div> < div class = "display-field" >
    28.   @Html.DisplayFor(model => model.Company)
    29.     < /div> < div class = "display-label" > Designation
    30.     < /div> < div class = "display-field" >
    31.   @Html.DisplayFor(model => model.Designation)
    32.     < /div> < /fieldset> < p >
    33.       @Html.ActionLink("Edit""Edit"new
    34. {
    35.     id = Model.UserId
    36. }) | @Html.ActionLink("Back to List""Index") < /p>

    Repeat the same process for creating an action in MyController for Create, Edit and Delete as follows and also add views.
    1. #region Edit...
    2.     /// <summary>
    3.     /// Get Action for Edit
    4.     /// </summary>
    5.     /// <param name="id"></param>
    6.     /// <returns></returns>
    7. public ActionResult Edit(int ? id)
    8.     {
    9.         var dbContext = new MVCDBContext();
    10.         var userDetails = dbContext.Users.FirstOrDefault(userId => userId.UserId == id);
    11.         var user = new CodeFirstDemo.Models.User();
    12.         if (userDetails != null)
    13.         {
    14.             user.UserId = userDetails.UserId;
    15.             user.FirstName = userDetails.FirstName;
    16.             user.LastName = userDetails.LastName;
    17.             user.Address = userDetails.Address;
    18.             user.PhoneNo = userDetails.PhoneNo;
    19.             user.EMail = userDetails.EMail;
    20.             user.Company = userDetails.Company;
    21.             user.Designation = userDetails.Designation;
    22.         }
    23.         return View(user);
    24.     }
    25.     /// <summary>
    26.     /// Post Action for Edit
    27.     /// </summary>
    28.     /// <param name="id"></param>
    29.     /// <param name="user"></param>
    30.     /// <returns></returns>
    31.     [HttpPost]
    32. public ActionResult Edit(int ? id, User userDetails)
    33. {
    34.     TempData["TempData Name"] = "Akhil";
    35.     try
    36.     {
    37.         var dbContext = new MVCDBContext();
    38.         var user = dbContext.Users.FirstOrDefault(userId => userId.UserId == id);
    39.         if (user != null)
    40.         {
    41.             user.FirstName = userDetails.FirstName;
    42.             user.LastName = userDetails.LastName;
    43.             user.Address = userDetails.Address;
    44.             user.PhoneNo = userDetails.PhoneNo;
    45.             user.EMail = userDetails.EMail;
    46.             user.Company = userDetails.Company;
    47.             user.Designation = userDetails.Designation;
    48.             dbContext.SaveChanges();
    49.         }
    50.         return RedirectToAction("Index");
    51.     }
    52.     catch
    53.     {
    54.         return View();
    55.     }
    56. }#
    57. endregion# region Delete...
    58.     /// <summary>
    59.     /// Get Action for Delete
    60.     /// </summary>
    61.     /// <param name="id"></param>
    62.     /// <returns></returns>
    63. public ActionResult Delete(int ? id)
    64.     {
    65.         var dbContext = new MVCDBContext();
    66.         var user = new CodeFirstDemo.Models.User();
    67.         var userDetails = dbContext.Users.FirstOrDefault(userId => userId.UserId == id);
    68.         if (userDetails != null)
    69.         {
    70.             user.FirstName = userDetails.FirstName;
    71.             user.LastName = userDetails.LastName;
    72.             user.Address = userDetails.Address;
    73.             user.PhoneNo = userDetails.PhoneNo;
    74.             user.EMail = userDetails.EMail;
    75.             user.Company = userDetails.Company;
    76.             user.Designation = userDetails.Designation;
    77.         }
    78.         return View(user);
    79.     }
    80.     /// <summary>
    81.     /// Post Action for Delete
    82.     /// </summary>
    83.     /// <param name="id"></param>
    84.     /// <param name="userDetails"> </param>
    85.     /// <returns></returns>
    86.     [HttpPost]
    87. public ActionResult Delete(int ? id, CodeFirstDemo.Models.User userDetails)
    88. {
    89.     try
    90.     {
    91.         var dbContext = new MVCDBContext();
    92.         var user = dbContext.Users.FirstOrDefault(userId => userId.UserId == id);
    93.         if (user != null)
    94.         {
    95.             dbContext.Users.Add(user);
    96.             dbContext.SaveChanges();
    97.         }
    98.         return RedirectToAction("Index");
    99.     }
    100.     catch
    101.     {
    102.         return View();
    103.     }
    104. }#endregion

Create.cshtml

  1. @model CodeFirstDemo.Models.User
  2. @
  3. {
  4.     ViewBag.Title = "Create";
  5. } < h2 > Create < /h2> < script src = "@Url.Content("~/Scripts/jquery.validate.min.js ")"
  6. type = "text/javascript" > < /script> < script src = "@Url.Content("~/Scripts/jquery.validate.unobtrusive.min.js ")"
  7. type = "text/javascript" > < /script>
  8. @using(Html.BeginForm())
  9. {
  10.     @Html.ValidationSummary(true) < fieldset > < legend > User
  11.       < /legend> < div class = "editor-label" >
  12.     @Html.LabelFor(model => model.FirstName)
  13.       < /div> < div class = "editor-field" >
  14.     @Html.EditorFor(model => model.FirstName)
  15.     @Html.ValidationMessageFor(model => model.FirstName)
  16.       < /div> < div class = "editor-label" >
  17.     @Html.LabelFor(model => model.LastName)
  18.       < /div> < div class = "editor-field" >
  19.     @Html.EditorFor(model => model.LastName)
  20.     @Html.ValidationMessageFor(model => model.LastName)
  21.       < /div> < div class = "editor-label" >
  22.     @Html.LabelFor(model => model.EMail)
  23.       < /div> < div class = "editor-field" >
  24.     @Html.EditorFor(model => model.EMail)
  25.     @Html.ValidationMessageFor(model => model.EMail)
  26.       < /div> < div class = "editor-label" >
  27.     @Html.LabelFor(model => model.Address)
  28.       < /div> < div class = "editor-field" >
  29.     @Html.EditorFor(model => model.Address)
  30.     @Html.ValidationMessageFor(model => model.Address)
  31.       < /div> < div class = "editor-label" >
  32.     @Html.LabelFor(model => model.PhoneNo)
  33.       < /div> < div class = "editor-field" >
  34.     @Html.EditorFor(model => model.PhoneNo)
  35.     @Html.ValidationMessageFor(model => model.PhoneNo)
  36.       < /div> < div class = "editor-label" >
  37.     @Html.LabelFor(model => model.Company)
  38.       < /div> < div class = "editor-field" >
  39.     @Html.EditorFor(model => model.Company)
  40.     @Html.ValidationMessageFor(model => model.Company)
  41.       < /div> < div class = "editor-label" >
  42.     @Html.LabelFor(model => model.Designation)
  43.       < /div> < div class = "editor-field" >
  44.     @Html.EditorFor(model => model.Designation)
  45.     @Html.ValidationMessageFor(model => model.Designation)
  46.       < /div> < p > < input type = "submit"
  47.     value = "Create" / > < /p> < /fieldset>
  48. } < div > @Html.ActionLink("Back to List""Index")
  49.   < /div>
Delete.cshtml
  1. @model CodeFirstDemo.Models.User
  2. @
  3. {
  4.     ViewBag.Title = "Delete";
  5. }
  6. < h2 > Delete
  7.   < /h2>
  8.   < h3 > Are you sure you want to delete this ?
  9.     < /h3> < fieldset > < legend > User
  10.     < /legend>
  11.     < div class = "display-label" > FirstName
  12.     < /div> < div class = "display-field" >
  13.   @Html.DisplayFor(model => model.FirstName)
  14.     < /div> < div class = "display-label" > LastName
  15.     < /div> < div class = "display-field" >
  16.   Html.DisplayFor(model => model.LastName)
  17.     < /div> < div class = "display-label" > EMail
  18.     < /div> < div class = "display-field" >
  19.   @Html.DisplayFor(model => model.EMail)
  20.     < /div> < div class = "display-label" > Address
  21.     < /div> < div class = "display-field" >
  22.   @Html.DisplayFor(model => model.Address)
  23.     < /div> < div class = "display-label" > PhoneNo
  24.     < /div> < div class = "display-field" >
  25.   @Html.DisplayFor(model => model.PhoneNo)
  26.     < /div> < div class = "display-label" > Company
  27.     < /div> < div class = "display-field" >
  28.   @Html.DisplayFor(model => model.Company)
  29.     < /div> < div class = "display-label" > Designation
  30.     < /div> < div class = "display-field" >
  31.   @Html.DisplayFor(model => model.Designation)
  32.     < /div> < /fieldset>
  33. @using(Html.BeginForm())
  34. < p > < input type = "submit"
  35.     value = "Delete" / > | @Html.ActionLink("Back to List", "Index") < /p>
  36. }
Edit.cshtml
  1. @model CodeFirstDemo.Models.User
  2. @
  3. {
  4.     ViewBag.Title = "Edit";
  5. } < h2 > Edit < /h2> < script src = "@Url.Content("~/Scripts/jquery.validate.min.js ")"
  6. type = "text/javascript" > < /script> < script src = "@Url.Content("~/Scripts/jquery.validate.unobtrusive.min.js ")"
  7. type = "text/javascript" > < /script>
  8. @using(Html.BeginForm())
  9. {
  10.     @Html.ValidationSummary(true) < fieldset > < legend > User < /legend>
  11.     @Html.HiddenFor(model => model.UserId) < div class = "editor-label" > @Html.LabelFor(model => model.FirstName) < /div> < div class = "editor-field" > @Html.EditorFor(model => model.FirstName)
  12.     @Html.ValidationMessageFor(model => model.FirstName)
  13.       < /div> < div class = "editor-label" >
  14.     @Html.LabelFor(model => model.LastName)
  15.       < /div> < div class = "editor-field" >
  16.     @Html.EditorFor(model => model.LastName)
  17.     @Html.ValidationMessageFor(model => model.LastName)
  18.       < /div> < div class = "editor-label" >
  19.     @Html.LabelFor(model => model.EMail)
  20.       < /div> < div class = "editor-field" >
  21.     @Html.EditorFor(model => model.EMail)
  22.     @Html.ValidationMessageFor(model => model.EMail)
  23.       < /div> < div class = "editor-label" >
  24.     @Html.LabelFor(model => model.Address)
  25.       < /div> < div class = "editor-field" >
  26.     @Html.EditorFor(model => model.Address)
  27.     @Html.ValidationMessageFor(model => model.Address)
  28.       < /div> < div class = "editor-label" >
  29.     @Html.LabelFor(model => model.PhoneNo)
  30.       < /div> < div class = "editor-field" >
  31.     @Html.EditorFor(model => model.PhoneNo)
  32.     @Html.ValidationMessageFor(model => model.PhoneNo)
  33.       < /div> < div class = "editor-label" >
  34.     @Html.LabelFor(model => model.Company)
  35.       < /div> < div class = "editor-field" >
  36.     @Html.EditorFor(model => model.Company)
  37.     @Html.ValidationMessageFor(model => model.Company)
  38.       < /div> < div class = "editor-label" >
  39.     @Html.LabelFor(model => model.Designation)
  40.       < /div> < div class = "editor-field" >
  41.     @Html.EditorFor(model => model.Designation)
  42.     @Html.ValidationMessageFor(model => model.Designation)
  43.       < /div> < p > < input type = "submit"
  44.     value = "Save" / > < /p> < /fieldset>
  45.
  46. } < div > @Html.ActionLink("Back to List""Index") < /div>
Please make sure your Web.config file looks like the following:

config

Now press F5 to run the application,

Summary

In this walk-through we looked at code first development using a new database. We defined a model using classes and then used that model to create a database and performed CRUD operation.

Up Next
    Ebook Download
    View all
    Learn
    View all
