Page Grid in ASP.Net Web API

Introduction

This article describes how to create a page grid in the ASP.NET Web API. Here the user allows the page size for a grid. We use the "Knockout.js" script file for the page grid.

Now for the procedure for creating the page grid in ASP.NET Web API.

Step 1

First we create the Web API application name as "PageGrid".

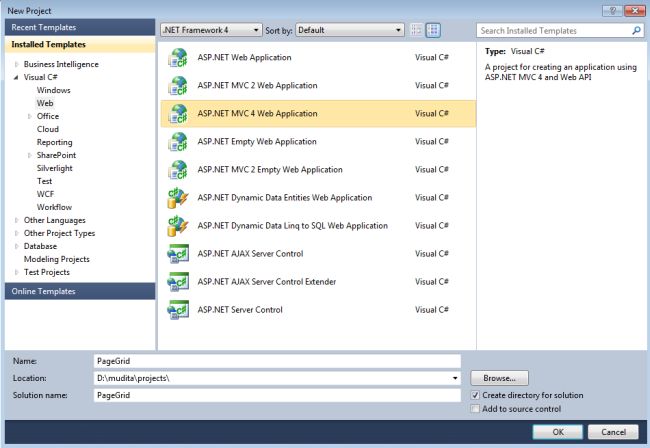

  • Start Visual Studio 2010 and select "New Project" from the Start Page.
  • In the Template window, select "Installed template" -> "Visual C#" -> "Web".
  • Choose "ASP. NET MVC 4 Web Application" then change its name.
  • Click on the "OK" button.

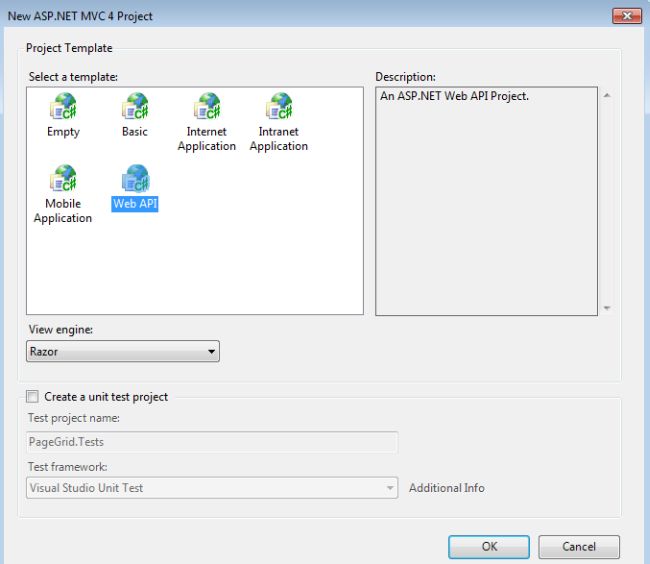

  • MVC4 Project Window.


  • Select "Web API" and click on the "OK" button.

Step 2

Open the "ValuesController.cs".

  • In the "Solution Explorer".
  • Select the "Controller Folder" -> "ValuesControllre.cs".
  • Write this code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Net.Http;

using System.Web.Http;



namespace PageGrid.Controllers

{

    public class GridViewModel

    {

        public IEnumerable<String> NameofMonth { get; set; }



        public int PaperNumber { get; set; }

    }



    public class ValuesController : ApiController

    {

        public IList<String> NameofMonth

        {

            get { return new List<String> { "January", "February", "March", "April", "May", "June", "July", "August", "September", "October", "November", "December" }; }

        }



        public GridViewModel Get(int paper, int papersize)

        {

            return new GridViewModel

            {



                NameofMonth = (0 == paper ? null : NameofMonth.Skip((paper - 1) * papersize).Take(papersize).ToArray())

                ,



                PaperNumber = ((int)Math.Ceiling((double)NameofMonth.Count / papersize))

            };

        }

        }

    }



 Step 3

Open the "index.cshtml" file then:

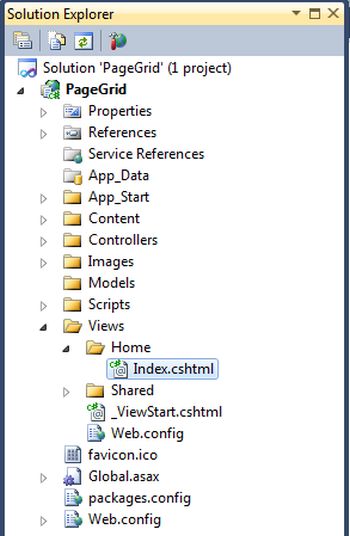

  • In the "Solution Explorer".

  • Select "Views folder" -> "Home folder" -> "index.cshtml".


And write this code.

Page size:

<select data-bind="options: availablePaperSize, optionsText: $data, value: selectedPaperSize"></select>

<table data-bind="with: GridViewModel">

    <thead>

        <tr>

            <th>Names Of Months

            </th>

        </tr>

    </thead>

    <tbody data-bind="foreach: NameofMonth">

        <tr>

            <td data-bind="text: $data"></td>

        </tr>

    </tbody>

</table>



<div id="pager"></div>



<script type="text/javascript">



    function pageViewModel() {

        var self = this;

        self.GridViewModel = ko.observable();

        self.selectedPaperSize = ko.observable(3); 3

        self.availablePaperSize = ko.observableArray([1, 2, 3, 4, 5]);

        self.selectedPaper = ko.observable(1);





        $("#pager").on("click", ".pageIndex", function (event) {



            self.selectedPaper($(this).text());

        });





        self.navigate = function () {

            $.get("/api/values?paper=" + self.selectedPaper() + "&papersize=" + self.selectedPaperSize(), self.GridViewModel);

        };





        self.SubscribeToEvents = function () {





            self.selectedPaperSize.subscribe(function (newValue) {

                self.selectedPaper(1);

                self.navigate();

            });





            self.selectedPaper.subscribe(function (newValue) {

                self.navigate();

            });





            self.GridViewModel.subscribe(function (newValue) {

                var paperNumber = newValue.PaperNumber;

                var $pager = $("#pager");



                $pager.html("");



                for (var i = 1; i <= paperNumber; i++) {

                    var link = $('<a class="pageIndex">' + i + '</a>');

                    $pager.append(link);

                }

            }, this);

        };





        self.bind = function () {

            self.SubscribeToEvents();

            self.navigate();

            ko.applyBindings(self);

        }

    }



    $(function () { new pageViewModel().bind(); })

</script>



 Step 4

Now open the "_Layout.cshtml" file and add the "Knockout-2.1.0.js" file.

  • In the "Solution Explorer".
  • Select "Views" -> "Shared" -> "_Layout.cshtml".
  • Now drag and drop the "Knockout-2.1.0.js" file from the "Script" folder.


The code looks as in the following:

<!DOCTYPE html>

<html>

<head>

    <meta charset="utf-8" />

    <meta name="viewport" content="width=device-width" />

    <title>@ViewBag.Title</title>

    @Styles.Render("~/Content/css")

    @Scripts.Render("~/bundles/modernizr")

     @Scripts.Render("~/bundles/jquery")

</head>

<body>

    @RenderBody()





    @RenderSection("scripts", required: false)

    <script src="../../Scripts/knockout-2.1.0.js" type="text/javascript"></script>

     </body>

</body>

</html>



 Step5

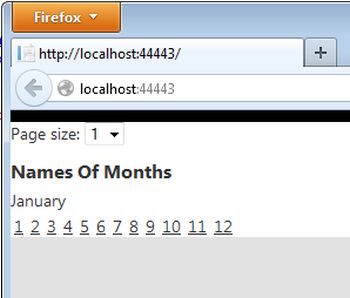

Now execute the application. It will look as in the following:

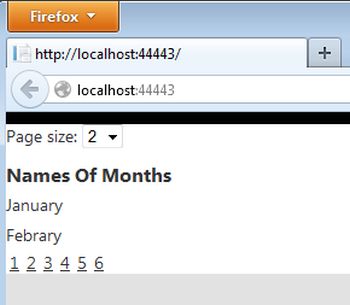

If we select the page size as 2 then there are 2 names of months displayed in one page as in the following:

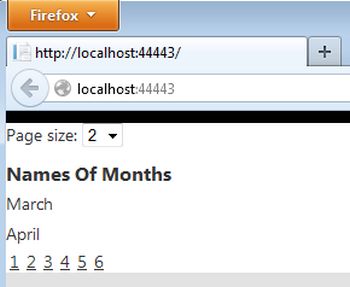

Select the Second page.

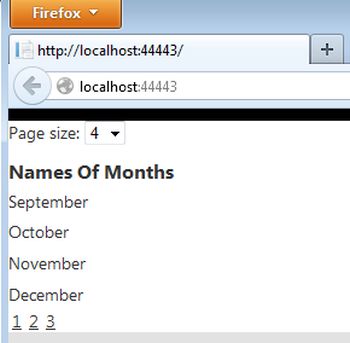

Select the Page Size 4.
