Introduction
This article explains the Data Annotation property for doing validation. Here we create a simple form for displaying the validation using Data Annotation. We know that validation is very important for any form.
Use the following procedure to create a simple form.
Step 1

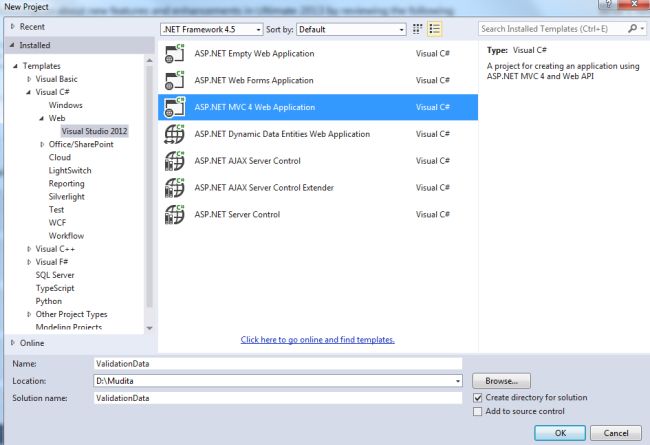

Create a Web API Application as in the following:
- Start Visual Studio 2013.
- From the Start Window select "New Project".
- Select "Installed" -> "Templates" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "ASP.NET MVC4 Web Application".
![Select MVC4 Web Application]()
- Click on the "OK" button.

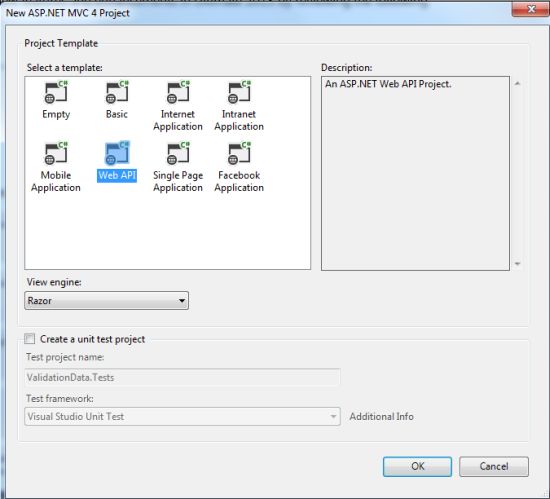

- From the MVC4 project window select "Web API".
![Select Web API]()
- Click on the "Create Project" button.
Step 2

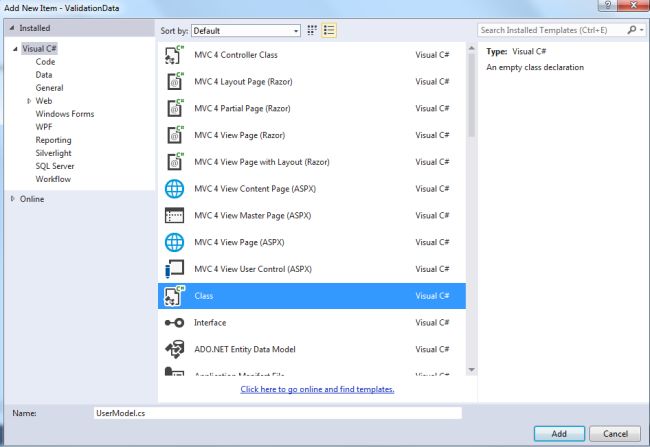

Add a Model Class as in the following:
- In the "Solution Explorer".
- Right-click on the Model Folder.
- Select "Add" -> "Class".
- Select "Installed" -> "Visual C#" and select "Class".
![Add Model Class]()
- Click on the "Add" button.
Add the following code:
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Web;
namespace ValidationData.Models
{
public class UserModel
{
[Required(ErrorMessage = "Enter User Name")]
public string FirstName { get; set; }
[Required(ErrorMessage = "Enter User Last Name")]
public string LastName { get; set; }
[Required(ErrorMessage = "Enter USer Address")]
public string Address { get; set; }
[Required(ErrorMessage = "Enter User Age")]
[Range(18, 50, ErrorMessage = "Age Sholud more the 18 and Less Than 50")]
public int Age { get; set; }
}
}
Step 3

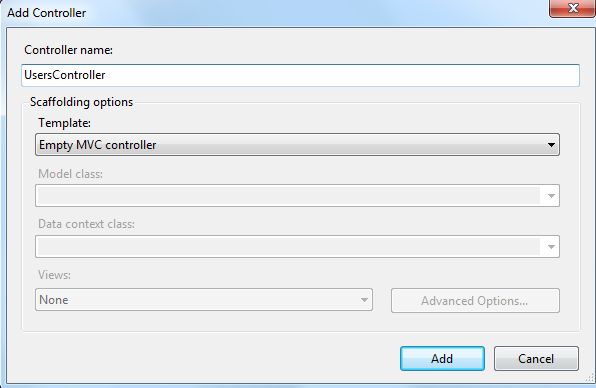

Add a Controller:
- In the "Solution Explorer".
- Right-click on the Controller folder, select "Add" -> "Controller".
- From the Template select "MVC Controller".
![Add Controller]()
- Click on the "Add" button.
Add the following Code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using ValidationData.Models;
namespace ValidationData.Controllers
{
public class UsersController : Controller
{
//
// GET: /Users/
public ActionResult Index()
{
return View();
}
[HttpPost]
public ActionResult Detail(UserModel u)
{
if(!ModelState.IsValid)
{
return View("Index");
}
else
{
return Content("Valid User" + "FirstName" + u.FirstName + "LastName" + u.LastName + "Address" + u.Address + "Age" + u.Age);
}
}
}
}
Step 4
Add a View:
- In the "EmployeeController".
- Right-click on the "Index" action Method.
- Select "Add View."
![Select Add View]()

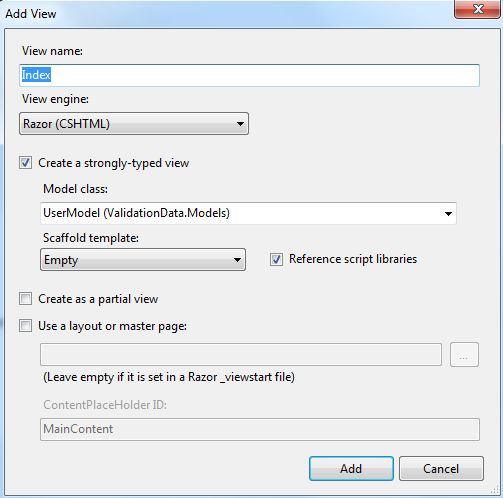

- After the Add View dialog box has been opened select "Strongly Typed View" and select "Model class".
![Select View setting]()
- Click on the "Add" button.
Add the following code:
@model ValidationData.Models.UserModel
@{
Layout = null;
}
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>Index</title>
</head>
<body>
<div>
@using (Html.BeginForm("Detail","Users",FormMethod.Post))
{
@Html.ValidationSummary(true)
<p>
@Html.LabelFor(m=>m.FirstName)
@Html.TextBoxFor(m=>m.FirstName)
@Html.ValidationMessageFor(m=>m.FirstName)
</p>
<p>
@Html.LabelFor(m=>m.LastName)
@Html.TextBoxFor(m=>m.LastName)
@Html.ValidationMessageFor(m=>m.LastName)
</p>
<p>
@Html.LabelFor(m=>m.Address)
@Html.TextBoxFor(m=>m.Address)
@Html.ValidationMessageFor(m=>m.Address)
</p>
<p>
@Html.LabelFor(m=>m.Age)
@Html.TextBoxFor(m=>m.Age)
@Html.ValidationMessageFor(m=>m.Age)
</p>
<input type="submit" value="Submit"/>
}
</div>
</body>
</html>
Execute the application and change the URL to "http://localhost:5016/Users/Index".
![Display Form]()

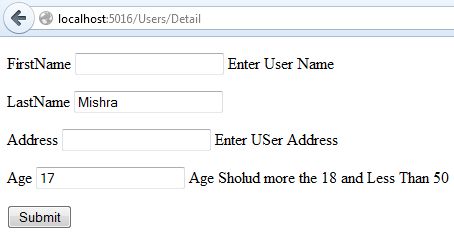

Leave the TextBoxes of FirstName and Address empty and enter an age less then 18. Then it displays the following validation message.
![Display Validation Message]()
