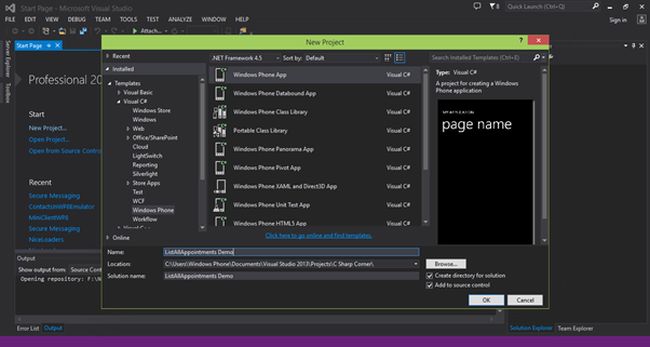

Let us see how to programmatically list all the appointments from the calendar app in Windows Phone 8. Open the Visual Studio 2013 IDE or 2012 IDE and create a new project with a valid name. Here I use “ListAllAppointments Demo” as my project name as shown in the screen below.
![ListAllAppointments]()

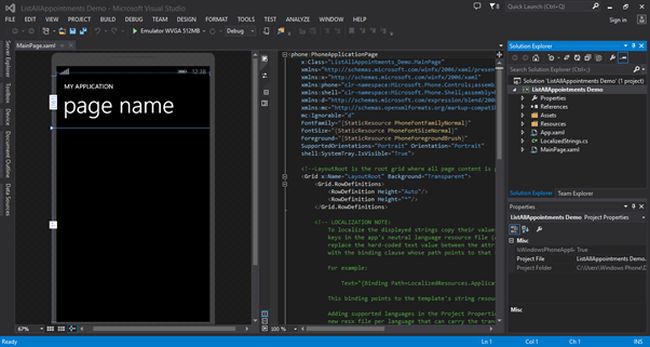

Once everything is ready our project looks as in the following screen.
![project looks]()
Now add one Button control to trigger the calendar to get the appointments, change the button name to “Get appointments”.
XAML Code
- <phone:PhoneApplicationPage
- x:Class="ListAllAppointments_Demo.MainPage"
- xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
- xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
- xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
- xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
- xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
- xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
- mc:Ignorable="d"
- FontFamily="{StaticResource PhoneFontFamilyNormal}"
- FontSize="{StaticResource PhoneFontSizeNormal}"
- Foreground="{StaticResource PhoneForegroundBrush}"
- SupportedOrientations="Portrait" Orientation="Portrait"
- shell:SystemTray.IsVisible="True">
- <Grid x:Name="LayoutRoot" Background="Transparent">
- <Grid.RowDefinitions>
- <RowDefinition Height="Auto"/>
- <RowDefinition Height="*"/>
- </Grid.RowDefinitions>
- <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
- <TextBlock Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}" Margin="12,0"/>
- <TextBlock Text="page name" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
- </StackPanel>
- <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0"></Grid>
- <Button Content="Get appointments" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="122,66,0,0" Grid.Row="1" Width="286"/>
- </Grid>
- </phone:PhoneApplicationPage>
Now go to the code behind page. First we need to add the following reference for getting the user data.
- using Microsoft.Phone.Data;

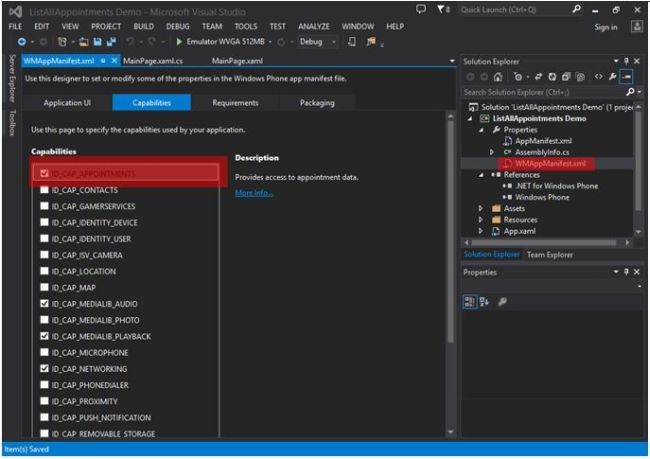

Next we need to enable the ID_CAP_APPOINTMENTS. Open the WMAppManifest file and enable ID_CAP_APPOINTMENTS as shown as in the following screen.
![WMAppManifest]()
Write the following code to get the appointments.
C# Code
- List<Appointment> listofappoinment;
- private void Button_Click(object sender, RoutedEventArgs e)
- {
- Appointments objAppoinment = new Appointments();
- objAppoinment.SearchCompleted+=new EventHandler<AppointmentsSearchEventArgs>(objAppoinment_SearchCompleted);
- DateTime startDate = DateTime.Now;
- DateTime endDate = startDate.AddDays(20);
- objAppoinment.SearchAsync(startDate, endDate, null);
- }
- void objAppoinment_SearchCompleted(object sender, AppointmentsSearchEventArgs e)
- {
- listofappoinment = new List<Appointment>(e.Results);
- StringBuilder appoinment = new StringBuilder();
- foreach(Appointment list in listofappoinment)
- {
- appoinment.Append("Subject:" + list.Subject +"--"+"Location:" + list.Location);
- appoinment.Append("|");
- }
- MessageBox.Show(appoinment.ToString());
- }

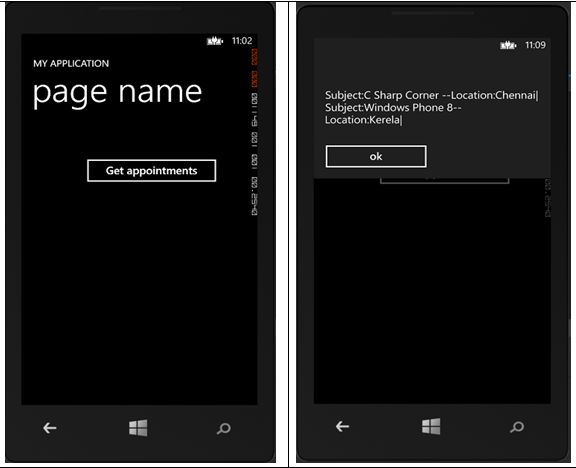

Now run your application. The output looks as in the following screen.
Note: Before checking the output create an appointment in the emulator. I created two appointments in this demo.
