Configure PowerPivot Site Collection In SharePoint 2013

Install SQL Server BI Edition

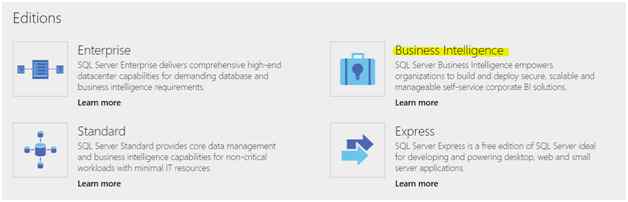

There are different editions of SQL Server. We need to choose the Business Intelligence one.

SQL Server BI Edition

You can install this on the same machine where SharePoint & SQL Server already exists.

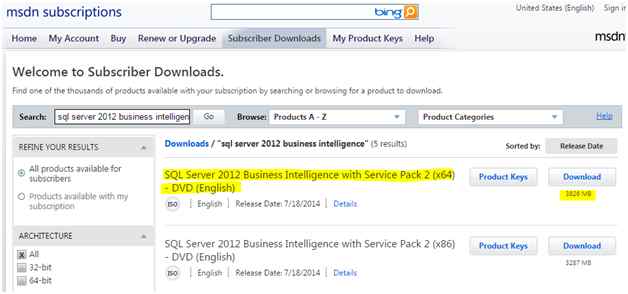

The following is the Download link if you have MSDN Subscription. It is around 3GB.

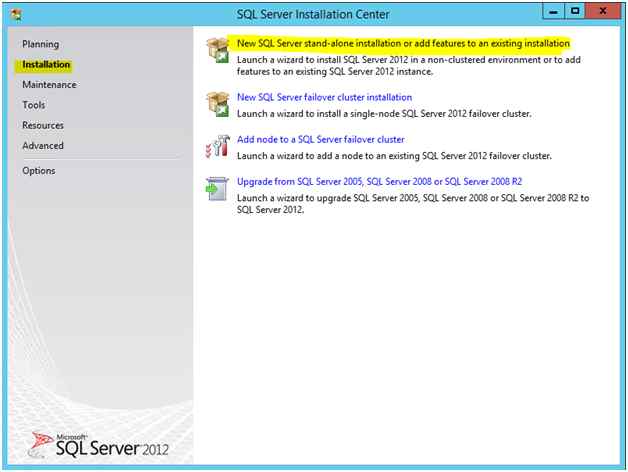

Choose the Installation > New SQL Server option

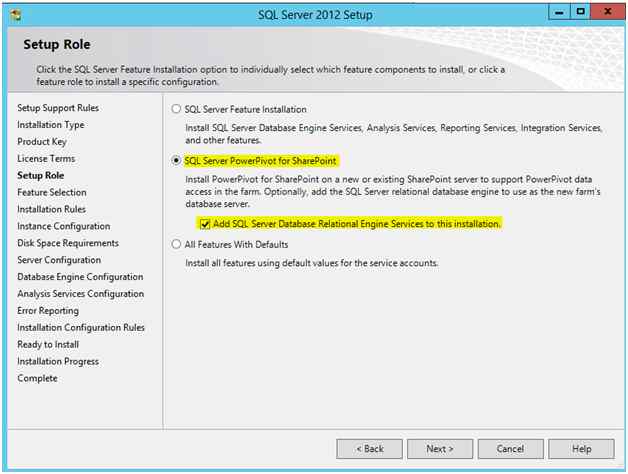

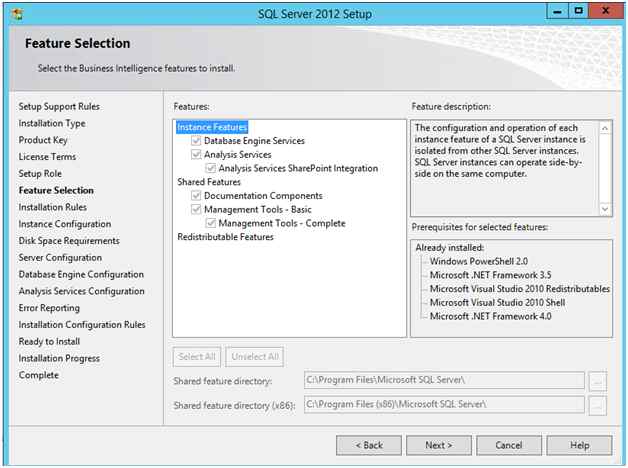

Pass through the upcoming wizard.



PowerPivot Configuration Tool

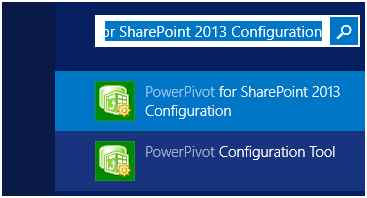

Now you can run the PowerPivot for SharePoint 2013 Configuration. This tool will configure the required service applications, services & site templates for PowerPivot.

You should be logged in as Farm Administrator to the machine.

Farm Administrator

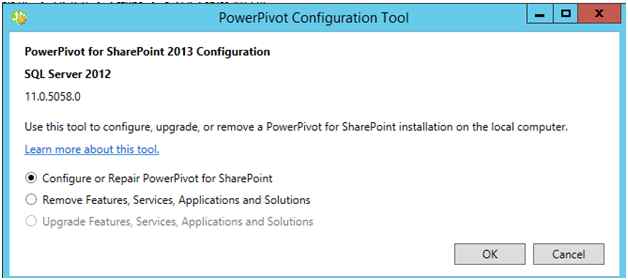

You will get the tool loaded like below.

tool loaded

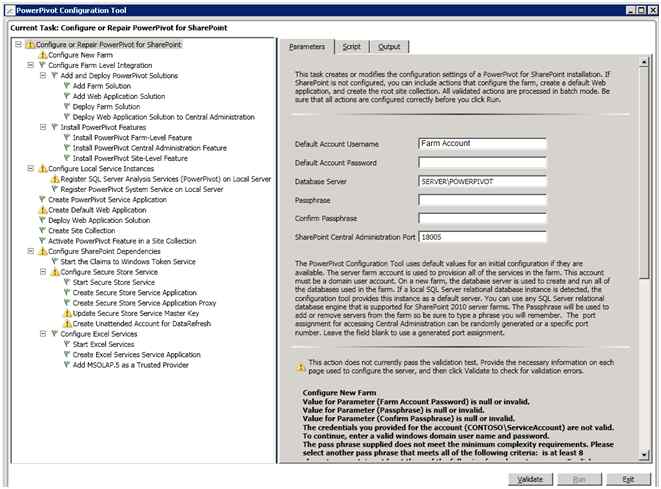

In the appearing page enter the core details:

  1. Farm Account
  2. PowerPivot Instance Name

Power Pivot Instance

Click Validate & then run button to complete the operations.

Central Administration

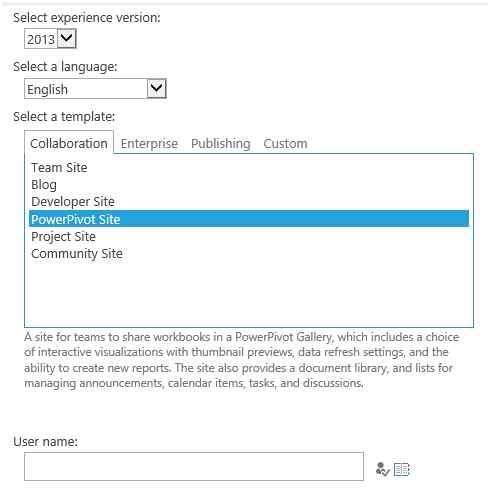

Go to Central Administration & create a new site collection. You should be able to choose the PowerPivot template as shown below.

PowerPivot template

Enter the User Name & Click OK to create the site collection.

Once the site collection is created you can open it in browser.

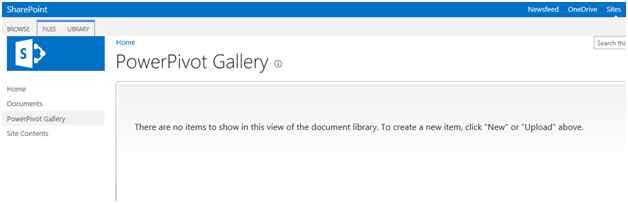

In the new site collection you can open the library named PowerPivot Gallery. This is the core library used for BI.

PowerPivot Gallery

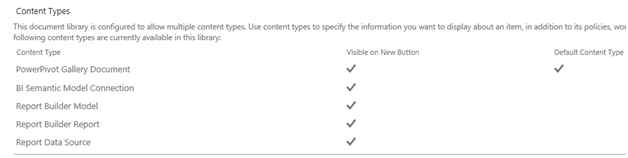

You can configure the following advanced content types for the library.

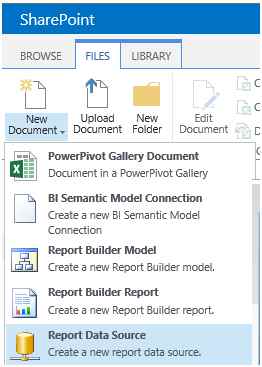

If you already have Analysis Server & Cube created you can create a new Report Data Source object to create a Report within the browser.

Report Data Source

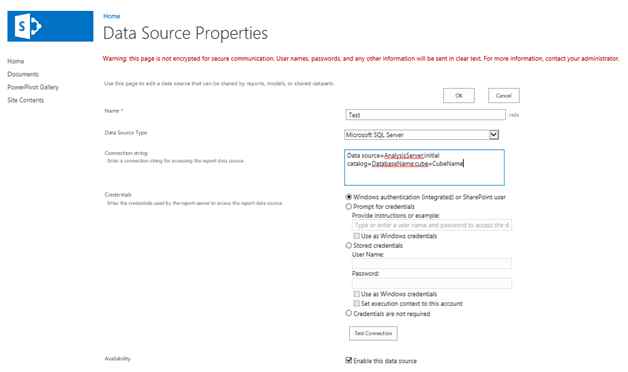

You can enter the details shown below.

enter the details

You can choose the Farm Account & Use as Windows credential option.

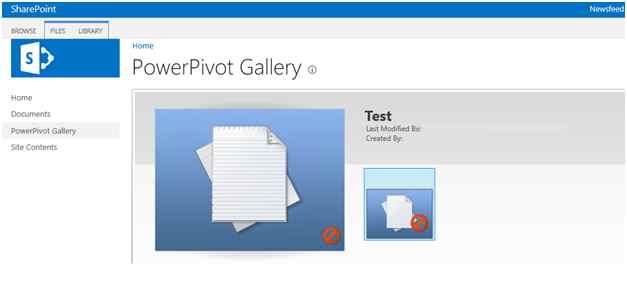

Once the connection is successful you will see the new item as shown below.

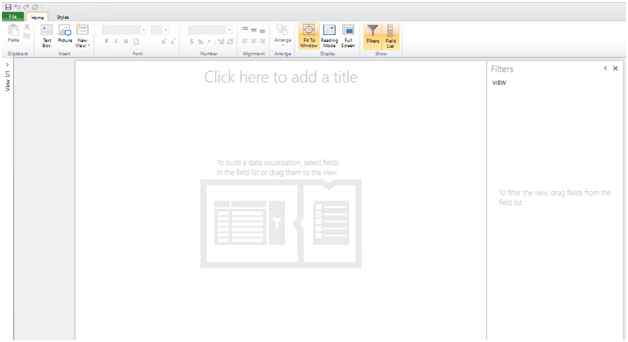

You can try clicking on the item & use Report Builder within the browser itself.

clicking on the item

This confirms our PowerPivot installation for SharePoint 2013.



In this article we explored how to configure PowerPivot Site Collection in SharePoint 2013.
