Introduction
This article explains how to create an async SqlConnection in ASP .Net 4.5 and using the SqlCommand.BeginExecuteNonQuery Method (AsyncCallback, Object).
So, let's proceed with the following procedure:
- Create an Asynchronous Page ASP .NET web page
- Create a Connection, Create a Command, Create a Parameter and Grid View binding
Creating an Asynchronous Page

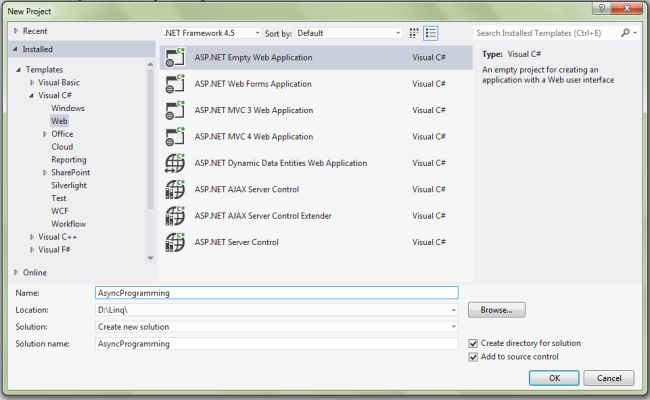

Create a new project using "File" -> "New" -> "Project..." then select web "ASP .Net Web Forms Application". Name it "AsyncProgramming".
![SP .Net Web Forms Application]()

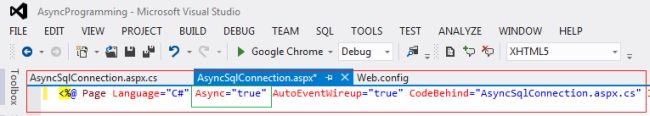

Next, create the code-behind as follows: The first step to building an asynchronous page is setting the Async attribute in the Page directive to true, as shown here:
<%@ Page Language="C#" Async="true" %>
![Async attribute]()

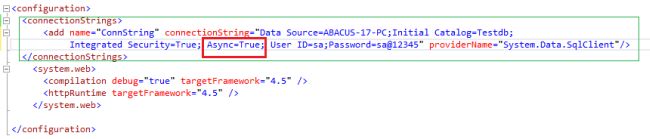

In the web.config file create the database. Set on the connection string: Asynchronous operation to work, the attribute Async=True; as shown here:
Now, in the code behind file AsyncSqlConnection.aspx use the following code.
![Async attribute1]()
<%@ Page Language="C#" Title="Asynchronous programming" Async="true" AutoEventWireup="true"
CodeBehind="AsyncSqlConnection.aspx.cs" Inherits="AsyncProgramming.AsyncSqlConnection" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<h3 style="font-family: Kartika; font-variant: normal; color: #0000FF; font-style: normal;">Async
SqlConnection</h3>
<p style="color: #FF0000">Student Details</p>
<asp:GridView ID="StudentGridView" runat="server" BackColor="White" BorderColor="#CCCCCC"
BorderStyle="None" BorderWidth="1px" CellPadding="4" ForeColor="Black" GridLines="Horizontal">
<FooterStyle BackColor="#CCCC99" ForeColor="Black" />
<HeaderStyle BackColor="#333333" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="White" ForeColor="Black" HorizontalAlign="Right" />
<SelectedRowStyle BackColor="#CC3333" Font-Bold="True" ForeColor="White" />
<SortedAscendingCellStyle BackColor="#F7F7F7" />
<SortedAscendingHeaderStyle BackColor="#4B4B4B" />
<SortedDescendingCellStyle BackColor="#E5E5E5" />
<SortedDescendingHeaderStyle BackColor="#242121" />
</asp:GridView>
</div>
</form>
</body>
</html>
Create Connection, SqlCommand.BeginExecuteNonQuery Method and Grid View Bind
Now, in the code behind file “AsyncSqlConnection.aspx.cs“ use the following code.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
//Using namespaces
using System.Data;
using System.Data.SqlClient;
using System.Configuration;
using System.Threading.Tasks;
namespace AsyncProgramming
{
public partial class AsyncSqlConnection : System.Web.UI.Page
{
#region SqlConnection Connection
SqlConnection conn = new
SqlConnection(ConfigurationManager.ConnectionStrings["ConnString"].ConnectionString);
#endregion
#region show message
/// <summary>
/// This function is used for show message.
/// </summary>
/// <param name="msg"></param>
void ShowMessage(string msg)
{
ClientScript.RegisterStartupScript(Page.GetType(), "validation", "<script
language='javascript'>alert('" + msg + "');</script>");
}
#endregion
protected void Page_Load(object sender, EventArgs e)
{
PageAsyncTask pat = new PageAsyncTask(BeginAsync, EndAsync, null, null, true);
this.RegisterAsyncTask(pat);
}
//BeginAsync() method opens a connection to SQL Server cmd.BeginExecuteNonQuery
private IAsyncResult BeginAsync(object sender, EventArgs e, AsyncCallback cb, object state)
{
conn.Open();
SqlCommand cmd = new SqlCommand("Select * from StudentTable WAITFOR DELAY '00:00:01'",
conn);
SqlDataAdapter adp = new SqlDataAdapter(cmd);
DataSet ds = new DataSet();
adp.Fill(ds);
StudentGridView.DataSource = ds;
StudentGridView.DataBind();
IAsyncResult ar = cmd.BeginExecuteNonQuery(cb, cmd);
return ar;
}
//EndAsync() when the async database call completes. EndAsync() calls EndExecuteNonQuery() to complete the command.
private void EndAsync(IAsyncResult ar)
{
using (SqlCommand cmd = (SqlCommand)ar.AsyncState)
{
using (cmd.Connection)
{
int rows = cmd.EndExecuteNonQuery(ar);
}
}
}
}
}

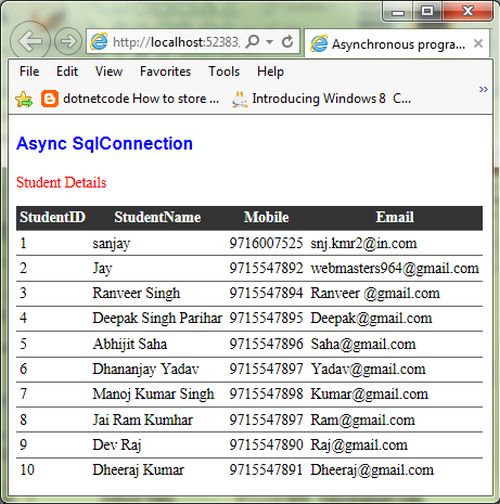

Run the Page
![Async SqlConnection in Aspnet]()
Now, run in the browser as shown here.
I hope this article is useful. If you have any other questions then please provide your comments in the following.
