Toggle Button Control For Windows 10

Toggle Button act as a base class for controls that can switch states, such as CheckBox and RadioButton. It is a button that is mainly used for switching states. It is possible to have a three state also. It will check the IsChecked property to verify selected or not.

Step 1: Open a blank app and add a ToggleButton control either from the toolbox or by copying the following XAML code into your grid.

<TextBlock Text="Toggle Button" FontSize="20"></TextBlock>
<StackPanel Margin="10,40,0,0">
    <StackPanel Orientation="Horizontal">
        <TextBlock Text="Toggle Button" VerticalAlignment="Center" FontSize="20"></TextBlock>
        <ToggleButton Name="myToggleButton" Content="OFF" Margin="15,0,0,0" Width="150" Height="50" Click="myToggleButton_Click">                </ToggleButton>
    </StackPanel>
</StackPanel>



Step 2: Copy and paste the following code to the cs page to handle the events generated on checking and unchecking.

private void myToggleButton_Click(object sender, RoutedEventArgs e)
{
   if(myToggleButton.IsChecked == true)
    {
        myToggleButton.Content = "ON";
    }
    else
    {
        myToggleButton.Content = "OFF";
    }
 }

Here we are changing the content of the button accordingly on clicking.

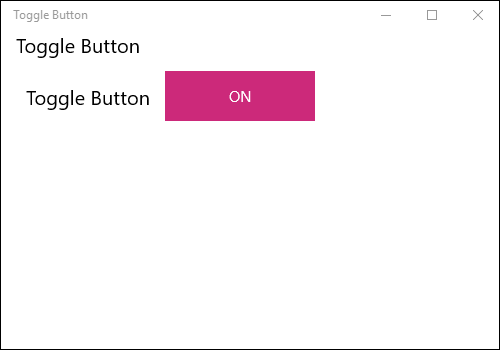

Step 3: Run your application and test yourself.
