Per Session Based - Instance Management in WCF hosted on Web App


Question Arises: What is Instance Management?

We can say it is a type of rules governed to manage the services with clients. It provides high end in scalability, durability and effective transaction management.

Question Arises:
What is Per-Session Based Instance Management?

The Sessions are well managed between client and service, when the client creates a new proxy pointing towards a particular service instance the independent service is allocated for the client.

So, let's try to implement this concept so that we can get much better idea on this:

So, firstly we will create simple method in IService1, Where the Complete Code of IService1.cs looks like this:


using System.ServiceModel;

namespace SimpleInstanceManagement
 {

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.

    [ServiceContract(SessionMode = SessionMode.Required)]
     public interface
IService1

    {
         [OperationContract]
         int SimpleMethod(int a);
     }
 }


 The Complete Code of Service1.svc looks like this:


using System;

using System.ServiceModel;


namespace SimpleInstanceManagement
 {

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.

    [ServiceBehavior(InstanceContextMode = InstanceContextMode.PerSession)]
     public class Service1 : IService1,
IDisposable

    {
         public int Heighter = 0;
         public int SimpleMethod(int a)
         {
             a = (Heighter = Heighter + 1);
             return a;
         }
         public void Dispose()
         {
             Heighter = Heighter " 1;
         }
     }
 }

The Complete Code of Web.Config looks like this:


<?xml version="1.0"?>

<configuration>

       <system.web>
               <
compilation debug="true" targetFramework="4.0" />"

       </system.web>
        <
system.serviceModel>
               <
behaviors>
                      <
serviceBehaviors>
                            <
behavior name="Application">

                                  <!" To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment ">

                                  <serviceMetadata httpGetEnabled="true"/>

                                  <!" To receive exception details in faults for debugging purposes, set the value below to true. Set to false before deployment to avoid disclosing exception
 information
"
>

                                  <serviceDebug includeExceptionDetailInFaults="false"/>

                           </behavior>
                      </
serviceBehaviors>
               </
behaviors>
               <
serviceHostingEnvironment multipleSiteBindingsEnabled="true" />

              <services>
                      <
service name="SimpleInstanceManagement.Service1"" behaviorConfiguration="Application">

                           <endpoint address="/SimpleAddress" binding="wsHttpBinding" contract="SimpleInstanceManagement.IService1">"</endpoint>

                           <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange">

                           </endpoint>
                            <
host>
                                   <
baseAddresses>
                                          <
add baseAddress="http://localhost:49257/Service1.svc"/>

                                  </baseAddresses>

                            </host>

                     </service>
               </
services>
        </
system.serviceModel>
        <
system.webServer>
               <
modules runAllManagedModulesForAllRequests="true"/>

       </system.webServer>
 </
configuration>


I have created New Web Application where I have added it to existing solution files. I have specified service reference with a link as given below:

http://localhost:49257/Service1.svc

The Complete Code of WebForm1.aspx looks like this:


<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Instance.WebForm1"" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>
 <
body>

    <form id="form1"" runat="server">

    <div>

        <center>

            <table>

                <tr>

                    <td>

                        <asp:Label ID="Label1"" runat="server" Text="Please Enter Some Value" ForeColor="Brown"

                            Font-Bold=" true" Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox1"" runat="server"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                    </td>

                    <td>

                        <asp:Button ID="Button1"" runat="server" Text="Click Here" OnClick="Button1Click"

                            Style="margin-left: 0px" Width="118px" />

                    </td>

                </tr>

            </table>

        </center>

    </div>

    </form>

</body>
 </
html>

The Complete Code of WebForm1.aspx.cs looks like this:


using System;

using Instance.ServiceReference1;


namespace Instance
 {
     public partial class WebForm1 : System.Web.UI.Page
     {
         protected void PageLoad(object sender, EventArgs e)
         {
         }
         protected void Button1Click(object sender, EventArgs e)
         {
             if (TextBox1.Text != null)
                 if ((TextBox1.Text)=="1")
                 {
                     var ab = new Service1Client();
                     Response.Write("<center>The Value is: <b>" + ab.SimpleMethod((Convert.ToInt32(TextBox1.Text))) +
                         "</br></b></center>");
                     Response.Write("<center>The Value is: <b>" + ab.SimpleMethod((Convert.ToInt32(TextBox1.Text))) +
                         "</br></b></center>");
                     Response.Write("<center>The Value is: <b>" + ab.SimpleMethod((Convert.ToInt32(TextBox1.Text))) +
                         "</br></b></center>");
                     Response.Write("<center><i>Second Instance Created for Service</i></center>");
                     var bc = new Service1Client();
                     Response.Write("<center>The Value is: <b>" + bc.SimpleMethod(Convert.ToInt32(TextBox1.Text)) +
                         "</br></b></center>");
                     Response.Write("<center>The Value is: <b>" + bc.SimpleMethod(Convert.ToInt32(TextBox1.Text)) +
                         "</br></b></center>");
                     Response.Write("<center>The Value is: <b>" + bc.SimpleMethod((Convert.ToInt32(TextBox1.Text))) +
                         "</br></b></center>");
                     Response.Write("<center>The Value is: <b>" + bc.SimpleMethod((Convert.ToInt32(TextBox1.Text))) +
                         "</br></b></center>");
                 }

else

                {
                     Response.Write("<center><b><i>Please Enter Some Values or Enter Correct Values</i></b></center>");
                 }
             }
         }
     }
 }

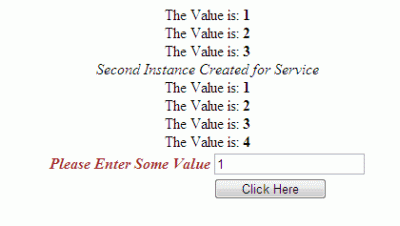

The Output of the Application looks like this:

WCF hosted in web application

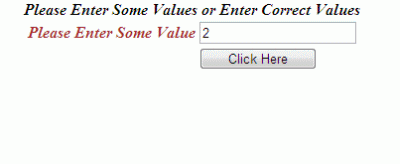

The Output of the Application for incorrect results looks like this:

asp.net WCF hosted
I hope this article is useful for you. I look forward for your comments and feedback.
