Select Data Using Entity Objects

Introduction

This article demonstrates an interesting and very useful concept in Entity Framework.

Question: What are entity command objects?

In simple terms "It enables use of entity command objects to query based on the Entity Framework".

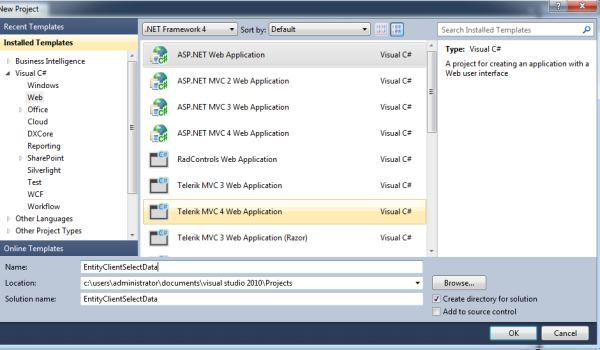

Step 1: Create a new web application

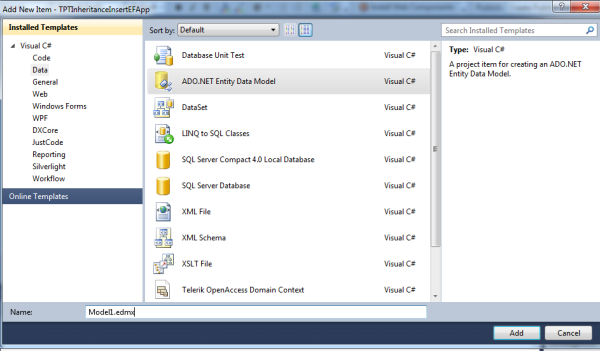

Step 2: Adding a new Entity Data Model Framework


Step 3: The complete code of WebForm1.aspx is as in the following:


<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="EntityClientSelectData.WebForm1" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
 <
html xmlns="http://www.w3.org/1999/xhtml">
 <
head id="Head1" runat="server">

    <title></title>
 </
head>
 <
body>

    <form id="form1" runat="server">

        <div>

            <center>

                <div>

                    <table>

                        <tr>

                            <td colspan="2" align="center">

                                <asp:Label ID="Label1" runat="server" Text="Select Data - Entity Client" Font-Bold="true" Font-Size="Large" Font-Names="Verdana"
 ForeColor="Maroon"></asp:Label></td>

                        </tr>

                        <tr>

                            <td colspan="2" align="center">

                                <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px" BackColor="Orange" Font-Bold="True"

OnClick="Button1_Click" /></td>

                        </tr>

                        <tr>

                            <td colspan="2" align="center">

                                <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow" BorderColor="Tan" BorderWidth="1px" CellPadding="2"
 ForeColor="Black" GridLines="None">

                                    <AlternatingRowStyle BackColor="PaleGoldenrod" />

                                    <FooterStyle BackColor="Tan" />

                                    <HeaderStyle BackColor="Tan" Font-Bold="True" />

                                    <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />

                                    <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />

                                    <SortedAscendingCellStyle BackColor="#FAFAE7" />

                                    <SortedAscendingHeaderStyle BackColor="#DAC09E" />

                                    <SortedDescendingCellStyle BackColor="#E1DB9C" />

                                    <SortedDescendingHeaderStyle BackColor="#C2A47B" />

                                    <EmptyDataTemplate>No Records Found!</EmptyDataTemplate>

                                </asp:GridView>

                            </td>

                        </tr>

                    </table>

                </div>

            </center>

        </div>

    </form>
 </
body>
 </
html>

Step 4: The complete code of WebForm1.aspx.cs is as in the following:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Data.EntityClient;

using System.Data;

namespace EntityClientSelectData
 {

public partial class WebForm1 : System.Web.UI.Page
     {

protected void Page_Load(object sender, EventArgs e) { }

protected void Button1_Click(object sender, EventArgs e)
         {

using (EntityConnection objConn = new EntityConnection("name=CompanyEntities"))
             {
                 objConn.Open();
using (EntityCommand command = new EntityCommand("SELECT VALUE e FROM

                    CompanyEntities.tblEmployee AS e", objConn))

                {
                     EntityDataReader objReader = command.ExecuteReader(
CommandBehavior.SequentialAccess);

                    GridView1.DataSource = objReader;
                     GridView1.DataBind();
                 }
             }
         }
     }
 }


Step 5: The output of the application is as in the following:

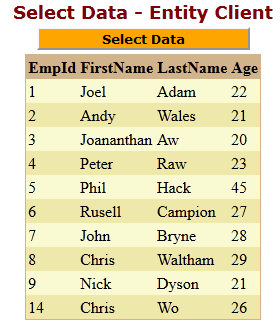

Step 6: The select data output of the application is as in the following:


I hope this article was useful for you. I look forward for your comments and feedback. Thanks Vijay.
