CMM Levels of Organization

Read my previous article here -What is Capability Maturity Model (CMM)

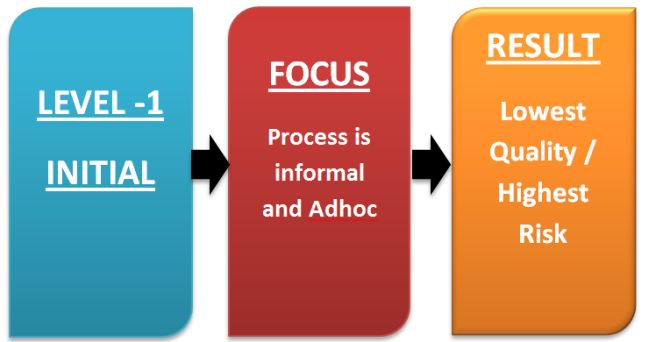

Maturity Level 1: Initial

Initial: this level is a basis of comparison with the next level in any organization. At the initial level conditions are not stable for the development of quality software. The result of any project depends totally on the manager's personal approach and the programmer's experience's meaning the success of a specific project on a repeatable only if the same manager and programmers are assigned to the next project. In addition, if a manager or programmer leaves the company then the quality of the software produced will sharply decrease. In many cases, the development process comes down to writing code with minimal testing.

Maturity Level -1

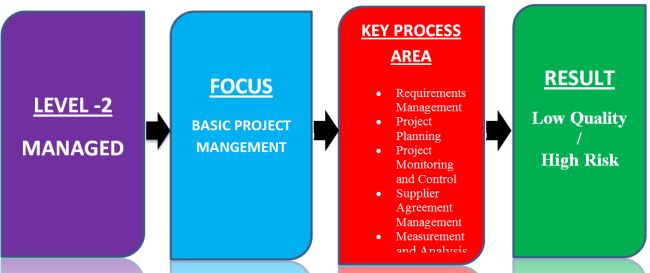

Maturity Level 2: Repeatable

At maturity level 2, an organization has done all the specific and generic goals of the maturity level 2 process areas. In other words, the projects of the organization have ensured that the requirements are managed and that processes are planned, performed, measured and controlled.

The process discipline reflected by maturity level 2 helps to ensure that existing practices are retained during times of stress. When these practices are in place, projects are performed and managed depending on their documented plans.

At maturity level 2, requirements, processes, work products and services are managed. The status of the work products and the delivery of services are visible to management at defined points.

Commitments are established among relevant stakeholders and are revised as needed. Work products are reviewed with stakeholders and are controlled.

The work products and services satisfy their specified requirements, standards and objectives.

Maturity Level -2

Maturity Level 3: Defined

At maturity level 3, an organization has done all the specific and generic goals of the process areas assigned to maturity levels 2 and 3.

At maturity level 3, processes are well characterized and understood and are described in standards, procedures, tools and methods.

A critical distinction between maturity level 2 and maturity level 3 is the scope of standards, process descriptions and procedures. At maturity level 2, the standards, process descriptions and procedures may be quite different in each specific instance of the process (for example, on a specific project). At maturity level 3, the standards, process descriptions and procedures for a project are tailored from the organization's set of standard processes to suit a specific project or organizational unit. The organization's set of standard processes includes the processes addressed at maturity level 2 and maturity level 3. As a result, the processes that are performed across the organization are consistent except for the differences allowed by the tailoring guidelines.

Another critical distinction is that at maturity level 3, processes are typically described in more detail and more rigorously than at maturity level 2. At maturity level 3, processes are managed more proactively using an understanding of the interrelationships of the process activities and detailed measures of the process, its work products and its services.

Maturity Level 3

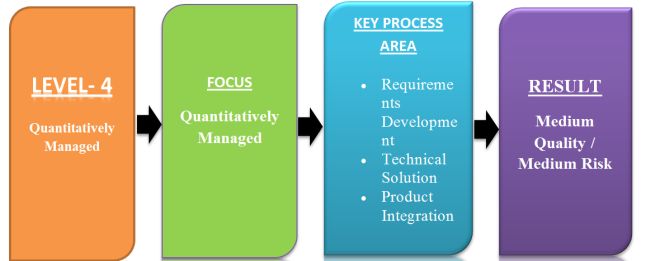

Maturity Level 4: Quantitatively Managed

At maturity level 4, an organization has done all the specific goals of the process areas assigned to maturity levels 2, 3 and 4 and the generic goals assigned to maturity levels 2 and 3.

At maturity level 4 subprocesses are selected that significantly contribute to overall process performance. These selected subprocesses are controlled using statistical and other quantitative techniques.

Quantitative objectives for quality and process performance are established and used as criteria in managing processes. Quantitative objectives are based on the needs of the customer, end users, organization and process implementers. Quality and process performance are understood in statistical terms and are managed throughout the life of the processes.

For these processes, detailed measures of process performance are collected and statistically analyzed. Special causes of process variation are identified and, where appropriate, the sources of special causes are corrected to prevent future occurrences.

Quality and process performance measures are incorporated into the organization's measurement repository to support fact-based decision-making in the future.

A critical distinction between maturity level 3 and maturity level 4 is the predictability of process performance. At maturity level 4, the performance of processes is controlled using statistical and other quantitative techniques and is quantitatively predictable. At maturity level 3, processes are only qualitatively predictable.

Maturity Level 4

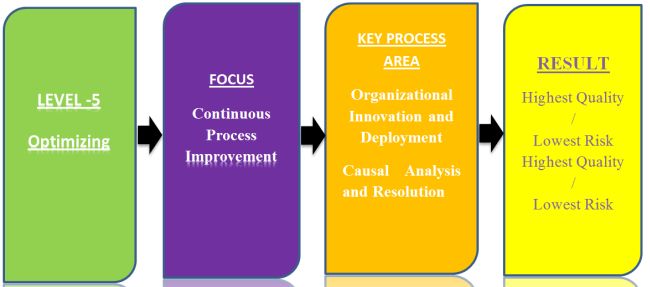

Maturity Level 5: Optimizing


At maturity level 5, an organization has done all the specific goals of the process areas assigned to maturity levels 2, 3, 4 and 5 and the generic goals assigned to maturity levels 2 and 3.

Processes are continually improved based on a quantitative understanding of the common causes of variation inherent in processes.

Maturity level 5 focuses on continually improving process performance through both incremental and innovative technological improvements.

Quantitative process-improvement objectives for the organization are established, continually revised to reflect changing business objectives and used as criteria in managing process improvement.

The effects of deployed process improvements are measured and evaluated against the quantitative process-improvement objectives. Both the defined processes and the organization's set of standard processes are targets of measurable improvement activities.

Optimizing processes that are agile and innovative depends on the participation of an empowered workforce aligned with the business values and objectives of the organization. The organization's ability to rapidly respond to changes and opportunities is enhanced by finding ways to accelerate and share learning. Improvement of the processes is inherently part of everybody's role, resulting in a cycle of continual improvement.

A critical distinction between maturity level 4 and maturity level 5 is the type of process variation addressed. At maturity level 4, processes are concerned with addressing special causes of process variation and providing statistical predictability of the results. Though processes may produce predictable results, the results may be insufficient to get the established objectives. At maturity level 5, processes are concerned with addressing common causes of process variation and changing the process (that is, shifting the mean of the process performance) to improve process performance (while maintaining statistical predictability) to get the established quantitative process-improvement objectives.
Maturity Level 5

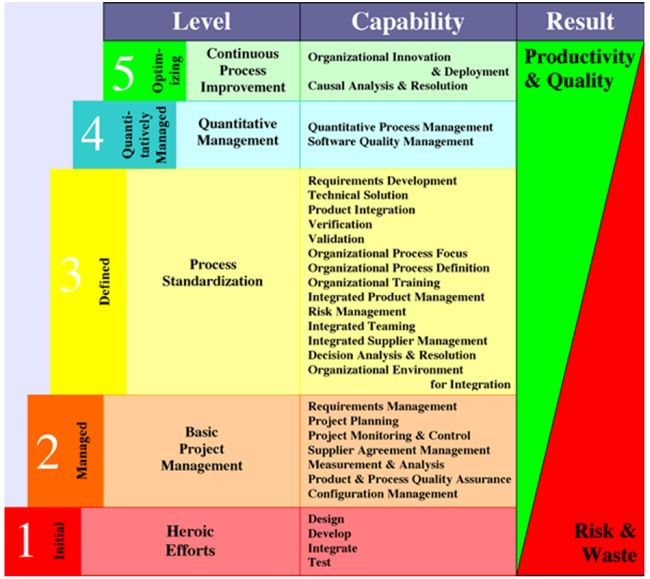

Maturity Level
