Runtime Table Creation in WPF


This article describes runtime table creation in WPF and shows some basic data operations, such as inserting and deleting records using C# and XAML. The DataGridView control is the most popular control for display data in tabular format in Windows Forms but in WPF we use a DataGrid to display data.

DataGrid is a data shaping component that allows the end user to manage the data and also display the data on the screen. It provides a feature called AutoGenerateColumns that automatically generates columns.

In Visual Studio 2010 DataGrid supports Drag and Drop from a toolbox but in Visual Studio 2008 you need to install the WPF toolkit.

Step 1

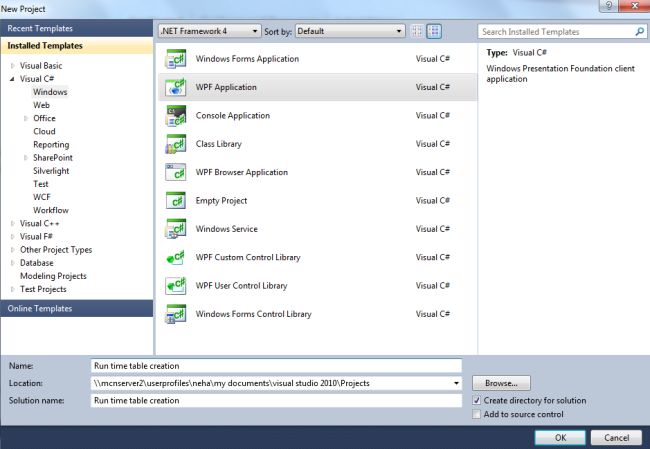

First we create a WPF application using the following procedure:

  • Start the Visual Studio.
  • Select "New Project".
  • Select the C# language and "WPF Application".
  • Name the project as "Run time table creation"
  • Click the "OK" button.

Step 2

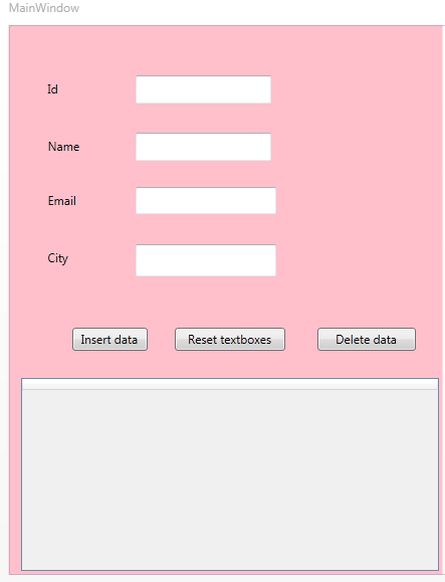

Now start designing the window using the following procedure:

  • Go to "View" -> "Toolbox".
  • Drag and Drop the 4 text boxes, 4 labels, 3 buttons and 1 DataGird onto the window.
  • Select the label and press F4.
  • Then set the content of the labels as Id, Name, Email and City .
  • Similarly set the content of the buttons as insert, delete and reset text box.
Step 3

After setting , the final source code of  the MainWindow.XAML is given below.

<Window x:Class="Runtime_table_creation.MainWindow"



        Title="MainWindow" Height="602" Width="525" Loaded="Window_Loaded" Background="Pink">

    <Grid Width="477">

        <Label Content="Id" Height="28" HorizontalAlignment="Left" Margin="34,50,0,0" Name="label1" VerticalAlignment="Top" />

        <Label Content="Name" Height="28" HorizontalAlignment="Left" Margin="34,107,0,0" Name="label2" VerticalAlignment="Top" />

        <Label Content="Email" Height="28" HorizontalAlignment="Left" Margin="34,161,0,0" Name="label3" VerticalAlignment="Top" />

        <Label Content="City" Height="32" HorizontalAlignment="Left" Margin="34,218,0,0" Name="label4" VerticalAlignment="Top" Width="42" />

        <TextBox Height="28" HorizontalAlignment="Left" Margin="126,50,0,0" Name="textBox1" VerticalAlignment="Top" Width="135" />

        <TextBox Height="28" HorizontalAlignment="Left" Margin="126,107,0,0" Name="textBox2" VerticalAlignment="Top" Width="135"/>


        <TextBox Height="27" HorizontalAlignment="Left" Margin="126,161,0,0" Name="textBox3" VerticalAlignment="Top" Width="140" />

        <Button Content="Insert data" Height="23" HorizontalAlignment="Left" Margin="63,301,0,0" Name="button1" VerticalAlignment="Top" Width="75" Click="button1_Click" />

        <DataGrid AutoGenerateColumns="True" Height="192" HorizontalAlignment="Left" Margin="12,351,0,0" Name="dataGrid1" VerticalAlignment="Top" Width="416" />


        <TextBox Height="32" HorizontalAlignment="Left" Margin="126,218,0,0" Name="textBox4" VerticalAlignment="Top" Width="140" />

        <Button Content="Clear textboxes" Height="23" HorizontalAlignment="Left" Margin="165,301,0,0" Name="button2" VerticalAlignment="Top" Width="110" Click="button2_Click" />

        <Button Content="Delete data" Height="23" HorizontalAlignment="Left" Margin="307,301,0,0" Name="button3" VerticalAlignment="Top" Width="98" Click="button3_Click" />



Step 4

  • Go to the MainWindow.xmal.cs.
  • Add "using System.Data" and "using System.Data.SqlClient" to the namespaces.
  • The MainWindows.Xamls.cs code is given below.

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Data;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Imaging;

using System.Windows.Navigation;

using System.Windows.Shapes;

using System.Data;

using System.Data.SqlClient;

namespace Runtime_table_creation


    /// <summary>

    /// Interaction logic for MainWindow.xaml

    /// </summary>

    public partial class MainWindow : Window


        public MainWindow()




        DataTable dt;

        private void Window_Loaded(object sender, RoutedEventArgs e)


            dt = new DataTable("emp");

            DataColumn dc1 = new DataColumn("id", typeof(int));

            DataColumn dc2 = new DataColumn("name", typeof(string));

            DataColumn dc3 = new DataColumn("email", typeof(string));

            DataColumn dc4 = new DataColumn("city", typeof(string));





            dataGrid1.ItemsSource = dt.DefaultView;


        DataRow dr;

        private void button1_Click(object sender, RoutedEventArgs e)


            dr = dt.NewRow();

            dr[0] = int.Parse(textBox1.Text);

            dr[1] = textBox2.Text;

            dr[2] = textBox3.Text;

            dr[3] = textBox4.Text;


            dataGrid1.ItemsSource = dt.DefaultView;





        private void button2_Click(object sender, RoutedEventArgs e)









        private void button3_Click(object sender, RoutedEventArgs e)



            dataGrid1.ItemsSource= dt.DefaultView;

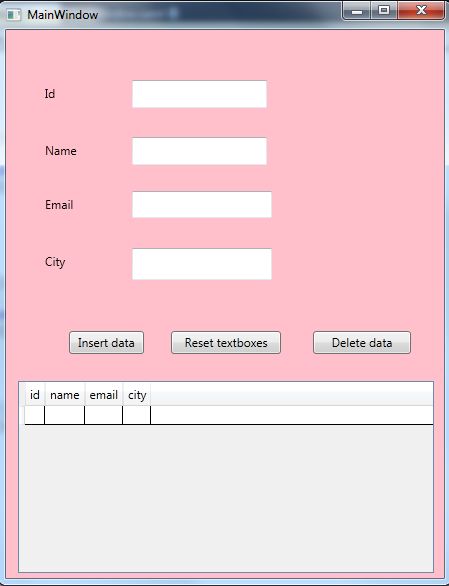

To execute the application, press F5.

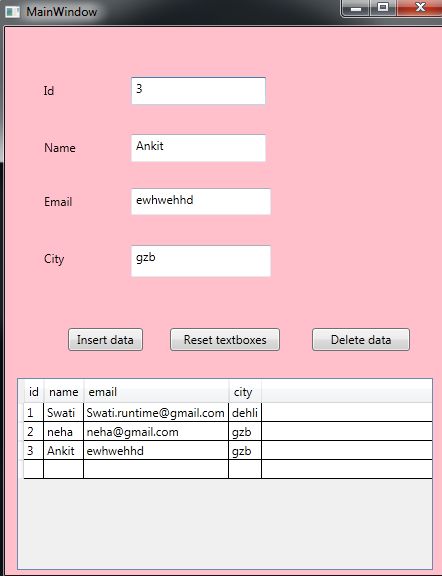

Insert the data into the table.

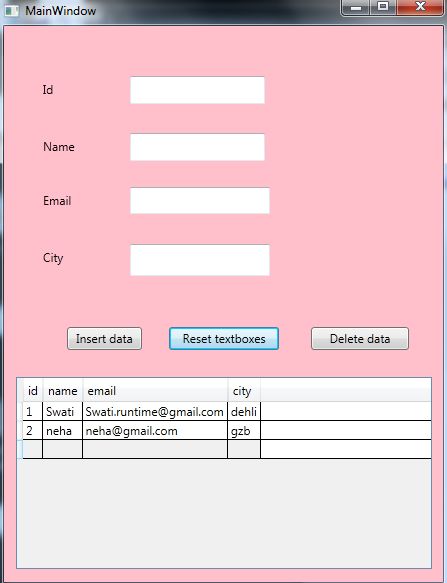

Delete the data by clicking on the delete button.

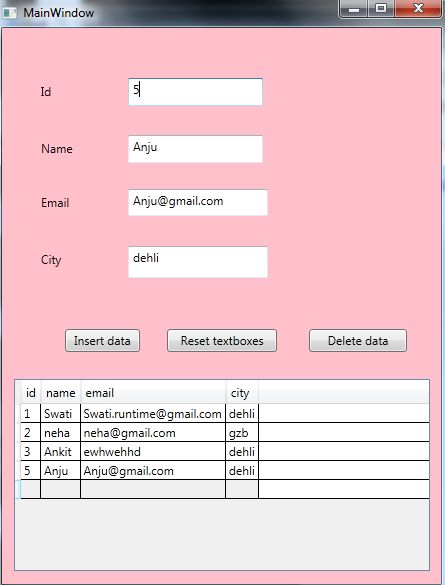

Reset the text box on clicking the Reset Textboxes button.
