The game of conway's is one of the
example of games because it's related to the cellular automata. The game of life also called simply as life .The game of conway is a
board game .In this games follow many different types of patterns occur in the game of life. In more common cases it is impossible to look at a starting position or pattern and see what
will happen in the future. Here we find a way to find out is to follow the rules of
the game.
There are some rules which as follows :
- A cell with 0 or 1 neighbor dies because
of underpopulation.
- When a cell with 4 or more neighbors dies
because of overpopulation.
- If any empty space has exactly 3 cells then
a new cell is born in that empty space.
- If none of the above rules apply then the
space does not change a live cell remains alive, and an empty space is
still empty.
Step 1 : Open any HTML editor (ex. Visual Studio, Notepad etc) and in the
source code page (page where you want to write the HTML code) type the following
lines.
Here first of all given an title.
<!doctype
html>
<html>
<head>
<script
src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jquery.min.js"></script>
<link
rel="stylesheet"
href="css/site.css"
type="text/css"
media="screen"
/>
<title>Conway's
Game of Life</title>
Step 2 : This step is writing the canvas tags with a default message
in case when the user's browser does not support it. So, apply this condition.
else
{
alert("Canvas is unsupported in your browser.");
}
Step 3 : The given code works on there things simply.
- Here we have to declare how many cells we want on the
X/Y axes.
- In there different cells wide should be a cell and the delay between
drawing the next generation of cells.
- So create 2 arrays, one for storing the
initial colony and one for the next generation.
- We have to fill randomly with live cells in the
initial part.
- We have to draw the initial part and then process the initial part using the game's rules.
<script
type="text/javascript">
$(document).ready(
function
() {
Array.matrix =
function (m, n, initial) {
var
a, i, j, mat = [];
for
(i = 0; i < m; i += 1) {
a = [];
for
(j = 0; j < n; j += 1) {
a[j] = 0;
}
mat[i] = a;
}
return
mat;
};
var
Life = {};
Life.CELL_SIZE = 8;
Life.X = 576;
Life.Y = 320;
Life.WIDTH = Life.X / Life.CELL_SIZE;
Life.HEIGHT = Life.Y / Life.CELL_SIZE;
Life.DEAD = 0;
Life.ALIVE = 1;
Life.DELAY = 500;
Life.STOPPED = 0;
Life.RUNNING = 1;
Life.minimum = 2;
Life.maximum = 3;
Life.spawn = 3;
Life.state = Life.STOPPED;
Life.interval =
null;
Life.grid = Array.matrix(Life.HEIGHT,
Life.WIDTH, 0);
Life.counter = 0;
Life.updateState =
function () {
var
neighbours;
var
nextGenerationGrid = Array.matrix(Life.HEIGHT, Life.WIDTH, 0);
for
(var h = 0; h < Life.HEIGHT; h++) {
for
(var w = 0; w < Life.WIDTH; w++) {
neighbours =
Life.calculateNeighbours(h, w);
if (Life.grid[h][w] !== Life.DEAD) {
if ((neighbours >= Life.minimum) && (neighbours
<= Life.maximum)) {
nextGenerationGrid[h][w] = Life.ALIVE;
}
}
else {
if (neighbours === Life.spawn) {
nextGenerationGrid[h][w] = Life.ALIVE;
}
}
}
}
Life.copyGrid(nextGenerationGrid,
Life.grid);
Life.counter++;
};
Life.calculateNeighbours =
function (y, x) {
var
total = (Life.grid[y][x] !== Life.DEAD) ? -1 : 0;
for
(var h = -1; h <= 1; h++) {
for
(var w = -1; w <= 1; w++) {
if (Life.grid[(Life.HEIGHT + (y + h)) % Life.HEIGHT][(Life.WIDTH + (x +
w)) % Life.WIDTH] !== Life.DEAD) {
total++;
}
}
}
return
total;
};
Life.copyGrid =
function (source, destination) {
for
(var h = 0; h < Life.HEIGHT; h++) {
/*
for (var w = 0; w < Life.WIDTH;
w++) {
destination[h][w] =
source[h][w];
}
*/
destination[h] = source[h].slice(0);
}
};
function
Cell(row, column) {
this.row
= row;
this.column
= column;
};
var
gridCanvas = document.getElementById('grid');
var
counterSpan = document.getElementById("counter");
var
controlLink = document.getElementById("controlLink");
var
clearLink = document.getElementById("clearLink");
var
minimumSelect = document.getElementById("minimumSelect");
var
maximumSelect = document.getElementById("maximumSelect");
var
spawnSelect = document.getElementById("spawnSelect");
controlLink.onclick =
function () {
switch
(Life.state) {
case
Life.STOPPED:
Life.interval =
setInterval(function () {
update();
}, Life.DELAY);
Life.state = Life.RUNNING;
break;
default:
clearInterval(Life.interval);
Life.state = Life.STOPPED;
}
};
clearLink.onclick =
function () {
Life.grid =
Array.matrix(Life.HEIGHT, Life.WIDTH, 0);
Life.counter = 0;
clearInterval(Life.interval);
Life.state = Life.STOPPED;
updateAnimations();
}
minimumSelect.onchange =
function () {
clearInterval(Life.interval);
Life.state = Life.STOPPED;
Life.minimum =
minimumSelect.value;
updateAnimations();
}
maximumSelect.onchange =
function () {
clearInterval(Life.interval);
Life.state = Life.STOPPED;
Life.maximum = maximumSelect.value;
updateAnimations();
}
spawnSelect.onchange =
function () {
clearInterval(Life.interval);
Life.state = Life.STOPPED;
Life.spawn = spawnSelect.value;
updateAnimations();
}
function
update() {
Life.updateState();
//updateInput();
//updateAI();
//updatePhysics();
updateAnimations();
//updateSound();
//updateVideo();
};
function
updateAnimations() {
for
(var h = 0; h < Life.HEIGHT; h++) {
for
(var w = 0; w < Life.WIDTH; w++) {
if (Life.grid[h][w] === Life.ALIVE) {
context.fillStyle =
"#000";
}
else {
context.fillStyle =
"#FF0000";
//context.clearRect();
}
context.fillRect(
w * Life.CELL_SIZE + 1,
h * Life.CELL_SIZE + 1,
Life.CELL_SIZE - 1,
Life.CELL_SIZE - 1);
}
}
counterSpan.innerHTML =
Life.counter;
};
if (gridCanvas.getContext)
{
var
context = gridCanvas.getContext('2d');
var
offset = Life.CELL_SIZE;
for
(var x = 0; x <= Life.X; x += Life.CELL_SIZE) {
context.moveTo(0.5 + x, 0);
context.lineTo(0.5 + x, Life.Y);
}
for
(var y = 0; y <= Life.Y; y += Life.CELL_SIZE) {
context.moveTo(0, 0.5 + y);
context.lineTo(Life.X, 0.5 +
y);
}
context.strokeStyle =
"#254117";
context.stroke();
function
canvasOnClickHandler(event) {
var
cell = getCursorPosition(event);
var
state = Life.grid[cell.row][cell.column] == Life.ALIVE ? Life.DEAD : Life.ALIVE;
Life.grid[cell.row][cell.column] = state;
updateAnimations();
};
function
getCursorPosition(event) {
var
x;
var
y;
if
(event.pageX || event.pageY) {
x = event.pageX;
y = event.pageY;
}
else {
x = event.clientX +
document.body.scrollLeft + document.documentElement.scrollLeft;
y = event.clientY +
document.body.scrollTop + document.documentElement.scrollTop;
}
x -= gridCanvas.offsetLeft;
y -= gridCanvas.offsetTop;
var
cell = new Cell(Math.floor((y - 4) /
Life.CELL_SIZE), Math.floor((x - 2) / Life.CELL_SIZE));
return cell;
};
gridCanvas.addEventListener("click",
canvasOnClickHandler, false);
} else
{
alert("Canvas
is unsupported in your browser.");
}
}
);
function
minimumSelect_onclick() {
}
</script>
<script
type="text/javascript">
var _gaq = _gaq ||
[];
_gaq.push(['_setAccount',
'UA-2662092-4']);
_gaq.push(['_trackPageview']);
(function () {
var ga =
document.createElement('script'); ga.type =
'text/javascript'; ga.async =
true;
ga.src = ('https:'
== document.location.protocol ? 'https://ssl'
: 'http://www') +
'.google-analytics.com/ga.js';
var s =
document.getElementsByTagName('script')[0];
s.parentNode.insertBefore(ga, s);
})()
</script>
<script
type="text/javascript">
var _gaq = _gaq ||
[];
_gaq.push(['_setAccount',
'UA-2662092-4']);
_gaq.push(['_trackPageview']);
(function () {
var ga =
document.createElement('script'); ga.type =
'text/javascript'; ga.async =
true;
ga.src = ('https:'
== document.location.protocol ? 'https://ssl'
: 'http://www') +
'.google-analytics.com/ga.js';
var s =
document.getElementsByTagName('script')[0];
s.parentNode.insertBefore(ga, s);
})();
</script>
Step 4 : This application contains body follow the code given below.
<body>
<div
id="container">
<div
id="header">
<h1>Conway's
Game of Life</h1>
</div>
<div
id="left-content">
<h2>Game</h2>
<p>Generation
counter: <span
id="counter">0</span></p>
<canvas
id="grid"
width="577"
height="321"></canvas>
</div>
<div
id="right-content">
<h2>Controls</h2>
<a
id="controlLink"
href="javascript:void(0)">Start/Stop</a><br
/>
<a
id="clearLink"
href="javascript:void(0)">Clear
Grid</a>
<select
id="minimumSelect"
disabled="disabled"
onclick="return
minimumSelect_onclick()">
</select><br
/>
<select
id="maximumSelect"
disabled="disabled">
</select><br
/>
<select
id="spawnSelect"
disabled="disabled">
</select><br
/>
<p>
</p>
</div>
</div>
</body>

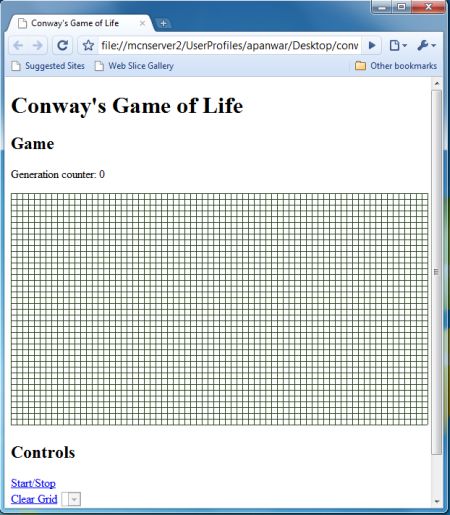

Step 5 : After write this code the application an run in browser we have to see figure given below.
![conway game.jpg]()

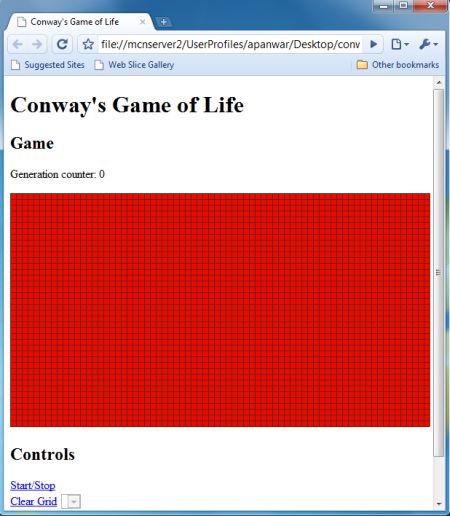

Step 6 : After click on the game board we have to find it.
![conwa.jpg]()

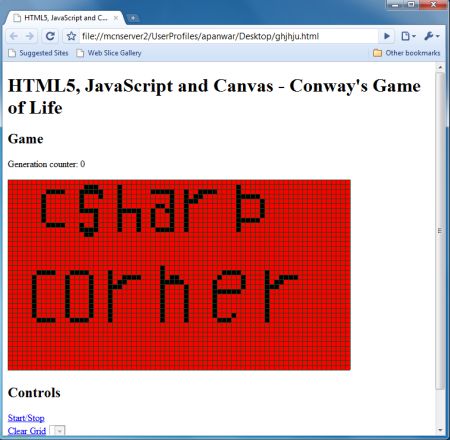

We have to play any thing with cells.
![conway.jpg]()

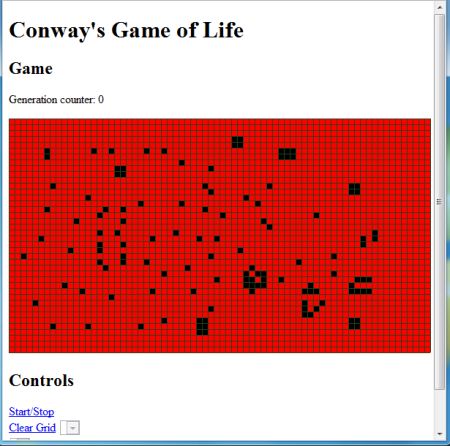

Step 7 : With start/stop button on click and clear the game board with use of the clear button.
![befor run.jpg]()

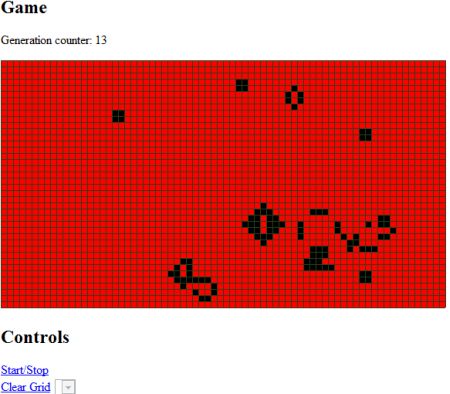

After making on cells click on start button we have to find this figure given below .
![after run.jpg]()
