Using Stored Procedure in AutoComplete Extender TextBox in ASP.Net C#

Somil Lohani
Aug 19, 2013
21.2k
0
0
Article

storedprocedure.zip

To use a Stored Procedure in an AutoComplete extender TextBox in ASP.Net C# use the following procedure.

Open SQL Server Management Studio then

select the database where you want to create a table and Stored Procedure (in my case it is the library database and the table name is available book).
CREATE TABLE [dbo].[AvailableBook](

[Title] [varchar](500) NULL,

[Authorname] [varchar](100) NULL,

[Edition] [varchar](max) NULL,

[Year] [varchar](max) NULL,

[Volume] [varchar](max) NULL,

[BookNo] [varchar](max) NULL,

[ShelfNO] [varchar](50) NULL,

[enrollment] [varchar](50) NULL,

[Issuedate] [varchar](max) NULL,

[Returndate] [varchar](50) NULL,

[Status] [varchar](50) NULL,

[Bookid] [varchar](max) NULL,

[Type] [varchar](max) NULL

)

Insert values into the availablebook table like this:

insert into availablebook values('c#','apress','2011','2010','3','1','2','NULL','NULL','NULL','Available','1','NULL')
Create a Stored Procedure like this:

Create proc [dbo].[searchbook]

@book varchar(90)='%'

as

begin

select Title,Authorname from availablebook where title like @book or authorname like @book

end

After that open Visual Studio then open your project or create a new project.

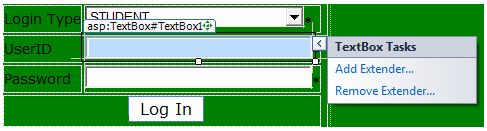

Drag and drop a TextBox to your webform, in design view you are getting an arrow like addextender, see the following figure:

Select AutoCompleteExtender (don't forget to add a toolkit scriptmanager and reference it in your page header or in web.config).

See example :(aspx page source view)

<%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="asp" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head>

    <meta name="description" content="" />

    <meta name="keywords" content="" />

    <title>Big Business 2.0 by FCT</title>

    <meta http-equiv="content-type" content="text/html; charset=utf-8" />

    <link rel="stylesheet" type="text/css" href="Styles/style.css" />

    <script type="text/javascript" src="Scripts/jquery-1.7.1.min.js"></script>

    <script type="text/javascript" src="Scripts/jquery.dropotron-1.0.js"></script>

    <script type="text/javascript" src="Scripts/jquery.slidertron-1.1.js"></script>

    <style type="text/css">

        .watermark

        {

            background-color: Gray;

        }

    </style>

</head>

<body>

    <form id="Form1" runat="server">

    <h1>

        Library</h1>

    <asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server">

    </asp:ToolkitScriptManager>

    Search Book:  <asp:TextBox ID="TextBox2" AutoCompleteType="Search" AutoPostBack="true"

        runat="server" OnTextChanged="TextBox2_TextChanged"></asp:TextBox>

    <asp:AutoCompleteExtender ID="TextBox2_AutoCompleteExtender" runat="server" MinimumPrefixLength="1"

        CompletionInterval="5" Enabled="True" ServicePath="~/WebService.asmx" EnableCaching="true"

        CompletionSetCount="12" ServiceMethod="GetCompletionList" TargetControlID="TextBox2">

    </asp:AutoCompleteExtender>

    <asp:TextBoxWatermarkExtender ID="TextBox2_TextBoxWatermarkExtender" WatermarkCssClass="watermark"

        WatermarkText="search by title" runat="server" Enabled="True" TargetControlID="TextBox2">

    </asp:TextBoxWatermarkExtender>

    <asp:RoundedCornersExtender ID="TextBox2_RoundedCornersExtender" runat="server" Enabled="True"

        TargetControlID="TextBox2">

    </asp:RoundedCornersExtender>

    </form>

</body>

</html>
Add a webservice from a new item and reference it in your project and write the following code (be careful while giving the webservice name; in my case it is WebService.asmx).

[WebMethod]

    Public List<string> GetCompletionList(string prefixText)

    {

        List<string> result = new List<string>();

        con.Open();

        SqlCommand cmd = new SqlCommand("searchbook", con);

        cmd.Parameters.AddWithValue("@book", prefixText);

        SqlDataReader dr = cmd.ExecuteReader();

        while (dr.Read())

        {

            result.Add(dr["Title"].ToString());

            result.Add(dr["Authorname"].ToString());

        }

        return result;

    }
