Create Login Application In Excel Macro Using Visual Basic

This article is mainly focused on creating applications using the Visual Basic for Applications (VBA) programming language. With Excel VBA you can automate tasks in Excel using what is called a macro. Create a simple macro that will be executed after clicking on a command button.

Chapter 1

In this chapter, learn how to turn on the Developer tab. The Developer tab is not visible by default in Excel, we must configure it to show that tab. This tab contains a variety of tools that allows development and customization of Excel macro applications.

This guidance applies to Excel 2010.

  1. Start the Excel application.

  2. On the File tab, click the Options button.

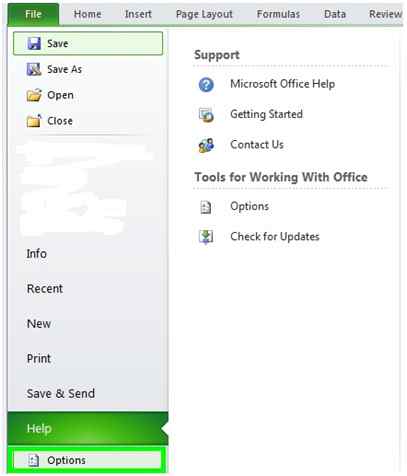

    The following figure shows the File tab and Options button in Excel 2010.

     File tab and Options button in Excel

  3. Choose the Customize Ribbon button in the Excel Options dialog box.

  4. Check the Developer check box.

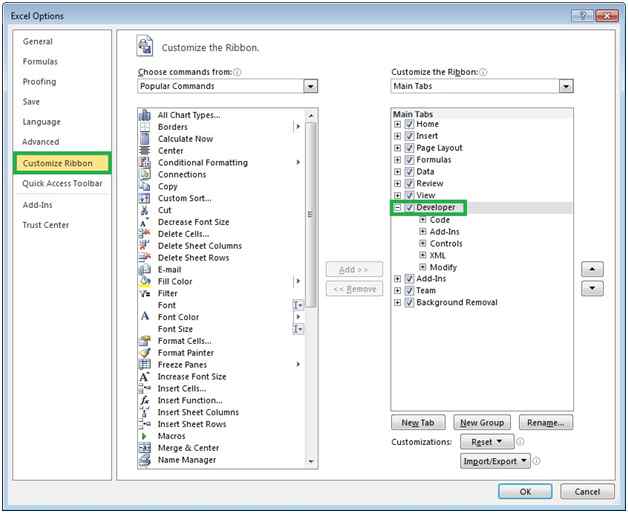

    The following figure shows the Customize Ribbon in Excel 2010.

    Customize the Ribbon

  5. Click OK to save the selection changes.

Chapter 2

This chapter teaches you how to create a simple login form in Excel VBA. The User form we will create looks as follows.

The following figure shows the simple login form in Excel VBA.

simple login form in Excel VBA

Step 1

To place a command button on your worksheet and assign a macro:

  1. On the Developer tab click Insert.

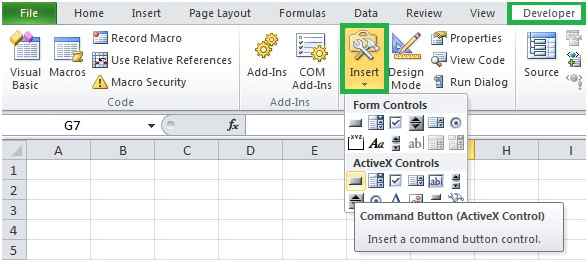

  2. In the ActiveX Controls group click the Command Button.

    ActiveX Controls group

  3. Drag a Command Button onto your worksheet.

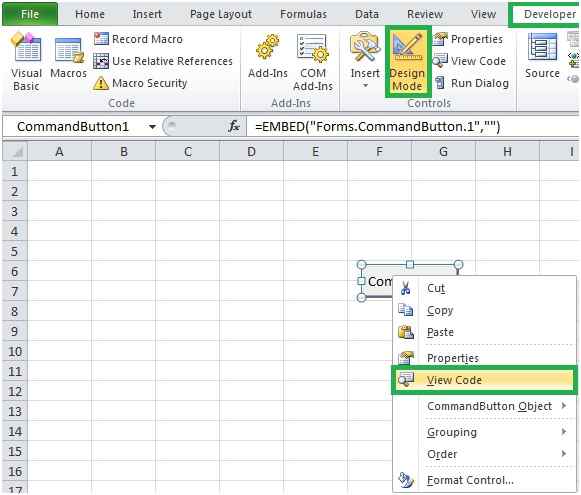

  4. Right-click CommandButton1 and click View code.

    view code

    (Hint: be sure Design Mode is selected.)

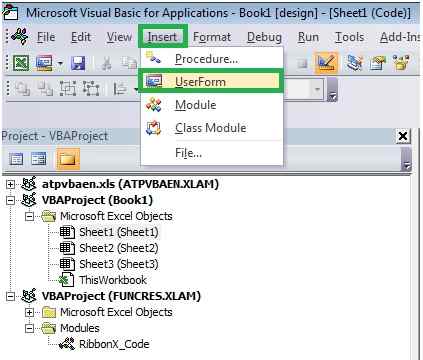

  5. On the Insert tab click New User Form.

    click new User Form

  6. Right-click Sheet1 and click View code to write the code between Private Sub CommandButton1_Click () and End Sub.

  7. Add the code line shown below.
    1. Private Sub CommandButton1_Click ()
    2. UserForm1.Show
    3. End Sub

Step 2

Add Controls.

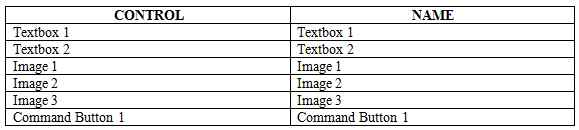

  1. Add the controls listed in the table below. Clicking on control from the Toolbox next you can drag a control on a User Form:

    User Form

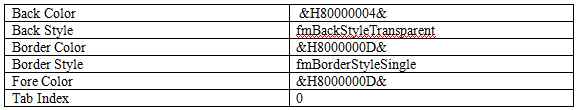

    Command Button 1

    I modified some of the properties for that control

    Command Button 1

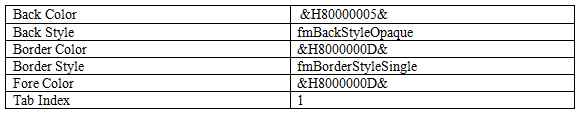

    TextBox 1

    I modified some of the properties for that control

    Textbox 1

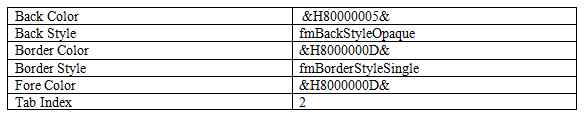

    TextBox 2

    I modified some of the properties for that control

    Textbox 2

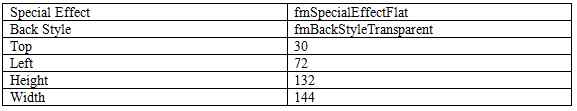

    Image 1(Login)

    I modified some of the properties for that control

    Login

    Image 2(Username)

    I modified some of the properties for that control

    Username

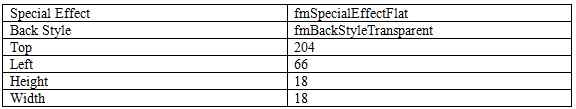

    Image 3 (Password)

    I modified some of the properties for that control

    Password

  2. In the Project Explorer, right-click on UserForm1 and then click View Code.

  3. Add the following code lines.
    1. Public Username As String
    2. Public Password As String
    3. Public i As Integer
    4. Public j As Integer
    5. Public u As String
    6. Public p As String
    7.
    8. Private Sub CommandButton1_Click ()
    9.     Application.ScreenUpdating = False
    10.     If Trim (TextBox1.Text) = "" And Trim (TextBox2.Text) = "" Then
    11.         MsgBox "Enter username and password.", vbOKOnly
    12.         Else If Trim (TextBox1.Text) = "" Then
    13.         MsgBox "Enter the username ", vbOKOnly
    14.         Else If Trim(TextBox2.Text) = "" Then
    15.         MsgBox "Enter the Password ", vbOKOnly
    16.     Else
    17.         Username = Trim (TextBox1.Text)
    18.         Password = Trim (TextBox2.Text)
    19.         i = 1
    20.         Do While Cells (1, 1).Value <> ""
    21.             j = 1
    22.             u = Cells (i, j).Value
    23.             j = j + 1
    24.             p = Cells (i, j).Value
    25.             If Username = u And Password = p And Cells (i, 3).Value = "fail" Then
    26.                 MsgBox "Your Account temporarily locked", vbCritical
    27.                 Exit Do
    28.                 Else If Username = u And Password = p Then
    29.                 Call clear
    30.                 UserForm1.Hide
    31.                 UserForm2.Label1.Caption = u
    32.                 UserForm2.Label1.ForeColor = &H8000000D
    33.                 UserForm2.Show
    34.                 Exit Do
    35.                 Else If Username <> u And Password = p Then
    36.                 MsgBox "Username not matched", vbCritical + vbOKCancel
    37.                 Exit Do
    38.                 Else If Username = u And Password <> p Then
    39.                 If Cells (i, 3).Value = "fail" Then
    40.                     MsgBox "Your account is blocked", vbCritical + vbOKCancel
    41.                     Exit Do
    42.                     Else If Cells (i, 4).Value < 2 Then
    43.                     MsgBox "Invalid password", vbCritical
    44.                     Cells (i, 4).Value = Cells (i, 4) + 1
    45.                     Exit Do
    46.                 Else
    47.                     Cells (i, 4).Value = Cells (i, 4) + 1
    48.                     Cells (i, 3).Value = "fail"
    49.                     Cells (i, 2).Interior.ColorIndex = 3
    50.                     Exit Do
    51.                 End If
    52.             Else
    53.                 i = i + 1
    54.             End If
    55.         Loop
    56.     End If
    57.     Application.ScreenUpdating = True
    58. End Sub
    59. Sub clear ()
    60.     TextBox1.Value = ""
    61.     TextBox2.Value = ""
    62. End Sub
    63. Private Sub TextBox1_Enter ()
    64.     With TextBox1
    65.         .Back Color = &H8000000E
    66.         .Fore Color = &H80000001
    67.         .Border Color = &H8000000D
    68.     End With
    69.     TextBox1.Text = ""
    70. End Sub
    71. Private Sub TextBox1_AfterUpdate ()
    72.     If TextBox1.Value = "" Then
    73.         TextBox1.BorderColor = RGB (255, 102, 0)
    74.     End If
    75.     i = 1
    76.     Do Until Is Empty (Cells (i, 1).Value)
    77.         If TextBox1.Value = Cells (i, 1).Value Then
    78.             With TextBox1
    79.                 .Border Color = RGB (186, 214, 150)
    80.                 .Back Color = RGB (216, 241, 211)
    81.                 .Fore Color = RGB (81, 99, 51)
    82.             End With
    83.         End If
    84.         i = i + 1
    85.     Loop
    86. End Sub
    87. Private Sub TextBox2_Enter ()
    88.     With TextBox2
    89.         .Back Color = &H8000000E
    90.         .Fore Color = &H80000001
    91.         .Border Color = &H8000000D
    92.     End With
    93.     TextBox2.Text = ""
    94. End Sub
    95. Private Sub TextBox2_AfterUpdate ()
    96.     i = 1
    97.     Username = TextBox1.Value
    98.     Password = TextBox2.Value
    99.     If TextBox2.Text = "" Then
    100.         TextBox2.BorderColor = RGB (255, 102, 0)
    101.     End If
    102.     Do Until Is Empty (Cells (i, 1).Value)
    103.         j = 1
    104.         u = Cells (i, j).Value
    105.         j = j + 1
    106.         p = Cells (i, j).Value
    107.         If Username = u and Password = p Then
    108.             With TextBox2
    109.                 .Border Color = RGB (186, 214, 150)
    110.                 .Back Color = RGB (216, 241, 211)
    111.                 .Fore Color = RGB (81, 99, 51)
    112.             End With
    113.             Exit Do
    114.             Else If Username = u and Password <> p Then
    115.             TextBox2.BorderColor = RGB (255, 102, 0)
    116.             Exit Do
    117.         Else
    118.             i = i + 1
    119.         End If
    120.     Loop
    121. End Sub
    122. Sub settings ()
    123.     With UserForm1
    124.         TextBox1.ForeColor = &H8000000C
    125.         TextBox2.ForeColor = &H8000000C
    126.         TextBox1.BackColor = &H80000004
    127.         TextBox2.BackColor = &H80000004
    128.         TextBox1.Text = "Username"
    129.         TextBox2.Text = "Password"
    130.         TextBox1.BorderColor = RGB (0, 191, 255)
    131.         TextBox2.BorderColor = RGB (0, 191, 255)
    132.         CommandButton1.SetFocus
    133.     End With
    134. End Sub
    135. Private Sub UserForm_Initialize ()
    136.     Call settings
    137. End Sub

Step 3

Test the user form using the following.

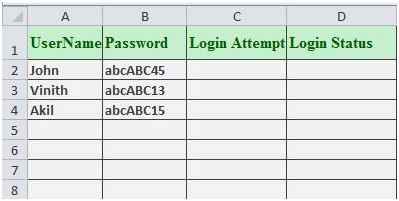

  1. Exit the Visual Basic Editor, enter the labels and data shown below into rows.

  2. Deselect the Design mode selection then click Command Button 1 on the sheet.

    Command Button 1 on the sheet

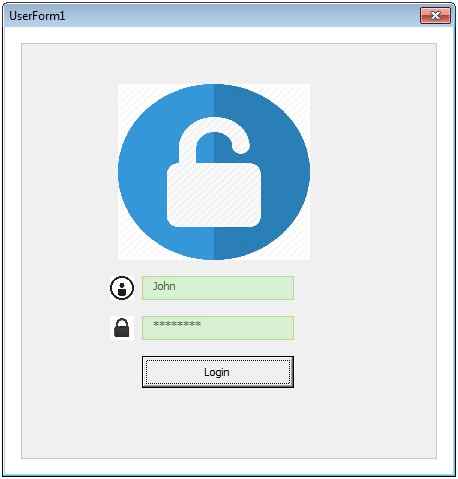

Demos

Demos

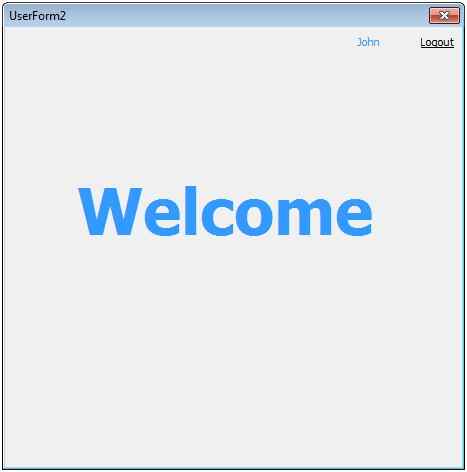

The following figure shows the Welcome page after successful login.

welcome page

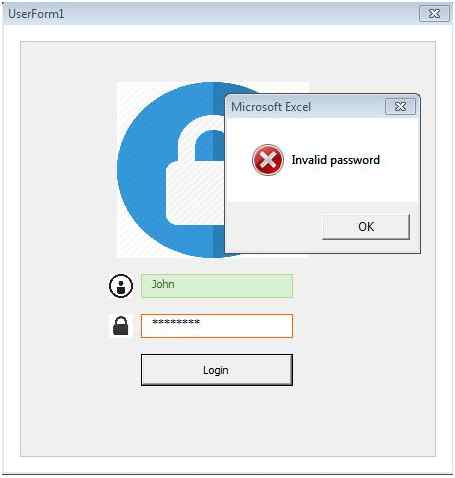

The following figure shows entering an invalid password.

enter invalid password

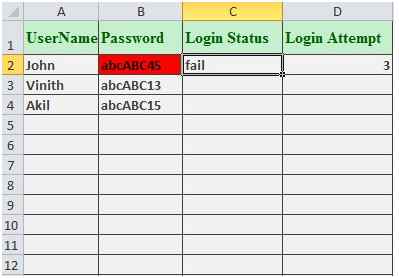

The following figure shows login status and login attempt.

login status and login attempt

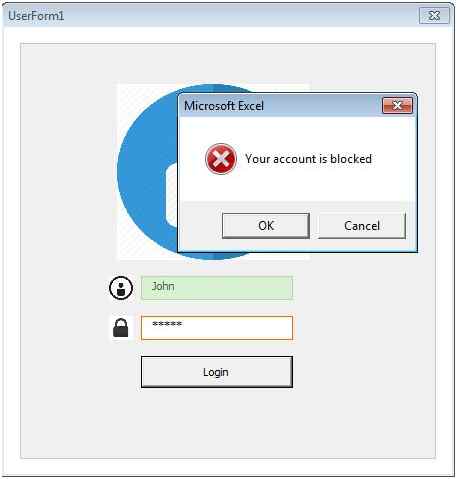

The following figure shows an account blocked after trying the wrong password 3 times.

account block after trying 3 time

Thanks for reading. I hope this article useful for VBA beginners.

(Hint: Excel source password -> 123987)
