Working With ASP.NET Chart Control

"Graph Speaks Louder than words(numbers)"

So, let's bind the lead data for the year 2011 to 2015 with ASP.NET Chart control in your website.

Step 1:
Create new ASP.NET Empty website and give a name 'WebChart'.



Step 2
: Add new Web Page by clicking on Add, then Web form.



Step 3
: Drag and drop Chart Control from the Toolbox, Data, then Chart on Web Form.


Step 4
: From the right top corner of the chart control Choose Data Source.


Step 5
: Choose SQL data source and give a name 'SqlDataSource1' and click Ok.


Step 6
: Connect this with SQL database, enter server detail and Login Credentials for login to SQL Server and select database.



Step 7
: Give a name to connection string, and click on next. It will add connection string in web.config file.



Step 8
: Now select the table and select the fields you want to bind in your Chart as X axis and Y axis.



Step 9
: Click on next and test your query, and click on finish.

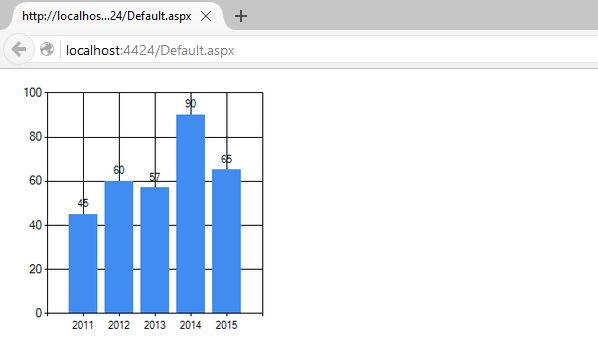

Step 10 : That's it. Now save and run your website and it will display lead count for the respective years.

Chart

Hope you liked the simple steps to bind SQL data with ASP.NET Chart control.
