Generation of CAPTCHA Image Using Generic Handler for Login Page

This article explains how to create a CAPTCHA image using a generic handler.

Required Tools

1. Visual Studio
2. SQL Server 2005

Step 1

Create a new solution and add an empty web project.

Step 2

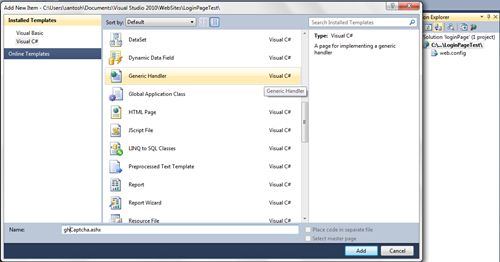

Add a generic handler page (.ashx).



Step 3

Replace the ProcessRequest method implementation with the following code.

<%@ WebHandler Language="C#" Class="ghCaptcha" %>

using System;
using System.Web;
using System.IO;
using System.Web.SessionState;
using System.Drawing;
using System.Drawing.Imaging;

public class ghCaptcha : IHttpHandler, IReadOnlySessionState
{
    public void ProcessRequest(HttpContext context)
    {
        MemoryStream memStream = new MemoryStream();
        string phrase = Convert.ToString(context.Session["Captcha"]);

        //Generate an image from the text stored in session
        Bitmap CaptchaImg = new Bitmap(180, 60);
        Graphics Graphic = Graphics.FromImage(CaptchaImg);
        Graphic.TextRenderingHint = System.Drawing.Text.TextRenderingHint.AntiAlias;

        //Set height and width of captcha image
        Graphic.FillRectangle(new SolidBrush(Color.Blue), 0, 0, 180, 60);
        Graphic.DrawString(phrase, new Font("Calibri", 30), new SolidBrush(Color.White), 15, 15);
        CaptchaImg.Save(memStream, System.Drawing.Imaging.ImageFormat.Jpeg);
        byte[] imgBytes = memStream.GetBuffer();

        Graphic.Dispose();
        CaptchaImg.Dispose();
        memStream.Close();

        //write image
        context.Response.ContentType = "image/jpeg";
        context.Response.BinaryWrite(imgBytes);
    }

    public bool IsReusable
    {
        get
        {
            return false;
        }
    }
}

Step 4

Build the page and resolve the namespace.

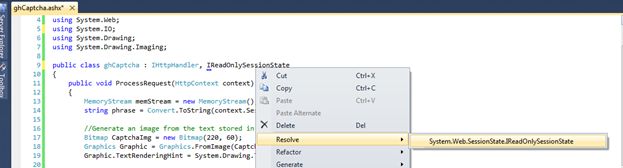

Since the .ashx is a generic handler it process HTTP requests and doesn't write session values. So we need to inherit the class with IReadOnlySessionState as in the following:



The following namespaces are used:

using System;
using System.Web;
using System.IO;
using System.Web.SessionState;
using System.Drawing;
using System.Drawing.Imaging;

Step 5

Prepare the Login page; add a new page named Login.aspx and add the following .aspx script:

<form id="form1" runat="server">
    <h1>
        Login</h1>
    <table id="tblLogin" width="40%" border="0" cellpadding="0" cellspacing="4" style="background-color: #cecece;"
        align="center">
        <tbody>
            <tr>
                <td align="center">
                    <asp:Label ID="lblError" runat="server"></asp:Label>
                </td>
            </tr>
            <tr>
                <td width="30%" align="right">
                    User ID :
                </td>
                <td width="70%">
                    <asp:TextBox ID="txtLogin" runat="server" Width="175px" MaxLength="20" AutoCompleteType="Disabled"></asp:TextBox>
                </td>
            </tr>
            <tr>
                <td align="right">
                    Password :
                </td>
                <td>
                    <asp:TextBox ID="txtPassword" runat="server" Width="175px" MaxLength="20" AutoCompleteType="Disabled"
                        TextMode="Password"></asp:TextBox>
                </td>
            </tr>
            <tr>
                <td>
                </td>
                <td colspan="2" align="left">
                    <div>
                        <asp:Image ImageUrl="ghCaptcha.ashx" runat="server" ID="imgCaptcha" />
                    </div>
                </td>
            </tr>
            <tr>
                <td align="right">
                    Enter Code :
                </td>
                <td>
                    <asp:TextBox ID="txtCode" runat="server" Width="175px" MaxLength="5" AutoCompleteType="Disabled"></asp:TextBox>
                </td>
            </tr>
            <tr>
                <td colspan="2" align="center">
                    <asp:Button ID="btnLogin" runat="server" Text="Login" />
                </td>
            </tr>
        </tbody>
    </table>
    </form>

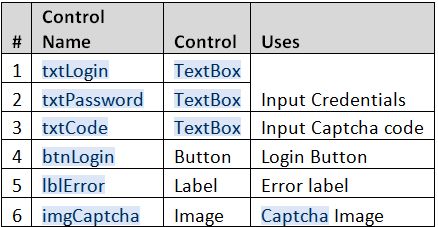

The page has the following controls:

Assign an ImageUrl property of an Image control as Path of the ghCaptcha.ashx file.

Step 6

The following is the code behind of login.aspx.cs:

#region " [ using ] "
using System;
using System.Web.UI;
#endregion

public partial class Login : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!Page.IsPostBack)
        {
            UpdateCaptchaText();
        }
    }

    #region " [ Button Event ] "
    protected void btnRefresh_Click(object sender, ImageClickEventArgs e)
    {
        UpdateCaptchaText();
    }


    protected void btnLogin_Click(object sender, EventArgs e)
    {

    }
    #endregion
    #region " [ Private Function ] "
    private void UpdateCaptchaText()
    {
        txtCode.Text = string.Empty;
        Random randNum = new Random();

        //Store the captcha text in session to validate
        Session["Captcha"] = randNum.Next(10000, 99999).ToString();
        imgCaptcha.ImageUrl = "~/ghCaptcha.ashx?" + Session["Captcha"];
    }
    #endregion
}

The value of Session["Captcha"] is updated in the Page_Load event of login.aspx.cs and is accessed in the handler page and session code used to generate the CAPTCHA image.

Step 7

Build and run it.

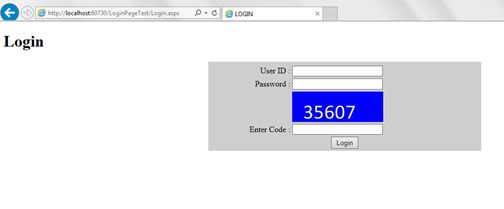

The Login Page Visuals os as below:


Step 8

The following are enhancements (included in the source code download).

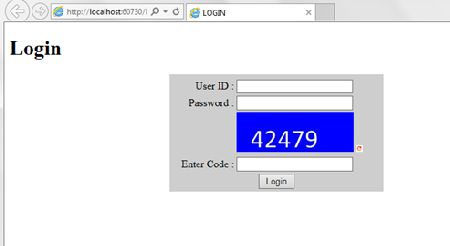

1. A Refresh button beside the CAPTCHA image for changing the CAPTCHA without a page postback:

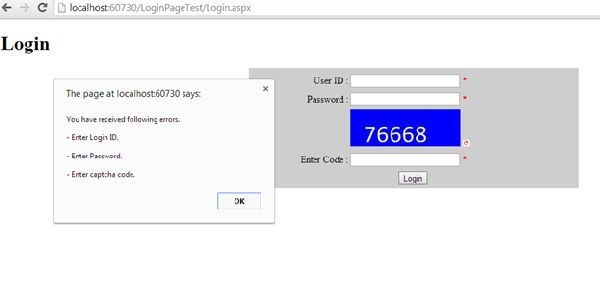

2. Page validation:
