Create a Mirror Text Using HTML5

Manish Singh
Feb 19, 2012
12.8k
0
0
Article

Introduction

This is a simple article for beginners that helps to show how to create a text mirror using HTML 5 tools. We know that a HTML 5 is an advanced version of HTML used to create 3D, animation and multimedia applications. Now in this article we use one tag of a HTML 5; that name is canvas. A canvas tag is mainly used to display data or an image on a browser. Now in this application we simply create an initialization function that simply calls in a <body> tag with the help of an onload event. I hope this article helps to show how to create a text mirror using HTML 5 tools.

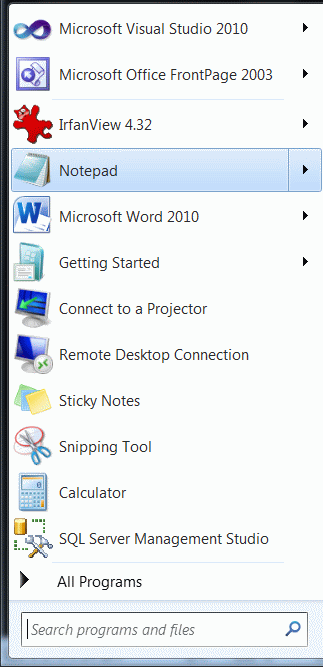

Step 1 : Create a HTML file using a HTML editor such as Notepad or Visual Studio.

Click the start button on the computer.
Click a Notepad and save a Notepad.
The name of Notepad is "Text".

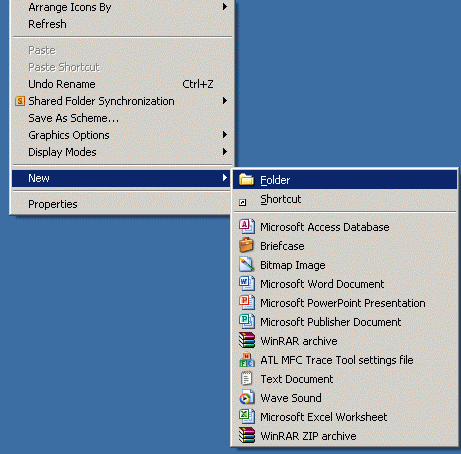

Step 2 : Create a folder on the desktop.

Right-click on desktop->new->Folder.
Name of folder is "Joy".

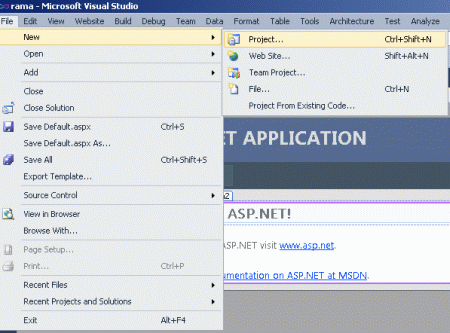

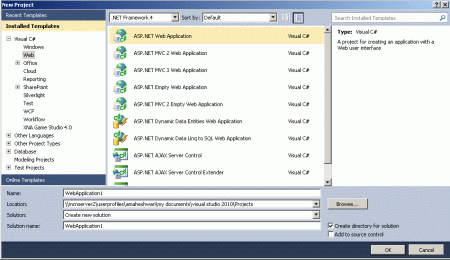

Step 3 : Open Visual Studio.

Go to file -> New->Projects.
Crete an ASP. NET Web Application.
Name of "Mirror.aspx".

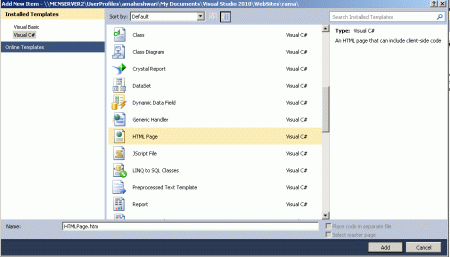

Step 4 : Add a HTML file to your web application.

Right-click on Solution Explorer.
Add->add new item->HTML form.
The Name of the HTML form is "TextMirror.html".

Step 5 : Now in this step we create an init() function. We set all properties of a text mirror application; that is font, font-style, fill-text etc.

Code

function init()
{
    can = document.getElementById("can");
    pxt = can.getContext("2d");
    pxt.fillStyle = "blue";
    pxt.font = "100pt Comic Sans MS";
    pxt.fillText(" McnProfessionals", 0, 100);
    pxt.setTransform(1, 0, 0, -1, 0, 0);
    pxt.fillStyle = "#800000";
    pxt.fillText(" McnProfessionals", 0, -100);
}

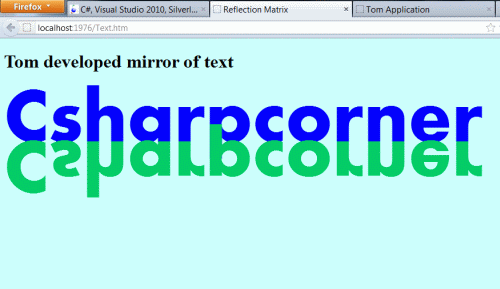

Step 6 : Now in this application we create three text mirrors. Define the functionality of the first text mirror which is given below; in this step we create two variables named can and rxt. The can variable is used to assign an id and the rxt variable is used to set all the properties of a text mirror.

Code

<script type="text/javascript">
var can;
var rxt;
function init()
{
  can = document.getElementById("can");
rxt = can.getContext("2d");
  rxt.fillStyle = "blue";
  rxt.font = "100pt Aharoni";
  rxt.fillText("Csharpcorner", 0, 100);
rxt.setTransform(1, 0, 0, -1, 0, 0);
  rxt.fillStyle = "#00CC66";
  rxt.fillText("Csharpcorner", 0, -100);
rxt = can.getContext("2d");
rxt.fillStyle = "blue";
  rxt.font = "100pt Aharoni";
      }
</script>

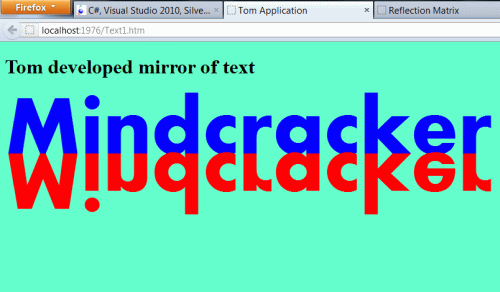

Step 7 : Now define all the functionality of the second text mirror. In this step we create to two variables named can and pxt. The can variable is used to assign an id and insert the pxt variable is used to set all the properties of a text mirror.

Code

<script type="text/javascript">
var can;
var pxt;
function init()
{
   can = document.getElementById("can");
   pxt = can.getContext("2d");
   pxt.fillStyle = "blue";
   pxt.font = "100pt Aharoni";
   pxt.fillText("Mindcracker", 0, 100);
   pxt.setTransform(1, 0, 0, -1, 0, 0);
   pxt.fillStyle = "red";
   pxt.fillText("Mindcracker", 0, -100);
   }
</script>

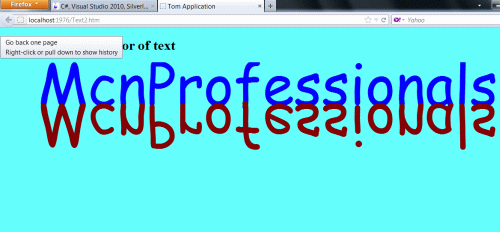

Step 8 : Now define all the functionality of insert the third text mirror. In this step we create two variables named can and axt. The can variable is used to assign an id and the axt variable is used to set all the properties of a text mirror.

Code

<script type="text/javascript">
var can;
var axt;
function init() {
can = document.getElementById("can");
axt = can.getContext("2d");
axt.fillStyle = "blue";
axt.font = "100pt Comic Sans MS";
axt.fillText(" McnProfessionals", 0, 100);
axt.setTransform(1, 0, 0, -1, 0, 0);
axt.fillStyle = "#800000";
axt.fillText(" McnProfessionals", 0, -100);
}
</script>

Step 9 : The complete code of a text mirror application is as given below.
