Introduction
HTML is an acronym for "HyperText Markup Language" that is used to display data in a browser. HTML 5 is the advanced version of HTML. HTML 5 is used to develop 3D or multimedia applications. This is a
simple application developed with HTML 5 and XAML that helps show how to
integrate the canvas on your Web application. Mainly Canvas is used to display
the data or image on a browser. The HTML5 canvas element uses JavaScript to draw
graphics on a web page. A canvas is a rectangular area, and you control every
pixel of it. The canvas element has several methods for drawing paths, boxes,
circles, characters, and adding images.
Step 1 : Open Notepad
- Click->Start button->Notepad
- Give the file a name of your choice
- Click New button->save
- There the name is "Joy.html"

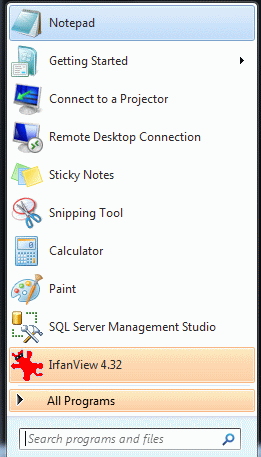

![notepad.gif]()
Step 2 : Create a Folder
- Right click of Desktop Screen-> New->
Folder
- Name of Folder is "Manish"
- Finally all HTML files and related sources
are saved in that folder

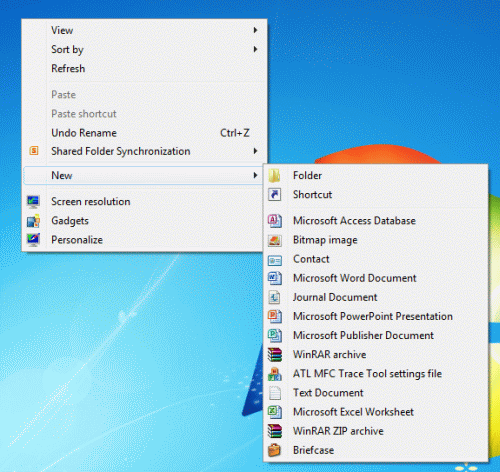

![folder.gif]()
Step 3 : Canvas is used to display the graphics using HTML 5 Tools
Code
<html>
<head>
<script
type="application/javascript">
function drawBowtie(manish, fillStyle) {
manish.fillStyle = "rgba(200,200,200,0.3)";
manish.fillRect(-30, -30, 60, 60);
manish.fillStyle = fillStyle;
manish.globalAlpha = 1.0;
manish.beginPath();
manish.moveTo(25, 25);
manish.lineTo(-25,
-25);
manish.lineTo(25, -25);
manish.lineTo(-25,
25);
manish.closePath();
manish.fill();
}
function dot(manish) {
manish.save();
manish.fillStyle = "black";
manish.fillRect(-2, -2, 4, 4);
manish.restore();
}
function draw() {
var canvas = document.getElementById("canvas");
var manish = canvas.getContext("2d");
manish.translate(45, 45);
manish.save();
drawBowtie(manish, "red");
dot(manish);
manish.restore();|
manish.save();
manish.translate(85, 0);
manish.rotate(45 * Math.PI / 180);
drawBowtie(manish, "YellowGreen");
dot(manish);
manish.restore();
manish.save();
manish.translate(0, 85);
manish.rotate(135 * Math.PI / 180);
drawBowtie(manish, "MistyRose");
dot(manish);
manish.restore();
manish.save();
manish.translate(85, 85);
manish.rotate(90 * Math.PI / 180);
drawBowtie(manish, "BlanchedAlmond");
dot(manish);
manish.restore();
}
</script>
</head>
<body
onload="draw()">
<canvas
id="canvas"
width="300"
height="300"></canvas>
</body>
</html>
Output

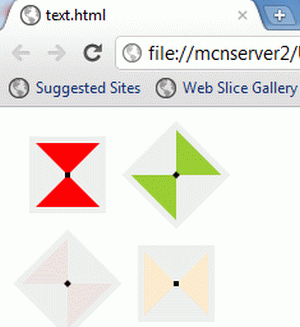

![html emage.gif]()
Step 4 : Integrating the canvas in a Web
application
- Open Visual Studio 2010.
- Click New-> Project-> Web site
application.
- Name of Web site is Tom.

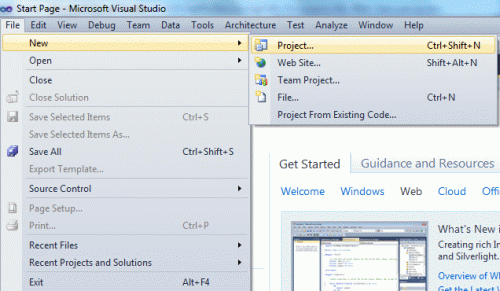

![strt.gif]()

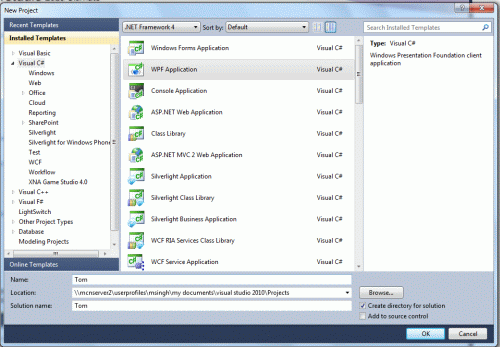

![vs.gif]()
Step 5 : Using the canvas display the
circle on a Web page
- Now help on XAML language.
- First we define the canvas on a web page.
Code
<Window
x:Class="manish.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="MainWindow"
Height="350"
Width="525">
<Canvas>
<Ellipse
Canvas.Left="105"
Canvas.Top="99"
Width="58"
Height="58"
Fill="Cyan"
/>
<Path
Canvas.Left="61"
Canvas.Top="28"
Width="133"
Height="98"
Fill="Blue"
Stretch="Fill"
Data="M61,125 L193,28"/>
<Canvas></Canvas>
<Ellipse
Fill="YellowGreen"
Width="60"
Height="60"
Canvas.Left="177"
Canvas.Top="20"
Canvas.ZIndex="1" />
<Ellipse
Fill="MistyRose"
Width="60"
Height="60"
Canvas.Left="50"
Canvas.Top="43" />
<Canvas>
<Ellipse
Fill="BlanchedAlmond"
Width="60"
Height="60"
Canvas.Left="30"
Canvas.Top="20"
Canvas.ZIndex="1"/>
</Canvas>
<Ellipse
Fill="Purple"
Width="60"
Height="60"
Canvas.Left="161"
Canvas.Top="43"
/>
<Ellipse
Fill="#FF17DE17"
Width="60"
Height="60"
Canvas.Left="12"
Canvas.Top="170"
Canvas.ZIndex="1"/>
<Ellipse
Fill="Blue"
Width="60"
Height="60"
Canvas.Left="39"
Canvas.Top="142"/>
<Ellipse
Fill="#FFFD27FA"
Width="60"
Height="60"
Canvas.Left="161"
Canvas.Top="154"
Canvas.ZIndex="1"/>
<Ellipse
Fill="#FF60A797"
Width="60"
Height="60"
Canvas.Left="199"
Canvas.Top="142"/>
</Canvas>
</Window>
Output

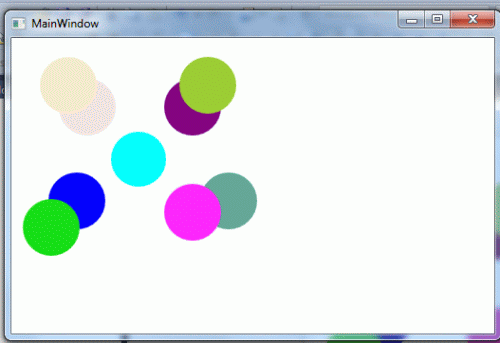

![circle.gif]()
Step 6 : Using canvas display the
rectangle on a web page
- Now help on XAML language.
- First add canvas on a page.
Code
<Window
x:Class="mana.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="MainWindow"
Height="350"
Width="525">
<Canvas>
<Rectangle
Canvas.Left="159"
Canvas.Top="78"
Width="89"
Height="79"
Fill="#FF1ED248"
/>
<Rectangle
Canvas.Left="64"
Canvas.Top="12"
Fill="#FFC41ED2"
Height="79"
Width="89"
/>
<Rectangle
Canvas.Left="112"
Canvas.Top="48"
Fill="#FF71231E"
Height="79"
Width="89"
/>
<Rectangle
Canvas.Left="238"
Canvas.Top="123"
Fill="Chocolate"
Height="79"
Width="89"
/>
<Rectangle
Canvas.Left="301"
Canvas.Top="161"
Fill="#FFC48BF8"
Height="79"
Width="89"
/>
<Rectangle
Canvas.Left="370"
Canvas.Top="199"
Fill="#FF8D0651"
Height="79"
Width="89"
/>
</Canvas>
</Window>
Output

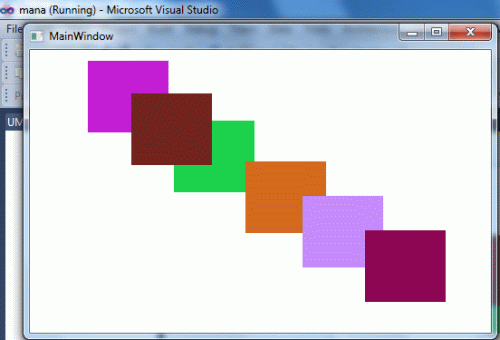

![rectengle.gif]()
Step 7 :
Show both output on a same page
Code
<Window
x:Class="WpfApplication1.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="MainWindow"
Height="350"
Width="525">
<Canvas>
<Rectangle
Canvas.Left="159"
Canvas.Top="78"
Width="89"
Height="79"
Fill="#FF1ED248"
/>
<Rectangle
Canvas.Left="64"
Canvas.Top="12"
Fill="#FFC41ED2"
Height="79"
Width="89"
/>
<Ellipse
Fill="Purple"
Width="60"
Height="60"
Canvas.Left="188"
Canvas.Top="12"
/>
<Ellipse
Fill="#FF17DE17"
Width="60"
Height="60"
Canvas.Left="80"
Canvas.Top="106"
Canvas.ZIndex="1"/>
</Canvas>
</Window>
Step 8 : Press Crtl+F5 to run the application
Output

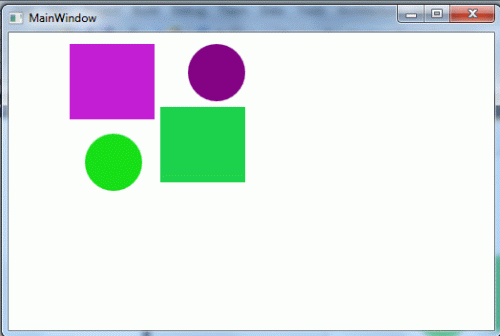

![outpot.gif]()
