ASP.NET MVC 3 Database Connectivity Using Entity Framework

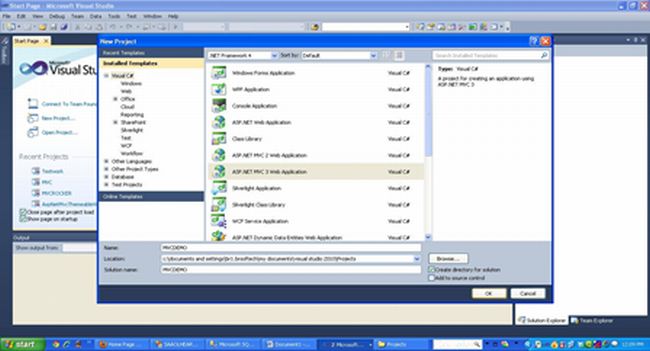

First open VS 2010 and create an ASP.Net project as in the following:

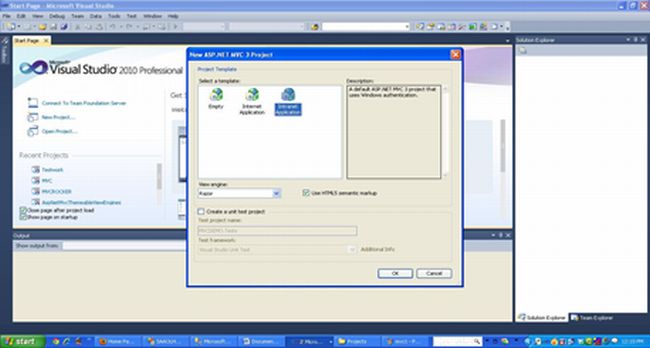

After this:

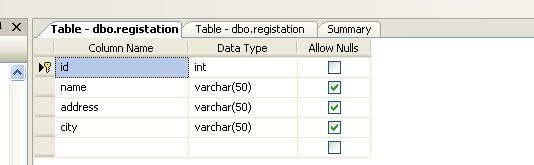

Database Structure? Create a registration table in the database.

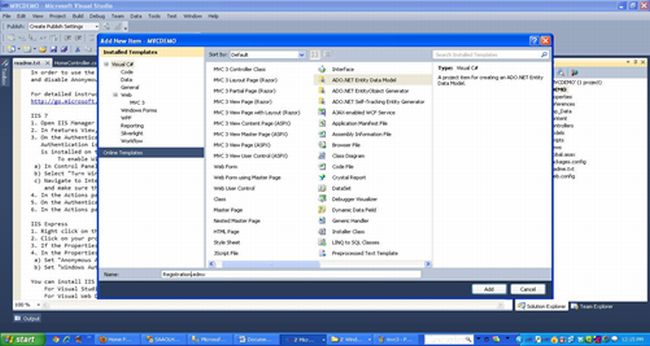

Now add the new Entity Model, as in:

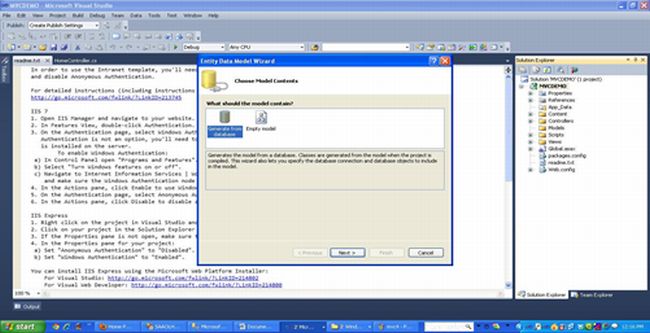

Next Step:

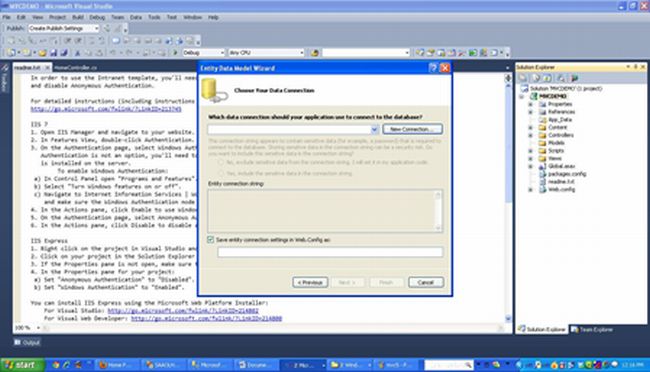

Next Step

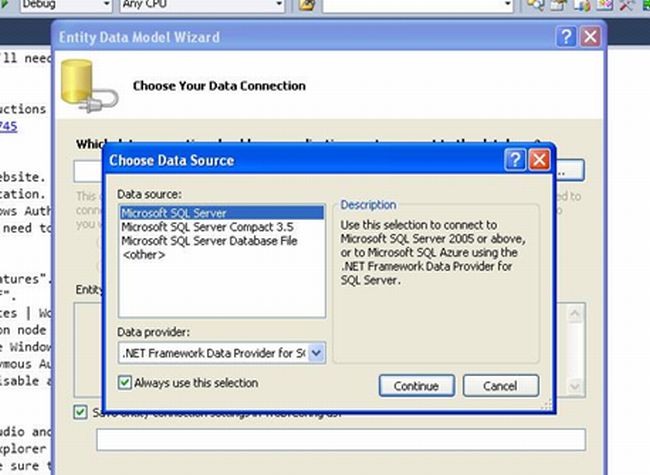

Now click on new connection; now choose Microsoft SQL Server.

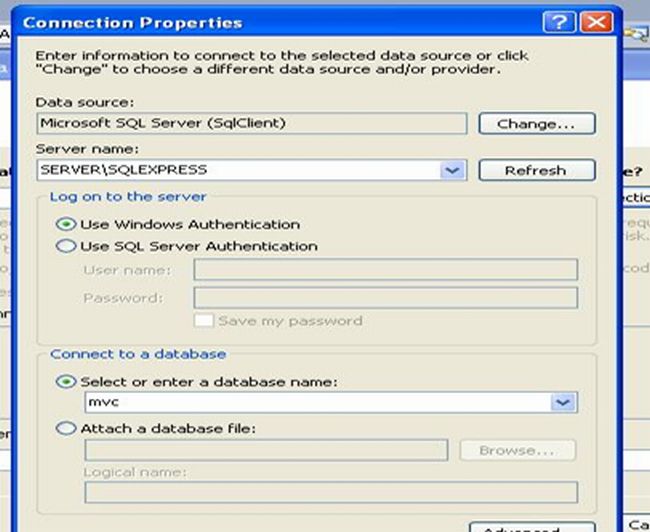

Continue. Select the database that you have created in Database.

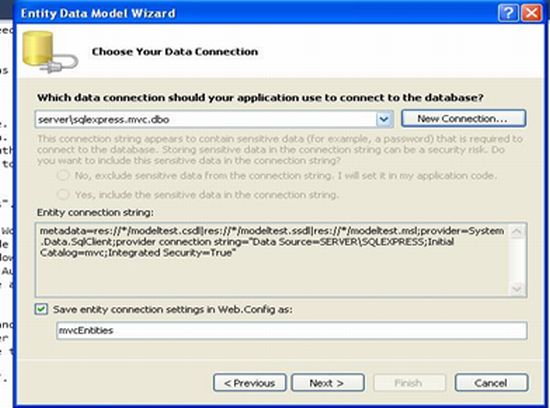

After this,

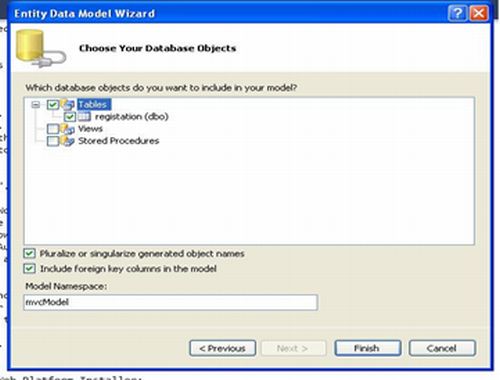

select the table name.


Now click on the Finish button.

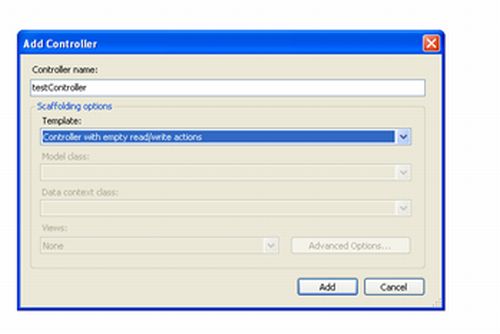

Now create the new controller. Right-click on controller and add a new controller and type the controller testcontroller. While creating the controller choose controllerwithempyt read/write mode.

[Note: If we create the test controller then the views test folder will be automatically generated.]
Now, first build the solution for refreshing the model.

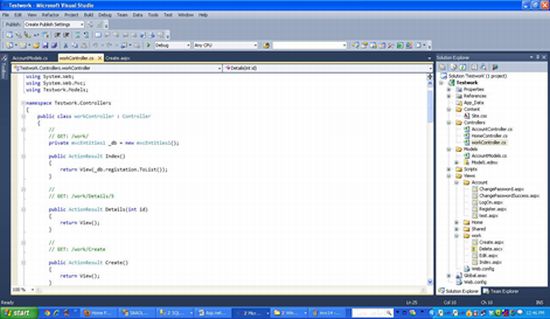

Click on testcontroller looks like:

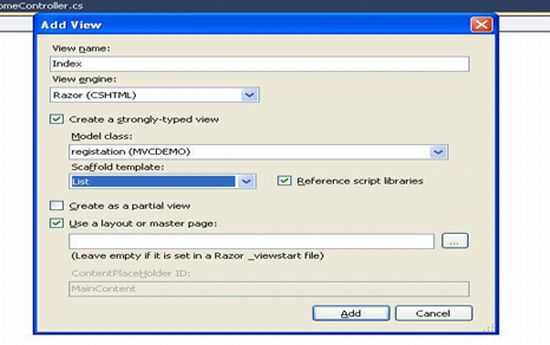

Right-click on index >>Add view >> choose strong type view >> Choose Model class >> LIST


Then in Views folder >> Test folder >> index.chtml will be created.

List

Coding

private mvcEntities _db = new mvcEntities();



  public ActionResult Index()

   {

       return View(_db.registations.ToList());

   }

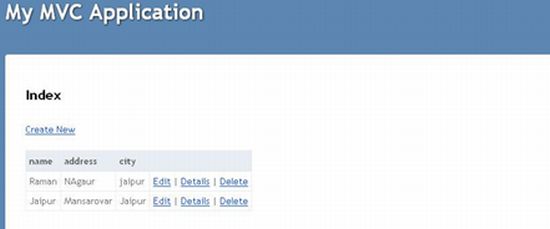

Output


The same as for create new view, edit view and delete view.

Create new

  // GET: /work/Create



        public ActionResult Create()

        {

            return View();

        }



        //

        // POST: /work/Create



        [HttpPost]

        public ActionResult Create(registation model)

        {

            try

            {

                if (!ModelState.IsValid)



                    return View();



                _db.AddToregistation(model);





                _db.SaveChanges();



                return RedirectToAction("Index");



                // TODO: Add insert logic here





            }

            catch

            {

                return View();

            }

        }

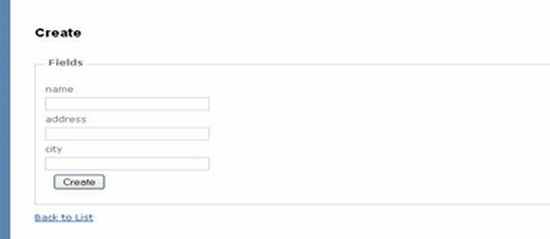

Output screen


Edit View: Right-click on edit View >> ADD View >> strong type >>Edit

public ActionResult Edit(int id)

{

    var RecordToEdit = (from m in _db.registation



                       where m.id == id



                       select m).First();



    return View(RecordToEdit);



}



//

// POST: /work/Edit/5



[HttpPost]

public ActionResult Edit(int id,registation regtoedit)

{

    try

    {

        // TODO: Add update logic here



        var originalMovie = (from m in _db.registation



                             where m.id == regtoedit.id



                             //select m).First();

                             select m).First();



        if (!ModelState.IsValid)



            return View(originalMovie);



        _db.ApplyPropertyChanges(originalMovie.EntityKey.EntitySetName, regtoedit);





        _db.SaveChanges();



        return RedirectToAction("Index");



    }

    catch

    {

        return View();

    }

}



//


Delete View:
Right-click on edit View >> ADD View >> Partial View >>Delete



  // GET: /work/Delete/5



        public ActionResult Delete(int id)

        {

             var originalMovie = (from m in _db.registation



                                 where m.id == id



                                 select m).First();



            _db.DeleteObject(originalMovie);

            _db.SaveChanges();



            return RedirectToAction("Index");

        }



        //

        // POST: /work/Delete/5



        [HttpPost]

        public ActionResult Delete(int id,registation model)

        {

            try

            {

                var originalMovie = (from m in _db.registation



                                     where m.id == id



                                     select m).First();



                _db.DeleteObject(originalMovie);

                _db.SaveChanges();



                return RedirectToAction("Index");

            }

            catch

            {

                return View();

            }

        }

    }

Now build the solution.

Thanks Happy Coding.
