Save and Retrieve Image From SQL in VB.NET

Introduction

When we create any application that we need to save images then we save the image in a folder and store the path of the image to the database as a string type. If you save an image to a folder, you might accidentally delete an image from that folder. If this happens then you will a get an error the next time the image is retrieved. It is very difficult to prevent this accident.


So, if you save an image into a database then you can enforce security by using the security settings of the database.

The application

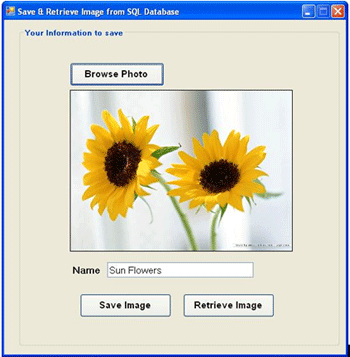

Create a windows application in VB.NET 2005 and design it as shown in the above image. Then import namespaces as follows:


Imports System.Data.SqlClient

Imports System.IO


Create database


Create a SQL database as follows in Solution Explorer, click on project name and right-click on it then Add -> New item -> SQL Database; name it "Database1.mdf " then click ok. Click on database1 and create a table in it named "information" with the fields as in the following diagram:


Using the code


Actually the IMAGE field is just holding the reference to the page containing the binary data so we have to convert our image into bytes.


Imports System.Data.SqlClient

Imports System.IO


Public Class Form1

    'path variable use for Get application running path

    Dim path As String = (Microsoft.VisualBasic.Left(Application.StartupPath, Len(Application.StartupPath) - 9))
     Dim con As New SqlConnection("Data Source=.\SQLEXPRESS;AttachDbFilename=" & path & "Database1.mdf;Integrated Security=True;User Instance=True")
     Dim cmd As
SqlCommand

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
         If OpenFileDialog1.ShowDialog() = Windows.Forms.DialogResult.OK
Then

            PictureBox1.BackgroundImage = Image.FromFile(OpenFileDialog1.FileName)
             Label1.Visible =
True

            TextBox1.Visible = True

            Label1.Text = "Name"

            TextBox1.Clear()
         End
If

    End Sub

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

'TODO: This line of code loads data into the 'Database1DataSet.Information' table. You can move, or remove it, as needed.

        Me.InformationTableAdapter.Fill(Me.Database1DataSet.Information)
         con.Open()
     End
Sub
     Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
         If TextBox1.Text = ""
Then

            MsgBox("Fill the Name Field")

Else

            Dim sql As String = "INSERT INTO Information VALUES(@name,@photo)"

            Dim cmd As New SqlCommand(sql, con)
             cmd.Parameters.AddWithValue("@name", TextBox1.Text)
             Dim ms As New MemoryStream()
             PictureBox1.BackgroundImage.Save(ms, PictureBox1.BackgroundImage.RawFormat)
             Dim data As Byte() = ms.GetBuffer()
             Dim p As New SqlParameter("@photo", SqlDbType.Image)
             p.Value = data
             cmd.Parameters.Add(p)
             cmd.ExecuteNonQuery()
             MessageBox.Show("Name & Image has been saved", "Save", MessageBoxButtons.OK)
             Label1.Visible =
False

            TextBox1.Visible = False

        End If

    End Sub

    Private Sub Button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.Click
         GroupBox2.BringToFront()
         GroupBox2.Visible =
True

        Label1.Visible = False

        TextBox1.Visible = False

    End Sub
     Private Sub DataGridView1_CellMouseClick(ByVal sender As Object, ByVal e As System.Windows.Forms.DataGridViewCellMouseEventArgs) Handles DataGridView1.CellMouseClick
         cmd = New SqlCommand("select photo from Information where name='" & DataGridView1.CurrentRow.Cells(0).Value() & "'", con)
         Dim imageData As Byte() = DirectCast(cmd.ExecuteScalar(), Byte())
         If Not imageData Is Nothing
Then

            Using ms As New MemoryStream(imageData, 0, imageData.Length)
                 ms.Write(imageData, 0, imageData.Length)
                 PictureBox1.BackgroundImage = Image.FromStream(ms, True)
             End
Using

        End If

        GroupBox2.SendToBack()
         GroupBox2.Visible =
False

        Label1.Visible = True

        Label1.Text = DataGridView1.CurrentRow.Cells(0).Value()
     End
Sub

End Class


Retrieving images from the Database


Retrieving images from the database is the exact reverse process of saving images to the database. The following code is used to retrieve:

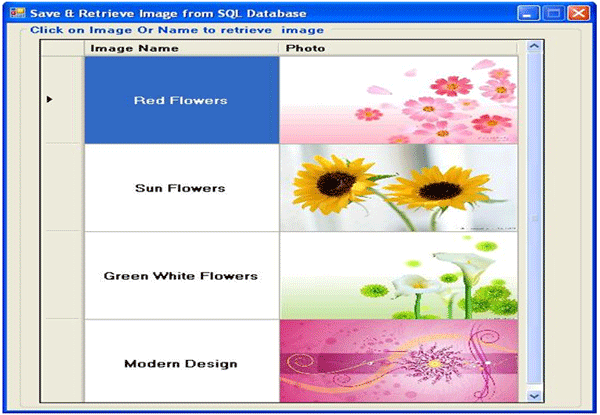

The application uploads images from a database and displays them in a DataGridView. When you click on the DataGridView cell then an image is displayed in the picture box.


Private Sub DataGridView1_CellMouseClick(ByVal sender As Object, ByVal e As
 System.Windows.Forms.DataGridViewCellMouseEventArgs) Handles DataGridView1.CellMouseClick
     cmd = New SqlCommand("select photo from Information where name='" & DataGridView1.CurrentRow.Cells(0).Value() & "'", con)
     Dim imageData As Byte() = DirectCast(cmd.ExecuteScalar(), Byte())
     If Not imageData Is Nothing
Then

        Using ms As New MemoryStream(imageData, 0, imageData.Length)
             ms.Write(imageData, 0, imageData.Length)
             PictureBox1.BackgroundImage = Image.FromStream(ms, True)
         End
Using

    End If

    GroupBox2.SendToBack()
     GroupBox2.Visible =
False

    Label1.Visible = True

    Label1.Text = DataGridView1.CurrentRow.Cells(0).Value()

End Sub
