Uploading a File With Web API and Entity Framework Using AJAX

This article shows how to upload a file in a web application with the Web API and Entity Framework using AJAX.

Step 1

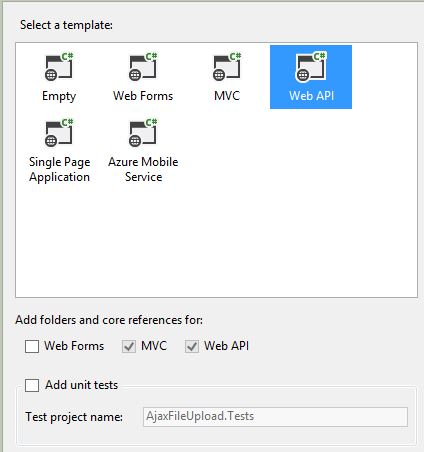

Create a web API project as shown in Figure 1 and Figure 2.



Figure 1



Figure 2

Your project structure will be as shown in Figure 3.


Figure 3

Step 2

Here I have used an image file uploading to explain the process.

Right-click on the model folder and add a class. In my case I named it FileUpload.cs.

Write the following code in the FileUpload class.
  1. public class FileUpload {
  2.     [Key]
  3.     [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
  4.     public int imageid {
  5.         get;
  6.         set;
  7.     }
  8.     public string imagename {
  9.         get;
  10.         set;
  11.     }
  12.     public byte[] imagedata {
  13.         get;
  14.         set;
  15.     } //this property is used to insert a  information of Image in byte format
  16. }
Right-click on the Model folder and add one more class. In my case I named it FileUploadContext.cs.

Write the following code in the FileUploadContext class.
  1. public class FileUploadContext: DbContext {
  2.     public FileUploadContext(): base("name=TestConnection") {}
  3.     public DbSet < FileUpload > fileUpload {
  4.         get;
  5.         set;
  6.     }
  7. }
Step 3

Open the web.confiq file to modify the connection as in the following:
  1. <connectionStrings>
  2.    <add name="TestConnection" connectionString="Data Source= Your Database server name;Initial Catalog= Your Database Name;Integrated Security=True" providerName="System.Data.SqlClient" />
  3. </connectionStrings>
After doing that build your application once.

Step 4

It's time to add the controller class.

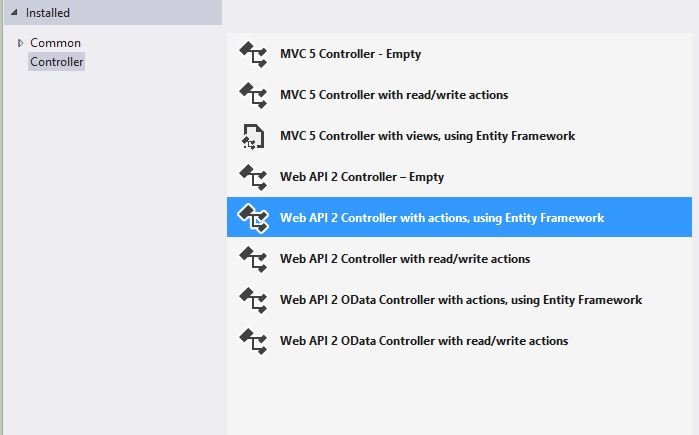

Right-click on the controller folder and add the controller as shown in Figure 4 and Figure 5.



Figure 4



Figure 5

Step 5

Modify the POST based on our application's needs in FileUploadsController.cs.

Replace the code in the POST: api/FileUploads region with the following code in FileUploadsController.cs:
  1. [HttpPost]
  2. public IHttpActionResult PostFileUpload() {
  3.     if (HttpContext.Current.Request.Files.AllKeys.Any()) {
  4.         // Get the uploaded image from the Files collection
  5.         var httpPostedFile = HttpContext.Current.Request.Files["UploadedImage"];
  6.         if (httpPostedFile != null) {
  7.             FileUpload imgupload = new FileUpload();
  8.             int length = httpPostedFile.ContentLength;
  9.             imgupload.imagedata = new byte[length]; //get imagedata
  10.             httpPostedFile.InputStream.Read(imgupload.imagedata, 0, length);
  11.             imgupload.imagename = Path.GetFileName(httpPostedFile.FileName);
  12.             db.fileUpload.Add(imgupload);
  13.             db.SaveChanges();
  14.             var fileSavePath = Path.Combine(HttpContext.Current.Server.MapPath("~/UploadedFiles"), httpPostedFile.FileName);
  15.             // Save the uploaded file to "UploadedFiles" folder
  16.             httpPostedFile.SaveAs(fileSavePath);
  17.             return Ok("Image Uploaded");
  18.         }
  19.     }
  20.     return Ok("Image is not Uploaded");
  21. }
Step 6

Create one new folder in the project named UploadedFiles to save the image.

Right-click on the project and add a HTML page.

The Design
  1. !DOCTYPE html>
  2. <html
  3.     xmlns="http://www.w3.org/1999/xhtml">
  4.     <head>
  5.         <title>File Upload Demo</title>
  6.         <script src="Js/Upload.js"></script>
  7.         <script type='text/javascript' src='http://ajax.googleapis.com/ajax/libs/jquery/1.10.2/jquery.min.js'></script>
  8.         <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css" rel="stylesheet">
  9.         </head>
  10.         <body>
  11.             <div id="example">
  12.                 <div class="demo-section k-header">
  13.                     <h3>Image Upload</h3>
  14.                     <br />
  15.                     <div>
  16.                         <label for="fileUpload">
  17. Select File to Upload:
  18.
  19.                             <input id="fileUpload" type="file" name="files" />
  20.                             <br />
  21.                             <br />
  22.                             <input id="btnUploadFile" type="button" value="Upload File" class="btn-primary" />
  23.                         </div>
  24.                     </div>
  25.                 </div>
  26.             </div>
  27.         </body>
  28.     </html>
The Ajax call script
  1. Upload.js,
  2.
  3. $(document).ready(function() {
  4.     $('#btnUploadFile').on('click', function() {
  5.         var data = new FormData()
  6.         var files = $("#fileUpload").get(0).files;
  7.         // Add the uploaded image content to the form data collection
  8.         if (files.length > 0) {
  9.             data.append("UploadedImage", files[0]);
  10.         }
  11.         // Make Ajax request with the contentType = false, and procesDate = false
  12.         var ajaxRequest = $.ajax({
  13.             type: "POST",
  14.             url: "http://localhost:59453/api/FileUploads",
  15.             contentType: false,
  16.             processData: false,
  17.             data: data
  18.         });
  19.         ajaxRequest.done(function(xhr, textStatus) {});
  20.     });
  21. });
In the browser:


Figure 6

Check the response using the fire bug development tool, as shown in Figure 7.

Figure 7

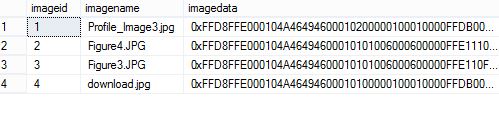

Check your database.


Figure 8

Yes! The image details have been inserted into the table.

Check the UploadedFiles folder as in the following:



Yes! The Image is copied to the UploadedFiles folder.

That's it, enjoy coding.
