Create Custom UI Forms Part of the QTP Test Automation Frameworks Using .Net Factory Utility


As per the QTP:

The DotNetFactory object in QTP enables you to create an instance of a .NET object, and access its methods and properties.

You can use this object to access the static methods and properties of a class that does not have an instance constructor, for example, System.Environment, as well as a class that does.

Also the .Net Add-in is not required for this to work. I personally feel that the utility has been introduced to resolve the problem that occured when referencing a .Net Assembly or C/C++ DLL and making a call to its functions.

The piece of code would be
as in the following:

Set myMessageBox = DotNetFactory.CreateInstance (TypeName [,Assembly] [,args])

Set myMessageBox =

DotNetFactory.CreateInstance("System.Windows.Forms.Form",

"System.Windows.Forms")

myMessageBox.Show()

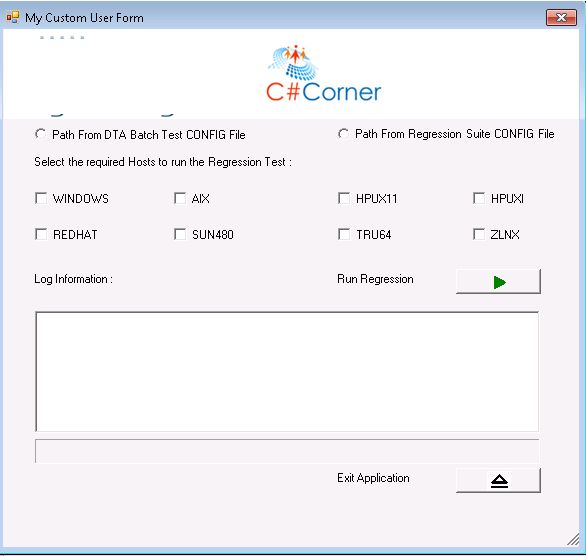

Create the custom UI forms part of my automation test framework so the tester can run opted test scripts as per the user's choice using the .Net factory utility:


The entire code of the Test Method would be
as in the following:

       'Form

        UIForm = DotNetFactory.CreateInstance("System.Windows.Forms.Form", "System.Windows.Forms")

        'Logo Image

        imgLogo = DotNetFactory.CreateInstance("System.Windows.Forms.PictureBox", "System.Windows.Forms")

        imgLogoSize = DotNetFactory.CreateInstance("System.Windows.Forms.PictureBoxSizeMode", "System.Windows.Forms")



        'Form Background Image

        frmImage = DotNetFactory.CreateInstance("System.Drawing.Image", "System.Windows.Forms")

        'Labels

        lblHosts = DotNetFactory.CreateInstance("System.Windows.Forms.Label", "System.Windows.Forms")

        lblRun = DotNetFactory.CreateInstance("System.Windows.Forms.Label", "System.Windows.Forms")

        lblCancel = DotNetFactory.CreateInstance("System.Windows.Forms.Label", "System.Windows.Forms")

        lblLog = DotNetFactory.CreateInstance("System.Windows.Forms.Label", "System.Windows.Forms")

        'Buttons

        btnRun = DotNetFactory.CreateInstance("System.Windows.Forms.Button", "System.Windows.Forms")

        btnCancel = DotNetFactory.CreateInstance("System.Windows.Forms.Button", "System.Windows.Forms")

        dResult = DotNetFactory.CreateInstance("System.Windows.Forms.DialogResult", "System.Windows.Forms")

        'Radio Buttons

        rdDTAOption = DotNetFactory.CreateInstance("System.Windows.Forms.RadioButton", "System.Windows.Forms")

        rdCONFIGOption = DotNetFactory.CreateInstance("System.Windows.Forms.RadioButton", "System.Windows.Forms")

        'Radio Buttons POS

        rdDTAOptionPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        rdCONFIGOptionPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        'Check Boxes

        chkWindows = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkAix = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkHpux11 = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkHpuxi = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkRedhat = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkSun480 = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkTru64 = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        chkZlnx = DotNetFactory.CreateInstance("System.Windows.Forms.CheckBox", "System.Windows.Forms")

        ' Progress Bar

        frmProgressBar = DotNetFactory.CreateInstance("System.Windows.Forms.ProgressBar", "System.Windows.Forms")

        ' Text Box

        txtLog = DotNetFactory.CreateInstance("System.Windows.Forms.TextBox", "System.Windows.Forms")

        'Labels POS

        lblHostsPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        lblRunPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        lblCancelPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        lblLogPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")



        'Buttons POS

        btnRunPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        btnCancelPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        frmImagePOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        'Check Boxes POS

        chkWindowsPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkAixPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkHpux11Pos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkHpuxiPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkRedhatPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkSun480Pos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkTru64Pos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        chkZlnxPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        ' Progress Bar  POS

        frmProgressBarlPOS = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        ' Text Box POS

        txtLogPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing", x, y)

        Var = DotNetFactory.CreateInstance("System.Environment")

        'Logo Image POS

        imgLogoPos = DotNetFactory.CreateInstance("System.Drawing.Point", "System.Drawing")

        'Logo Image Properties

        With imgLogoPos

            .X = 1

            .Y = -1

        End With

        With imgLogo

            .ImageLocation = "~ \Images\Icon.jpg"

            .Location = imgLogoPos

            .SizeMode = imgLogoSize.Autosize

            .Width = 580

            .Height = 91

        End With

        'Radio Buttons Properties

        With rdDTAOptionPos

            .X = 32

            .Y = 96

        End With

        With rdDTAOption

            .Location = rdDTAOptionPos

            '.BackColor=System.Drawing.Color.Transparent

            .Text = "Path From DTA Batch Test CONFIG File"

            .Name = "rdDTAOption"

            .Width = 239

            .Height = 20

        End With

        With rdCONFIGOptionPos

            .X = 335

            .Y = 96

        End With



        With rdCONFIGOption

            .Location = rdCONFIGOptionPos

            '.BackColor=System.Drawing.Color.Transparent

            .Text = "Path From Regression Suite CONFIG File"

            .Name = "rdCONFIGOption"

            .Width = 250

            .Height = 19

        End With

        ' Label  Selected Hosts  Properties

        With lblHostsPOS

            .X = 29

            .Y = 126

        End With

        With lblHosts

            .Text = "Select the required Hosts to run the Regression Test :"

            .Location = lblHostsPOS

            .Width = 325

            .Height = 17

        End With

        'Check Boxes Properties

        With chkWindowsPos

            .X = 32

            .Y = 160

        End With

        With chkWindows

            .Location = chkWindowsPos

            '.BackColor=System.Drawing.Color.Transparent

            .Text = "WINDOWS"

            .Name = "chkWindows"

            .Width = 82

            .Height = 20

        End With

        With chkAixPos

            .X = 171

            .Y = 160

        End With

        With chkAix

            .Location = chkAixPos

            .Text = "AIX"

            .Name = "chkAix"

            .Width = 82

            .Height = 20

        End With

        With chkHpux11Pos

            .X = 335

            .Y = 160

        End With

        With chkHpux11

            .Location = chkHpux11Pos

            .Text = "HPUX11"

            .Name = "chkHpux11"

            .Width = 82

            .Height = 20

        End With

        With chkHpuxiPos

            .X = 470

            .Y = 160

        End With

        With chkHpuxi

            .Location = chkHpuxiPos

            .Text = "HPUXI"

            .Name = "chkHpuxi"

            .Width = 82

            .Height = 20

        End With

        With chkRedhatPos

            .X = 32

            .Y = 196

        End With

        With chkRedhat

            .Location = chkRedhatPos

            .Text = "REDHAT"

            .Name = "chkRedhat"

            .Width = 82

            .Height = 20

        End With

        With chkSun480Pos

            .X = 171

            .Y = 196

        End With

        With chkSun480

            .Location = chkSun480Pos

            .Text = "SUN480"

            .Name = "chkSun480"

            .Width = 82

            .Height = 20

        End With

        With chkTru64Pos

            .X = 335

            .Y = 196

        End With

        With chkTru64

            .Location = chkTru64Pos

            .Text = "TRU64"

            .Name = "chkTru64"

            .Width = 82

            .Height = 20

        End With



        With chkZlnxPos

            .X = 470

            .Y = 196

        End With

        With chkZlnx

            .Location = chkZlnxPos

            .Text = "ZLNX"

            .Name = "chkZlnx"

            .Width = 82

            .Height = 20

        End With

        ' Label Log Information Properties

        With lblLogPOS

            .X = 29

            .Y = 243

        End With

        With lblLog

            .Text = "Log Information :"

            .Location = lblLogPOS

            .Width = 110

            .Height = 17

        End With

        'lblLog.Font.Size=10

        'lblLog.Font.Bold = True





        ' Text  Box Log Information Properties

        With txtLogPos

            .X = 32

            .Y = 282

        End With

        With txtLog

            .Location = txtLogPos

            .Text = ""

            .Name = "txtLog"

            .Multiline = True

            .Width = 505

            .Height = 122

        End With

        ' Label Run Regression Properties

        With lblRunPOS

            .X = 332

            .Y = 243

        End With

        With lblRun

            .Text = "Run Regression"

            .Location = lblRunPOS

            .Width = 110

            .Height = 17

        End With



        ' Button Run Application Properties

        With btnRunPOS

            .X = 453

            .Y = 240

        End With

        With btnRun

            .Text = ""

            .Location = btnRunPOS

            .Image = frmImage.FromFile("D:\RegressionSuite\Images\play.bmp")

            .DialogResult = dResult.OK

            .Width = 85

            .Height = 25

        End With

        ' Progressive Bar  Properties

        With frmProgressBarlPOS

            .X = 32

            .Y = 410

        End With

        With frmProgressBar

            .Location = frmProgressBarlPOS

            .Width = 505

            .Height = 25

        End With





        ' Label Exit Application Properties

        With lblCancelPOS

            .X = 332

            .Y = 442

        End With

        With lblCancel

            .Text = "Exit Application"

            .Location = lblCancelPOS

            .Width = 100

            .Height = 15

        End With

        ' Button Exit Application Properties

        With btnCancelPOS

            .X = 453

            .Y = 439

        End With

        With btnCancel

            .Text = ""

            .Location = btnCancelPOS

            .DialogResult = dResult.Cancel

            .Image = frmImage.FromFile("D:\RegressionSuite\Images\stop.bmp")

            .Width = 85

            .Height = 25

        End With





        With frmImagePOS

            .X = 0

            .Y = 0

        End With

        With UIForm

            '.Controls.Add frmImage

            '.AutoScaleBaseSize = New System.Drawing.Size(5, 13)

            '.Opacity = 0.7

            '.ClientSize = frmSize.Size(376, 208)

            .Controls.Add(imgLogo)

            .Controls.Add(rdDTAOption)

            .Controls.Add(rdCONFIGOption)

            .Controls.Add(frmProgressBar)

            .Controls.Add(lblHosts)

            .Controls.Add(chkWindows)

            .Controls.Add(chkAix)

            .Controls.Add(chkHpux11)

            .Controls.Add(chkHpuxi)

            .Controls.Add(chkRedhat)

            .Controls.Add(chkSun480)

            .Controls.Add(chkTru64)

            .Controls.Add(chkZlnx)

            .Controls.Add(lblRun)

            .Controls.Add(btnRun)

            .Controls.Add(lblLog)

            .Controls.Add(txtLog)

            .Controls.Add(lblCancel)

            .Controls.Add(btnCancel)

            .Name = "UIForm"

            .Text = "My Custom User Form"

            .MaximizeBox = False

            .Minimizebox = False

            .Width = 592

            .Height = 556

            .Location.X = 100

            .Location.Y = 100

            '.ClientSize = frmSize(573, 474);

            '.BackgroundImage = frmImage.FromFile("D:\RegressionSuite\Images\BackImage_2.jpg")

            '.BackgroundImageLayout="Stretch"

            .ShowDialog()

        End With

        'msgbox MyCheckBox.Checked

        'msgbox "User Form Closed"



        If UIForm.DialogResult = dResult.OK Then

            If chkWindows.Checked = "True" Then

                CreateRegressionScripts("NT4")

            ElseIf chkAix.Checked = "True" Then

                CreateRegressionScripts("AIX")

            ElseIf chkHpux11.Checked = "True" Then

                CreateRegressionScripts("HPUX11")

            ElseIf chkHpuxi.Checked = "True" Then

                CreateRegressionScripts("HPUXI")

            ElseIf chkRedhat.Checked = "True" Then

                CreateRegressionScripts("LNX")

            ElseIf chkSun480.Checked = True Then

                CreateRegressionScripts("SUN480")

            ElseIf chkTru64.Checked = "True" Then

                CreateRegressionScripts("OSF")

            ElseIf chkZlnx.Checked = "True" Then

                CreateRegressionScripts("ZLNX")

            End If

        Else

            MsgBox("Close Button Pressed")

        End If
