Alfresco : Hello World Java Backed Webscript

What is webscript?

A Web Script is a service bound to a URL that responds to HTTP methods like GET, POST, PUT and DELETE.

A Webscript consists of the following three files:

A Webscript descriptor XML file.

Controller file: Either it can be a server-side JavaScript or Java backed.

Presentation file: Free Marker Template file.

In this article I show how to create a simple Java backed webscript for Alfresco Repository.

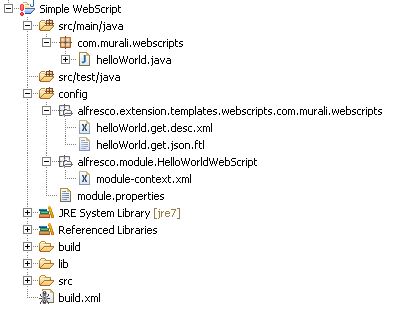

Step 1: Create a new Java project with the following structure:


Step 2: Extend the helloWorld.java using DeclarativeWebScript.

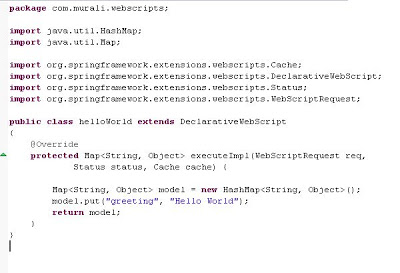

Step 3: Override the executeImpl method. In this method create a new HashMap object, add a greeting message and return it. Refer to the following image:

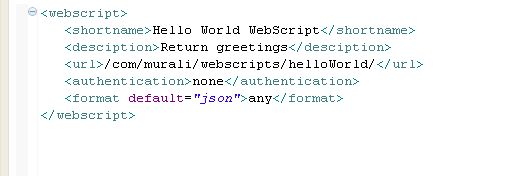

Step 4: Now, we need to create a webscript descriptor XML file ("helloWorld.get.desc.xml") in the "config/alfresco/extension/templates/webscripts/com/murali/webscripts" path.

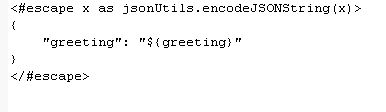

Step 5: Now we need to create a simple FreeMarker Template file ("helloWorld.get.json.ftl") to render the output.

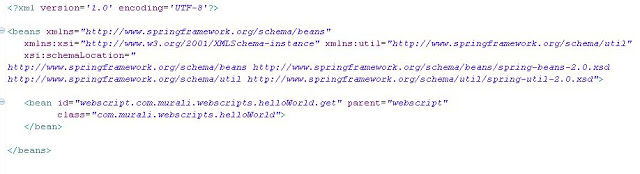

Step 6: Register the webscript bean like:


Step 7: Create the "module.properties" file in the "config/alfresco" path.

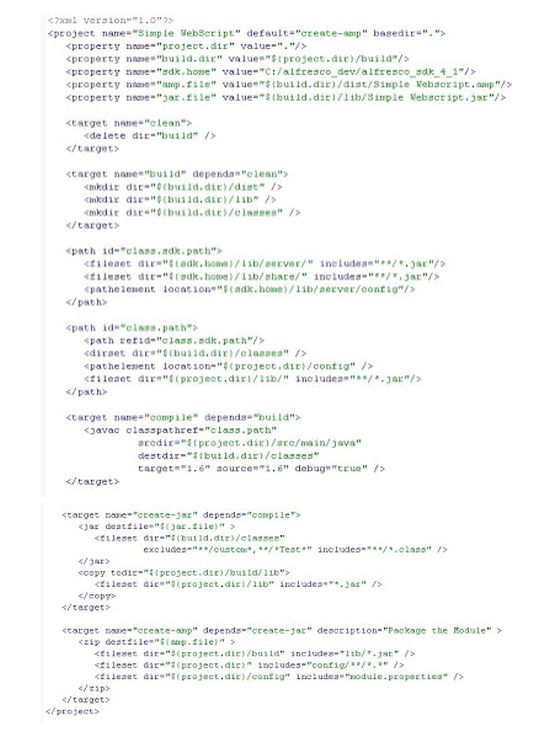

Step 8: Create the alfresco amp by using following build.xml file.


Step 9: Install the amp, delete the exploded directory of Alfresco.

Refer : http://mralfresco.blogspot.in/2013/01/alfresco-module-packages-amp.html

Step 10: Restart Tomcat.

Step 11: Navigate to http://localhost:<portNumber>/alfresco/service/index/all

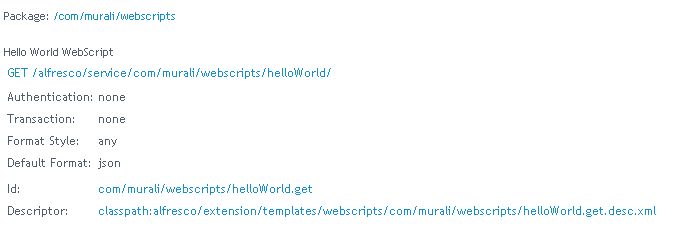

Step 12: Search for your "/com/murali/webscripts" package and click "GET /alfresco/service/com/murali/webscripts/helloWorld/" URL to invoke the webscript.

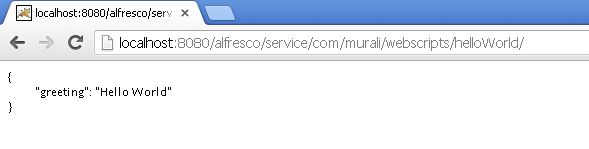

Step 13: Webscript output


Hope this helps someone !
