How to Use ScrollView in XamarinForms

What It Is

The short answer is ScrollView is a Layout. But it can only contain a single Visual Element in its Content property.

Why That Is So

Because the layouts such as stack, relative and so on are derived from the Layout<T> generic class. This Layout<T> generic class is derived from the Layout class that is a non-generic class.

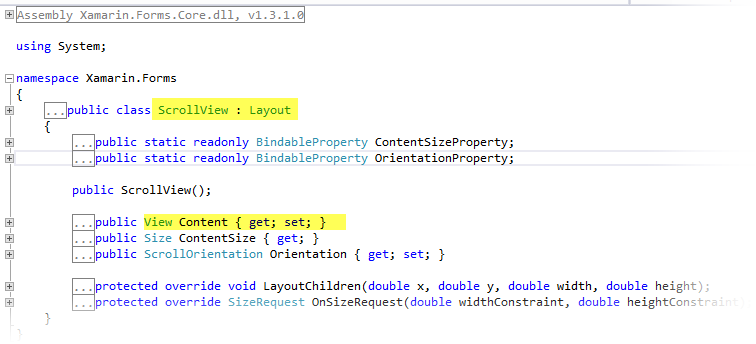

ScrollView is inherited from the Non-generic Layout class. That is the same reason why it does not support a generic way to add children. It only exhibits the Content property to accept a single view or a Layout.

ScrollView

Usage by example

Usage Example 1: Let's display a paragraph of scrolling text.

  1. MainPage = new ContentPage()
  2.
  3.   Content = new ScrollView()
  4.   {
  5.      Content = new Label()
  6.      {
  7.         Text = @"TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  8.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  9.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  10.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  11.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  12.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  13.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  14.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  15.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  16.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  17.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  18.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  19.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  20.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  21.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  22.                  TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  23.                  TextTextTextTextTextTextTextTextTextTextTextTextText"
  24.      }
  25.   }

Lesson learned: The ScrollView can be placed directly on the page itself with a single view in it. After we run this, it keeps the screen scrollable so the content can be read.

Usage Example #2: Let's create a standard terms and condition page.

  1. MainPage = new ContentPage()
  2. {
  3.    Content = new StackLayout()
  4.    {
  5.       Children = {
  6.          new Label(){
  7.             FontAttributes = FontAttributes.Bold,
  8.             Text = "Content to read",
  9.             HorizontalOptions = LayoutOptions.CenterAndExpand
  10.          },
  11.          new ScrollView(){
  12.             VerticalOptions = LayoutOptions.FillAndExpand,
  13.             Content =
  14.                new Label(){
  15.                   Text = @"TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  16.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  17.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  18.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  19.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  20.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  21.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  22.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  23.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  24.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  25.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  26.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  27.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  28.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  29.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  30.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  31.                       TextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextTextText
  32.                       TextTextTextTextTextTextTextTextTextTextTextTextText"
  33.
  34.             }
  35.         }
  36.    }
  37. }
  38. };

Lesson learned: From this usage example, the ScrollView can be placed inside another Layout (in other words Stackayout in this case).

Usage Example 3: Let's display a Customer details input screen.

  1. MainPage = new ContentPage()
  2. {
  3.    Content = new ScrollView()
  4.    {
  5.       Content = new StackLayout()
  6.       {
  7.          Children = {
  8.             new Entry(){
  9.                Placeholder = "First Name"
  10.             },
  11.             new Entry(){
  12.                Placeholder = "Middle Name"
  13.             },
  14.             new Entry(){
  15.                Placeholder = "Last Name"
  16.             },
  17.             new Entry(){
  18.                Placeholder = "Address Line 1"
  19.             },
  20.             new Entry(){
  21.                Placeholder = "Address Line 2"
  22.             },
  23.             new Entry(){
  24.                Placeholder = "City"
  25.             },
  26.             new Entry(){
  27.                Placeholder = "State Code (Example : OD)"
  28.             },
  29.             new Entry(){
  30.                Placeholder = "Country Code (Example : IN)"
  31.             },
  32.             new Entry(){
  33.                Placeholder = "Zip code"
  34.             },
  35.             new Entry(){
  36.                Placeholder = "Phone number"
  37.             },
  38.             new Entry(){
  39.                Placeholder = "Consumer Number"
  40.             },
  41.             new Entry(){
  42.                Placeholder = "Agent Name"
  43.             },
  44.             new Entry(){
  45.                Placeholder = "Agent Code"
  46.             },
  47.          }
  48.       }
  49.    }

Lesson learned: Not only a single view but also another Layout (Stack Layout in this case) can be placed inside a ScrollView too.

Note: I am using Visual Studio with Xamarin. Forms 1.3.

That's it. Happy coding.
