Here in this application I will use an Item template, Edit Item template and Footer Template to do CRUD operations.

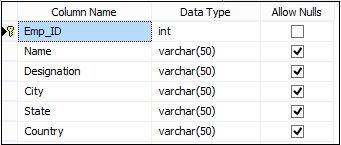

The following is my Data Table in design mode:
![emp id]()
Image 1.

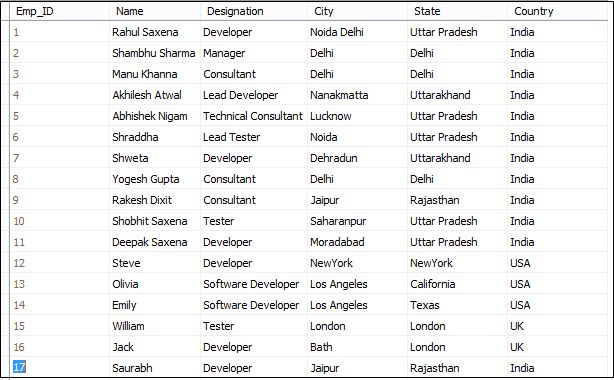

Data in my Data Table:
![My Data Table]()
Image 2.
To create the new application go to Solution Explorer in your application then select Add New Item.

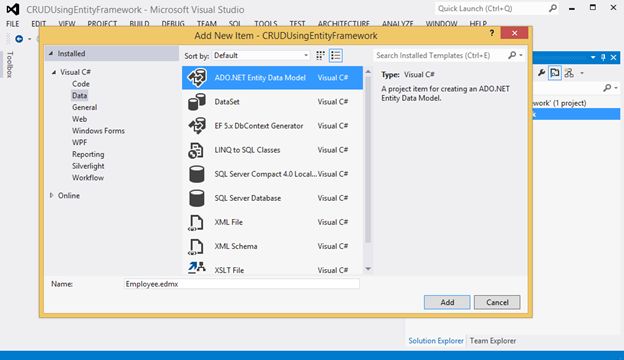

Add an ADO.NET Entity Data Model.
![Entity Data Model]()
Image 3.

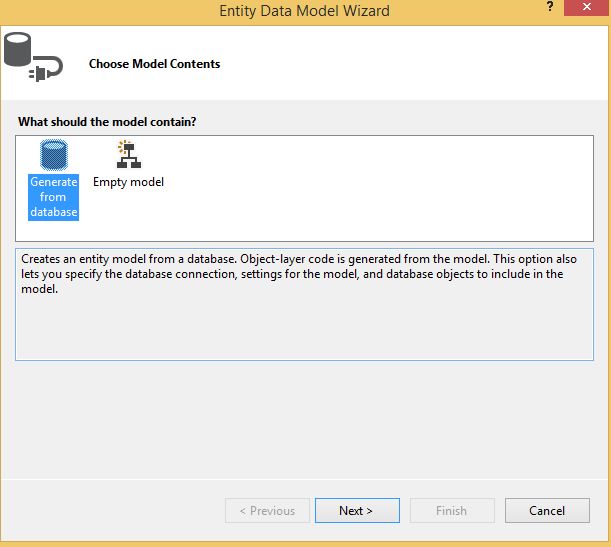

![generate database]()
Image 4.

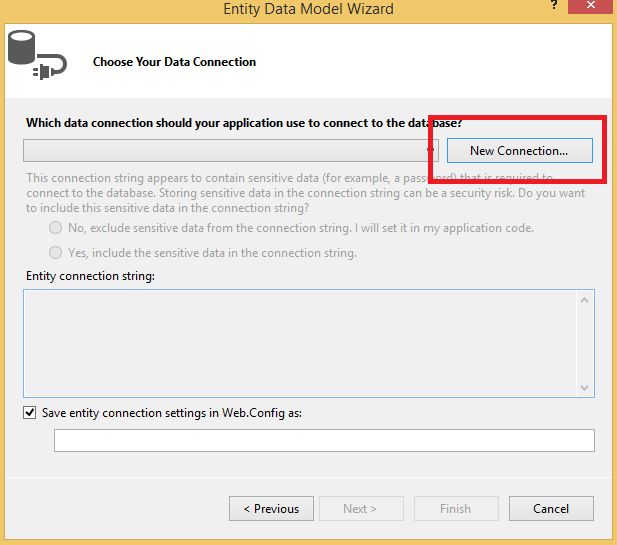

![new connection]()
Image 5.

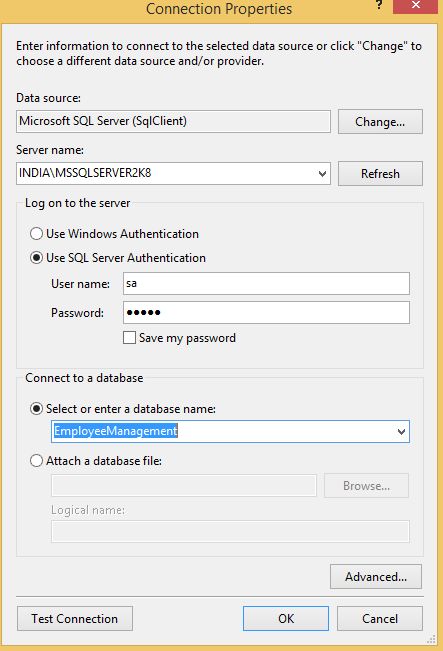

Enter your server information and select your database:
![select your Data base]()
Image 6.

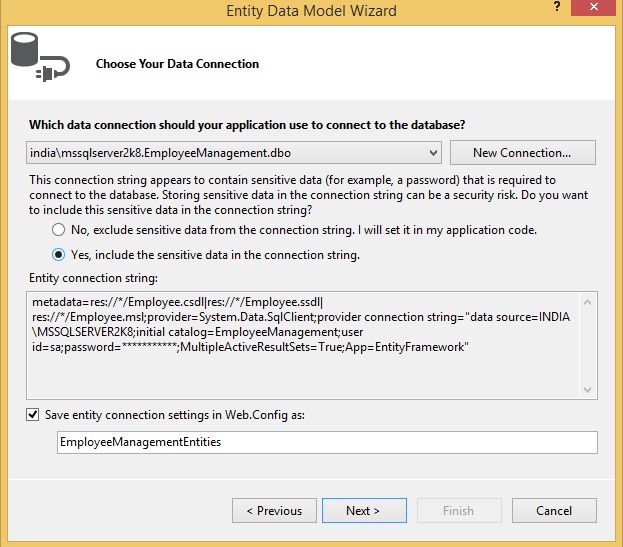

![select data connection]()
Image 7.

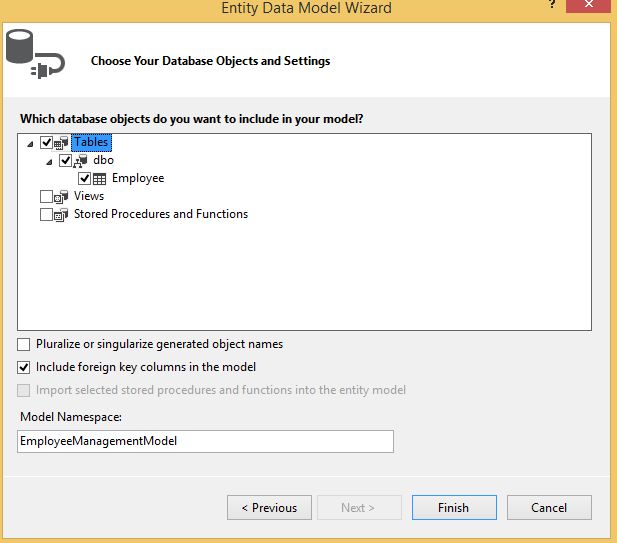

![table]()
Image 8.

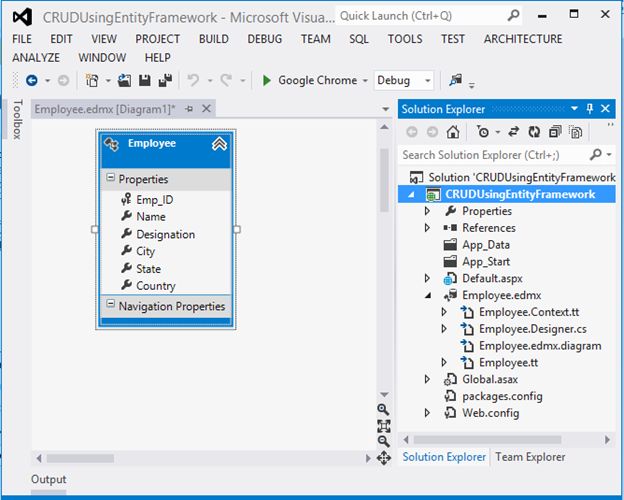

![property]()
Image 9.
Now open Default.aspx and do the following code:
Now my aspx.cs code is:
- using System;
- using System.Collections.Generic;
- using System.Linq;
- using System.Web;
- using System.Web.UI;
- using System.Web.UI.WebControls;
-
- namespace CRUDUsingEntityFramework
- {
- public partial class Default : System.Web.UI.Page
- {
- protected void Page_Load(object sender, EventArgs e)
- {
- if (!IsPostBack)
- {
- BindGrid();
- }
-
- }
-
- void BindGrid()
- {
- using (EmployeeManagementEntities context = new EmployeeManagementEntities())
- {
- if (context.Employee.Count() > 0)
- {
- GVEmployee.DataSource = (from em in context.Employee
- select new { em.Emp_ID, em.Name, em.Designation, em.City, em.Country, em.State }).ToList();
- GVEmployee.DataBind();
- }
- else
- {
- GVEmployee.DataSource = null;
- GVEmployee.DataBind();
- }
- }
- }
-
- protected void GVEmployee_OnPageIndexChanging(object sender, GridViewPageEventArgs e)
- {
- GVEmployee.PageIndex = e.NewPageIndex;
- BindGrid();
- }
-
- protected void GVEmployee_RowCommand(object sender, GridViewCommandEventArgs e)
- {
- if (e.CommandName == "InsertNew")
- {
- GridViewRow row = GVEmployee.FooterRow;
-
- TextBox txtName = row.FindControl("txtEmpNameNew") as TextBox;
- TextBox txtDesignation = row.FindControl("txtDesignationNew") as TextBox;
- TextBox txtCity = row.FindControl("txtCityNew") as TextBox;
- TextBox txtState = row.FindControl("txtStateNew") as TextBox;
- TextBox txtCountry = row.FindControl("txtCountryNew") as TextBox;
-
- using (EmployeeManagementEntities context = new EmployeeManagementEntities())
- {
- Employee obj = new Employee();
- obj.Name = txtName.Text;
- obj.Designation = txtDesignation.Text;
- obj.City = txtCity.Text;
- obj.State = txtState.Text;
- obj.Country = txtCountry.Text;
- context.Employee.Add(obj);
- context.SaveChanges();
- BindGrid();
- }
-
- }
- }
- protected void GVEmployee_RowEditing(object sender, GridViewEditEventArgs e)
- {
- GVEmployee.EditIndex = e.NewEditIndex;
- BindGrid();
- }
- protected void GVEmployee_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e)
- {
- GVEmployee.EditIndex = -1;
- BindGrid();
- }
- protected void GVEmployee_RowUpdating(object sender, GridViewUpdateEventArgs e)
- {
- GridViewRow row = GVEmployee.Rows[e.RowIndex];
-
- TextBox txtName = row.FindControl("txtEmpName") as TextBox;
- TextBox txtDesignation = row.FindControl("txtDesignation") as TextBox;
- TextBox txtCity = row.FindControl("txtCity") as TextBox;
- TextBox txtState = row.FindControl("txtState") as TextBox;
- TextBox txtCountry = row.FindControl("txtCountry") as TextBox;
-
-
- using (EmployeeManagementEntities context = new EmployeeManagementEntities())
- {
- int employeeID = Convert.ToInt32(GVEmployee.DataKeys[e.RowIndex].Value);
- Employee obj = context.Employee.First(x => x.Emp_ID == employeeID);
- obj.Name = txtName.Text;
- obj.Designation = txtDesignation.Text;
- obj.City = txtCity.Text;
- obj.State = txtState.Text;
- obj.Country = txtCountry.Text;
- context.SaveChanges();
-
- GVEmployee.EditIndex = -1;
- BindGrid();
- }
-
- }
-
- protected void GVEmployee_RowDeleting(object sender, GridViewDeleteEventArgs e)
- {
- int employeeID = Convert.ToInt32(GVEmployee.DataKeys[e.RowIndex].Value);
- using (EmployeeManagementEntities context = new EmployeeManagementEntities())
- {
- Employee obj = context.Employee.First(x => x.Emp_ID == employeeID);
- context.Employee.Remove(obj);
- context.SaveChanges();
- BindGrid();
- }
- }
- }
- }

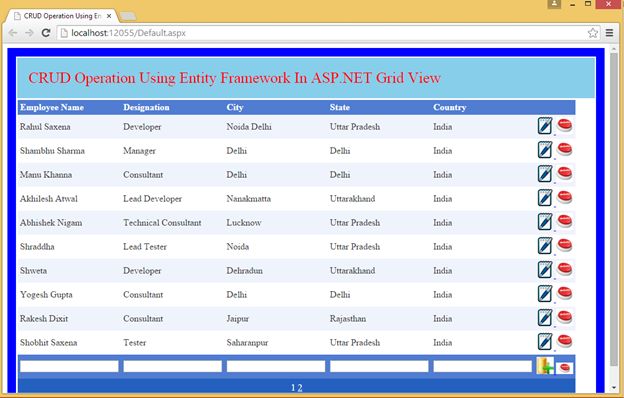

Now run your application: All Record
![crud operation]()
Image 10.

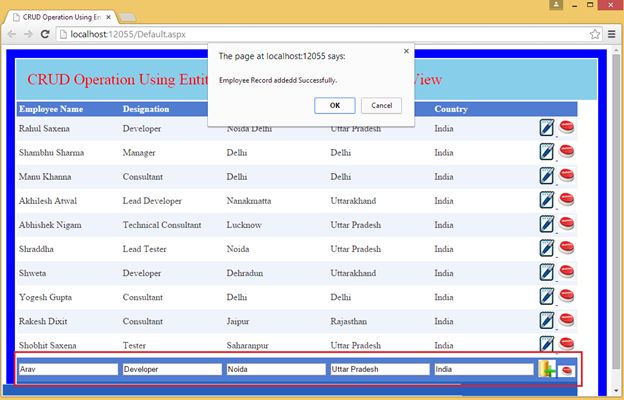

Add a new record:
![record]()
Image 11.

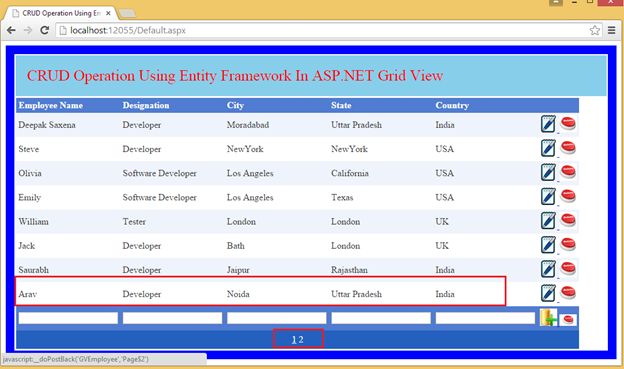

Go to Page 2 as I have Page Size 10 here.
![entity framwork]()
Image 12.

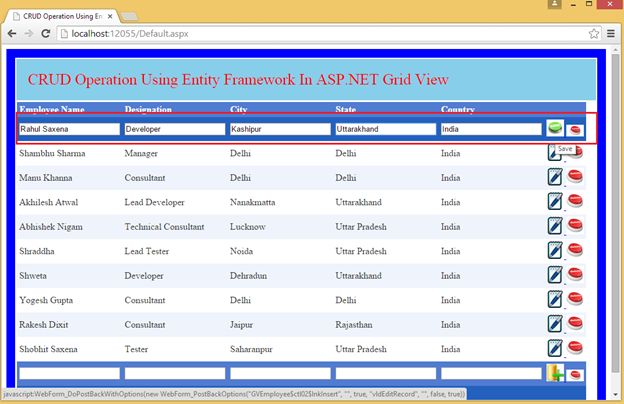

Now edit any record:
![edit any record]()
Image 13.

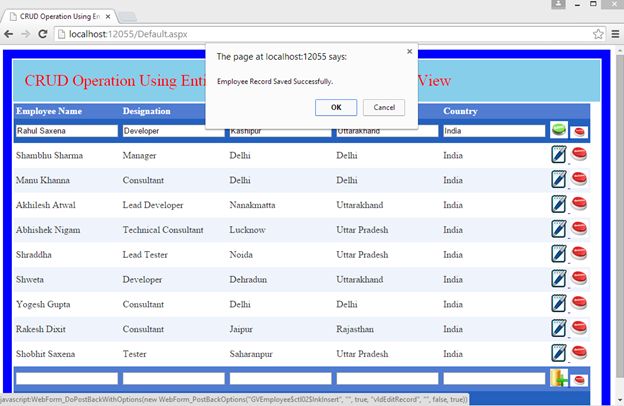

![page at localhost]()
Image 14.

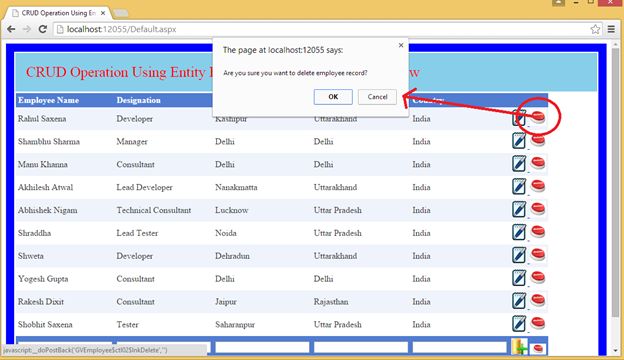

Now delete any record:
![delete any record]()
Image 15.
