Show Search Data and Paging in ASP.Net Grid View Using jQuery

The following is my Data Table structure from which I am fetching data:

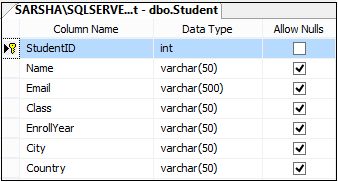

table design
Image 1.

Data in my table:

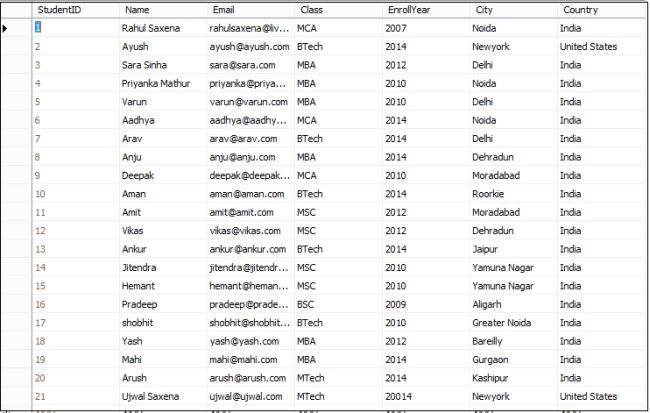

table
Image 2.

To do this I created the following Stored Procedure:

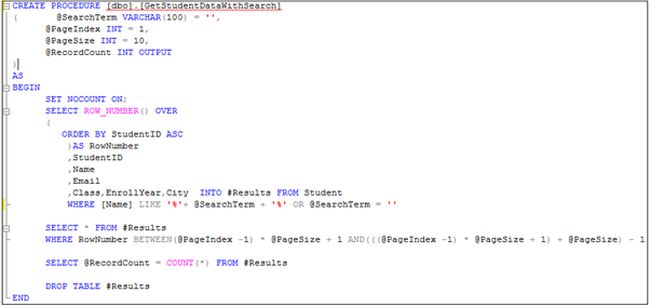

store procedure
Image 3.

My Stored Procedure is:

  1. CREATEPROCEDURE [dbo].[GetStudentDataWithSearch]
  2. (       @SearchTerm VARCHAR(100)='',
  3.       @PageIndex INT= 1,
  4.       @PageSize INT= 10,
  5.       @RecordCount INTOUTPUT
  6. )
  7. AS
  8. BEGIN
  9. SETNOCOUNTON;
  10. SELECTROW_NUMBER()OVER
  11. (
  12. ORDERBY StudentID ASC
  13.         )AS RowNumber
  14.         ,StudentID
  15.         ,Name
  16.         ,Email
  17.         ,Class,EnrollYear,City  INTO #Results FROM Student
  18.         WHERE [NameLIKE'%'+ @SearchTerm +'%'OR @SearchTerm =''
  19.
  20. SELECT*FROM #Results
  21. WHERE RowNumber BETWEEN(@PageIndex -1)* @PageSize + 1 AND(((@PageIndex -1)* @PageSize + 1)+ @PageSize)- 1
  22.
  23. SELECT @RecordCount =COUNT(*)FROM #Results
  24.
  25. DROPTABLE #Results
  26. END
The following is my aspx code:
  1. <%@PageLanguage="C#"AutoEventWireup="true"CodeBehind="ShowSearchPaging.aspx.cs"Inherits="ShowSearchAndPagingUsing_jQuery.ShowSearchPaging"%>
  2.
  3. <!DOCTYPEhtml>
  4.
  5. <htmlxmlns="http://www.w3.org/1999/xhtml">
  6. <headrunat="server">
  7. <title>jQuery: Show Data and Paging in ASP.NET Grid View using jQuery</title>
  8. <scripttype="text/javascript"src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
  9. <scriptsrc="jquery.pagination.min.js"type="text/javascript"></script>
  10. <scripttype="text/javascript">
  11.         $(function () {
  12.
  13.             GetStudents(1);
  14.         });
  15.         $("[id*=txtSearch]").live("keyup", function () {
  16.             GetStudents(parseInt(1));
  17.         });
  18.         $(".Pagination .page").live("click", function () {
  19.             GetStudents(parseInt($(this).attr('page')));
  20.         });
  21. function SearchTerm() {
  22. return jQuery.trim($("[id*=txtSearch]").val());
  23.         };
  24. function GetStudents(pageIndex) {
  25.
  26.             $.ajax({
  27.                 type: "POST",
  28.                 url: "ShowSearchPaging.aspx/GetStudents",
  29.                 data: '{searchTerm: "' + SearchTerm() + '", pageIndex: ' + pageIndex + '}',
  30.                 contentType: "application/json; charset=utf-8",
  31.                 dataType: "json",
  32.                 success: OnSuccess,
  33.                 failure: function (response) {
  34.                     alert(response.d);
  35.                 },
  36.                 error: function (response) {
  37.                     alert(response.d);
  38.                 }
  39.             });
  40.         }
  41. var row;
  42. function OnSuccess(response) {
  43. var xmlDoc = $.parseXML(response.d);
  44. var xml = $(xmlDoc);
  45. var customers = xml.find("Student");
  46. if (row == null) {
  47.                 row = $("[id*=GridViewStudent] tr:last-child").clone(true);
  48.             }
  49.             $("[id*=GridViewStudent] tr").not($("[id*=GridViewStudent] tr:first-child")).remove();
  50. if (customers.length > 0) {
  51.                 $.each(customers, function () {
  52. var customer = $(this);
  53.                     $("td", row).eq(0).html($(this).find("Name").text());
  54.                     $("td", row).eq(1).html($(this).find("Email").text());
  55.                     $("td", row).eq(2).html($(this).find("Class").text());
  56.                     $("td", row).eq(3).html($(this).find("EnrollYear").text());
  57.                     $("td", row).eq(4).html($(this).find("City").text());
  58.                     $("td", row).eq(5).html($(this).find("Country").text());
  59.                     $("[id*=GridViewStudent]").append(row);
  60.                     row = $("[id*=GridViewStudent] tr:last-child").clone(true);
  61.                 });
  62. var pager = xml.find("dtForPaging");
  63.                 $(".Pagination").jQ_Pager({
  64.                     ActiveCssClass: "current",
  65.                     PagerCssClass: "pager",
  66.                     PageIndex: parseInt(pager.find("PageIndex").text()),
  67.                     PageSize: parseInt(pager.find("PageSize").text()),
  68.                     RecordCount: parseInt(pager.find("RecordCount").text())
  69.                 });
  70.
  71.                 $(".Name").each(function () {
  72. var searchPattern = new RegExp('(' + SearchTerm() + ')''ig');
  73.                     $(this).html($(this).text().replace(searchPattern, "<span style='background-color:red;color:white;'>" + SearchTerm() + "</span>"));
  74.                 });
  75.             } else {
  76. var empty_row = row.clone(true);
  77.                 $("td:first-child", empty_row).attr("colspan", $("td", row).length);
  78.                 $("td:first-child", empty_row).attr("align""center");
  79.                 $("td:first-child", empty_row).html("No records found for the search criteria.");
  80.                 $("td", empty_row).not($("td:first-child", empty_row)).remove();
  81.                 $("[id*=GridViewStudent]").append(empty_row);
  82.             }
  83.         };
  84. </script>
  85. </head>
  86. <body>
  87.    <formid="form1"runat="server">
  88.       <div>
  89.          <tablestyle="border: solid15pxblue; width: 100%; vertical-align: central;">
  90.             <tr>
  91.                <tdstyle="padding-left: 20px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue; text-align: center; font-family: Verdana; font-size: 20pt; color: red;">jQuery: Show Data and Paging in ASP.NET Grid View using jQuery</td>
  92.             </tr>
  93.             <tr>
  94.                <tdstyle="padding-left: 100px; padding-top: 20px; padding-bottom: 20px; background-color: #EE9A4D; font-family: Arial; font-size: 15pt; color: #E41B17">Enter Name To Search #:
  95.                   <asp:TextBoxID="txtSearch"runat="server"/>
  96.                </td>
  97.             </tr>
  98.             <tr>
  99.                <td>
  100.                   <tablestyle="width: 80%; text-align: center; vertical-align: central;">
  101.                      <tr>
  102.                         <tdstyle="text-align: left;">
  103.                               <asp:GridViewID="GridViewStudent"runat="server"AutoGenerateColumns="False"Width="100%"
  104.                                  BackColor="White"BorderColor="#3366CC"BorderStyle="None"BorderWidth="1px"CellPadding="4"GridLines="Both">
  105.                                     <Columns>
  106.                                        <asp:BoundFieldDataField="Name"HeaderText="Student Name"HeaderStyle-HorizontalAlign="Left"ItemStyle-CssClass="Name"></asp:BoundField>
  107.                                        <asp:BoundFieldDataField="Email"HeaderText="Email"HeaderStyle-HorizontalAlign="Left"/>
  108.                                        <asp:BoundFieldDataField="Class"HeaderText="Class"HeaderStyle-HorizontalAlign="Left"/>
  109.                                        <asp:BoundFieldDataField="EnrollYear"HeaderText="Enroll Year"HeaderStyle-HorizontalAlign="Left"/>
  110.                                        <asp:BoundFieldDataField="City"HeaderText="City"HeaderStyle-HorizontalAlign="Left"/>
  111.                                        <asp:BoundFieldDataField="Country"HeaderText="Country"HeaderStyle-HorizontalAlign="Left"/>
  112.                                     </Columns>
  113.                                     <FooterStyleBackColor="#99CCCC"ForeColor="#003399"/>
  114.                                        <HeaderStyleBackColor="#003399"Font-Bold="True"ForeColor="#CCCCFF"/>
  115.                                        <PagerStyleBackColor="#99CCCC"ForeColor="#003399"HorizontalAlign="Left"/>
  116.                                        <RowStyleBackColor="White"ForeColor="#003399"/>
  117.                                        <SelectedRowStyleBackColor="#009999"Font-Bold="True"ForeColor="#CCFF99"/>
  118.                                        <SortedAscendingCellStyleBackColor="#EDF6F6"/>
  119.                                        <SortedAscendingHeaderStyleBackColor="#0D4AC4"/>
  120.                                        <SortedDescendingCellStyleBackColor="#D6DFDF"/>
  121.                                        <SortedDescendingHeaderStyleBackColor="#002876"/>
  122.                                     </asp:GridView>
  123.                                  </td>
  124.                               </tr>
  125.                               <tr>
  126.                               <td>
  127.                                  <divclass="Pagination"style="background-color: orange; font-family: Verdana; font-size: 10pt; height: 30px; text-align: center; vertical-align: central; padding-top: 20px; padding-bottom: 10px;">
  128.                               </div>
  129.                               </td>
  130.                            </tr>
  131.                         </table>
  132.                      </td>
  133.                   </tr>
  134.                </table>
  135.             </div>
  136.          </form>
  137.       </body>
  138. </html>
Now my aspx.cs code is:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Configuration;
  4. using System.Data;
  5. using System.Data.SqlClient;
  6. using System.Linq;
  7. using System.Web;
  8. using System.Web.Services;
  9. using System.Web.UI;
  10. using System.Web.UI.WebControls;
  11.
  12. namespace ShowSearchAndPagingUsing_jQuery
  13. {
  14. publicpartialclassShowSearchPaging : System.Web.UI.Page
  15.     {
  16. privatestaticint PageSize = 5;
  17.
  18. protectedvoid Page_Load(object sender, EventArgs e)
  19.         {
  20. if (!IsPostBack)
  21.             {
  22.                 BindGridViewHeader();
  23.             }
  24.         }
  25.
  26. privatevoid BindGridViewHeader()
  27.         {
  28. DataTable dtHeader = newDataTable();
  29.             dtHeader.Columns.Add("Name");
  30.             dtHeader.Columns.Add("Email");
  31.             dtHeader.Columns.Add("Class");
  32.             dtHeader.Columns.Add("EnrollYear");
  33.             dtHeader.Columns.Add("City");
  34.             dtHeader.Columns.Add("Country");
  35.             dtHeader.Rows.Add();
  36.             GridViewStudent.DataSource = dtHeader;
  37.             GridViewStudent.DataBind();
  38.         }
  39.
  40.         [WebMethod]
  41. publicstaticstring GetStudents(string searchTerm, int pageIndex)
  42.         {
  43. string query = "[GetStudentDataWithSearch]";
  44. SqlCommand cmd = newSqlCommand(query);
  45.             cmd.CommandType = CommandType.StoredProcedure;
  46.             cmd.Parameters.AddWithValue("@SearchTerm", searchTerm);
  47.             cmd.Parameters.AddWithValue("@PageIndex", pageIndex);
  48.             cmd.Parameters.AddWithValue("@PageSize", PageSize);
  49.             cmd.Parameters.Add("@RecordCount", SqlDbType.Int, 4).Direction = ParameterDirection.Output;
  50. return GetData(cmd, pageIndex).GetXml();
  51.         }
  52.
  53.
  54.
  55. privatestaticDataSet GetData(SqlCommand cmd, int pageIndex)
  56.         {
  57. SqlDataAdapter da;
  58. DataSet ds = newDataSet();
  59.
  60. SqlConnection con = newSqlConnection();
  61.             ds = newDataSet();
  62.             con.ConnectionString = @"Data Source=MYPC\SqlServer2k8; Initial Catalog=SchoolManagement; Integrated Security=true;";
  63.             cmd.Connection = con;
  64.             da = newSqlDataAdapter(cmd);
  65.             da.Fill(ds, "Student");
  66.             con.Open();
  67.             cmd.ExecuteNonQuery();
  68.             con.Close();
  69.
  70. DataTable dt = newDataTable("dtForPaging");
  71.             dt.Columns.Add("PageIndex");
  72.             dt.Columns.Add("PageSize");
  73.             dt.Columns.Add("RecordCount");
  74.             dt.Rows.Add();
  75.             dt.Rows[0]["PageIndex"] = pageIndex;
  76.             dt.Rows[0]["PageSize"] = PageSize;
  77.             dt.Rows[0]["RecordCount"] = cmd.Parameters["@RecordCount"].Value;
  78.             ds.Tables.Add(dt);
  79. return ds;
  80.
  81.         }
  82.     }
  83. }
Now run the application:

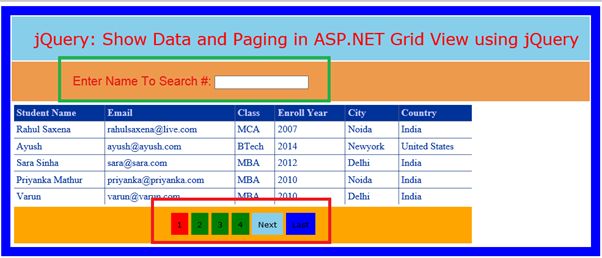

application
Image 4.

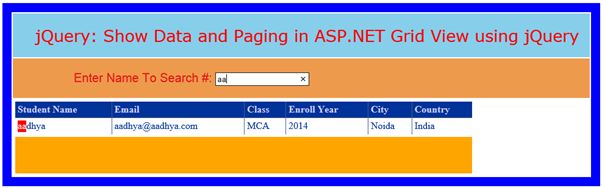

run the application
Image 5.

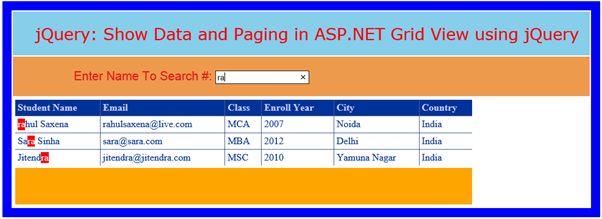

output
Image 6.

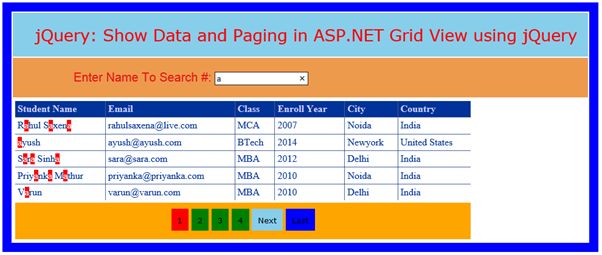

next
Image 7.
