Showing Images Using XML in MVC 4

The following procedure can be used to create a sample of showing images using XML in MVC 4.

Step 1

Create a new project as in the following:

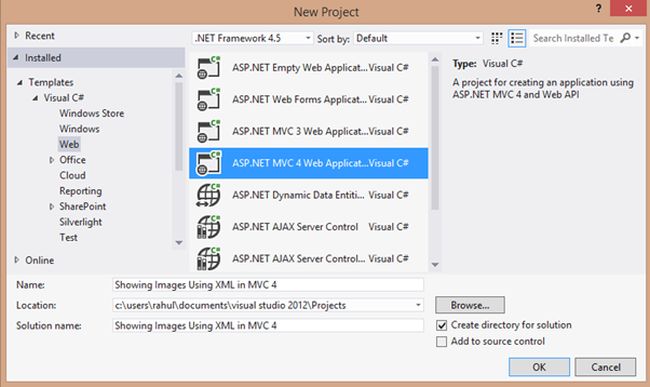

mvc web application
Image 1

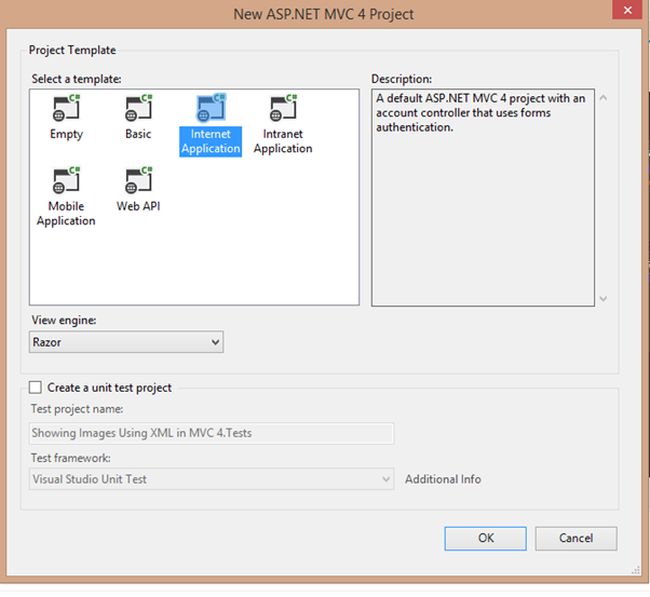

internet application
Image 2

Step 2

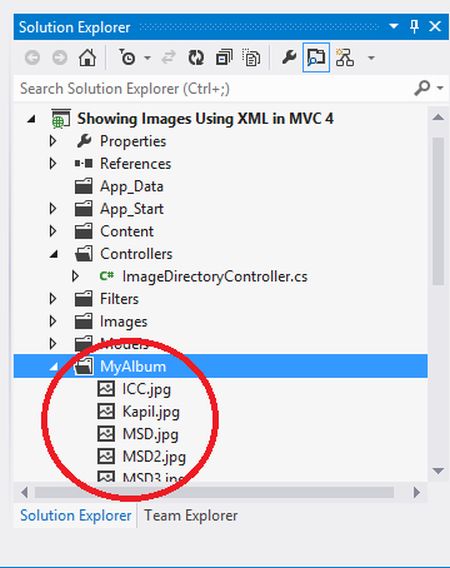

Now, I add a new folder MyAlbum and I add some images like the following:

myalbum folder
Image 3

Step 3

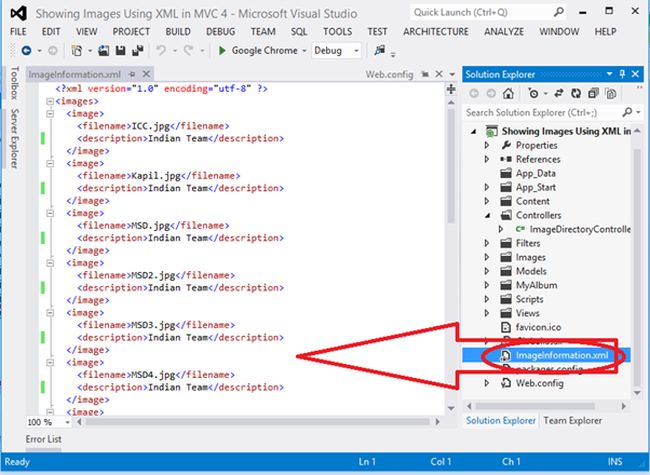

Now, right-click on the project in Solution Explorer then seelct Add New Item -> Choose a XML.

image information
Image 4

Step 4

My ImageInformation.xml is:

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <images>
  3.   <image>
  4.     <filename>ICC.jpg</filename>
  5.     <description>Indian Team</description>
  6.   </image>
  7.   <image>
  8.     <filename>Kapil.jpg</filename>
  9.     <description>Indian Team</description>
  10.   </image>
  11.   <image>
  12.     <filename>MSD.jpg</filename>
  13.     <description>Indian Team</description>
  14.   </image>
  15.   <image>
  16.     <filename>MSD2.jpg</filename>
  17.     <description>Indian Team</description>
  18.   </image>
  19.   <image>
  20.     <filename>MSD3.jpg</filename>
  21.     <description>Indian Team</description>
  22.   </image>
  23.   <image>
  24.     <filename>MSD4.jpg</filename>
  25.     <description>Indian Team</description>
  26.   </image>
  27.   <image>
  28.     <filename>Raina.jpg</filename>
  29.     <description>Indian Team</description>
  30.   </image>
  31.   <image>
  32.     <filename>Sachin.jpg</filename>
  33.     <description>Indian Team</description>
  34.   </image>
  35.   <image>
  36.     <filename>Team.jpg</filename>
  37.     <description>Indian Team</description>
  38.   </image>
  39.   <image>
  40.     <filename>Team2.jpg</filename>
  41.     <description>Indian Team</description>
  42.   </image>
  43. </images>

Step 5

Now, right-click on the Model Folder and select Add New Item -> Add New Class -> ImageListing.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace Showing_Images_Using_XML_in_MVC_4.Models
  7. {
  8.     public class ImageListing
  9.     {
  10.         public ImageListing(string path, string desc)
  11.         {
  12.             Path = path;
  13.             Description = desc;
  14.         }
  15.
  16.         public string Path { getset; }
  17.         public string Description { getset;}
  18.     }
  19. }

Step 6

Now, right-click on the Model Folder and select  Add New Item -> Add New Class -> ImageModel.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Xml.Linq;
  6.
  7. namespace Showing_Images_Using_XML_in_MVC_4.Models
  8. {
  9.     public class ImageModel : List<ImageListing>
  10.     {
  11.         public ImageModel()
  12.         {
  13.             string directoryOfImage = HttpContext.Current.Server.MapPath("~");
  14.             XDocument imageData = XDocument.Load(directoryOfImage + @"/ImageInformation.xml");
  15.             var images = from image in imageData.Descendants("image") select new ImageListing(image.Element("filename").Value, image.Element("description").Value);
  16.             this.AddRange(images.ToList<ImageListing>());
  17.         }
  18.     }
  19. }

Step 7

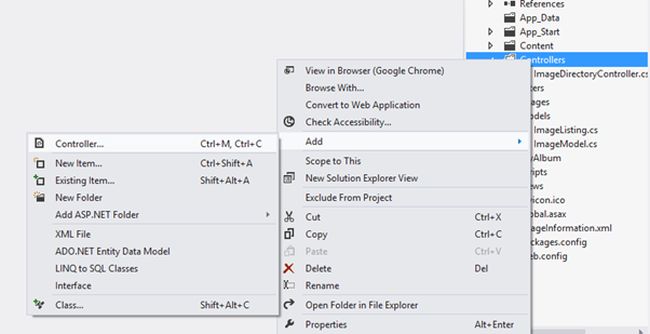

Now, right-click on Controller and select Add New Controller.

controller
Image 5

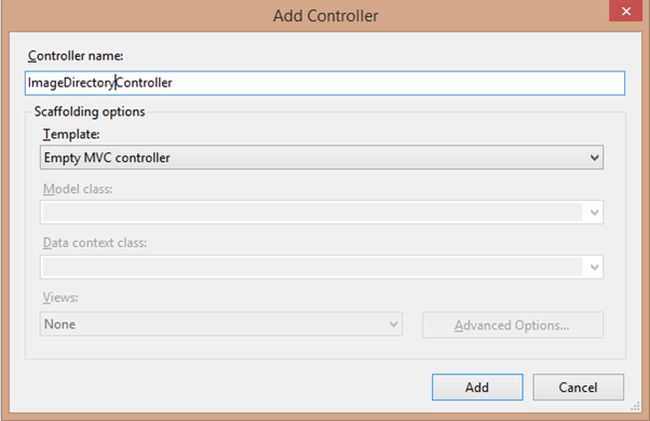

controller name
Image 6

Step 8

The Image DirectoryController is:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using Showing_Images_Using_XML_in_MVC_4.Models;
  7.
  8. namespace Showing_Images_Using_XML_in_MVC_4.Controllers
  9. {
  10.     public class ImageDirectoryController : Controller
  11.     {
  12.         //
  13.         // GET: /ImageDirectory/
  14.
  15.         public ActionResult Index()
  16.         {
  17.             return View(new ImageModel());
  18.         }
  19.
  20.     }
  21. }

Step 9

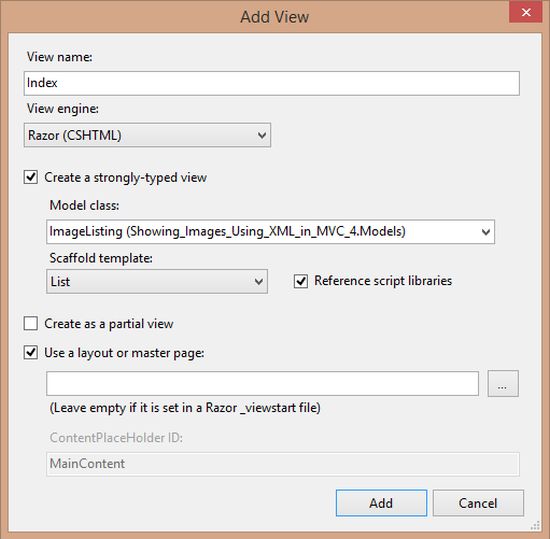

Now right-click on Index and select Add New View.

view name
Image 7

Step 10

Do the following code in your View:

  1. @model IEnumerable<Showing_Images_Using_XML_in_MVC_4.Models.ImageListing>
  2.
  3. @{
  4.     ViewBag.Title = "Showing Image Using XML in MVC 4";
  5. }
  6. @foreach (var item in Model)
  7. {
  8.     <img src="@Url.Content("~/MyAlbum/")@item.Path" height="100"  />
  9. }

Step 11

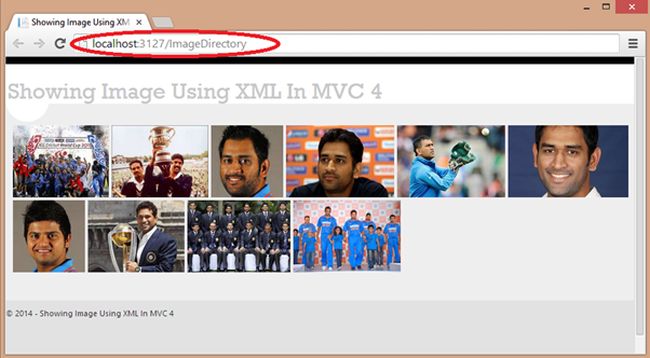

Now run your application.

image directory
Image 8
