In this Article you will learn how to get the selected row in a GridView and display the values in TextBoxes using ASP.NET. A GridView allows us to select only a single row at a time. The sample makes use of the database. We will be pulling data from the UserDetail table.
Creating Table in SQL Server Database
Now create a table named UserDetail with the columns UserID and UserName. The table looks as below.
![im1.gif]()
Now insert data into the table.
![im2.gif]()
First of all drag the GridView control from the Data controls menu. It will add the GridView control's HTML source code as given above.
<asp:GridView ID="GridView2" runat="server">
</asp:GridView>
You will need to set the Bound column in order to see the text in the cells of the GridView control.
.aspx source code
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="WebApplication120.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
UserID:
<asp:TextBox ID="TextBoxUserID" runat="server"></asp:TextBox>
<br />
UserName:
<asp:TextBox ID="TextBoxUserName" runat="server"></asp:TextBox>
<br />
<br />
<asp:GridView ID="GridView1" runat="server" AutoGenerateSelectButton="True" OnSelectedIndexChanged="GridView1_SelectedIndexChanged"
BackColor="#DEBA84" BorderColor="#DEBA84" BorderStyle="None" BorderWidth="1px"
CellPadding="3" CellSpacing="2" AutoGenerateColumns="False">
<FooterStyle BackColor="#F7DFB5" ForeColor="#8C4510" />
<HeaderStyle BackColor="#A55129" Font-Bold="True" ForeColor="White" />
<PagerStyle ForeColor="#8C4510" HorizontalAlign="Center" />
<RowStyle BackColor="#FFF7E7" ForeColor="#8C4510" />
<SelectedRowStyle BackColor="#738A9C" Font-Bold="True" ForeColor="White" />
<SortedAscendingCellStyle BackColor="#FFF1D4" />
<SortedAscendingHeaderStyle BackColor="#B95C30" />
<SortedDescendingCellStyle BackColor="#F1E5CE" />
<SortedDescendingHeaderStyle BackColor="#93451F" />
<Columns>
<asp:BoundField HeaderText="UserID" DataField="UserID" />
<asp:BoundField HeaderText="UserName" DataField="UserName" />
</Columns>
</asp:GridView>
</div>
</form>
</body>
</html>

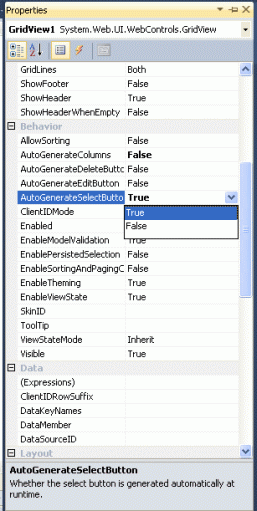

In the above GridView Properties set 'AutoGenerateSelectButton=True'. See the following image of a GridView after setting 'AutoGenerateSelectButton=True'. Select the GridView and press F4 for the property window.
![im3.gif]()
See the Design view of your GridView. You will find a Hyperlink with a text as 'Select'.
![im4.gif]()
Now add the following namespace.
using System.Data.SqlClient;
using System.Data;
Now write the connection string to connect to the database.
string strConnection = "Data Source=.; uid=sa; pwd=wintellect;database=Rohatash;";
Now double-click on the page and write the following code for binding the data with the GridView.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data.SqlClient;
using System.Data;
namespace WebApplication120
{
public partial class WebForm1 : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
show();
}
private void show()
{
{
SqlConnection con = new SqlConnection("Data Source=.; uid=sa; pwd=wintellect;database=Rohatash;");
string strSQL = "Select * from UserDetail";
SqlDataAdapter dt = new SqlDataAdapter(strSQL, con);
DataSet ds = new DataSet();
dt.Fill(ds, "UserDetail");
con.Close();
GridView1.DataSource = ds;
GridView1.DataBind();
}
}
}
}

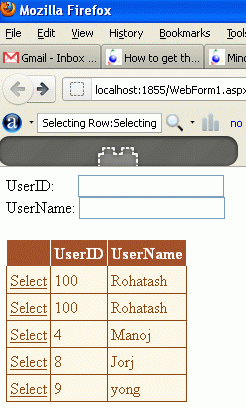

Now run the application.
![im5.gif]()
Selecting Row
Selecting the row event is fired when you make a click on the select link. If you need any particular item in that row you can easily select it using the cells property. In the Gridview, double-Click on the SelectedIndexChanged Event and write the following code:
protected void GridView1_SelectedIndexChanged(object sender, EventArgs e)
{
TextBoxUserID.Text = GridView1.SelectedRow.Cells[1].Text;
TextBoxUserName.Text = GridView1.SelectedRow.Cells[2].Text;
}

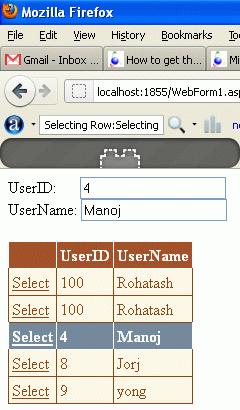

Now run the application and select a row; that will show the selected row data in the TextBoxes.
![im6.gif]()
