Introduction
Ninety percent of people use Android smart phones. I will show you how to create an addition application for Android using Android studio. Android is a kernel based operating system. It allows the user to modify the GUI components and source code.
Requirements
- Android studio
- Little bit of XML and JAVA Knowledge.
Download link (android studio) https//developer.android.com/studio/index.html
Steps should be followed
Carefully follow my steps on how to create the addition application for android using android studio and I have included the source code below.
Step 1

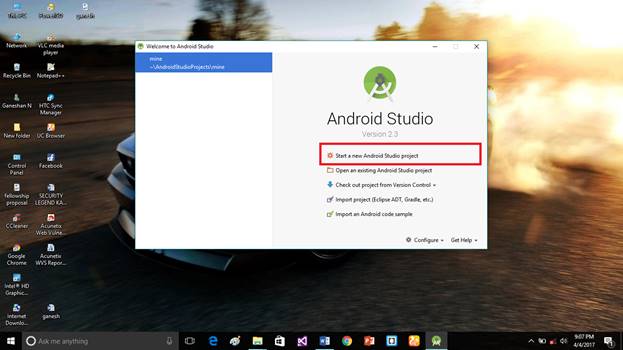

Open Android studio start the new project.
![Android]()
Step 2

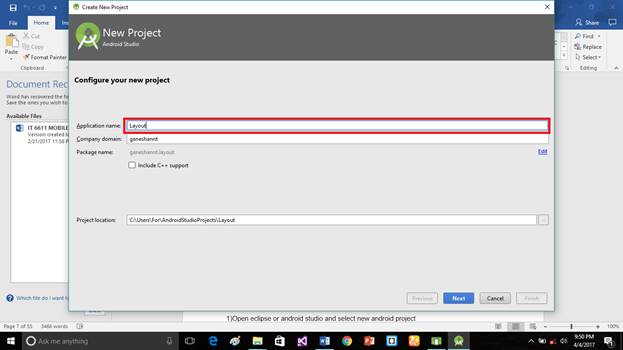

Put the application name and company domain. If you wish to use c++ for code the project, Include c++ support then click next.
![Android]()
Step 3

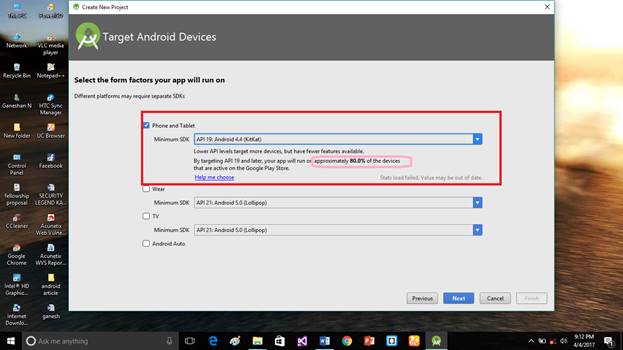

Select the android minimum SDK. After you chose the minimum SDK it will show approximate percentage of people who use that sdk then click next.
![Android]()
Step 4

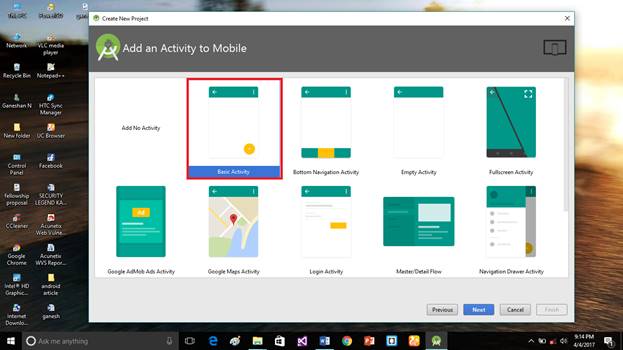

Choose the basic activity then click next
![Android]()
Step 5

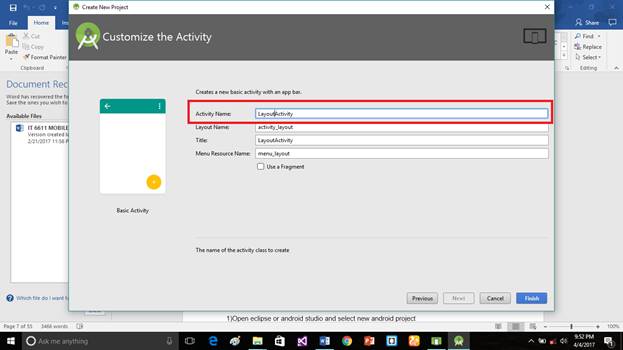

Put the activity name and layout name. Android studio basically takes the java class name from what you provide as the activity name.
![Android]()
Step 6

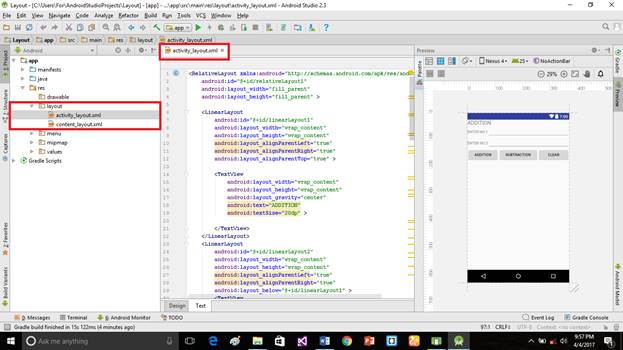

Goto activity_layout.xml then click the text bottom. Into the activity_layout.xml copy and paste the below code.
activity_layout.xml code
- <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
- android:id="@+id/relativeLayout1"
- android:layout_width="fill_parent"
- android:layout_height="fill_parent" >
-
- <LinearLayout
- android:id="@+id/linearLayout1"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_alignParentLeft="true"
- android:layout_alignParentRight="true"
- android:layout_alignParentTop="true" >
-
- <TextView
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_gravity="center"
- android:text="ADDITION"
- android:textSize="20dp" >
-
- </TextView>
- </LinearLayout>
- <LinearLayout
- android:id="@+id/linearLayout2"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_alignParentLeft="true"
- android:layout_alignParentRight="true"
- android:layout_below="@+id/linearLayout1" >
- <TextView
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:text="ENTER NO 1" >
- </TextView>
- <EditText
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_weight="0.20"
- android:id="@+id/edittext1"
- android:inputType="number">
- </EditText>
- </LinearLayout>
- <LinearLayout
- android:id="@+id/linearLayout3"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_alignParentLeft="true"
- android:layout_alignParentRight="true"
- android:layout_below="@+id/linearLayout2" >
- <TextView
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:text="ENTER NO 2" >
- </TextView>
- <EditText
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_weight="0.20"
- android:id="@+id/edittext2"
- android:inputType="number">
- </EditText>
- </LinearLayout>
- <LinearLayout
- android:id="@+id/linearLayout4"
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_alignParentLeft="true"
- android:layout_alignParentRight="true"
- android:layout_below="@+id/linearLayout3" >
-
- <Button
- android:layout_width="wrap_content"
- android:id="@+id/button1"
- android:layout_height="wrap_content"
- android:text="Addition"
- android:layout_weight="0.50" />
-
- <Button
- android:layout_width="wrap_content"
- android:id="@+id/button3"
- android:layout_height="wrap_content"
- android:text="subtraction"
- android:layout_weight="0.50" />
- <Button
- android:layout_width="wrap_content"
- android:id="@+id/button2"
- android:layout_height="wrap_content"
- android:text="CLEAR"
- android:layout_weight="0.50" />
- </LinearLayout>
- <View
- android:layout_height="2px"
- android:layout_width="fill_parent"
- android:layout_below="@+id/linearLayout4"
- android:background="#DDFFDD"/>
- </RelativeLayout>
Step 7

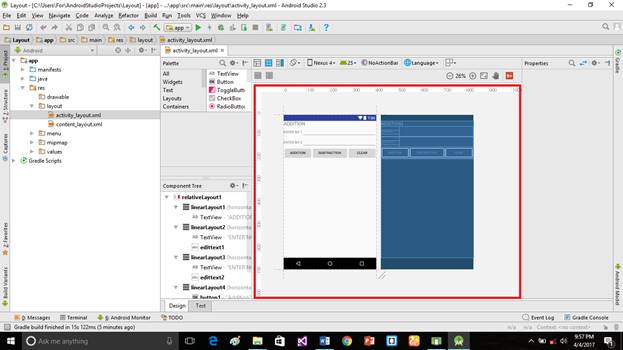

This is our user interface of the application
![Android]()
Step 8

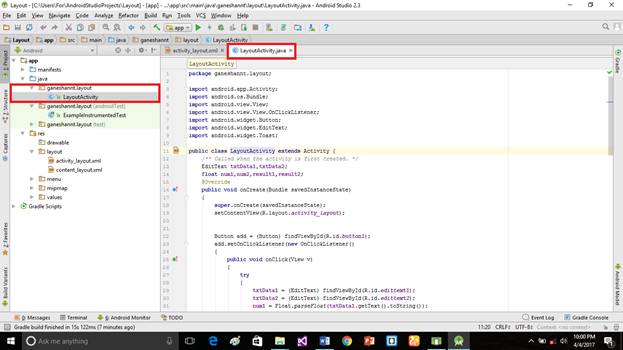

Go to LayoutActivity.java then click the text bottom. Into the LayoutActivity.java copy and paste the below code. Do not replace your package name.
LayoutActivity.java code
- package ganeshannt.layout;
-
- import android.app.Activity;
- import android.os.Bundle;
- import android.view.View;
- import android.view.View.OnClickListener;
- import android.widget.Button;
- import android.widget.EditText;
- import android.widget.Toast;
-
- public class LayoutActivity extends Activity {
-
- EditText txtData1,txtData2;
- float num1,num2,result1,result2;
- @Override
- public void onCreate(Bundle savedInstanceState)
- {
- super.onCreate(savedInstanceState);
- setContentView(R.layout.activity_layout);
-
-
- Button add = (Button) findViewById(R.id.button1);
- add.setOnClickListener(new OnClickListener()
- {
- public void onClick(View v)
- {
- try
- {
- txtData1 = (EditText) findViewById(R.id.edittext1);
- txtData2 = (EditText) findViewById(R.id.edittext2);
- num1 = Float.parseFloat(txtData1.getText().toString());
- num2 = Float.parseFloat(txtData2.getText().toString());
- result1=num1+num2;
- Toast.makeText(getBaseContext(),"ANSWER:"+result1,Toast.LENGTH_SHORT).show();
- }
- catch(Exception e)
- {
- Toast.makeText(getBaseContext(), e.getMessage(),
- Toast.LENGTH_SHORT).show();
- }
- }
- });
- Button sub = (Button) findViewById(R.id.button3);
- sub.setOnClickListener(new OnClickListener()
- {
-
- public void onClick(View v)
- {
- try
- {
- txtData1 = (EditText) findViewById(R.id.edittext1);
- txtData2 = (EditText) findViewById(R.id.edittext2);
- num1 = Float.parseFloat(txtData1.getText().toString());
- num2 = Float.parseFloat(txtData2.getText().toString());
- result2=num1-num2;
- Toast.makeText(getBaseContext(),"ANSWER:"+result2,Toast.LENGTH_SHORT).show();
- }
- catch(Exception e)
- {
- Toast.makeText(getBaseContext(), e.getMessage(),
- Toast.LENGTH_SHORT).show();
- }
- }
- });
-
- Button clear = (Button) findViewById(R.id.button2);
- clear.setOnClickListener(new OnClickListener()
- {
- public void onClick(View v)
- {
- try
- {
- txtData1.setText("");
- txtData2.setText("");
- }
- catch(Exception e)
- {
- Toast.makeText(getBaseContext(), e.getMessage(),
- Toast.LENGTH_SHORT).show();
- }
-
-
- }
- });
-
- }
- }
Step 9

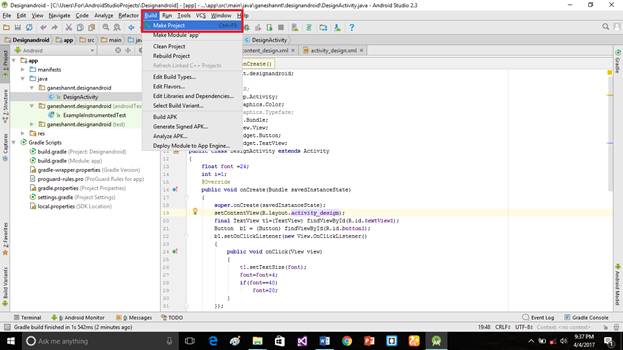

Click the build bottom and make the project. Now your project compilation process is going on. It will show you any error found in your project
![Android]()
Step 10

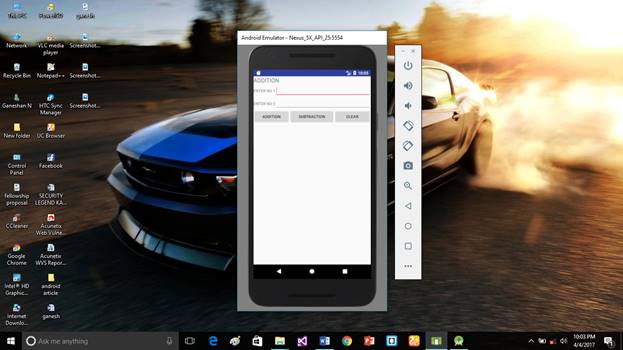

Click run bottom. Your emulator will start then run your application.
![Android]()
Deliverables

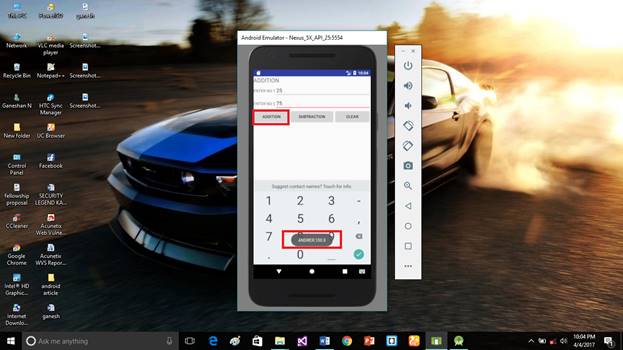

Here we have successfully creates addition application for android using android studio
![Android]()
![Android]()
Don’t forgot to like and follow me. If you have any doubts just comment below.
