ASP.NET - Connect To Azure Cosmos DB

This article will show how to configure and use CosmoDB in an ASP.Net MVC web application. The tasks will be stored as JSON documents in Azure Cosmos DB.

STEP 1 - Make sure you have installed the prerequisites

Without these requisites, the application will not run.

  • Visual Studio 2017
  • CosmoDB configuration on Azure Portal

STEP 2 - Create ASP.NET MVC Web Application

Go to Visual Studio’s File >> New Project menu, expand the Web category, and pick ASP.NET Web Application.

Azure CosmoDB

Select the template as MVC.

Azure CosmoDB

STEP 3 - Create Cosmos DB on Azure Portal

Go to Azure portal and select Database -> Azure Cosmo DB. Fill in the requested data and select the "Create" option.

Azure CosmoDB

After Cosmos DB is created, we can access the keys that will be used in our web app. For that, select your database and in the options panel, select "Keys". All the necessary keys will be created as you can see in the image below.


Azure CosmoDB

STEP 4 - Configure Cosmos DB on WebApp

Add a new NuGet package, "Microsoft.Azure.DocumentDB", to your application.

Azure CosmoDB

Create your MVC.

  • We create a car Model with 3 properties.
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using Newtonsoft.Json;
    6.
    7. namespace WebApp.Models
    8. {
    9.     public class Car
    10.     {
    11.         [JsonProperty(PropertyName = "id")]
    12.         public string Id { get; set; }
    13.
    14.         [JsonProperty(PropertyName = "model")]
    15.         public string Model { get; set; }
    16.
    17.         [JsonProperty(PropertyName = "Year")]
    18.         public string Year { get; set; }
    19.     }
    20. }
  • Add a CarController.
  • And two Views configured like this,

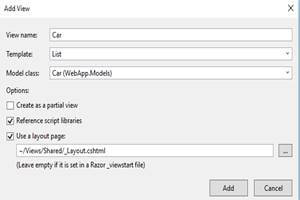

    • List View

      Azure CosmoDB

  • Create View

Like the list view that only needs to change the ViewName and Template associated (in this case), we must use the "Create Template".

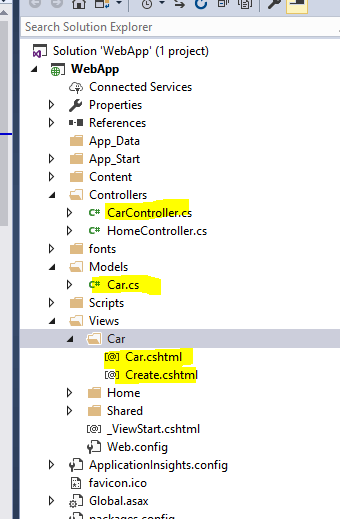

This is the final structure of our solution.

Azure CosmoDB

To run this web app, we need to create a generic repository to connect to Azure Cosmos DB. Check the code below.

C#

  1. using Microsoft.Azure.Documents;
  2. using Microsoft.Azure.Documents.Client;
  3. using Microsoft.Azure.Documents.Linq;
  4. using System.Configuration;
  5. using System.Linq.Expressions;
  6. using System.Threading.Tasks;
  7. using System.Net;
  8. using System;
  9. using System.Collections.Generic;
  10. using System.Linq;
  11.
  12. namespace WebApp
  13. {
  14.     public static class Repository<T> where T : class
  15.     {
  16.         private static readonly string DatabaseId = ConfigurationManager.AppSettings["database"];
  17.         private static readonly string CollectionId = ConfigurationManager.AppSettings["collection"];
  18.         private static DocumentClient client;
  19.
  20.         public static void Initialize()
  21.         {
  22.             client = new DocumentClient(new Uri(ConfigurationManager.AppSettings["endpoint"]), ConfigurationManager.AppSettings["authKey"]);
  23.             CreateDatabaseIfNotExistsAsync().Wait();
  24.             CreateCollectionIfNotExistsAsync().Wait();
  25.         }
  26.
  27.         private static async Task CreateDatabaseIfNotExistsAsync()
  28.         {
  29.             try
  30.             {
  31.                 await client.ReadDatabaseAsync(UriFactory.CreateDatabaseUri(DatabaseId));
  32.             }
  33.             catch (DocumentClientException e)
  34.             {
  35.                 if (e.StatusCode == System.Net.HttpStatusCode.NotFound)
  36.                 {
  37.                     await client.CreateDatabaseAsync(new Database { Id = DatabaseId });
  38.                 }
  39.                 else
  40.                 {
  41.                     throw;
  42.                 }
  43.             }
  44.         }
  45.
  46.         private static async Task CreateCollectionIfNotExistsAsync()
  47.         {
  48.             try
  49.             {
  50.                 await client.ReadDocumentCollectionAsync(UriFactory.CreateDocumentCollectionUri(DatabaseId, CollectionId));
  51.             }
  52.             catch (DocumentClientException e)
  53.             {
  54.                 if (e.StatusCode == System.Net.HttpStatusCode.NotFound)
  55.                 {
  56.                     await client.CreateDocumentCollectionAsync(
  57.                         UriFactory.CreateDatabaseUri(DatabaseId),
  58.                         new DocumentCollection { Id = CollectionId },
  59.                         new RequestOptions { OfferThroughput = 1000 });
  60.                 }
  61.                 else
  62.                 {
  63.                     throw;
  64.                 }
  65.             }
  66.         }
  67.
  68.         public static async Task<IEnumerable<T>> GetItemsAsync()
  69.         {
  70.             IDocumentQuery<T> query = client.CreateDocumentQuery<T>(
  71.                 UriFactory.CreateDocumentCollectionUri(DatabaseId, CollectionId))
  72.                 .AsDocumentQuery();
  73.
  74.             List<T> results = new List<T>();
  75.             while (query.HasMoreResults)
  76.             {
  77.                 results.AddRange(await query.ExecuteNextAsync<T>());
  78.             }
  79.
  80.             return results;
  81.         }
  82.
  83.         public static async Task<Document> CreateItemAsync(T item)
  84.         {
  85.             return await client.CreateDocumentAsync(UriFactory.CreateDocumentCollectionUri(DatabaseId, CollectionId), item);
  86.         }
  87.     }
  88. }

For more information, please visit the official link from Microsoft.

STEP 5 - Results

You can now access  your Cosmos DB on Azure portal and check the data created. As you can see, all the data is in JSON format.

Azure CosmoDB
Azure CosmoDB
