Communication Between Fragments In Android

Here I will explain the communication between fragments in Android. The following is a brief description of the  task that I am going to show you.



I have an Activity with two fragments, lets name that fragments to FragmentA and Fragment B. FragmentA contains a Button and FragmentB contains a textview.

Each time the user click on the Button of FragmentA then the textview in the FragmentB will updates its text like "this button is clicked <counter> times".

This is the task I am going to show you.



For this first create FragmentA and its Layout,

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:background="@android:color/darker_gray" android:layout_height="match_parent">
    <Button android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Click Me" android:layout_margin="20dp" android:id="@+id/button" android:layout_gravity="center_horizontal" />
</LinearLayout>

The FragmentA contains a Button and in the java code please load the xml file in onCreateView();


Now create FragmentB and its Layout,

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:background="@android:color/white" android:layout_height="match_parent">
    <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_margin="20dp" android:textAppearance="?android:attr/textAppearanceLarge" android:text="Large Text" android:id="@+id/textView" android:layout_gravity="center_horizontal" />
</LinearLayout>

FragmentB contains a Textview only. load this layout to FragmetB class on the onCreateView()



Now create the main part of the task that is communicator  Interface.

public interface Communicator
{
    public void clicked(String text);
}

Now create the MainActivity that implement Communicator Interface,

public class MainActivity extends Activity implements Communicator
{
    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
    @Override
    public void clicked(String text)
    {
        FragmentB b = (FragmentB) getFragmentManager().findFragmentById(R.id.fragment2);
        b.chageText(text);
    }
}

The clicked method will call another method named changeText(String) in Fragment B. Now we need to notify the communicator Interface when Button in FragmentA is clicked and create a method chageText(String) in FragmentB.



Now create Button Click Event in FragmentA. This is how the FragmentA will looks like,

public class FragmentA extends Fragment
{
    private int counter = 0;
    private Communicator comm = null;
    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState)
    {
        return inflater.inflate(R.layout.fragment_a, container, false);
    }
    @Override
    public void onActivityCreated(Bundle savedInstanceState)
    {
        super.onActivityCreated(savedInstanceState);
        Button button = (Button) getActivity().findViewById(R.id.button);
        comm = (Communicator) getActivity();
        button.setOnClickListener(new View.OnClickListener()
        {
            @Override
            public void onClick(View view)
            {
                counter++;
                comm.clicked("This button is clicked " + counter + " times");
            }
        });
    }
}

On the onActivityCreated() we are initialising the communicator with the FragmentA, and in the button click we are firing the interface method()



Now Create the FragmentB,

public class FragmentB extends Fragment
{
    private TextView textView = null;
    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState)
    {
        return inflater.inflate(R.layout.fragment_b, container, false);
    }
    @Override
    public void onActivityCreated(Bundle savedInstanceState)
    {
        super.onActivityCreated(savedInstanceState);
        textView = (TextView) getActivity().findViewById(R.id.textView);
    }
    public void chageText(String data)
    {
        textView.setText(data);
    }
}

There will be a method named chageText to change the content of textView in FragmentB. This is the way in which the fragments communicate in Android.

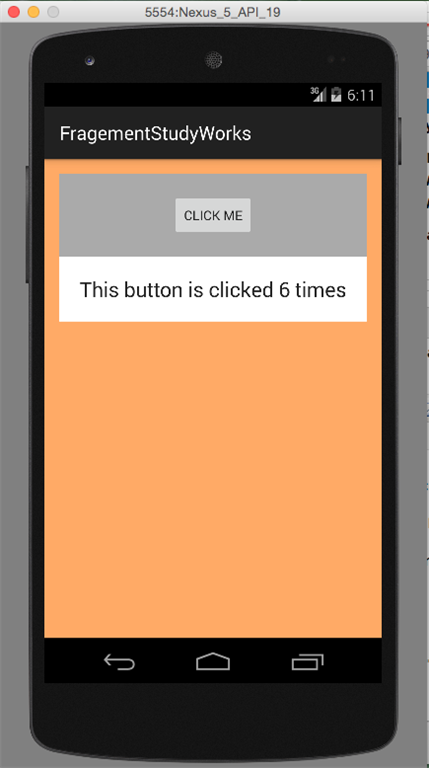

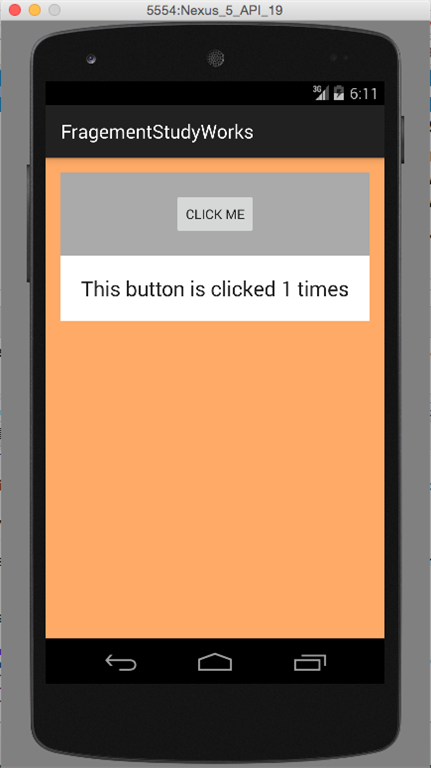

The out put will looks as follows,
