Configure Hybrid OneDrive For Business In SharePoint Server 2016

OneDrive for business is the document library, which is available within My Sites in SharePoint Server 2016, so as to centrally store the documents for sharing and for collaboration. Thus OneDrive provides a central repository for the document collaboration.

collaboration

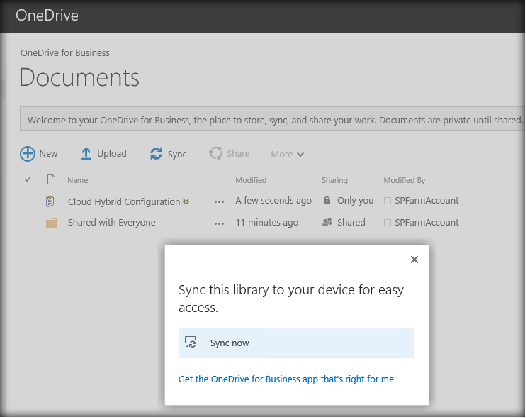

If we click on the OneDrive option in the Navigation Bar, it will take us to the OneDrive location within My Sites.

collaboration

However as a part of Hybrid Features in SharePoint Server 2016, we can redirect the users to OneDrive for business in Office 365 when they click OneDrive on SharePoint 2016 navigation bar.

collaboration

In this article, we will see how to set up hybrid OneDrive for business in Office 365.

Before setting up hybrid OneDrive for SharePoint Server 2016, we have to ensure the following.

  • Office 365 environment is configured for Hybrid setup.
  • Ensure that the required Services are up and running in SharePoint Server.

Office 365 Prerequisite Configurations

The configuration that has to be done in Office 365 side is already covered in some of the previous articles, as shown below.

SharePoint Server 2016 Prerequisite Configurations

As a part of setting up the prerequisites in SharePoint Server 2016, we will have to ensure the successful provisioning of the following.

  • Managed Metadata Service Application
  • User Profile Service Application
  • My Sites
  • App Management Service Application
  • Subscription Setting Service
  • Setup Synchronization connection with Active Directory Services

We will cover the SharePoint Side Configurations in this article.

Managed Metadata Service Application

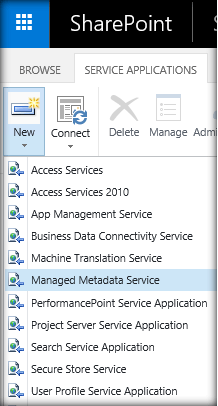

As the first step to configure the SharePoint Server 2016 environment, we have to create the managed metadata Service Application from the Manage Service Applications page.

collaboration

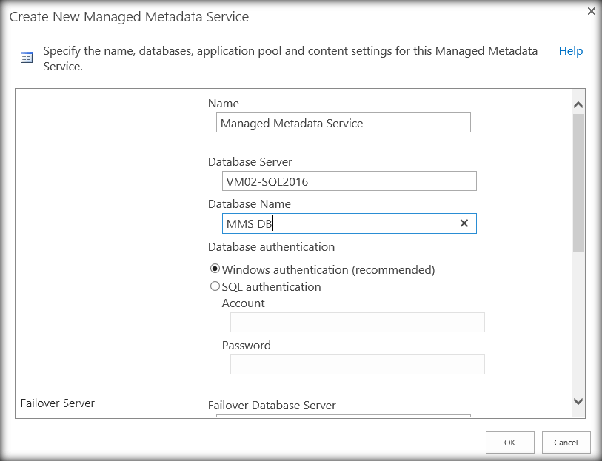

Enter the Service Application name, Database Server, Database name and Application Pop, which will be used with the Service Application.

collaboration

Clicking OK will start provisioning the Managed Metadata Service Application.

collaboration

Setting up My Sites

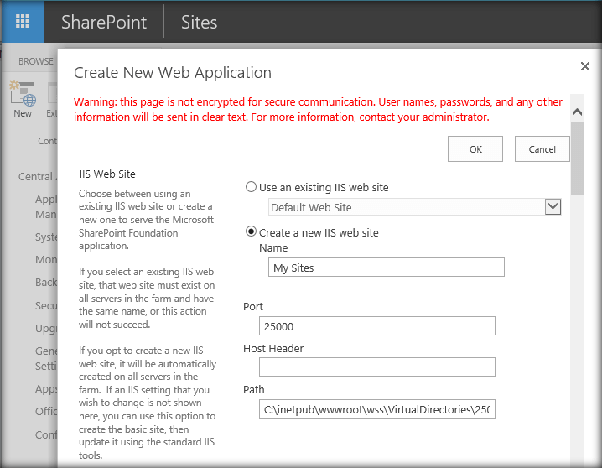

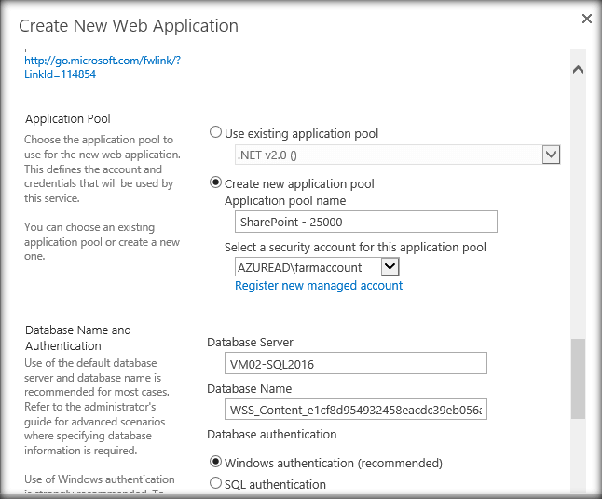

In order to set up My sites we can create a new web application that will host the sites. It can either use a separate application pool or use a stand-alone one. There are no extra settings that have to be done during the web application creation. The default settings are good enough. From the web application creation page, create a new web application. Provide the IIS Site name, Port number, Application Pool, Database server and Database name.

collaboration

collaboration

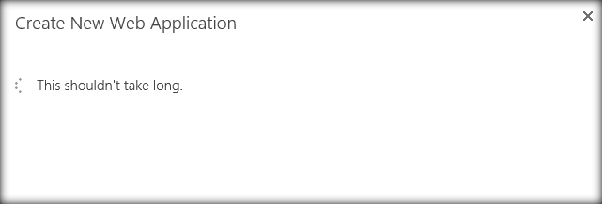

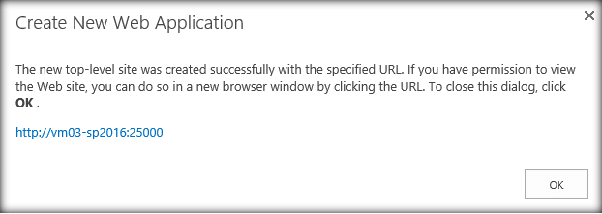

Click OK. This will start provisioning the Web Application.

collaboration

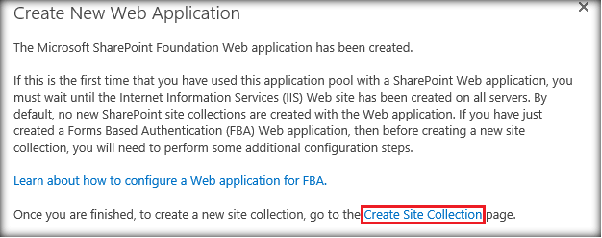

Once the Web Application is created, click ‘Create Site Collection’ option.

collaboration

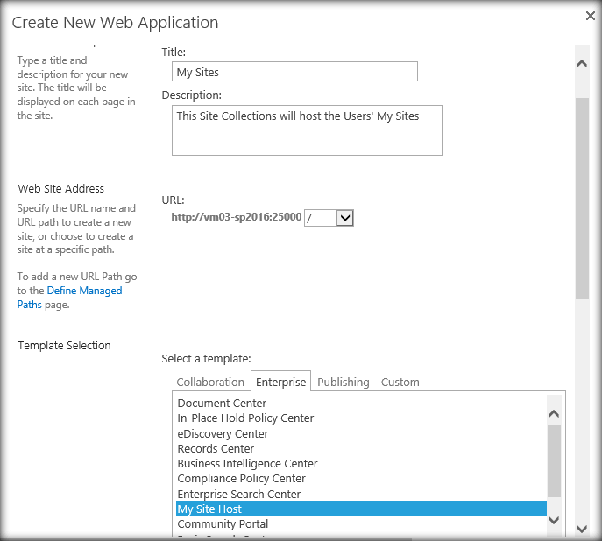

This will provide the option to create the site collection that will hold My Sites. Specify the site collection name and select the template “My Site Host” from Enterprise tab.

collaboration

This will complete the creation of the My Site, Site collection at http://vm03-sp2016:25000/

collaboration

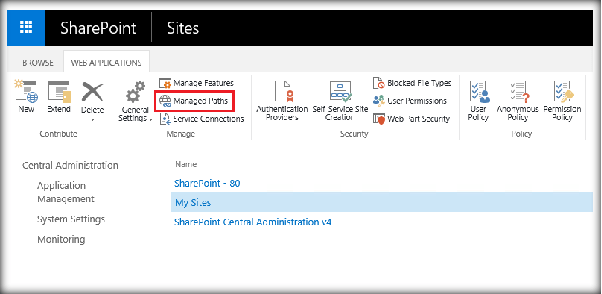

Once you have My Site Web Application and Site collection in place, ensure that you create a managed path for the sites. In order to do it, head over to the Web Application, which was created recently and select Managed Paths.

collaboration

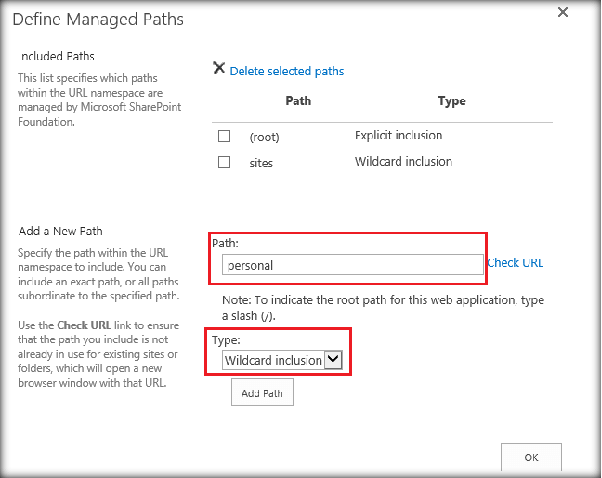

Add the managed path personal in the text box and select Wild card inclusion from the type drop-down. Click OK. This will create a managed path in the Web Application under which all My Sites will be created in the future.

collaboration

Setting up User Profile Service Application

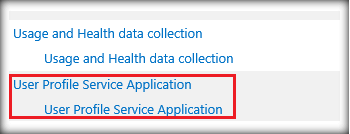

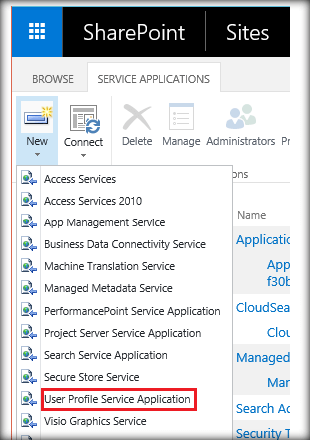

We can provision the user profile Service Application from the Manage Service Applications Page.

collaboration

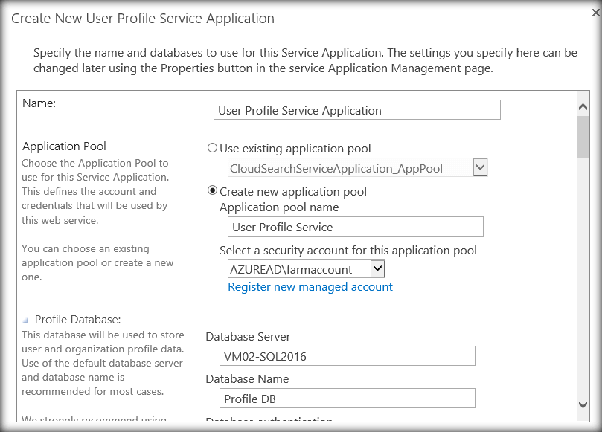

Once the User Profile Service Application is selected, it will provide the page, where we can specify the Service Application Name, Application Pool, Application Pool Account, Database Server and Database Name.

collaboration

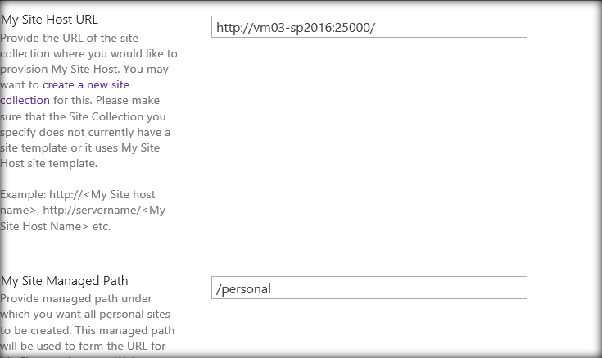

Specify My Site Host URL, which was created earlier and leave My Site Managed Path as /Personal. This is the managed path, which we had created in the earlier step.

collaboration

Click OK. This will complete the provisioning of the user Profile Service Application.

collaboration

App Management Service Application

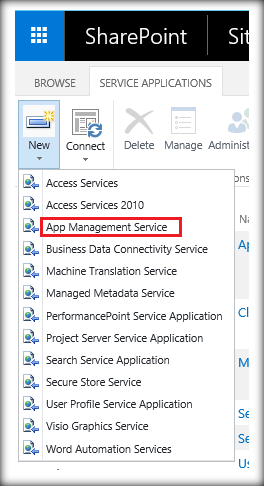

The next Service Application, which has to be set up is the app management Service Application. Head over to the Manage Service Applications page and from the New drop-down, select app management Service.

collaboration

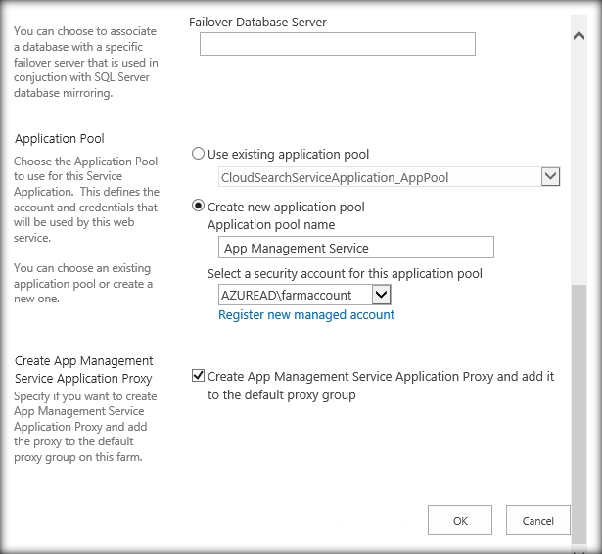

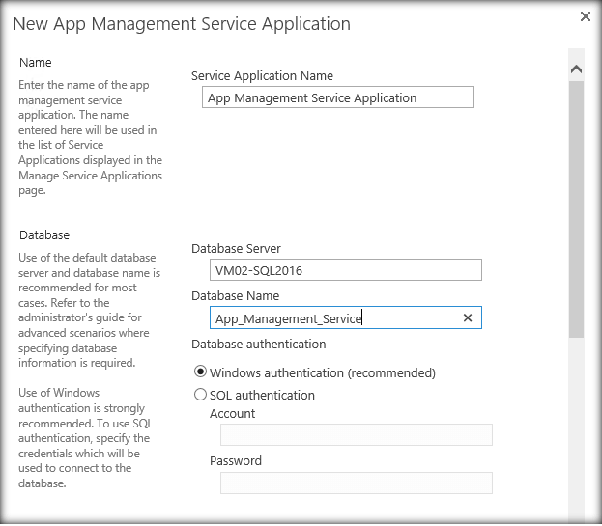

This will open up the page, where we can specify the app management Service Application Name, Database server, Database Name, Application Pool and the Application Pool account.

collaboration

collaboration

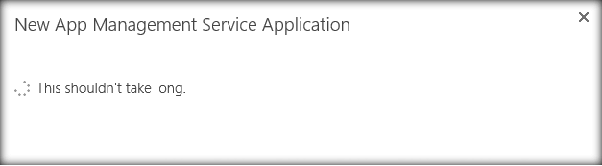

Click OK to start the provisioning of the Service Application.

collaboration

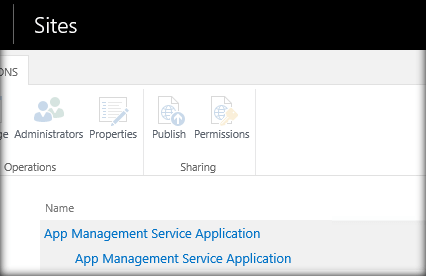

This will create the app management Service Application.



Subscription Settings Service Application

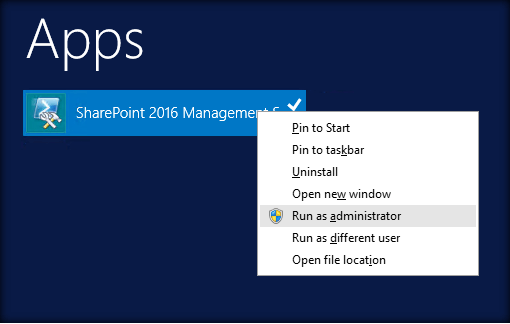

The last Service Application, which has to be created is the Subscription Settings Service Application. This cannot be created directly from the central administration and has to be provisioned, using PowerShell. To do it, spin up SharePoint 2016 Management Shell as an Administrator.

collaboration

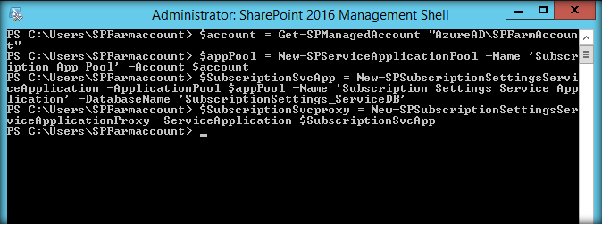

Ensure that you have a managed account in place. Run the commands, mentioned below to provision the Subscription settings Service Application.

  1. $account = Get - SPManagedAccount "AzureAD\SPFarmAccount"
  2. $appPool = New - SPServiceApplicationPool - Name 'Subscription App Pool' - Account $account
  3. $SubscriptionSvcApp = New - SPSubscriptionSettingsServiceApplication - ApplicationPool $appPool - Name 'Subscription Settings Service Application' - DatabaseName 'SubscriptionSettings_ServiceDB'
  4. $SubscriptionSvcproxy = New - SPSubscriptionSettingsServiceApplicationProxy - ServiceApplication $SubscriptionSvcApp // This is just a sample script. Paste your real code (javascript or HTML) here.
  5.
  6. if ('this_is' == /an_example/) {
  7.     of_beautifier();
  8. else {
  9.     var a = b ? (c % d) : e[f];
  10. }
collaboration

This will provision the Subscription Settings Service Application.

collaboration

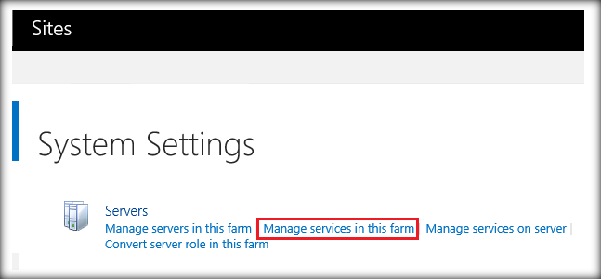

Now, we have to enable the Subscription Settings Service. From System Settings, select Manage Services in this farm.

collaboration

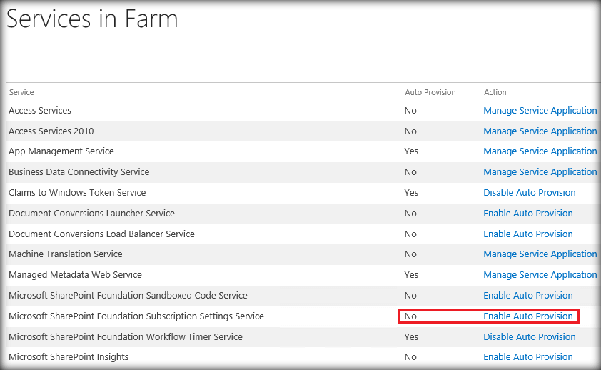

This will list all the Services available within the farm. By default, Microsoft SharePoint Foundation Subscription Settings Service is disabled in the farm. Change it to Yes to provision the Service.

collaboration

Configure Synchronization Connection

In order to set up hybrid OneDrive, we have to create a synchronization connection with Active Directory Domain Services for the User Profile Service Application. In order to do it, head over to the Manage User Profile Service Application and select Configure Synchronization Connections option.

collaboration

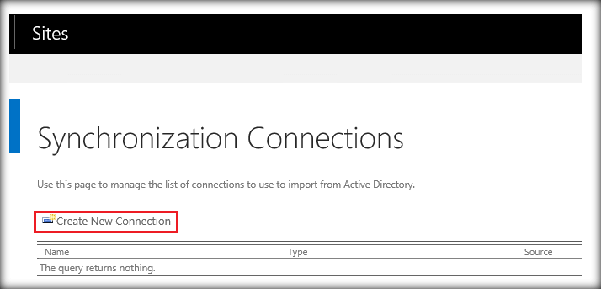

Click Create New Connection to set up a new Synchronization Connection.

collaboration

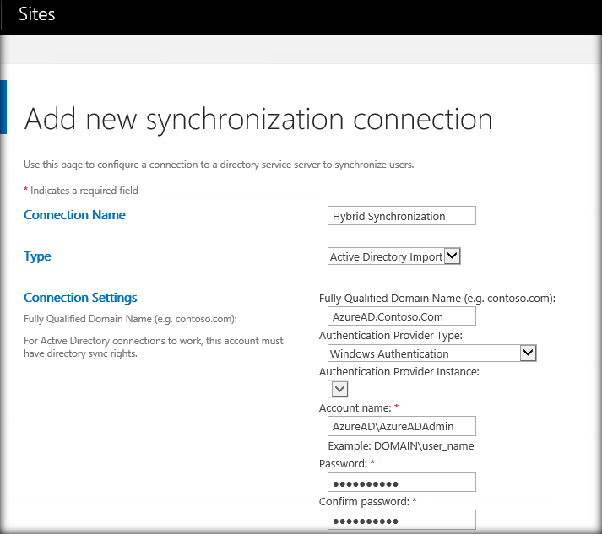

Specify the connection name and select the type as Active Directory Import. Mention the connection string, which will be the Full Qualified Domain Name. Leave the Authentication Provider Type as Windows Authentication. Account Name and Password have to be the credentials of the Domain Administrator.

collaboration

collaboration

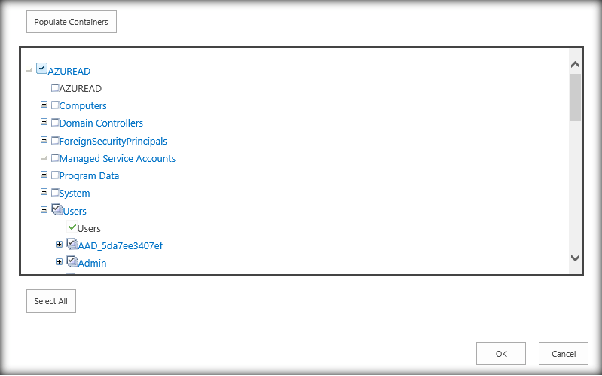

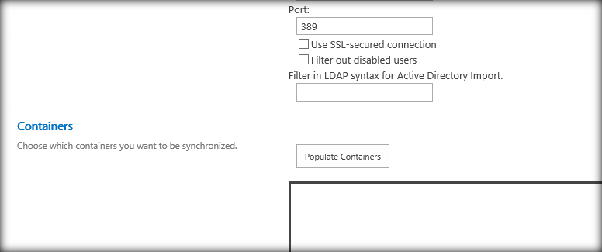

Click Populate Containers. This will populate the Domain Objects. Select the Users node and click OK.

collaboration

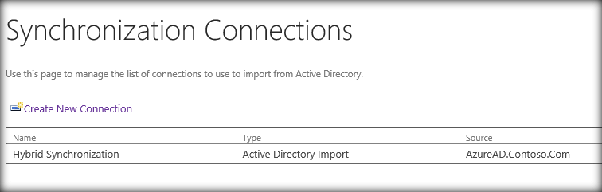

This will complete the setting up of the Synchronization connection.

Verify the User Properties before running Synchronization

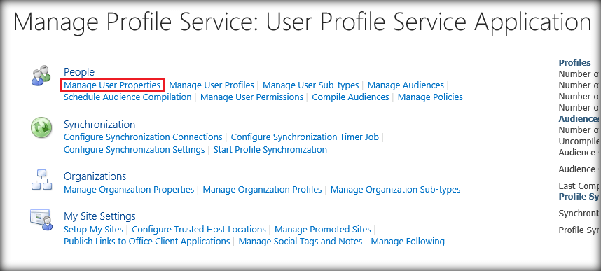

Now, let’s head over to the Manage user Properties option from the People tab. We have to verify the User Profile Properties before running the synchronization connection.

collaboration

collaboration

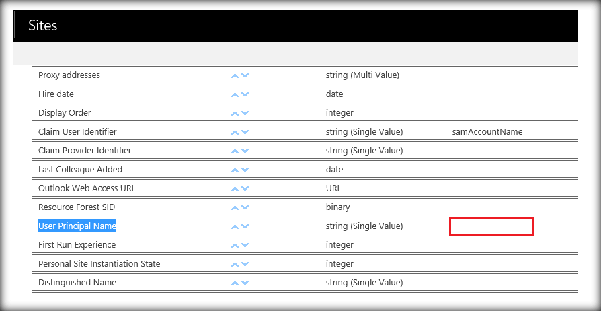

We will check for User Principal Name and Work Email. User Profile Name should be mapped to userPrincipalName and Work Email should be mapped to the mail. However, the mapping property is blank, as shown below.

collaboration

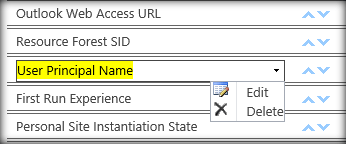

Thus, let’s add the mapping for User Principal Name. Select Edit.

collaboration

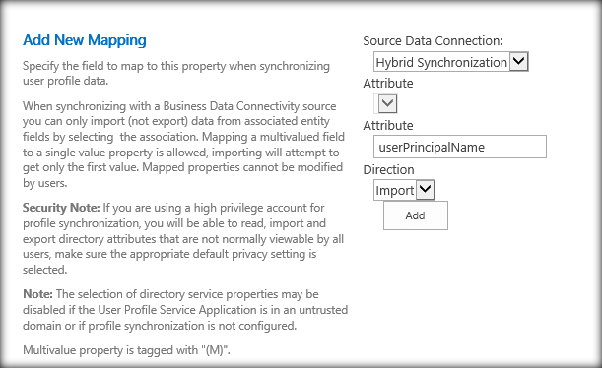

In the attribute text box, specify the mapping “userPrincipalName” and click Add.

collaboration

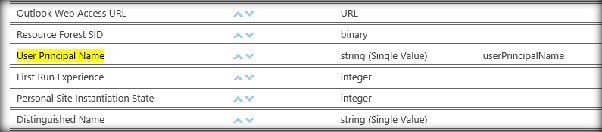

The new mapping has come up in the page.

collaboration

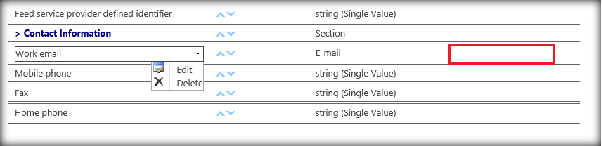

Similarly the Work Email mapping is missing. Thus, edit the property as well.

collaboration

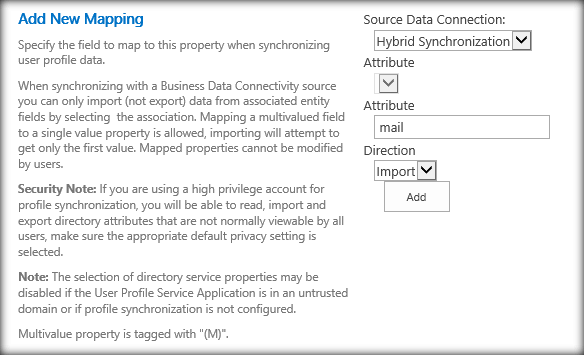

Add the mapping mail in the attribute text box and click Add.

collaboration

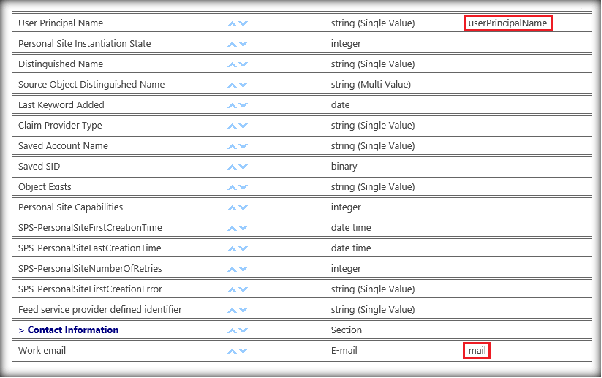

Thus, we can see both the properties, which have been mapped.

collaboration

Start Profile Synchronization

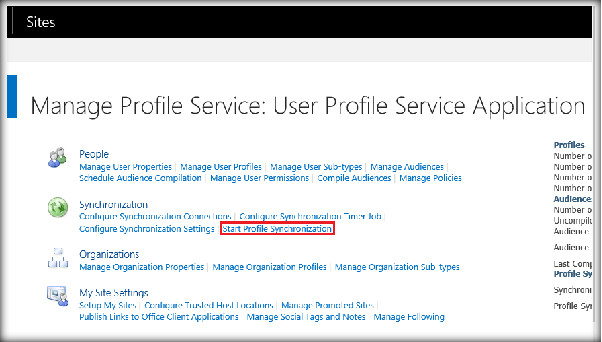

The user profile property mappings have been verified. Now, we have to synchronize the UPN domain suffix and E-mail address, which we configured in Active Directory Domain Services. In order to do it, select Start Profile Synchronization option from the Synchronization tab.

collaboration

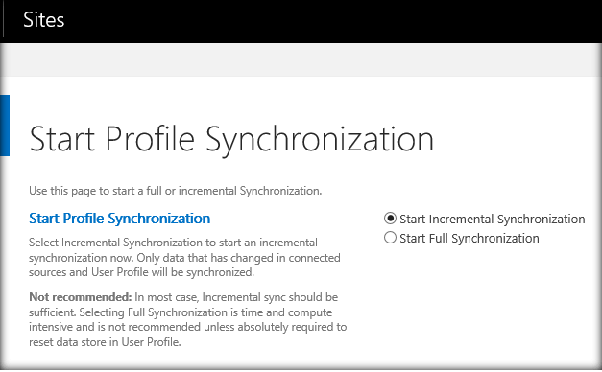

Select “Start Incremental Synchronization” and click OK.

collaboration

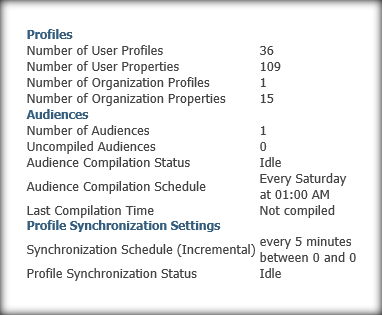

To the right of the Manage Profile Service Page, you can see the Synchronization Settings summary.

collaboration

Setup User Permissions to access One Drive for Business

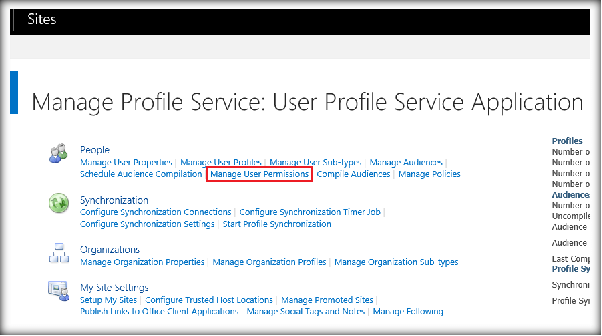

In order to use OneDrive for business in Office 365, the users of the SharePoint Site must be having “Create Personal Site” and “Follow People and Edit Profile” permissions. Both are controlled by the user permissions in the User Profile Service Application. Thus, let’s head over to the Manage User Permissions section in the People tab and grant the required access.

collaboration

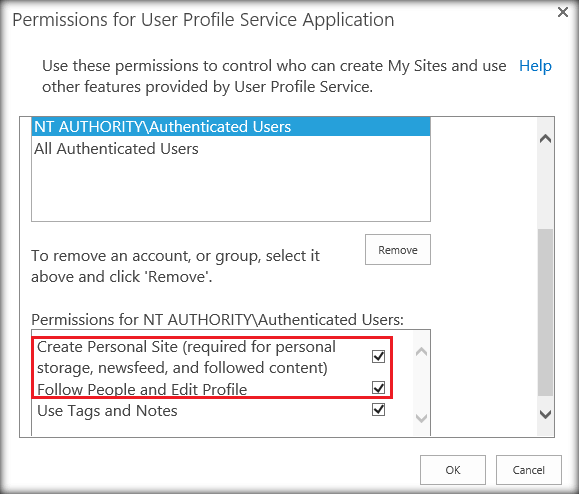

Select the permissions, mentioned below for the authenticated users and click OK.

collaboration

Get Office 365 My Site

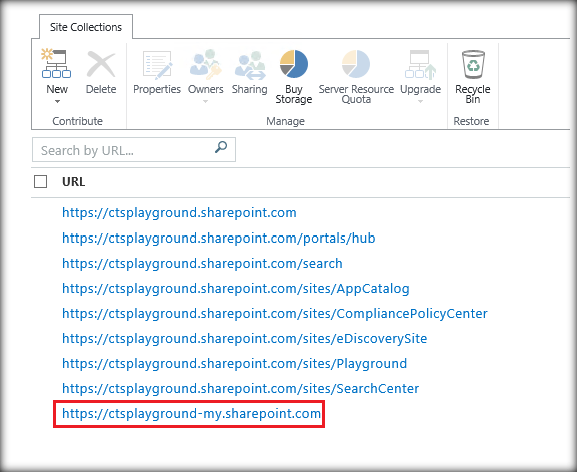

Before configuring OneDrive for business link, we have to get the URL for My Sites site collection in SharePoint Online, so as to find the My Sites URL in Office 365, click SharePoint from the Admin Menu. In the Site Collections list, get the site collection URL, which contains <domain>-my.sharepoint.com.

collaboration

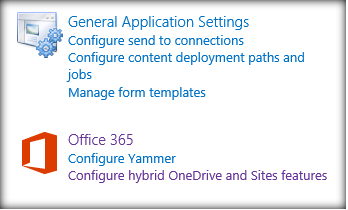

In my case, it is https://ctsplayground-my.sharepoint.com. As the final step, let’s head over to Office 365 tab in central administration and select “Configure hybrid OneDrive and Site features”.

collaboration

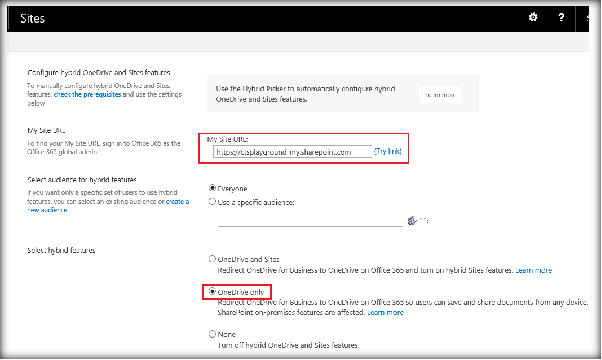

Enter SharePoint Online My Site URL in the My Site URL section. Select the radio button “One Drive Only” in the Hybrid features section.

collaboration

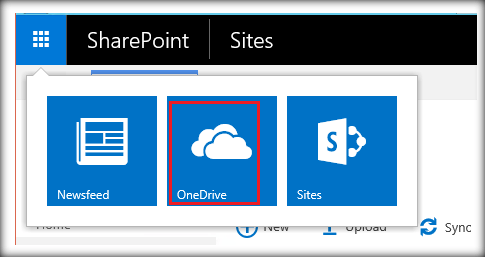

Let’s test the One Drive for business, which is redirected by clicking on OneDrive link.

collaboration

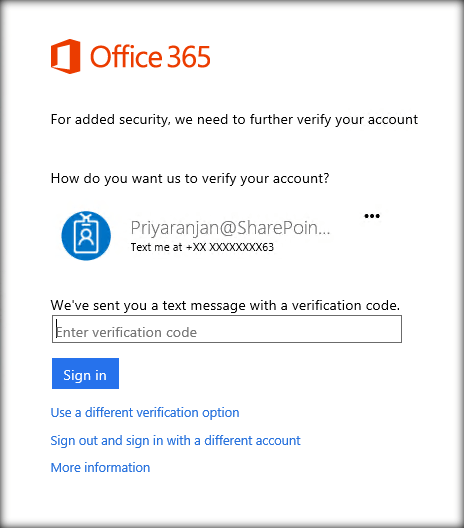

This will take us to Office 365 login page.

collaboration

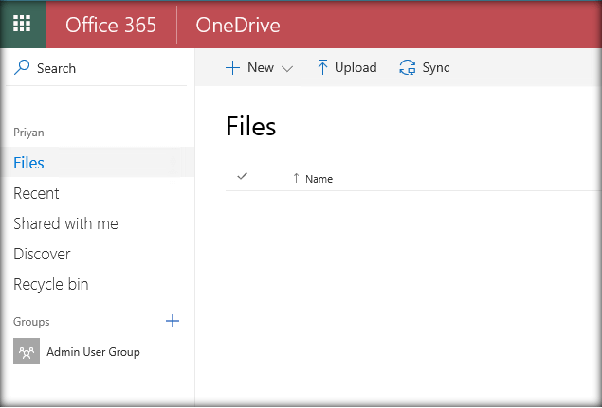

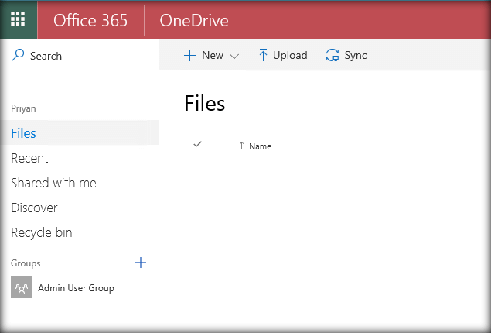

Once authenticated, we can work on Office 365 OneDrive.

collaboration

References https://technet.microsoft.com/en-us/library/mt147425(v=office.16).aspx

Summary

Thus, we have successfully set up OneDrive for business in Office 365 Redirection from SharePoint Server 2016.
