Design Of Android Using Android Studio

Introduction

In the current scenario, most people use Android smartphones. I will show you how to change GUI components in an Android, using  Android Studio. Android is the kernel based operating system. It allows the user to modify GUI components and the source code.

Requirements

• Android Studio
• Little bit XML and JAVA knowledge.
• Download link (Android Studio).

Steps to be followed are given below.

Carefully follow the steps given below to learn how to change GUI components in an Android and I have included the source code given below.

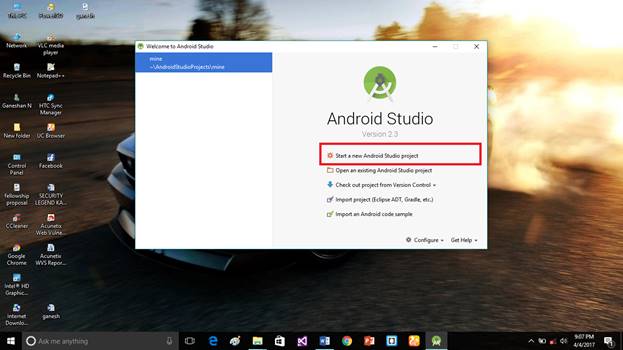

Step 1

Open Android Studio. Start the new project.

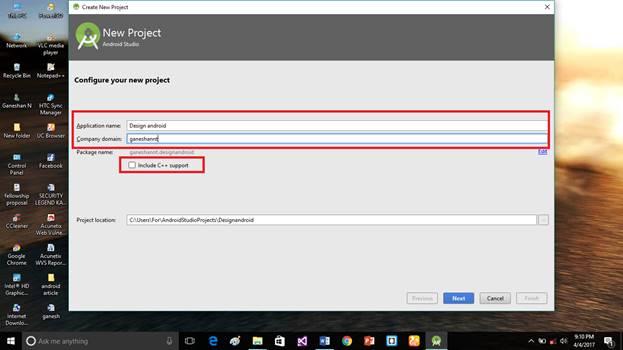

Step 2

Put the Application name and company domain. If you wish to use C++ to code the project, mark the Include C++ support, followed by clicking Next.

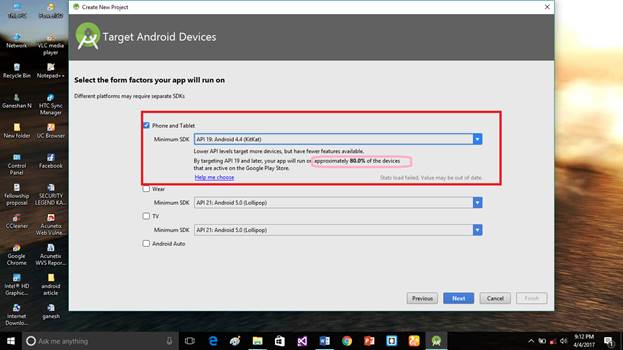

Step 3

Select Android minimum SDK. Afterwards, you chose the minimum SDK and it will show the approximate percentage of people who use SDK , followed by clicking Next.

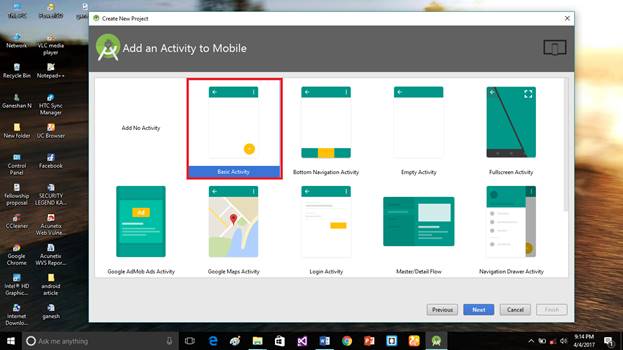

Step 4

Choose the basic activity, followed by clicking Next.

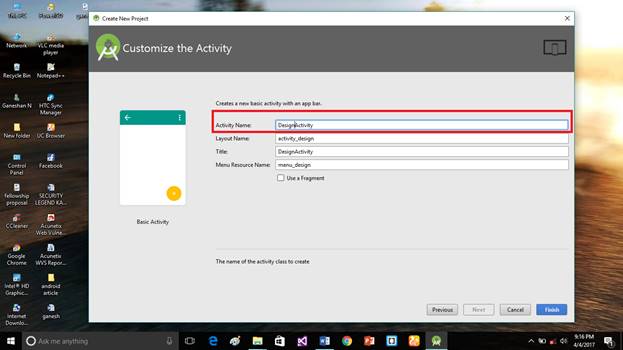

Step 5

Put the activity name and layout name. Android Studio basically takes Java class name from what you provide as the activity name.

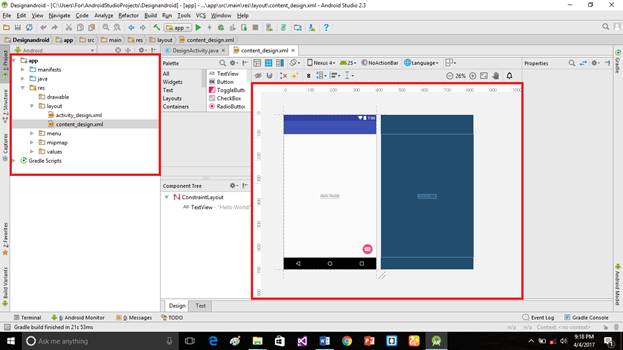

Step 6

This is the default activity design for the basic activity layout.

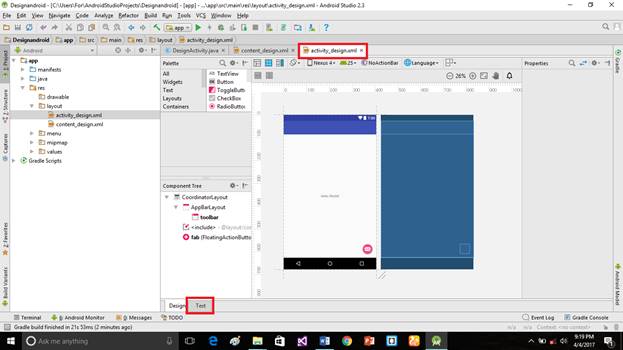

Step 7

Go to activity_design.xml then click the text bottom.

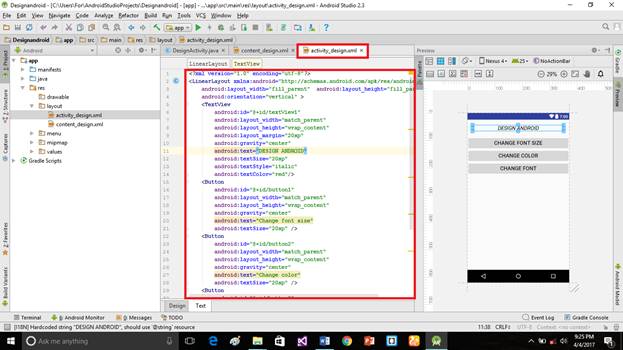

Step 8

Into the activity_design.xml, copy and paste the code given below.

activity_design.xml code

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"  android:layout_height="fill_parent"
    android:orientation="vertical" >
    <TextView
        android:id="@+id/textView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20sp"
        android:gravity="center"
        android:text="DESIGN ANDROID"
        android:textSize="20sp"
        android:textStyle="italic" ></TextView>
    <Button
        android:id="@+id/button1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="Change font size"
        android:textSize="20sp" />
    <Button
        android:id="@+id/button2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="Change color"
        android:textSize="20sp" />
    <Button
        android:id="@+id/button3"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:text="Change font"
        android:textSize="20sp" />
</LinearLayout>

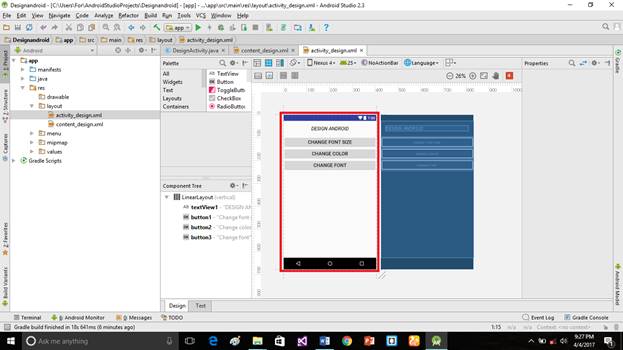

Step 9

This is our user interface of the Application

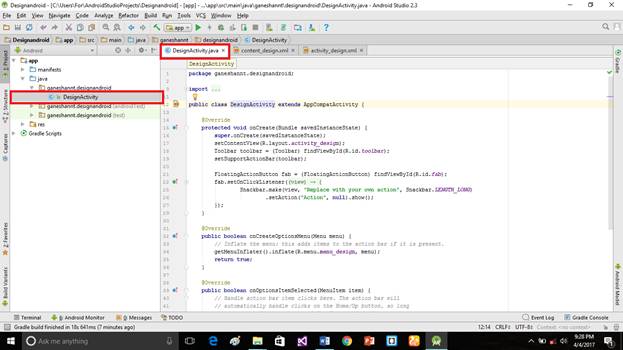

Step 10

Into the DesignActivity.java, copy and paste the code given below. Do not replace your package name.

DesignActivity.java code

package ganeshannt.designandroid;

//import android.R;
import android.app.Activity;
import android.graphics.Color;
import android.graphics.Typeface;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
public class DesignActivity extends Activity
{
    float font =24;
    int i=1;
    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_design);
        final TextView t1=(TextView) findViewById(R.id.textView1);
        Button  b1 = (Button) findViewById(R.id.button1);
        b1.setOnClickListener(new View.OnClickListener()
        {
            public void onClick(View view)
            {
                t1.setTextSize(font);
                font=font+4;
                if(font==40)
                    font=20;
            }
        });
        Button  b2 = (Button) findViewById(R.id.button2);
        b2.setOnClickListener(new View.OnClickListener()
        {
            public void onClick(View view)
            {
                switch(i)
                {
                    case 1:
                        t1.setTextColor(Color.parseColor("#0000FF"));
                        break;
                    case 2:
                        t1.setTextColor(Color.parseColor("#00FF00"));
                        break;
                    case 3:
                        t1.setTextColor(Color.parseColor("#FF0000"));
                        break;
                    case 4:
                        t1.setTextColor(Color.parseColor("#800000"));
                        break;
                }
                i++;
                if(i==5)
                    i=1;
            }
        });
    }
}

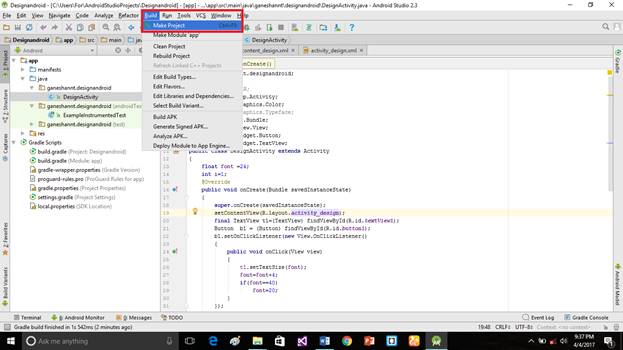

Step 11

Click Build bottom and make the project. Now, your project compilation process is going on. Any error found in your project will be shown to you.

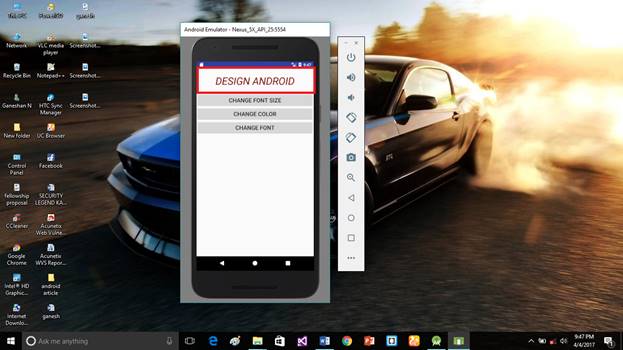

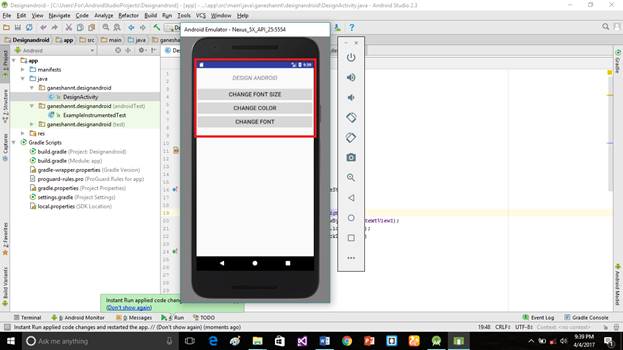

Step 12

Click run botton. Your emulator will start, followed by running your Application.

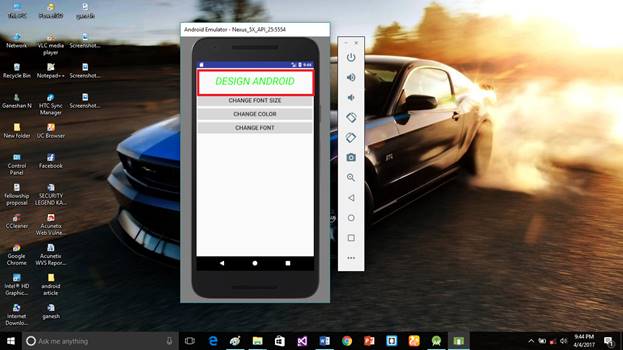

Deliverables

Proceed as shown.

If you have any doubts, just comment below.
