Display Data In A DataGridView C# 6

This article is based on the original article that was previously written using an older version of Visual Studio. You can find the original article on the below link:

• Display data in a Data Grid

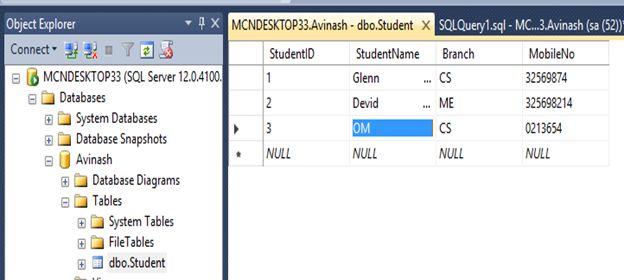

Step 1: Make a database with table in SQL Server.


Figure 1

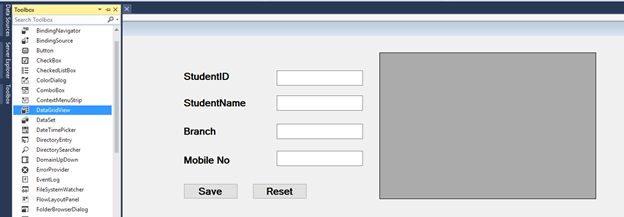

Step 2: Create a Windows Application and add DataGridView on the Form. Now Add a DataGridView control to the form by selecting it from Toolbox and set properties according to your needs.

Figure 2

Adding Source Code for GridView

Now you can add this few lines of code anywhere you want to load the data from the database. It may be a mouse button click or the Form load event handler.

private void Form1_Load(object sender, EventArgs e)
{
  SqlDataAdapter da = new SqlDataAdapter("SELECT * FROM Student", "server = MCNDESKTOP33;   database = Avinash; UID = sa; password = *******");
  DataSet ds = new DataSet();
  da.Fill(ds, "Student");
  dataGridView1.DataSource = ds.Tables["Student"].DefaultView;
}

Step 3: Code for the Save and Reset button

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Data.SqlClient;

namespace WindowsFormsDataGrid
{

public partial class Form1 : Form
{

public Form1()
{
InitializeComponent();
}

private void Form1_Load(object sender, EventArgs e)
{
SqlDataAdapter da = new SqlDataAdapter("SELECT * FROM Student", "server = MCNDESKTOP33; database = Avinash; UID = sa; password = *******");
DataSet ds = new DataSet();
da.Fill(ds, "Student");
dataGridView1.DataSource = ds.Tables["Student"].DefaultView;
}

private void button1_Click(object sender, EventArgs e)
{
SqlConnection con = new SqlConnection("server = MCNDESKTOP33; database = Avinash; UID = sa; password = *******");
con.Open();
string qur = "INSERT INTO Student VALUES ('" + textBox1.Text + "','" + textBox2.Text + "','"+textBox3.Text+"','"+textBox4.Text+"')";

SqlCommand cmd = new SqlCommand(qur, con);
cmd.ExecuteNonQuery();
con.Close();
MessageBox.Show("Inserted sucessfully");
textBox1.Text = "";
textBox2.Text = "";
textBox3.Text = "";
textBox4.Text = "";
}

private void button2_Click(object sender, EventArgs e)
{
textBox1.Text = "";
textBox2.Text = "";
textBox3.Text = "";
textBox4.Text = "";

}
}
}

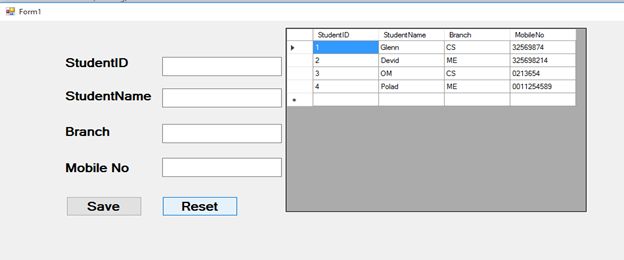

Output: The contents of DataGridView look as in the below figure.

Figure 3

How to Run

Add using System.Data.SqlClient; namespace in your project.

Change the database path in this string. "server = MCNDESKTOP33; database = Avinash; UID = sa; password = *******"
Run the application.
